Product Overview

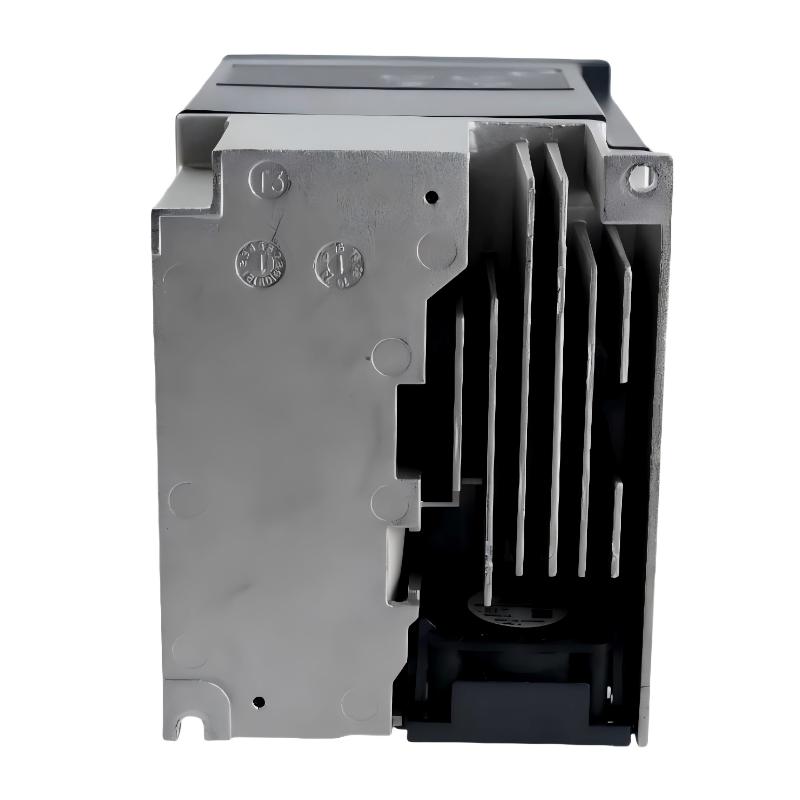

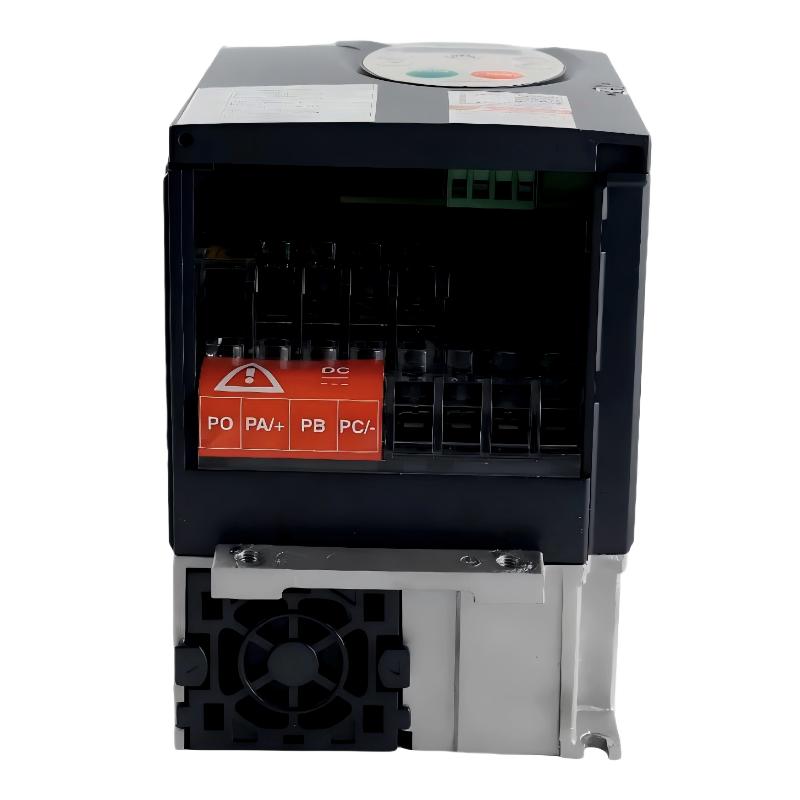

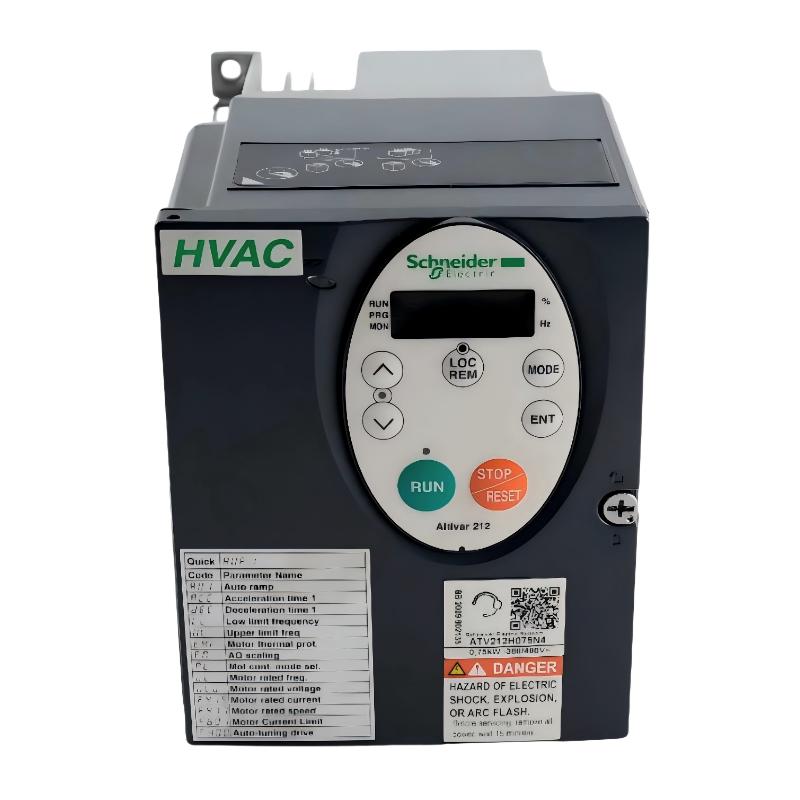

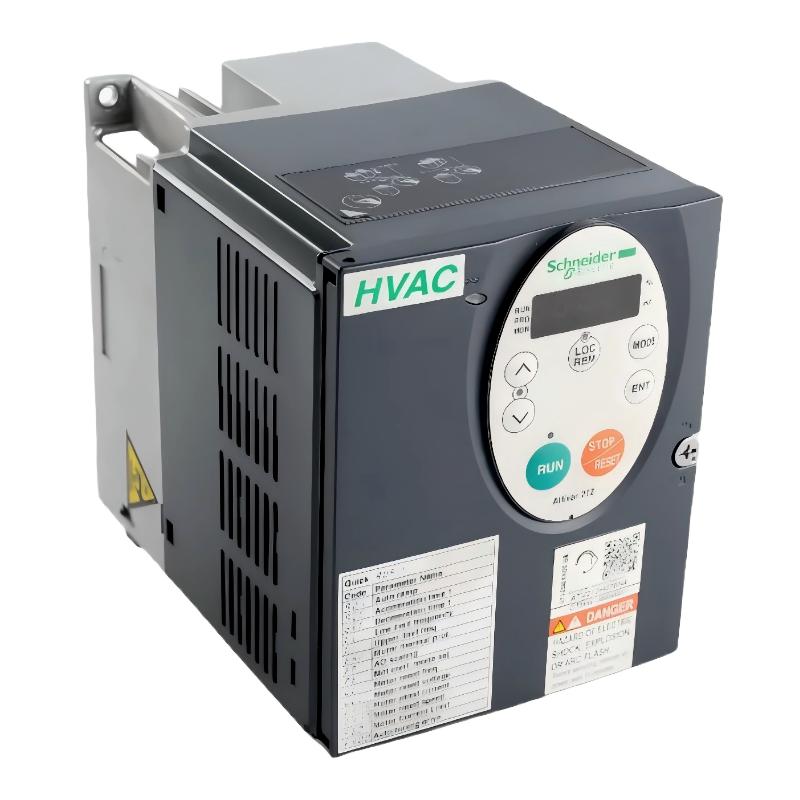

Efficient motor control is essential in modern industrial automation. The Schneider ATV212H075N4 Frequency Converter provides precise speed and torque control for three-phase motors, enabling energy savings, improved process control, and extended equipment life.
Designed for high reliability and compact installation, this frequency converter is ideal for a variety of industrial applications, from pumps and fans to conveyors and compressors. Its robust design ensures stable operation in demanding environments while optimizing motor performance and reducing operational costs.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV212H075N4 |
| Product Type | Frequency Converter |
| Function | Motor speed and torque control |
| Motor Power | 0.75 kW |
| Output Voltage | 3-phase 200–240 V AC |
| Dimensions | 150 × 107 × 143 mm |
| Weight | 2 kg |
| Mounting Type | Panel / Wall Mountable |
| Input Voltage Range | 200–240 V AC |
| Output Frequency | 0–500 Hz |
| Control Type | V/f control |
| Operating Temperature | -10°C to 50°C |
| Environment | Industrial-grade |
| Application | Motor control, automation systems |
Function and Working Principle
The ATV212H075N4 operates by converting AC input voltage into a variable frequency output to control motor speed and torque. Its key functions include:
- Smoothly adjusting motor speed for energy efficiency and process optimization
- Controlling motor torque to protect equipment and ensure precise operation
- Providing dynamic braking and soft-start functions to reduce mechanical stress
- Compact and modular design for flexible panel or wall installation
By regulating frequency and voltage, the converter ensures stable motor operation, reduces energy consumption, and enhances the overall reliability of industrial systems.
Role in Industrial Control Systems
This frequency converter is a critical component in industrial automation, offering:
- Speed and torque control for pumps, fans, compressors, and conveyors
- Protection of motors from overcurrent, overheating, and voltage fluctuations
- Integration into PLC and automation networks for coordinated process control
- Energy savings and operational efficiency through optimized motor performance
It enables precise, reliable, and energy-efficient motor operation, supporting critical industrial processes.
Industrial Applications
The Schneider ATV212H075N4 is widely used in:
- Pumping and HVAC systems
- Conveyor and material handling systems
- Fans and ventilation control
- Compressors and process machinery
- Packaging and assembly lines
- General industrial automation requiring variable-speed motor control
Its compact, high-performance design makes it suitable for diverse industrial applications.
Installation and System Integration
Proper installation ensures optimal performance:
- Mounted on panels or walls following manufacturer instructions
- Connected to three-phase AC input and motor output wiring
- Integrated into PLC or automation systems for process control
- Ensure proper ventilation and thermal management
- Follow electrical safety and grounding standards
Correct installation ensures stable motor operation, safety, and long-term reliability.
Compatible System Components
The ATV212H075N4 typically integrates with:
- Schneider PLCs and I/O modules
- Three-phase motors and motor protection devices
- Industrial sensors for speed, torque, or process monitoring
- Control panels and wiring accessories
These components together form a reliable and efficient motor control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ATV212H037N4 | Frequency Converter | 0.37 kW output, compact design | Small motor applications |
| ATV212H075N4 | Frequency Converter | 0.75 kW output, standard motor control | Pumps, fans, conveyors |
| ATV212H150N4 | Frequency Converter | 1.5 kW output, high-performance | Medium industrial motors |
| ATV212H300N4 | Frequency Converter | 3 kW output, heavy-duty applications | Large industrial motors |
Key Advantages
- Precise speed and torque control for three-phase motors
- High energy efficiency and operational cost savings
- Protection for motors against overcurrent, overheating, and voltage fluctuations
- Compact and modular design for flexible installation
- Robust industrial-grade construction for demanding environments
- Supports continuous operation and critical industrial processes
Technical FAQs
What is the main function of the ATV212H075N4?
It provides variable frequency output to control motor speed and torque for industrial applications.
Where is it typically used?
It is used in pumps, fans, conveyors, compressors, and general motor-driven industrial systems.
Does it provide motor protection?
Yes, it includes protections for overcurrent, overheating, and voltage fluctuations.
Is it suitable for energy-saving applications?
Yes, it optimizes motor speed and torque, reducing energy consumption.
Conclusion
The Schneider ATV212H075N4 Frequency Converter is a critical component for industrial motor control, delivering precise speed and torque management while ensuring energy efficiency and motor protection. Its compact design, robust construction, and high performance make it ideal for industrial automation systems requiring reliable and efficient motor operation.
For engineers and system integrators, this converter ensures optimal motor performance, safety, and process control.
