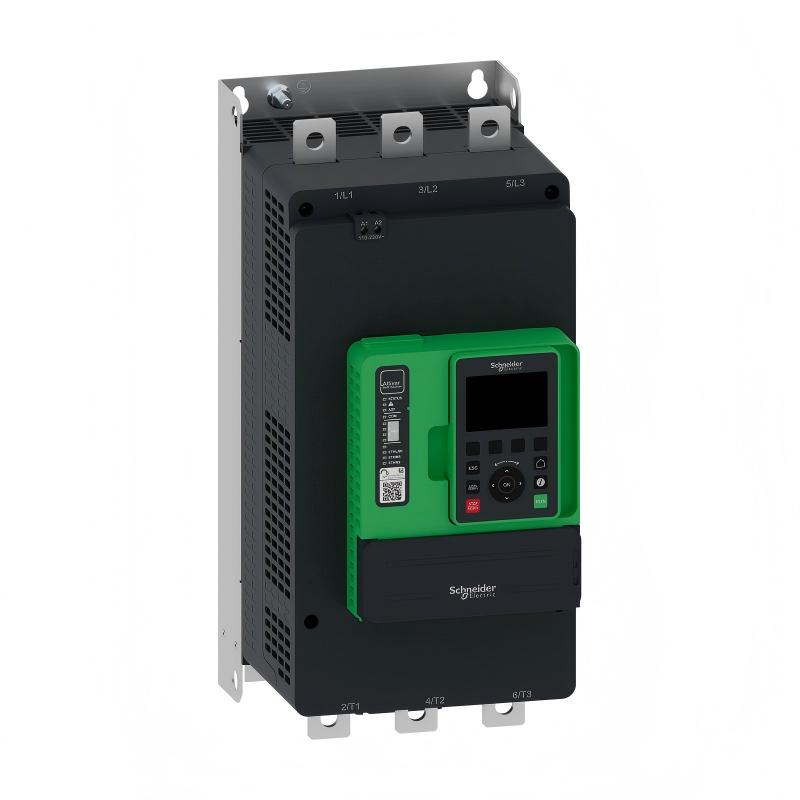

• Schneider ATS490C41Y Soft Starter

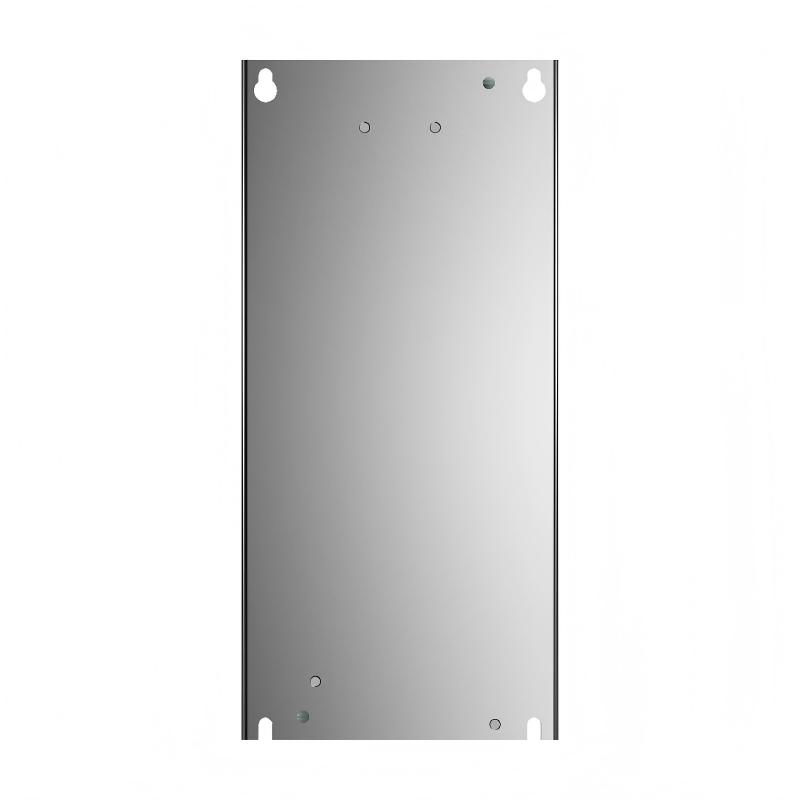

  • Schneider ATS490C41Y Soft Starter

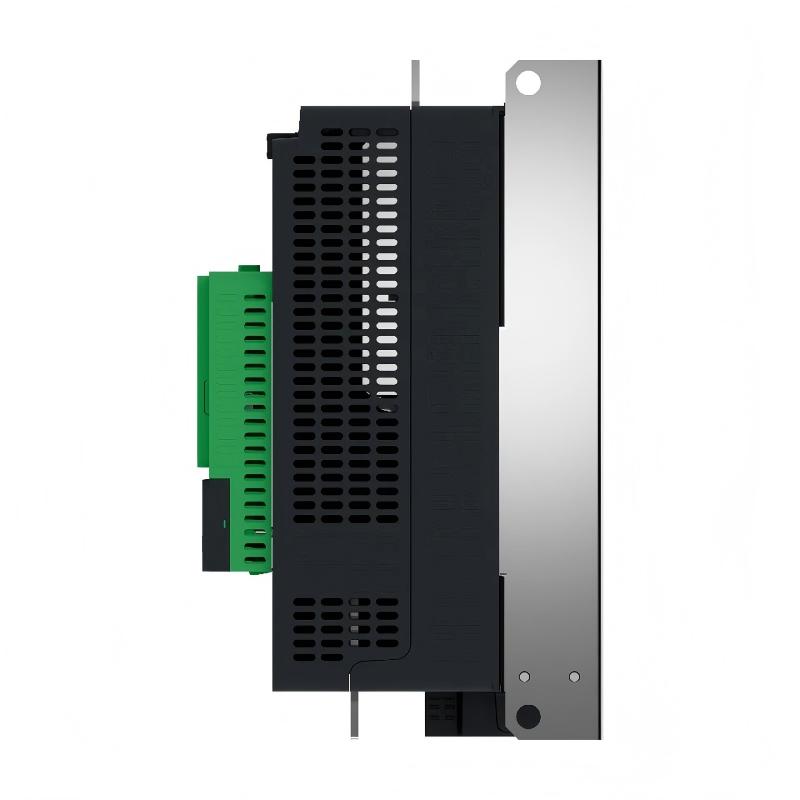

  • Schneider ATS490C41Y Soft Starter

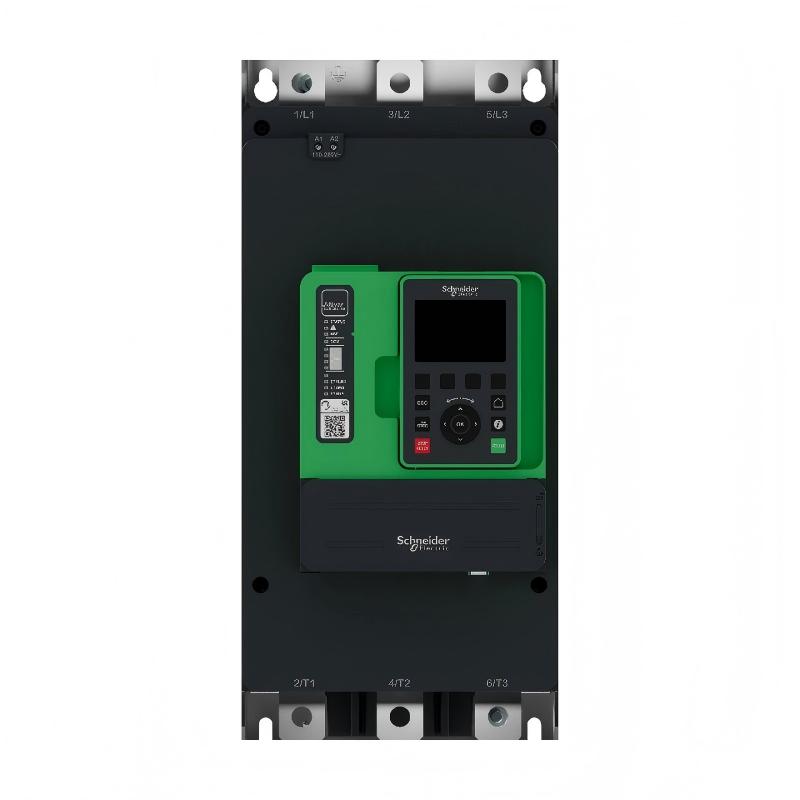

  • Schneider ATS490C41Y Soft Starter
Product Overview The Schneider Electric ATS490C41Y Soft Starter is a high-current motor starting and stopping device from the Altivar Soft Starter ATS490 family. It is designed for industrial three-phas……
Schneider ATS490C41Y Soft Starter
  • Schneider
  • ATS490C41Y
  • Soft Starter
  • France
  • 455 x 304 x 300 mm
  • 19 kg
  • Xiamen, China
  • New & In Stock
  • T/T, PayPal, Western Union
  • 1 Year
  • 1-3 Working Days
  • DHL, UPS, TNT, FedEx and EMS.
  • 24-Hour Service
  • COO
  • 5

Our advantage

Schneider ATS490C41Y Soft Starter

Global Logistics

We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.

Schneider ATS490C41Y Soft Starter

Brand new and original

Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.

Schneider ATS490C41Y Soft Starter

24-hour service

We provide 7*24 hours service to our customers. We will be there whenever you need us.

Schneider ATS490C41Y Soft Starter

Price advantage

All our products are priced very favorably because we have our own warehouse and supply.


Company Information
E-mail [email protected]
Mobile +8615980777398
Whatsapp +8615980777398
WeChat 15980777398

Product Overview

The Schneider Electric ATS490C41Y Soft Starter is a high-current motor starting and stopping device from the Altivar Soft Starter ATS490 family. It is designed for industrial three-phase asynchronous motors where controlled acceleration, controlled stopping, reduced mechanical stress, and integration with automation systems are required.

The ATS490C41Y is intended for demanding motor-driven equipment such as pumps, fans, compressors, conveyors, mixers, material-handling equipment, and process machinery. By controlling the motor during startup and stopping, the soft starter can provide a smoother transition than conventional direct-on-line starting.

For the model specified here, the physical dimensions are 455 × 304 × 300 mm, with a listed weight of 19 kg.

The ATS490 platform combines soft-start functionality with motor protection, diagnostics, communication capabilities, monitoring functions, and application-oriented control features. This allows the starter to operate as part of a broader industrial automation architecture rather than functioning only as a standalone motor starter.


Product Identification

Parameter Specification
Manufacturer Schneider Electric
Product Family Altivar Soft Starter ATS490
Model ATS490C41Y
Product Type Soft Starter
Normal-Duty Current Class 410 A
Heavy-Duty Current Class Application dependent
Motor Supply Voltage 208–690 V AC
Supply Frequency 50/60 Hz
Motor Type Three-Phase Asynchronous Motor
Starting Method Torque Control
Bypass Integrated
Mounting Cabinet / Enclosure
Installation Orientation Vertical
Dimensions 455 × 304 × 300 mm
Weight 19 kg
Typical Applications Industrial Process and Infrastructure
Communication Modbus Serial, Modbus TCP, EtherNet/IP
Ethernet Interface 100BASE-TX
Serial Interface RS-485
Typical Control System PLC / HMI / SCADA

Technical Specifications

Technical Parameter ATS490C41Y
Brand Schneider Electric
Series ATS490
Model ATS490C41Y
Product Type AC Motor Soft Starter
Rated Current Class 410 A Normal Duty
Motor Supply 208–690 V AC
Frequency 50/60 Hz
Phases Three Phase
Motor Type Asynchronous AC Motor
Starting Control Torque Control
Stopping Control Controlled Deceleration
Bypass Internal
Communication Modbus Serial / Modbus TCP / EtherNet/IP
Serial Communication RS-485
Ethernet 100BASE-TX
Height 455 mm
Width 304 mm
Depth 300 mm
Weight 19 kg
Mounting Vertical Cabinet Installation
Typical Use High-Current Industrial Motors

What Is the ATS490C41Y?

The ATS490C41Y is installed between the industrial power system and a three-phase motor.

A typical system arrangement is:

Three-Phase AC Supply

Protection / Disconnect Device

ATS490C41Y Soft Starter

Three-Phase Motor

Pump / Fan / Conveyor / Compressor / Machine

The primary purpose of the soft starter is to manage the motor’s transition from standstill to normal operating speed.

A large industrial motor can produce a substantial electrical and mechanical impact when connected directly to the supply. The ATS490C41Y provides controlled starting behavior, allowing engineers to adapt acceleration to the characteristics of the motor and driven machine.

This is particularly useful where sudden torque changes can cause:

  • Mechanical shock
  • Belt tension changes
  • Coupling stress
  • Gearbox stress
  • Shaft stress
  • Hydraulic pressure fluctuations
  • Excessive process disturbance

410 A High-Current Motor Control

The ATS490C41Y belongs to the higher-current range of the ATS490 family.

The supplied model designation corresponds to a 410 A normal-duty current class.

For correct selection, the motor’s actual rated current must be compared with the starter’s applicable current rating.

Engineers should not select the starter solely according to motor horsepower.

The following factors should also be evaluated:

  • Motor rated current
  • Motor voltage
  • Motor frequency
  • Starting torque
  • Load torque
  • Acceleration time
  • Number of starts per hour
  • Duty cycle
  • Ambient temperature
  • Installation altitude
  • Cabinet cooling
  • Heavy-duty requirements

A motor with the same nominal power as another motor can require a different starter size if its load and starting conditions are different.


Motor Voltage Compatibility

The ATS490 platform is designed for a wide industrial motor supply range.

The applicable range for this product family is:

208–690 V AC

Before installation, always compare the motor nameplate with the electrical system design.

Verify:

  • Rated motor voltage
  • Rated motor current
  • Frequency
  • Motor connection
  • Motor power
  • Operating duty

Incorrect voltage or current configuration can cause starting problems and protective trips.


Main Functions

Controlled Starting

The ATS490C41Y regulates motor acceleration to reduce the abrupt electrical and mechanical impact associated with direct starting.

Torque Control

Torque control provides greater flexibility when adapting the starting process to the connected machine.

Controlled Stopping

Controlled deceleration can be useful when sudden stopping could negatively affect the process or mechanical equipment.

Internal Bypass

The internal bypass allows the starter to transition to normal motor operation after the starting sequence.

Motor Monitoring

The ATS490 platform provides information that can help operators and maintenance personnel evaluate motor operation.

Power and Energy Monitoring

Operational information can assist with energy management and process monitoring.

Communication

The ATS490C41Y can be incorporated into automation networks using communication technologies such as:

  • Modbus Serial
  • Modbus TCP
  • EtherNet/IP

Diagnostic Functions

Diagnostic information can help technicians distinguish between electrical, mechanical, configuration, and communication problems.


How the ATS490C41Y Works

1. Start Command

The starter receives a start command from a local control circuit, PLC, HMI, SCADA system, or other control source.

The system verifies the relevant enable and interlock conditions.


2. Controlled Acceleration

The ATS490C41Y controls the motor’s acceleration according to the configured starting parameters.

The objective is to provide sufficient torque to accelerate the motor while avoiding unnecessary mechanical impact.


3. Motor Reaches Operating Speed

As the motor approaches normal operating conditions, the starting phase is completed.

The starter transitions toward its normal running condition.


4. Bypass Operation

The integrated bypass function allows the motor to operate efficiently after starting.

This is particularly valuable in applications where the motor remains continuously operational for long periods.


5. Normal Motor Operation

During normal operation, the control system can monitor:

  • Running state
  • Fault state
  • Motor information
  • Communication status
  • Process information
  • Diagnostic information

6. Controlled Stop

When a stop command is received, the ATS490C41Y applies the configured stopping behavior.

The exact response depends on the application and programmed settings.


Industrial Applications

Pumping Systems

The ATS490C41Y can be used for appropriately rated pump motors in:

  • Water treatment
  • Industrial water systems
  • Cooling systems
  • Process pumping
  • Transfer pumping
  • Circulation systems
  • Infrastructure facilities

Controlled acceleration and stopping can help minimize sudden hydraulic changes.


Large Fan and Blower Systems

Large fans often have considerable rotating inertia.

Applications can include:

  • Industrial ventilation
  • Exhaust systems
  • Cooling towers
  • Process ventilation
  • Air-handling systems
  • Industrial blowers

During commissioning, technicians should observe:

  • Starting current
  • Acceleration time
  • Vibration
  • Motor temperature
  • Starter temperature
  • Mechanical response

Compressor Systems

The ATS490C41Y can be considered for appropriately sized compressor motors.

Compressor applications require particular attention to:

  • Starting load
  • Motor current
  • Compressor pressure
  • Starting frequency
  • Acceleration time
  • Mechanical condition

A compressor starting under load can behave very differently from one starting under unloaded conditions.


Conveyor Systems

The starter can be used with high-current conveyor motors where controlled acceleration is beneficial.

Typical applications include:

  • Bulk material handling
  • Mining equipment
  • Production lines
  • Packaging systems
  • Warehousing
  • Industrial transfer systems

Controlled acceleration can reduce sudden loading on belts, couplings, gearboxes, and shafts.


Mixers and Agitators

Mixers can require substantial starting torque because of material viscosity and mechanical inertia.

Before commissioning, evaluate:

  • Motor current
  • Material load
  • Mechanical inertia
  • Gearbox condition
  • Starting torque
  • Acceleration time

Crushers and Heavy Machinery

Heavy machinery may have high starting torque requirements.

Applications such as crushers and grinders should be evaluated under the actual worst-case starting condition.

A machine that starts easily when empty may require substantially more torque when fully loaded.


Installation Guide

Step 1: Verify the Product

Confirm:

Schneider Electric ATS490C41Y

Check the model against the electrical design documentation.

Supplied physical information:

  • Height: 455 mm
  • Width: 304 mm
  • Depth: 300 mm
  • Weight: 19 kg

Step 2: Verify Motor Data

Record the motor nameplate information:

  • Rated voltage
  • Rated current
  • Rated frequency
  • Motor power
  • Motor connection
  • Service duty
  • Motor efficiency
  • Power factor

The motor rated current is especially important when selecting the appropriate soft-starter rating.


Step 3: Inspect the Starter

Before mounting, inspect the ATS490C41Y for:

  • Physical damage
  • Cracked components
  • Damaged terminals
  • Loose hardware
  • Corrosion
  • Contamination
  • Signs of overheating

Do not install a visibly damaged device.


Step 4: Plan the Cabinet

The supplied dimensions are:

455 × 304 × 300 mm

The cabinet must provide more space than the basic product envelope.

Allow additional space for:

  • Power cables
  • Control cables
  • Communication cables
  • Cable bending
  • Ventilation
  • Maintenance
  • Inspection
  • Heat dissipation

The starter should not be tightly enclosed without considering thermal requirements.


Step 5: Install Vertically

Install the ATS490C41Y in the recommended vertical orientation.

Avoid positioning the starter near major heat sources.

Do not block cooling airflow with:

  • Cable bundles
  • Cabinet partitions
  • Other power devices
  • Filters
  • Covers
  • Auxiliary equipment

Step 6: Verify Electrical Isolation

Before wiring:

  1. Disconnect the power source.
  2. Isolate control power.
  3. Apply lockout/tagout procedures.
  4. Verify the absence of dangerous voltage.
  5. Prevent accidental motor energization.

Only qualified personnel should perform high-voltage installation and commissioning.


Step 7: Install the Starter

The listed weight is 19 kg.

The cabinet mounting system must be capable of supporting the equipment and associated wiring.

Check:

  • Mounting strength
  • Mechanical stability
  • Vertical orientation
  • Vibration
  • Accessibility
  • Cable routing

Step 8: Connect Incoming Power

Connect the three-phase supply according to the approved electrical schematic.

Verify:

  • Correct phase conductors
  • Supply voltage
  • Protective device
  • Cable size
  • Terminal condition
  • Terminal torque
  • Grounding

Never assume the supply voltage without measurement.


Step 9: Connect the Motor

Connect the motor according to the approved wiring design.

Check:

  • Motor terminals
  • Phase conductors
  • Motor cable
  • Grounding
  • Insulation
  • Motor connection

Before the first start, verify that the mechanical system is safe to rotate.


Step 10: Connect Control Wiring

Control circuits may include:

  • Start
  • Stop
  • Enable
  • Fault
  • Ready
  • Running
  • External interlock
  • Emergency stop system
  • PLC control
  • Auxiliary contacts

Every interlock should be tested before normal production operation.


Step 11: Connect Communication

For automated systems, the ATS490C41Y can be integrated through communication networks.

Possible interfaces include:

  • Modbus Serial
  • Modbus TCP
  • EtherNet/IP

For Ethernet installations, verify:

  • Network cable
  • IP address
  • Subnet
  • PLC configuration
  • Network switch
  • Device configuration

For RS-485 installations, verify:

  • Wiring polarity
  • Address
  • Baud rate
  • Communication parameters
  • Network termination where applicable

Step 12: Configure Motor Parameters

Enter the actual motor information into the starter configuration.

Important parameters may include:

  • Motor rated current
  • Motor voltage
  • Motor frequency
  • Acceleration time
  • Deceleration time
  • Protection parameters
  • Application settings
  • Communication parameters

Never use assumed motor data if the actual nameplate information is available.


Step 13: Check Safety Conditions

Before starting:

  • Verify emergency-stop circuits.
  • Verify machine guards.
  • Verify mechanical clearance.
  • Verify motor coupling.
  • Verify motor rotation path.
  • Verify downstream equipment readiness.
  • Verify all personnel are clear.

Step 14: Initial Energization

Apply power while monitoring the starter.

Check:

  • Starter status
  • Fault condition
  • Control supply
  • Incoming voltage
  • Communication status
  • Motor readiness

If an abnormal fault appears, remove the start command and investigate.


Step 15: Test Motor Rotation

Start the motor under controlled conditions.

Observe:

  • Direction
  • Acceleration
  • Current
  • Vibration
  • Noise
  • Mechanical response

If rotation direction is incorrect, isolate the system and correct the motor phase arrangement according to the approved electrical procedure.


Step 16: Test Acceleration

Observe the entire acceleration cycle.

Record:

  • Starting current
  • Acceleration time
  • Motor current
  • Motor temperature
  • Starter temperature
  • Vibration
  • Fault status

The motor should reach normal operating speed without excessive mechanical stress.


Step 17: Test Normal Load

After the initial test, gradually apply the normal mechanical load.

Monitor:

  • Motor current
  • Motor temperature
  • Starter temperature
  • Mechanical vibration
  • Process response
  • Communication status

Commissioning Checklist

Commissioning Item Verification
Model Verified ATS490C41Y
Current Class Verified 410 A
Motor Voltage Verified Yes
Motor Current Verified Yes
Motor Frequency Verified Yes
Motor Duty Verified Yes
Cabinet Size Checked Yes
Mounting Orientation Checked Yes
Cooling Clearance Checked Yes
Incoming Power Verified Yes
Motor Wiring Verified Yes
Grounding Verified Yes
Control Wiring Verified Yes
Communication Tested Yes
Motor Parameters Entered Yes
Safety Circuit Tested Yes
Motor Rotation Tested Yes
Acceleration Tested Yes
Normal Load Tested Yes
Fault Handling Tested Yes

ATS490C41Y Troubleshooting Guide

Problem 1: Motor Will Not Start

Check the following in order:

  1. Incoming power
  2. Control power
  3. Starter status
  4. Active fault
  5. Start command
  6. Stop command
  7. External interlock
  8. PLC output
  9. Communication
  10. Motor wiring

If the motor starts from local control but not from the PLC, focus on the control and communication system.


Problem 2: Motor Starts but Cannot Reach Speed

Possible causes:

  • Excessive mechanical load
  • Insufficient starting torque
  • Incorrect motor parameters
  • Incorrect acceleration settings
  • Motor problem
  • Supply voltage problem
  • Phase issue
  • Mechanical obstruction

Measure current during the acceleration period.

If the motor draws high current but remains at low speed, investigate the mechanical load and starting torque requirements.


Problem 3: Starter Trips During Acceleration

Possible causes include:

  • Excessive starting current
  • Motor overload
  • Mechanical blockage
  • Incorrect motor current configuration
  • Insufficient starting torque
  • Phase loss
  • Supply abnormality
  • Thermal protection
  • Excessive starting frequency

Do not repeatedly reset the starter without determining why the trip occurred.


Problem 4: Motor Stops Immediately

Check:

  • Stop input
  • PLC command
  • External interlock
  • Safety circuit
  • Active fault
  • Control power
  • Communication command

Determine whether the stop originated from the ATS490C41Y or from the external control system.


Problem 5: ATS490C41Y Overheats

Possible causes include:

  • Excessive starting frequency
  • High ambient temperature
  • Insufficient cabinet ventilation
  • Blocked airflow
  • Excessive motor current
  • Incorrect application sizing
  • Nearby heat-producing equipment

Check the cabinet temperature rather than relying only on room temperature.


Problem 6: Motor Overheats

Investigate:

  • Motor current
  • Mechanical load
  • Cooling system
  • Starting frequency
  • Acceleration time
  • Motor ventilation
  • Bearing condition
  • Coupling alignment
  • Voltage condition

A motor overheating problem can be mechanical even when the soft starter is operating normally.


Problem 7: Excessive Starting Current

Check:

  • Motor nameplate parameters
  • Starting configuration
  • Motor load
  • Motor condition
  • Supply voltage
  • Starting frequency
  • Acceleration profile

The objective is to achieve controlled acceleration without compromising the torque required to start the machine.


Problem 8: Mechanical Shock During Startup

If the machine experiences a strong mechanical impact:

  • Review acceleration parameters.
  • Check torque-control settings.
  • Inspect the coupling.
  • Inspect the gearbox.
  • Check mechanical alignment.
  • Evaluate load inertia.
  • Check the motor parameters.

Mechanical shock should not automatically be attributed to a hardware failure.


Problem 9: Communication Failure

If local operation works but PLC communication fails, check:

Ethernet

  • Ethernet cable
  • Network switch
  • IP address
  • Subnet configuration
  • PLC configuration
  • Protocol configuration
  • Device settings

RS-485

  • Cable polarity
  • Device address
  • Baud rate
  • Communication settings
  • Network termination
  • Cable shielding

Problem 10: PLC Cannot Start the Motor

If local control works correctly but the PLC cannot start the motor:

  1. Check communication status.
  2. Check PLC device configuration.
  3. Verify network addressing.
  4. Verify control-word configuration.
  5. Check PLC logic.
  6. Check interlocks.
  7. Verify operating mode.
  8. Confirm that the command reaches the starter.

This process separates communication problems from power-stage problems.


Problem 11: Unexpected Motor Stop

Possible causes:

  • Starter protection
  • Motor overload
  • PLC stop command
  • External interlock
  • Communication command
  • Control power interruption
  • Mechanical overload
  • Thermal protection

Always record the starter status and fault information when the event occurs.


Problem 12: Intermittent Fault

Intermittent problems should be investigated using operating data.

Record:

  • Fault time
  • Motor current
  • Motor load
  • Cabinet temperature
  • Starting frequency
  • Starter status
  • PLC status
  • Communication status
  • Supply voltage

If the fault occurs only after repeated starts, thermal accumulation may be involved.

If the fault appears only at high mechanical load, inspect the driven machine.


Preventive Maintenance

Visual Inspection

Inspect the ATS490C41Y periodically for:

  • Dust
  • Moisture
  • Oil
  • Corrosion
  • Discoloration
  • Loose wiring
  • Damaged cables
  • Signs of overheating

Terminal Inspection

Check:

  • Incoming terminals
  • Motor terminals
  • Grounding connections
  • Control terminals
  • Communication connections

Loose electrical connections can generate heat and cause intermittent faults.


Cooling Maintenance

Because the ATS490C41Y is a high-current device, cabinet thermal management is important.

Check:

  • Cabinet fans
  • Air filters
  • Airflow
  • Ventilation openings
  • Internal temperature
  • Heat sources
  • Cooling equipment

Keep ventilation paths clean.


Configuration Maintenance

Keep a backup of:

  • Motor parameters
  • Acceleration settings
  • Deceleration settings
  • Protection settings
  • Communication parameters
  • Application parameters

A configuration record can reduce downtime after a starter replacement.


ATS490C41Y Automation Integration

A typical automated motor system can be structured as:

HMI

PLC

Industrial Ethernet

ATS490C41Y

Three-Phase Motor

Industrial Machine

The starter can provide the automation system with operating and diagnostic information.

Possible functions include:

  • Remote start
  • Remote stop
  • Running indication
  • Ready indication
  • Fault indication
  • Diagnostic monitoring
  • Process interlocking
  • Maintenance information
  • Motor monitoring

Compatible System Components

Component Role
Three-Phase Power Supply Motor Power
Circuit Breaker Main Protection
Fuse System Short-Circuit Protection
ATS490C41Y Motor Starting and Stopping
Three-Phase Motor Mechanical Power
Motor Cable Power Connection
PLC Automatic Control
HMI Operator Interface
SCADA Supervisory Monitoring
Ethernet Switch Network Communication
RS-485 Network Serial Communication
Sensors Process Feedback
Safety System Machine Safety
Mechanical Load Driven Equipment

Recommended Alternative Models

Model Current Class Application Position
ATS490C21Y 210 A Lower-current motor systems
ATS490C25Y 250 A Medium/high-current systems
ATS490C32Y 320 A High-current systems
ATS490C41Y 410 A Higher-current motor systems
ATS490C48Y 480 A Larger motor applications
ATS490C59Y 590 A Very high-current applications

Alternative selection should always be based on the actual motor current and application duty rather than physical size alone.


ATS490C41Y vs ATS490C32Y

Parameter ATS490C32Y ATS490C41Y
Current Class 320 A 410 A
Product Family ATS490 ATS490
Motor Supply 208–690 V AC 208–690 V AC
Dimensions 443 × 206 × 265 mm 455 × 304 × 300 mm
Listed Weight 19 kg 19 kg
Main Difference Lower Current Capacity Higher Current Capacity
Typical Application High-Current Motor Higher-Current Motor

The ATS490C41Y should not be considered a simple plug-in replacement for the ATS490C32Y without checking the complete electrical and mechanical installation.


Key Advantages

High-Current Capability

The ATS490C41Y is intended for high-current three-phase motor applications, with a 410 A normal-duty current class.

Wide Voltage Range

The 208–690 V AC motor supply range supports many industrial motor systems.

Controlled Torque Starting

Torque-controlled acceleration can reduce mechanical impact while maintaining the torque required by the load.

Integrated Bypass

The internal bypass supports efficient operation after the motor reaches its operating condition.

Industrial Communication

Modbus Serial, Modbus TCP, and EtherNet/IP allow integration with PLC, HMI, SCADA, and industrial Ethernet systems.

Diagnostics

Diagnostic functions provide useful information for maintenance and fault analysis.

Broad Application Range

The ATS490C41Y can be considered for pumps, fans, compressors, conveyors, mixers, and other industrial machinery where motor current and starting conditions are compatible.


Frequently Asked Questions

What is Schneider ATS490C41Y?

The Schneider ATS490C41Y is a high-current Altivar ATS490 soft starter designed for controlled starting and stopping of three-phase asynchronous motors.

What is the current rating?

The model corresponds to a 410 A normal-duty current class.

What voltage can it handle?

The ATS490 platform supports motor supply voltages from 208 to 690 V AC.

What are the dimensions?

The supplied dimensions are:

455 × 304 × 300 mm

What is the weight?

The listed weight is:

19 kg

Is the ATS490C41Y suitable for pumps?

Yes. It can be applied to appropriately sized pump motors where controlled starting and stopping are required.

Can it control conveyor motors?

Yes. It can be used with suitable conveyor motors, particularly where controlled acceleration can reduce mechanical stress.

Does it support Ethernet communication?

The ATS490 platform supports Ethernet-based communication including Modbus TCP and EtherNet/IP.

Does it support RS-485?

Yes. Modbus Serial communication can be implemented through the RS-485 interface.

Why does the motor fail to start?

Check power, control commands, interlocks, active faults, motor wiring, motor parameters, mechanical load, and communication.

Why does the starter trip during acceleration?

Investigate starting current, motor parameters, mechanical load, supply conditions, thermal conditions, and the configured acceleration profile.

Why does the soft starter overheat?

Common causes include excessive starting frequency, high cabinet temperature, insufficient ventilation, excessive current, and unsuitable application sizing.

Why does the PLC fail to control the starter?

Check the communication network, addressing, PLC configuration, control mode, interlocks, and command mapping.


Practical Diagnostic Flow

Incoming Power

Control Power

Starter Status

Fault Information

Motor Wiring

Motor Condition

Mechanical Load

Motor Parameters

Starting Configuration

PLC Control

Communication

Controlled Test

This sequence provides a practical approach for separating power, configuration, mechanical, automation, and communication problems.


Maintenance and Service Summary

Area Recommended Action
Product Schneider ATS490C41Y
Current Class 410 A Normal Duty
Supply 208–690 V AC
Dimensions 455 × 304 × 300 mm
Weight 19 kg
Mounting Vertical Cabinet Installation
Cooling Maintain Adequate Airflow
Motor Three-Phase Asynchronous
Starting Torque Controlled
Bypass Integrated
Communication Modbus / Modbus TCP / EtherNet/IP
Maintenance Inspect Cooling and Connections
Troubleshooting Check Power → Control → Motor → Load → Communication
Configuration Maintain Parameter Backup

Conclusion

The Schneider ATS490C41Y Soft Starter is a high-current motor-control device designed for demanding three-phase industrial applications. With a 410 A normal-duty current class, broad 208–690 V AC motor supply compatibility, torque-controlled starting, controlled stopping, internal bypass, diagnostics, and industrial communication capabilities, it can be integrated into sophisticated motor-control systems.

The supplied physical dimensions of 455 × 304 × 300 mm and listed weight of 19 kg should be considered when designing the electrical cabinet, mounting system, cable routing, ventilation, and maintenance access.

For installation, engineers should begin by verifying the motor nameplate, current requirements, voltage, duty cycle, starting characteristics, and mechanical load. Proper cabinet thermal management is particularly important for high-current applications.

For commissioning, the system should be tested progressively: verify power and control circuits first, then perform an initial motor test, verify rotation, evaluate acceleration, and finally apply the normal mechanical load.

For troubleshooting, a structured approach is more effective than immediately replacing the starter. Power supply, control signals, motor wiring, mechanical load, configuration, PLC commands, and communication should be checked systematically.

When correctly selected and commissioned, the ATS490C41Y provides a practical solution for reducing the electrical and mechanical impact of starting larger industrial motors while providing integration with modern PLC and industrial automation architectures.



Related Products

Get the latest price? We will reply as soon as possible (within 12 hours)

No:77501
