Product Overview

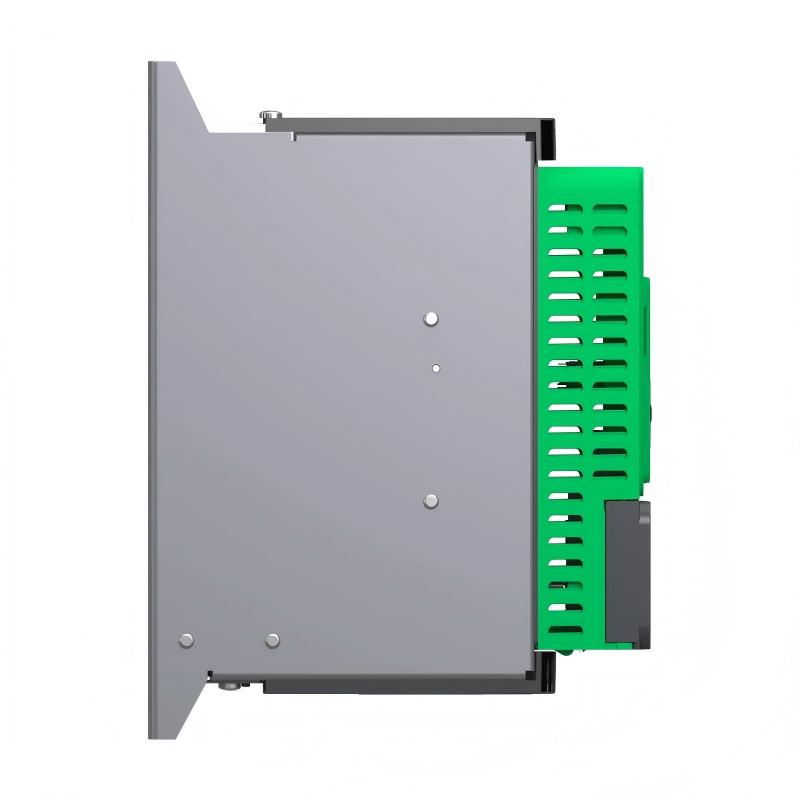

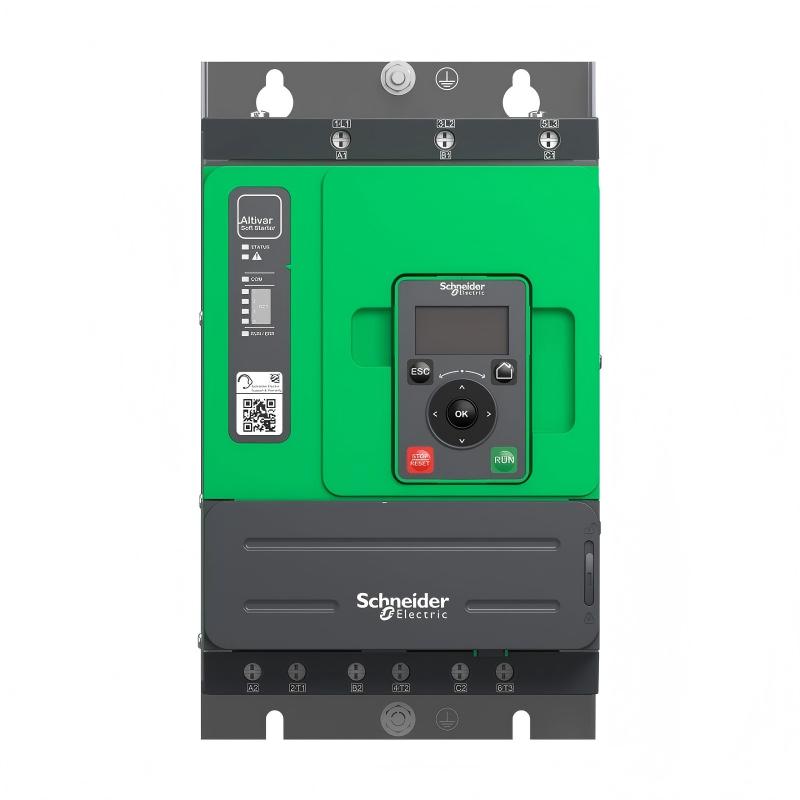

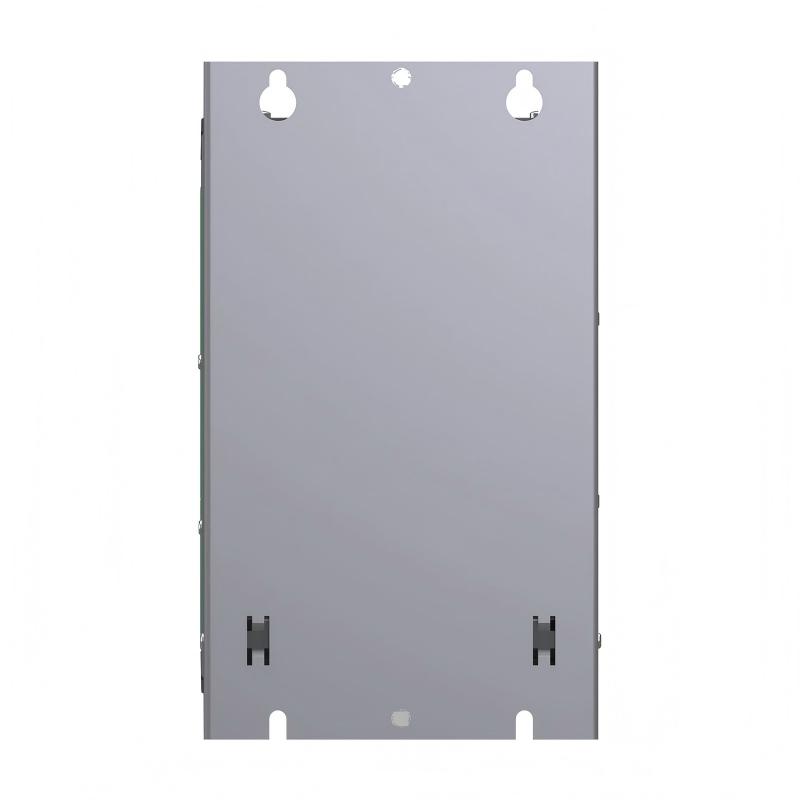

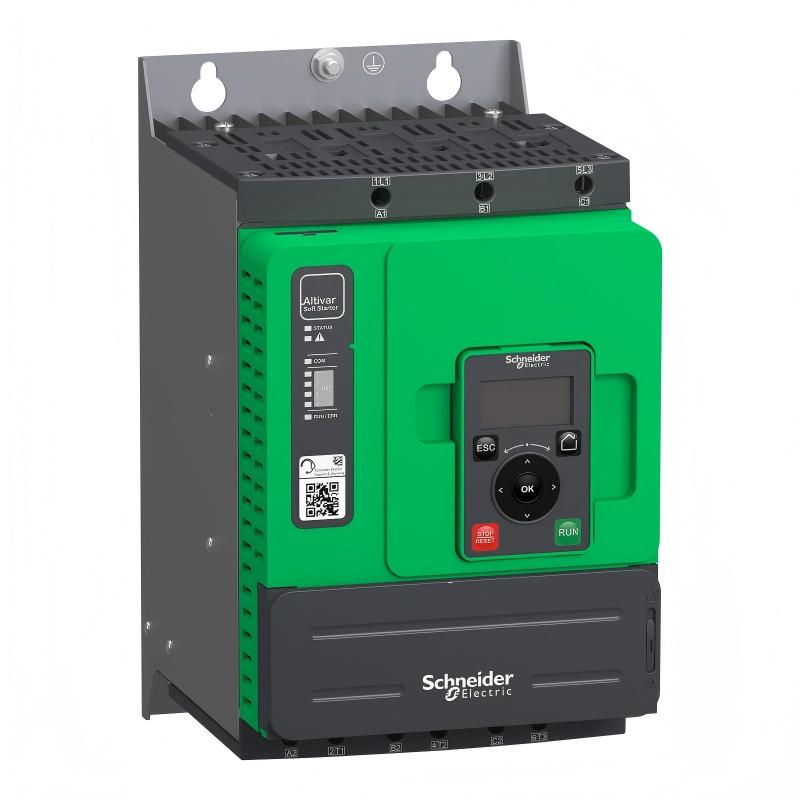

The Schneider ATS480D75Y Soft Starter is a three-phase industrial motor-control device in the Altivar ATS480 family. The model is rated at 75 A and is designed for asynchronous motor applications supplied from 208 to 690 V AC, with a 110 to 230 V AC control supply. Schneider identifies the ATS480 family for process, infrastructure, and industrial-machine applications.

The ATS480D75Y is designed to control motor acceleration and deceleration rather than applying the full starting condition abruptly. This approach can reduce mechanical stress and improve starting behavior for equipment such as pumps, fans, compressors, conveyors, crushers, mills, grinders, and mixers. The ATS480 platform uses torque-control functionality for controlled starting and stopping and also provides integrated motor protection functions.

For the product specified here, the physical dimensions are 290 × 190 × 247 mm, with a weight of 8.3 kg. Schneider’s product data identifies these dimensions as 290 mm height × 190 mm width × 247 mm depth, with vertical installation recommended within ±10°.

---

Product Identification

Parameter	Specification
Manufacturer	Schneider Electric
Model	ATS480D75Y
Product Family	Altivar Soft Starter ATS480
Product Type	Soft Starter
Rated Operational Current	75 A
Motor Type	Three-Phase Asynchronous Motor
Power Supply Range	208–690 V AC
Control Supply	110–230 V AC
Supply Frequency	50/60 Hz
Dimensions	290 × 190 × 247 mm
Weight	8.3 kg
Installation Position	Vertical ±10°
Communication	Embedded Modbus Serial
Typical Applications	Pumps, Fans, Compressors, Conveyors, Mixers
Typical Industries	Process, Infrastructure, Industrial Machinery

The 75 A rating and 208–690 V AC operating range are identified in Schneider’s product information for ATS480D75Y.

---

Technical Specifications

Technical Item	ATS480D75Y Specification
Series	Altivar ATS480
Model	ATS480D75Y
Rated Current	75 A
Supply Voltage	208–690 V AC
Control Voltage	110–230 V AC
Phase	Three Phase
Motor Type	Asynchronous Motor
Control Method	Torque Control / Voltage Control
Communication	Modbus Serial
Installation	Vertical
Height	290 mm
Width	190 mm
Depth	247 mm
Weight	8.3 kg
Protection Functions	Motor and Starter Protection
Typical Application	Process and Infrastructure
Typical Loads	Pumps, Fans, Compressors, Conveyors, Mixers

The ATS480 range covers operational voltages from 208 to 690 V and current ratings from 17 to 1200 A. Schneider also identifies normal-duty and heavy-duty operating modes within the family, so final application selection should be based on actual motor current and duty rather than motor power alone.

---

ATS480D75Y Functional Principle

A typical motor-control arrangement is:

Three-Phase AC Supply

↓

ATS480D75Y Soft Starter

↓

Three-Phase Asynchronous Motor

↓

Mechanical Transmission

↓

Industrial Load

During motor startup, the ATS480D75Y controls the motor’s acceleration instead of allowing an uncontrolled transition from standstill to full operating conditions.

The ATS480 family incorporates a Torque Control System (TCS) intended to maintain controlled torque during acceleration and deceleration. This can be especially useful for applications where sudden changes in motor torque could create pressure surges, belt shock, coupling stress, or other mechanical disturbances.

The soft starter can therefore serve as an intermediate control layer between the electrical distribution system and the motor-driven machine.

---

Main Functions

The ATS480 platform provides several functions relevant to industrial motor control.

Controlled Starting

The soft starter manages motor acceleration to provide a smoother transition from zero speed to operating speed.

Controlled Deceleration

The stopping process can be configured to reduce abrupt changes in motor speed where the application requires controlled stopping.

Torque Control

The ATS480 uses torque-control functionality to control the torque supplied to the motor during acceleration and deceleration.

Current Limitation

The platform provides configurable current limitation, helping engineers adapt motor starting behavior to the characteristics of the electrical supply and mechanical load.

Motor Protection

Integrated protection functions include motor thermal protection and protection against certain operating conditions such as underload and steady-state overcurrent.

Communication

Embedded Modbus serial communication allows the ATS480 to be incorporated into an industrial automation and supervisory-control architecture. Optional communication solutions are also available within the ATS480 platform.

---

Industrial Applications

1. Water and Wastewater Pumps

Pump applications are among the natural use cases for soft starters.

The ATS480D75Y can be considered for:

• Water circulation pumps
• Process pumps
• Cooling pumps
• Wastewater equipment
• Industrial transfer pumps
• Booster systems

Controlled acceleration and deceleration can help reduce sudden mechanical loading and improve the behavior of the overall pumping system.

---

2. Industrial Fans

Large fans can have significant rotating inertia.

Potential applications include:

• Factory ventilation
• Exhaust fans
• Cooling systems
• Air-handling equipment
• Dust extraction
• Process ventilation

A controlled startup can reduce the mechanical shock associated with accelerating the rotating assembly.

---

3. Compressors

Compressors can impose demanding starting conditions on motors.

The ATS480D75Y can be integrated into compressor systems where controlled motor starting is appropriate. The final configuration should consider:

• Compressor type
• Motor current
• Starting duration
• Load characteristics
• Number of starts
• Ambient conditions

---

4. Conveyors

Industrial conveyors can experience substantial mechanical stress when a motor starts abruptly.

The ATS480D75Y can be used in suitable conveyor applications to provide a controlled acceleration profile.

Benefits can include:

• Reduced belt shock
• Reduced coupling stress
• Smoother material movement
• Reduced gearbox shock
• More predictable startup

---

5. Mixers

Mixers may require substantial starting torque depending on material viscosity and process conditions.

A controlled acceleration sequence can help reduce sudden loading on the motor and drivetrain.

---

6. Crushers and Mills

The ATS480 family is also intended for demanding industrial applications including crushers, mills, grinders, and similar machinery. These applications require careful consideration of starting duty, load inertia, motor current, and operating cycle.

---

Installation Guide

Step 1 – Verify the Product

Before installation, confirm the model:

Schneider ATS480D75Y

Inspect the equipment for:

• Cracked enclosure
• Damaged terminals
• Loose components
• Impact damage
• Moisture
• Contamination
• Signs of overheating

Do not install a visibly damaged unit.

---

Step 2 – Verify Motor Data

Collect the motor nameplate information before programming the soft starter.

Important data includes:

• Rated voltage
• Rated current
• Rated frequency
• Rated power
• Motor connection
• Motor speed
• Duty
• Starting requirements

The ATS480D75Y has a 75 A rated current, but the application should still be evaluated using the actual motor current and operating duty.

Do not select or configure the soft starter solely from the motor’s kW rating.

---

Step 3 – Prepare the Control Cabinet

The supplied dimensions are:

290 × 190 × 247 mm

The cabinet must provide more space than the physical footprint of the unit.

Allow room for:

• Incoming power cables
• Motor cables
• Control wiring
• Protection equipment
• Ventilation
• Cable bending radius
• Inspection
• Maintenance

Schneider’s ATS480 information identifies this frame as 190 mm wide × 290 mm high × 247 mm deep.

---

Step 4 – Check Installation Orientation

The ATS480D75Y is designed for vertical installation ±10°.

Before fixing the unit, confirm:

• Correct vertical orientation
• Adequate airflow
• Stable mounting
• Sufficient cable space
• Accessible terminals
• Maintenance clearance

---

Step 5 – Verify the Environment

The cabinet location should be suitable for industrial electronic equipment.

Avoid unnecessary exposure to:

• Condensation
• Water
• Excessive dust
• Oil mist
• Corrosive gases
• High ambient temperatures
• Excessive vibration
• Direct heat

The enclosure and cabinet design should provide the environmental protection required by the installation.

---

Step 6 – Electrical Safety

Before any power wiring:

1. Disconnect the incoming electrical supply.
2. Apply lockout/tagout procedures.
3. Verify absence of hazardous voltage.
4. Isolate the motor.
5. Discharge stored electrical energy as required.
6. Confirm the circuit is safe to work on.
7. Use appropriate electrical PPE.

Never perform power wiring on an energized soft starter.

---

Step 7 – Mount the ATS480D75Y

Secure the unit to a suitable industrial mounting panel.

Check:

• Mounting stability
• Vertical orientation
• Ventilation
• Cable accessibility
• Terminal accessibility
• Service clearance

The specified product weight is 8.3 kg, so the mounting panel and hardware should be capable of supporting the equipment under normal operating vibration.

---

Step 8 – Connect the Power Circuit

Connect the incoming three-phase supply and motor circuit according to the engineered electrical design.

Verify:

• Correct phase connections
• Cable sizing
• Terminal tightness
• Grounding
• Short-circuit protection
• Cable insulation
• Motor connection

Before energization, perform a complete visual inspection of the power circuit.

---

Step 9 – Connect the Control Circuit

Typical control signals may include:

• Start
• Stop
• Reset
• Run status
• Fault status
• External interlocks
• PLC commands
• Emergency-stop logic

Control wiring should be routed appropriately in relation to high-current power wiring.

---

Step 10 – Configure Motor Parameters

Configure the ATS480D75Y using the actual motor and application information.

Important settings can include:

• Motor rated current
• Starting parameters
• Acceleration time
• Deceleration time
• Current limitation
• Protection parameters
• Stop mode
• Control source

The correct settings depend on the motor and driven load.

---

Step 11 – Configure Communication

The ATS480 platform provides embedded Modbus serial communication. Optional communication protocols can be used through the ATS480 communication architecture.

When integrating the ATS480D75Y with a PLC or supervisory system, verify:

• Communication address
• Serial parameters
• Network wiring
• Master configuration
• Control permissions
• Status monitoring
• Fault handling

---

Step 12 – Inspect the Mechanical Load

Before the first motor start, inspect:

• Shaft alignment
• Coupling
• Bearings
• Gearbox
• Belts
• Pump
• Fan
• Conveyor
• Mechanical guards

Ensure that the load does not have unexpected mechanical resistance.

---

Commissioning Procedure

Pre-Energization Checklist

Before applying power:

1. Confirm motor data.
2. Verify power wiring.
3. Verify control wiring.
4. Check grounding.
5. Verify circuit protection.
6. Inspect the motor.
7. Inspect the mechanical load.
8. Check cabinet ventilation.
9. Verify configuration.
10. Confirm emergency-stop and interlock circuits.

---

Initial Energization

After completing the pre-start inspection:

1. Energize the system.
2. Observe the ATS480D75Y status.
3. Check for active faults.
4. Confirm control inputs.
5. Verify communication if used.
6. Confirm the expected operating mode.

---

First Motor Start

Issue the first start command under controlled conditions.

Monitor:

• Motor current
• Acceleration
• Motor sound
• Vibration
• Mechanical movement
• Soft-starter status
• Process response

If the motor fails to accelerate normally, stop the test and investigate before repeating the start sequence.

---

Troubleshooting Guide

Fault 1 – ATS480D75Y Does Not Power Up

Possible Causes

• No incoming power
• Open protective device
• Incorrect wiring
• Control-supply problem
• Internal equipment fault

Diagnostic Procedure

1. Verify incoming voltage.
2. Check circuit protection.
3. Inspect power connections.
4. Verify control supply.
5. Check the device status.

---

Fault 2 – Motor Does Not Start

Possible Causes

• Missing start command
• Incorrect control wiring
• Active interlock
• Incorrect configuration
• Motor fault
• Mechanical obstruction

Corrective Procedure

Trace the start command from the PLC, HMI, relay, or external control circuit to the ATS480D75Y.

Then inspect the motor circuit and mechanical load.

---

Fault 3 – Motor Accelerates Too Slowly

Possible Causes

• Acceleration time too long
• Current limitation too restrictive
• Incorrect motor parameters
• Excessive mechanical load
• Mechanical resistance

Corrective Action

Review the configured motor data and acceleration settings.

At the same time, inspect the driven equipment for excessive load or mechanical resistance.

---

Fault 4 – Starting Current Is Excessive

Possible Causes

• Current limitation incorrectly configured
• Acceleration period too short
• Heavy mechanical load
• Incorrect motor data
• Motor problem

Recommended Checks

Compare the configured motor current with the actual motor nameplate information.

Also inspect the mechanical load.

---

Fault 5 – Soft Starter Trips During Acceleration

Possible Causes

• Motor overload
• Phase problem
• Wiring error
• Incorrect parameters
• Excessive load
• Mechanical obstruction

Do not repeatedly reset the fault without determining its cause.

---

Fault 6 – ATS480D75Y Overheats

Possible Causes

• Insufficient cabinet ventilation
• Blocked airflow
• High ambient temperature
• Excessive starting frequency
• Motor overload
• Cooling-system problem
• Dust accumulation

Diagnostic Approach

Inspect the entire cabinet thermal environment.

Check whether nearby heat-producing equipment is increasing the local temperature around the soft starter.

---

Fault 7 – Motor Vibrates During Startup

Possible Causes

• Shaft misalignment
• Loose coupling
• Bearing wear
• Mechanical imbalance
• Incorrect acceleration profile
• Mechanical resonance

A vibration problem should be investigated mechanically as well as electrically.

---

Fault 8 – Motor Stops Too Abruptly

Possible Causes

• Incorrect deceleration settings
• External stop command
• Incorrect control logic
• Incorrect stopping configuration
• High-inertia load

Review the complete stop sequence.

---

Fault 9 – Motor Does Not Stop

Possible Causes

• Stop command missing
• Control wiring problem
• PLC logic issue
• External interlock
• Configuration problem

Trace the stop signal from the control system through to the soft starter.

---

Fault 10 – Communication Failure

Possible Causes

• Incorrect communication address
• Incorrect serial parameters
• Damaged communication wiring
• PLC configuration problem
• Communication-device fault
• Incorrect control permissions

Diagnostic Procedure

Check the communication network separately from the motor power circuit.

Verify the physical connection first, followed by addressing and communication parameters.

---

Fault 11 – Repeated Overload Trips

Possible Causes

• Excessive mechanical load
• Mechanical obstruction
• Bearing deterioration
• Incorrect motor parameters
• Excessive starting frequency
• Incorrect soft-starter configuration
• Abnormal process conditions

Repeated overload faults should be treated as a root-cause problem rather than simply reset.

---

Fault Diagnosis Flow

A systematic troubleshooting sequence is:

Incoming Power

↓

Circuit Protection

↓

ATS480D75Y Status

↓

Control Signals

↓

Communication

↓

Power Connections

↓

Motor

↓

Mechanical Load

↓

Configuration

↓

Controlled Restart

This sequence helps technicians determine whether the fault originates from the electrical supply, control system, communication system, soft starter, motor, configuration, or mechanical equipment.

---

Preventive Maintenance

Electrical Inspection

Inspect periodically:

• Power terminals
• Control terminals
• Ground connections
• Cable insulation
• Signs of overheating
• Loose electrical connections

---

Cooling Inspection

Check:

• Cabinet ventilation
• Airflow
• Cooling equipment
• Ventilation openings
• Filters
• Dust accumulation

Keep airflow paths unobstructed.

---

Mechanical Inspection

Inspect:

• Mounting hardware
• Cable supports
• Motor alignment
• Couplings
• Bearings
• Mechanical vibration

---

Operating Condition Monitoring

Monitor:

• Motor current
• Starting duration
• Operating temperature
• Fault history
• Starting frequency
• Mechanical vibration
• Abnormal noise

Trend monitoring can help identify changes in equipment behavior before they develop into serious failures.

---

Preventive Maintenance Table

Maintenance Item	Recommended Action
Power Terminals	Inspect for looseness and heating
Control Wiring	Verify connection integrity
Grounding	Check continuity
Communication Wiring	Inspect physical condition
Cooling System	Inspect and clean
Ventilation	Keep airflow unobstructed
Cabinet Filters	Clean or replace as required
Motor Current	Monitor operating values
Fault History	Review regularly
Mounting Hardware	Inspect periodically
Cable Insulation	Check for deterioration
Cabinet Interior	Remove dust and contamination
Mechanical Equipment	Check alignment and vibration

---

Common Installation Errors

Incorrect Motor Parameters

Incorrect motor current, voltage, or frequency information can cause poor starting performance and unnecessary protection trips.

Insufficient Ventilation

Poor cabinet airflow can raise internal temperatures and affect equipment reliability.

Loose Power Connections

Loose terminals can produce localized heating, voltage drop, intermittent faults, and equipment damage.

Incorrect Control Wiring

A faulty start or stop circuit can make the soft starter appear defective even though the power stage is functioning normally.

Poor Grounding

Correct protective grounding is an essential part of the overall installation.

Incorrect Communication Configuration

A PLC may fail to communicate with the ATS480D75Y because of incorrect addressing, wiring, or serial settings rather than a hardware failure.

Mechanical Problems

Worn bearings, misalignment, excessive load, and damaged couplings can all cause motor-starting problems.

Repeated Fault Resets

Repeatedly resetting a fault without diagnosing the cause can increase downtime and make troubleshooting more difficult.

---

Industrial Automation Integration

A typical ATS480D75Y architecture can be represented as:

PLC / DCS / HMI

↓

Start / Stop / Interlock Commands

↓

ATS480D75Y

↓

Three-Phase Motor

↓

Pump / Fan / Compressor / Conveyor

↓

Process Feedback

The ATS480 platform is designed for integration into industrial control architectures and supports embedded Modbus serial communication. Optional communication solutions extend its integration possibilities.

The soft starter can therefore be used as part of a larger motor-management system rather than operating as an isolated motor-control component.

---

Compatible and Supporting Components

A complete motor-control system may include:

• Circuit breakers
• Disconnect switches
• Fuses
• Contactors
• Motor protection devices
• PLC controllers
• HMI systems
• Control relays
• Communication equipment
• Emergency-stop circuits
• Current monitoring equipment
• Motor sensors
• Process feedback devices

The exact component selection should be based on the electrical system, motor characteristics, application duty, and required protection architecture.

---

Recommended ATS480 Models for Related Applications

Model	Rated Current	Typical Use
ATS480D32Y	32 A	Smaller industrial motors
ATS480D38Y	38 A	Small-to-medium motor applications
ATS480D47Y	47 A	Medium motor applications
ATS480D62Y	62 A	Higher-current motor applications
ATS480D75Y	75 A	Higher-current industrial motor applications
ATS480D88Y	88 A	Higher-current applications
ATS480C11Y	110 A	Larger motor applications

These models belong to the same ATS480 family, but selection should always be based on the actual motor current, duty, supply voltage, starting requirements, and application conditions. Schneider’s published ATS480 selection information distinguishes normal-duty and heavy-duty applications, so a simple current comparison is not sufficient for final engineering.

---

Key Advantages

• 75 A rated operational current
• 208–690 V AC operational voltage range
• 110–230 V AC control supply
• Three-phase asynchronous motor control
• Torque-control functionality
• Controlled acceleration
• Controlled deceleration
• Current-limiting capability
• Integrated motor protection
• Embedded Modbus serial communication
• Suitable for industrial automation integration
• Vertical installation design
• Dimensions: 290 × 190 × 247 mm
• Weight: 8.3 kg

The ATS480 family is designed for applications from process and infrastructure systems to demanding industrial machinery.

---

Technical FAQs

What is the Schneider ATS480D75Y?

The Schneider ATS480D75Y is a 75 A Altivar ATS480 soft starter designed for controlled starting and stopping of three-phase asynchronous motors. It supports a 208–690 V AC motor supply range and a 110–230 V AC control supply.

What are the dimensions of the ATS480D75Y?

The supplied dimensions are 290 × 190 × 247 mm. Schneider identifies the dimensions as 290 mm high, 190 mm wide, and 247 mm deep.

What is the weight of the ATS480D75Y?

The specified product weight is 8.3 kg.

What is the rated current?

The ATS480D75Y is rated at 75 A.

What voltage range does it support?

The ATS480D75Y is specified for 208–690 V AC motor supply voltage, with a 110–230 V AC control supply.

What type of motor is it designed for?

The ATS480 family is designed for three-phase asynchronous motors, including modern IE2, IE3, and IE4 motor applications.

Does the ATS480D75Y support communication?

Yes. The ATS480 platform includes embedded Modbus serial communication, with additional communication options available for the family.

Why does the motor fail to accelerate?

Possible causes include excessive mechanical load, incorrect motor parameters, unsuitable acceleration settings, restrictive current limitation, motor problems, or mechanical resistance.

Why does the soft starter overheat?

Possible causes include inadequate ventilation, blocked airflow, high ambient temperature, excessive starting frequency, motor overload, or contamination.

Why does the ATS480D75Y trip during startup?

Possible causes include overload, phase problems, incorrect configuration, wiring faults, excessive mechanical load, or mechanical obstruction.

What should be checked before commissioning?

Check the motor nameplate data, power circuit, control circuit, grounding, protective devices, cabinet ventilation, communication settings, mechanical load, and soft-starter parameters.

Can the ATS480D75Y be integrated into a PLC system?

Yes. The ATS480 platform provides embedded Modbus serial communication and can be incorporated into industrial automation architectures for motor commands, status monitoring, and fault management.

---

Conclusion

The Schneider ATS480D75Y Soft Starter is a 75 A industrial motor-control solution designed for controlled acceleration and deceleration of three-phase asynchronous motors. Its 208–690 V AC operational voltage range and 110–230 V AC control supply make it suitable for a broad range of industrial motor-control architectures.

With a supplied physical size of 290 × 190 × 247 mm and a weight of 8.3 kg, the ATS480D75Y requires appropriate cabinet planning, ventilation, wiring space, and maintenance access. Its torque-control capabilities, integrated protection functions, and communication features make it suitable for applications where motor starting performance and process stability are important.

For reliable operation, the device should be selected according to the actual motor current and duty, rather than relying only on nominal motor power. Correct motor parameters, properly designed power and control circuits, suitable protection, adequate ventilation, and careful commissioning are essential.

When troubleshooting, technicians should proceed systematically from the incoming power and protection circuit through control signals, communication, soft-starter status, motor wiring, motor condition, and mechanical load. Preventive inspection of terminals, cooling conditions, communication wiring, motor current, fault history, and mechanical equipment can further reduce unexpected downtime and improve the long-term reliability of the ATS480D75Y installation.
