Product Overview

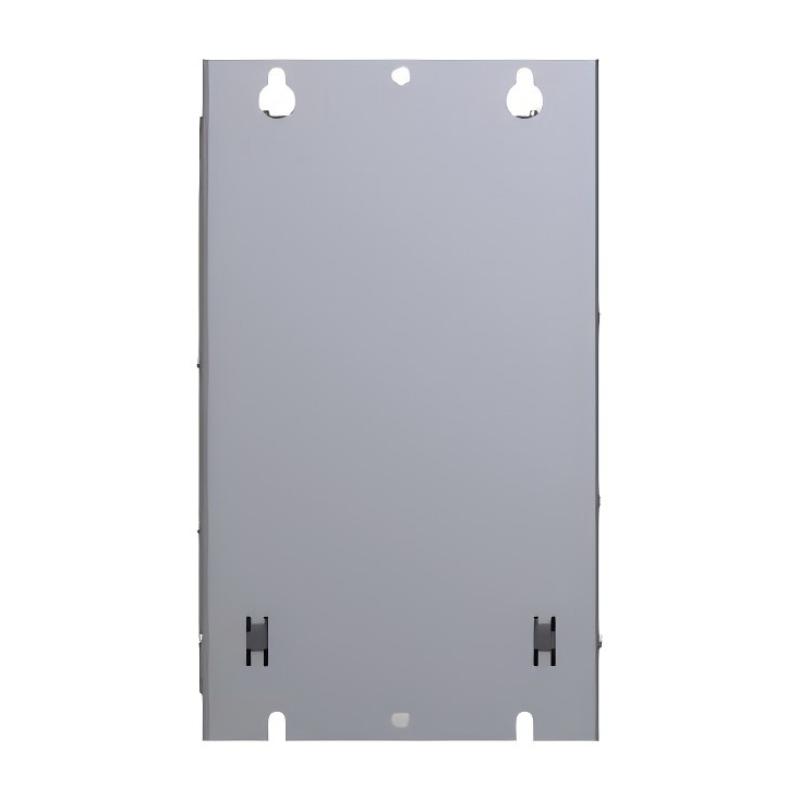

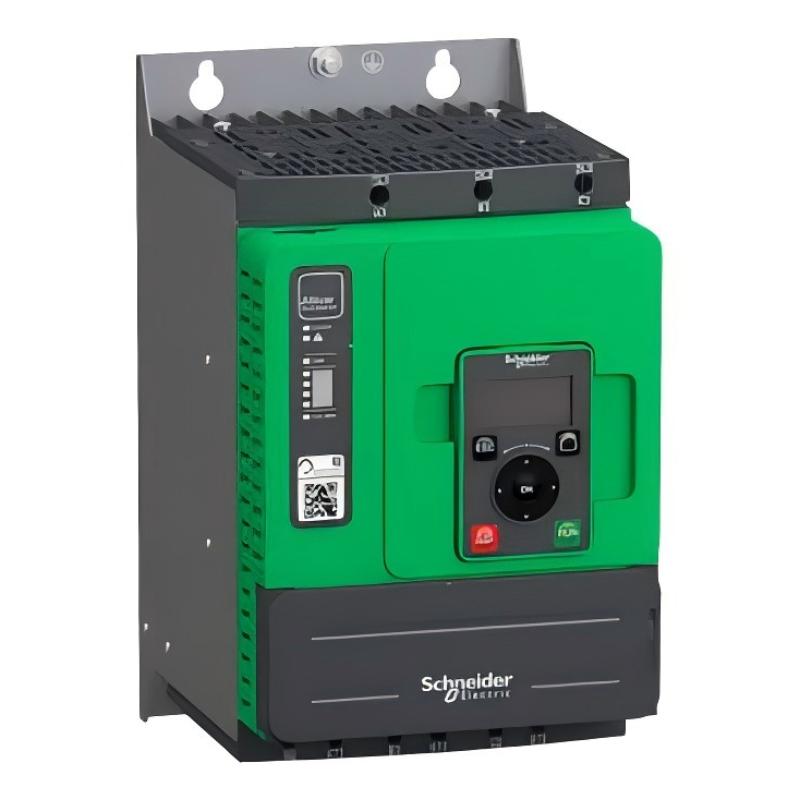

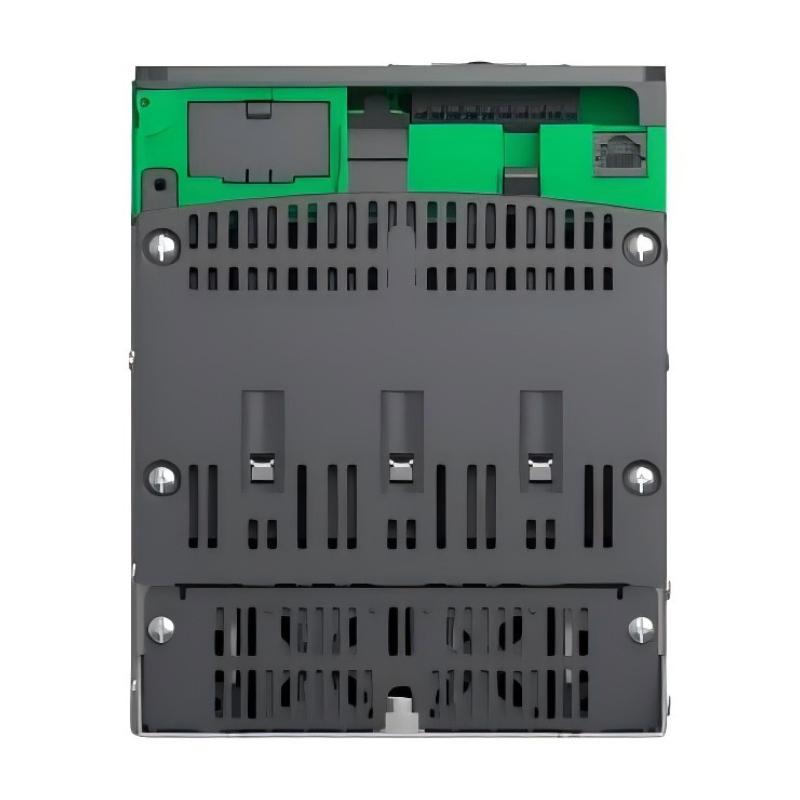

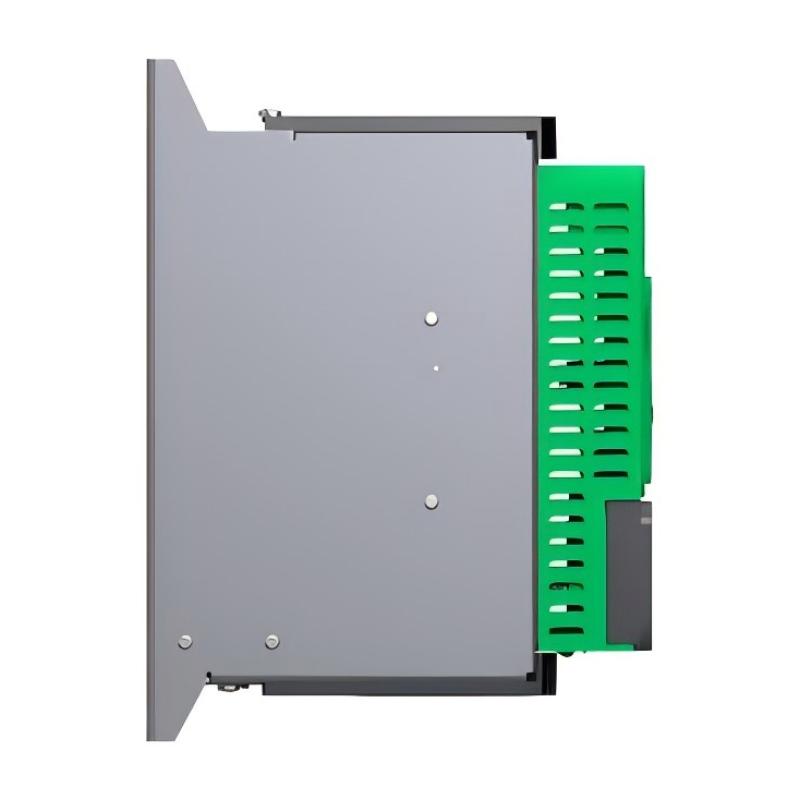

The Schneider ATS480D38Y Soft Starter is an industrial motor-control device designed for controlled starting and stopping of three-phase AC induction motors. It is part of the ATS480 soft starter family and is intended for applications where direct-on-line starting may create excessive current, sudden torque, or unnecessary mechanical stress.
During a conventional direct start, an induction motor can draw a large starting current while simultaneously producing a substantial torque transition. For pumps, fans, compressors, conveyors, mixers, and similar equipment, this sudden transition can place additional stress on the motor and driven machinery.
The ATS480D38Y addresses this issue by controlling the motor’s acceleration and deceleration. A properly configured soft-start profile can provide smoother motor startup, reduce electrical disturbances, and limit mechanical shock transmitted through shafts, couplings, gearboxes, belts, and other drivetrain components.
The supplied product information specifies 275 × 160 × 203 mm dimensions and a 4.9 kg weight for the ATS480D38Y.
Product Information
| Item | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATS480D38Y |
| Product Family | ATS480 |
| Product Type | Soft Starter |
| Application | Industrial Motor Control |
| Motor Type | Three-Phase AC Induction Motor |
| Starting Method | Controlled Soft Start |
| Stopping Method | Controlled Soft Stop |
| Dimensions | 275 × 160 × 203 mm |
| Weight | 4.9 kg |
| Installation | Industrial Control Cabinet |
| Typical Loads | Pumps, Fans, Compressors, Conveyors, Mixers |
The dimensions and weight above are based on the product information supplied for this article. Actual electrical ratings, motor compatibility, protection requirements, and operating limitations should be verified for the specific installation.
Technical Specifications
The ATS480D38Y is designed for industrial motor starting applications where controlled acceleration and deceleration are required.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATS480D38Y |
| Series | Altivar ATS480 |
| Product Type | Soft Starter |
| Motor Application | Three-Phase AC Motor |
| Control Function | Motor Acceleration / Deceleration |
| Installation | Panel or Control Cabinet |
| Dimensions | 275 × 160 × 203 mm |
| Weight | 4.9 kg |
| Typical Application | Industrial Motor Control |
| Typical Loads | Pump, Fan, Compressor, Conveyor, Mixer |
For engineering purposes, the motor’s rated current and duty should be used as the primary criteria when selecting and configuring a soft starter.
How the ATS480D38Y Works
A simplified motor-control arrangement is:
Three-Phase AC Supply
↓
ATS480D38Y Soft Starter
↓
Three-Phase Motor
↓
Mechanical Load
↓
Process Equipment
During startup, the soft starter controls the electrical conditions applied to the motor so acceleration occurs progressively instead of through an abrupt full-voltage transition.
This can reduce:
- Starting current demand
- Mechanical torque shock
- Coupling stress
- Belt tension changes
- Gearbox loading
- Pump stress
- Electrical disturbances
During stopping, an appropriate controlled stopping profile can reduce abrupt changes in motor speed.
Why Use the ATS480D38Y?
Controlled Motor Acceleration
Gradual acceleration allows the motor to reach operating speed more smoothly.
Reduced Mechanical Stress
A smoother torque transition can reduce stress on:
- Shafts
- Bearings
- Couplings
- Gearboxes
- Belts
- Chains
- Pump assemblies
Improved Electrical Behavior
Controlled starting can reduce the impact of motor starting current on the electrical distribution system.
Better Process Control
Applications with fluid, material, or high-inertia loads can benefit from predictable acceleration and stopping.
Reduced Unnecessary Wear
A controlled start can help reduce repeated mechanical shock during frequent operating cycles.
Industrial Applications
Water and Wastewater Pumps
The ATS480D38Y can be integrated into pump systems where gradual acceleration and controlled stopping are desirable.
Typical equipment includes:
- Water pumps
- Wastewater pumps
- Circulation pumps
- Cooling pumps
- Process pumps
Industrial Fans
Large fans and blowers may have considerable rotating inertia. A controlled acceleration profile can reduce startup stress on the motor and mechanical assembly.
Applications include:
- Factory ventilation
- Exhaust systems
- Cooling systems
- Air-handling equipment
- Dust collection systems
Compressors
Industrial compressors can require carefully controlled motor starting to prevent excessive electrical and mechanical loading.
The correct configuration should consider the compressor type, motor characteristics, and operating cycle.
Conveyors
Controlled acceleration can reduce sudden belt tension and mechanical impact.
Potential applications include:
- Bulk-material conveyors
- Packaging conveyors
- Production lines
- Mining conveyors
- Warehouse material handling
Mixers
Industrial mixers can experience high starting torque depending on material viscosity and process conditions. A controlled acceleration profile can help reduce sudden mechanical loading.
Installation Guide
1. Confirm the Model
Before installation, verify the identification:
Schneider ATS480D38Y
Inspect the unit for:
- Cracked housing
- Damaged terminals
- Loose hardware
- Physical impact
- Moisture
- Contamination
Do not install a visibly damaged device.
2. Verify Motor Compatibility
Before configuration, collect the motor nameplate information:
- Rated voltage
- Rated current
- Rated frequency
- Rated power
- Connection arrangement
- Motor speed
- Duty characteristics
The soft starter should be sized according to the motor’s actual operating current and application duty.
3. Prepare the Control Cabinet
The supplied physical dimensions are:
275 × 160 × 203 mm
The cabinet must provide additional space for:
- Power cables
- Control wiring
- Protective equipment
- Ventilation
- Cable bending radius
- Maintenance access
Do not install the device directly against other heat-producing equipment unless the overall thermal design permits it.
4. Environmental Preparation
Select an appropriate industrial installation location.
Avoid excessive exposure to:
- Water
- Condensation
- Dust
- Oil mist
- Corrosive gases
- Excessive vibration
- High ambient temperature
- Direct heat
The surrounding cabinet should provide the required environmental protection.
5. Electrical Safety
Before wiring:
- Disconnect the incoming power.
- Apply lockout/tagout procedures.
- Verify absence of voltage.
- Isolate the motor.
- Confirm stored electrical energy has been discharged.
- Wear appropriate electrical PPE.
All power work should be performed by qualified personnel.
6. Mounting
Secure the ATS480D38Y to a suitable mounting panel.
Verify:
- Correct mounting orientation
- Mechanical stability
- Adequate ventilation
- Cable access
- Terminal accessibility
- Maintenance clearance
The specified product weight is 4.9 kg, so the mounting structure should be suitable for industrial operating conditions and vibration.
7. Power Circuit Wiring
Connect the incoming supply and motor circuit according to the engineered system design.
Inspect:
- Phase connections
- Cable sizing
- Terminal tightness
- Protective grounding
- Insulation
- Short-circuit protection
- Cable routing
Before energization, inspect the complete power circuit for wiring errors.
8. Control Circuit Wiring
The control system may contain:
- Start command
- Stop command
- Reset
- Fault indication
- Run indication
- External interlocks
- PLC control signals
- Emergency-stop logic
Control cables should be routed appropriately to minimize interference from high-current power wiring.
9. Parameter Configuration
Configure the soft starter based on the actual motor and mechanical load.
Typical configuration areas include:
- Motor rated current
- Acceleration time
- Starting parameters
- Current limitation
- Deceleration time
- Protection settings
- Stop mode
- Control source
Do not simply copy parameters from another installation unless the motor, load, and operating conditions are equivalent.
10. Mechanical Inspection
Before commissioning, inspect the connected equipment.
Check:
- Shaft alignment
- Coupling
- Bearings
- Gearbox
- Belts
- Pumps
- Fans
- Conveyors
- Mechanical guards
Confirm that the motor and driven machine can rotate without unexpected resistance.
Commissioning Procedure
Initial Inspection
Before energization:
- Verify power wiring.
- Verify control wiring.
- Confirm protective grounding.
- Inspect circuit protection.
- Confirm motor data.
- Inspect the mechanical load.
- Check cabinet ventilation.
Initial Energization
- Energize the control system.
- Observe the ATS480D38Y status.
- Check for alarms or fault indications.
- Verify the control mode.
- Confirm external control signals.
First Motor Start
- Issue the start command.
- Observe motor acceleration.
- Monitor motor current.
- Listen for unusual noise.
- Check vibration.
- Verify the motor reaches the intended operating speed.
If abnormal behavior occurs, stop the commissioning process and investigate before repeating the start sequence.
Troubleshooting Guide
Fault 1 – ATS480D38Y Does Not Power On
Possible causes:
- Missing supply voltage
- Open circuit protection
- Incorrect power wiring
- Control supply problem
- Internal equipment fault
Diagnostic Procedure
- Check incoming voltage.
- Inspect circuit protection.
- Check power terminals.
- Verify control supply.
- Check the soft starter status.
Fault 2 – Motor Does Not Start
Possible causes:
- No start command
- Incorrect control wiring
- Active interlock
- Incorrect configuration
- Motor fault
- Mechanical obstruction
Recommended Approach
Trace the start command from the PLC, HMI, relay, or control circuit to the soft starter. Then verify the motor circuit and mechanical load.
Fault 3 – Motor Accelerates Too Slowly
Possible causes:
- Acceleration time too long
- Starting parameters unsuitable
- Current limitation too restrictive
- Excessive mechanical load
- Mechanical resistance
Monitor current during acceleration and inspect the mechanical load.
Fault 4 – Starting Current Is Excessive
Possible causes:
- Incorrect current limitation
- Acceleration time too short
- Heavy mechanical load
- Incorrect motor data
- Motor problem
Check the motor nameplate information and compare it with the configured values.
Fault 5 – Soft Starter Trips During Acceleration
Possible causes:
- Motor overload
- Phase problem
- Wiring error
- Incorrect configuration
- Excessive mechanical load
- Mechanical obstruction
Repeated resetting should be avoided until the underlying problem has been identified.
Fault 6 – ATS480D38Y Overheats
Possible causes:
- Insufficient cabinet ventilation
- Blocked airflow
- High ambient temperature
- Excessive starting frequency
- Motor overload
- Cooling problem
- Dust accumulation
Check both the soft starter and the cabinet’s overall thermal environment.
Fault 7 – Motor Vibrates During Startup
Possible causes:
- Misaligned shaft
- Loose coupling
- Bearing wear
- Mechanical imbalance
- Incorrect acceleration profile
- Mechanical resonance
A vibration problem should be evaluated mechanically as well as electrically.
Fault 8 – Motor Stops Too Abruptly
Possible causes:
- Incorrect deceleration settings
- External stop command
- Control logic problem
- Incorrect stopping mode
- High-inertia load
Review the stop command and configured deceleration behavior.
Fault 9 – Motor Does Not Stop
Possible causes:
- Incorrect stop signal
- PLC logic problem
- Control wiring issue
- External interlock
- Configuration problem
Trace the complete stop-command circuit.
Fault 10 – Repeated Overload Trips
Possible causes include:
- Excessive mechanical load
- Mechanical obstruction
- Bearing problems
- Incorrect motor parameters
- Excessive starting frequency
- Incorrect soft-starter settings
- Abnormal process conditions
Repeated overload trips should be treated as a system-level problem rather than simply reset.
Fault Diagnosis Flow
A systematic diagnostic process can follow this sequence:
Incoming Power
↓
Circuit Protection
↓
ATS480D38Y Status
↓
Control Signals
↓
Power Connections
↓
Motor
↓
Mechanical Load
↓
Configuration
↓
Controlled Restart
This process helps technicians separate power, control, configuration, motor, and mechanical faults.
Preventive Maintenance
Electrical Inspection
Inspect periodically:
- Power terminals
- Control terminals
- Grounding connections
- Cable insulation
- Signs of overheating
- Loose electrical connections
Cooling Inspection
Check:
- Cabinet ventilation
- Airflow
- Cooling components
- Filters
- Ventilation openings
- Dust accumulation
Keep airflow paths unobstructed.
Mechanical Inspection
Inspect:
- Mounting hardware
- Cable supports
- Shaft alignment
- Couplings
- Bearings
- Motor vibration
Operational Monitoring
Monitor:
- Motor current
- Starting time
- Operating temperature
- Fault history
- Starting frequency
- Mechanical vibration
- Abnormal noise
Maintaining historical operating data can make it easier to identify gradual changes in system performance.
Preventive Maintenance Schedule
| Maintenance Item | Recommended Action |
|---|---|
| Power Terminals | Inspect for looseness and heating |
| Control Wiring | Check connection integrity |
| Cooling System | Inspect and clean |
| Ventilation Paths | Keep unobstructed |
| Cabinet Filters | Clean or replace as required |
| Grounding | Verify continuity |
| Motor Current | Monitor during operation |
| Fault History | Review regularly |
| Mounting Hardware | Inspect periodically |
| Cable Insulation | Check condition |
| Cabinet Interior | Remove dust and contamination |
| Mechanical Equipment | Check alignment and vibration |
Common Installation Mistakes
Incorrect Motor Parameters
Incorrect motor data can lead to unstable acceleration or unnecessary protection trips.
Insufficient Cabinet Ventilation
Poor airflow can increase internal temperature and negatively affect equipment reliability.
Loose Terminals
Loose connections can create localized heating and intermittent faults.
Incorrect Cable Routing
High-current power cables and sensitive control wiring should be routed appropriately to reduce interference.
Poor Grounding
Protective grounding should be correctly implemented as part of the complete electrical installation.
Incorrect Mechanical Alignment
Misalignment can produce vibration and excessive motor loading even when the soft starter is operating normally.
Repeated Fault Resetting
Resetting the same fault without determining its cause can result in repeated downtime and unnecessary equipment stress.
Industrial Automation Integration
The ATS480D38Y can be incorporated into a broader industrial automation architecture.
A typical arrangement is:
PLC / DCS / HMI
↓
Start / Stop / Interlock Commands
↓
ATS480D38Y
↓
Three-Phase Motor
↓
Pump / Fan / Compressor / Conveyor
↓
Process Feedback
The automation system can coordinate the motor with other process equipment while the soft starter manages controlled motor acceleration and stopping.
Supporting System Components
A complete installation may include:
- Circuit breakers
- Disconnect switches
- Fuses
- Contactors
- Motor protection devices
- PLC controllers
- HMI systems
- Control relays
- Communication equipment
- Emergency-stop circuits
- Current monitoring devices
- Motor sensors
- Process feedback equipment
The exact configuration should be determined from the motor, load, electrical system, control architecture, and applicable safety requirements.
Key Advantages
- Industrial motor soft-starting solution
- Controlled motor acceleration
- Controlled motor deceleration
- Reduced starting current
- Reduced mechanical shock
- Improved starting stability
- Reduced stress on mechanical drivetrain components
- Suitable for pumps, fans, compressors, conveyors, and mixers
- Compact installation footprint
- Dimensions: 275 × 160 × 203 mm
- Weight: 4.9 kg
Technical FAQs
What is the Schneider ATS480D38Y?
The ATS480D38Y is an industrial soft starter designed to provide controlled acceleration and deceleration for three-phase AC induction motors.
What are the dimensions of the ATS480D38Y?
The supplied dimensions are 275 × 160 × 203 mm.
What is the weight of the ATS480D38Y?
The supplied weight is 4.9 kg.
What is the purpose of a soft starter?
A soft starter controls the motor’s starting and stopping process to reduce starting current and mechanical shock.
Which applications can use the ATS480D38Y?
Typical applications include pumps, fans, compressors, conveyors, mixers, blowers, and other industrial rotating machinery.
Why does the motor start but fail to reach normal speed?
Possible causes include an excessive mechanical load, restrictive starting settings, incorrect motor parameters, insufficient starting conditions, or mechanical resistance.
Why does the soft starter overheat?
Possible causes include poor ventilation, blocked airflow, high ambient temperature, excessive starting frequency, overload, or contamination.
Why does the soft starter trip during acceleration?
Possible causes include motor overload, phase problems, incorrect parameters, wiring problems, or mechanical obstruction.
What should be checked before commissioning?
Verify motor data, power wiring, control wiring, grounding, protection, ventilation, mechanical connections, and starting parameters.
How can long-term reliability be improved?
Correct sizing, proper installation, appropriate configuration, adequate ventilation, routine inspection, and systematic fault diagnosis all contribute to reliable operation.
Conclusion
The Schneider ATS480D38Y Soft Starter is designed to provide controlled acceleration and deceleration for industrial three-phase AC motors. By replacing abrupt full-voltage starting with a controlled starting profile, it can help reduce electrical inrush and mechanical shock while supporting smoother operation of connected machinery.
The supplied physical specifications are 275 × 160 × 203 mm with a 4.9 kg weight. These dimensions should be considered when designing the control cabinet, while additional space must be provided for power cables, control wiring, ventilation, protection equipment, and maintenance access.
Successful commissioning requires accurate motor information, correctly installed power and control circuits, suitable protection, reliable grounding, adequate ventilation, and appropriate starting and stopping parameters.
If a fault occurs, technicians should follow a structured diagnostic sequence rather than immediately replacing the soft starter. Checking the incoming power, protection circuit, control commands, soft-starter status, motor circuit, motor condition, and mechanical load in sequence can significantly improve troubleshooting efficiency.
Regular preventive maintenance—including terminal inspection, cooling-system checks, cabinet cleaning, motor-current monitoring, fault-history review, and mechanical inspection—can further reduce unexpected downtime and support stable long-term operation of the ATS480D38Y motor-control system.
