Product Overview

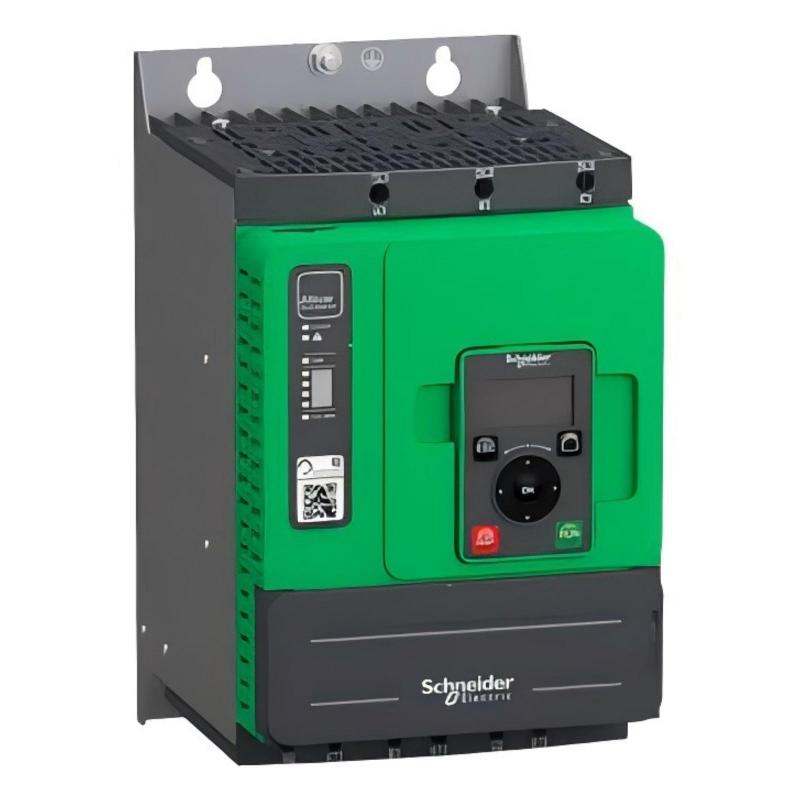

The Schneider ATS480D32Y Soft Starter is an industrial motor-control solution from the Altivar Soft Starter ATS480 family, designed for controlled starting and stopping of three-phase asynchronous motors. The model is rated at 32 A and is designed for motor applications across a broad 208–690 V AC supply range, with a 110–230 V AC control supply.
Instead of applying full motor voltage instantaneously, the ATS480D32Y manages the acceleration process to provide smoother motor startup. This can reduce electrical stress and mechanical shock on equipment such as pumps, fans, compressors, conveyors, and other rotating machinery.
The ATS480 platform also provides torque-control functionality for managing acceleration and deceleration. Depending on the application, it can be used for both in-line and inside-delta motor connections, providing flexibility when designing motor-control systems.

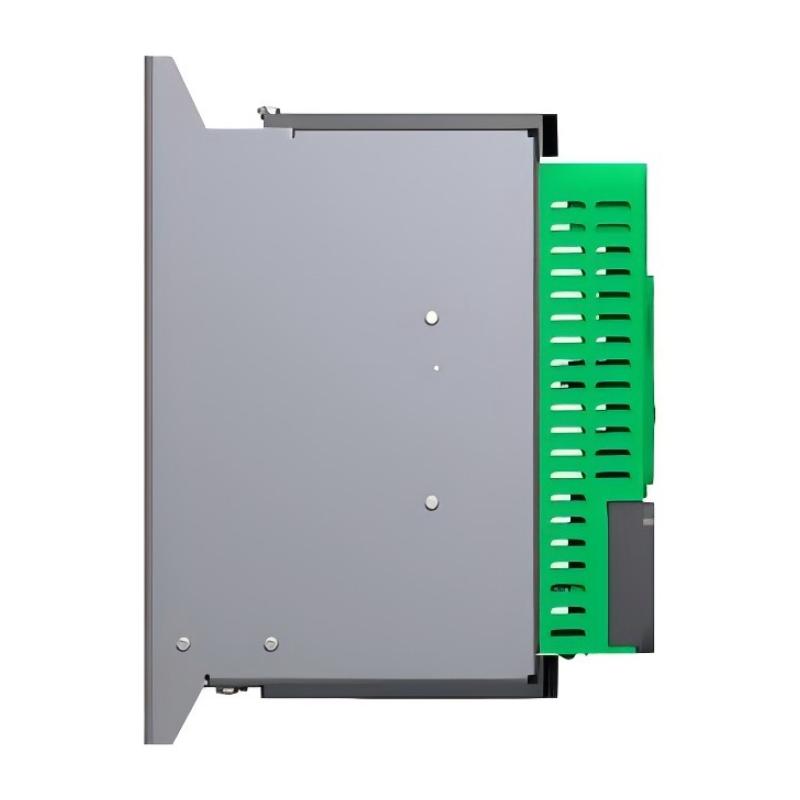

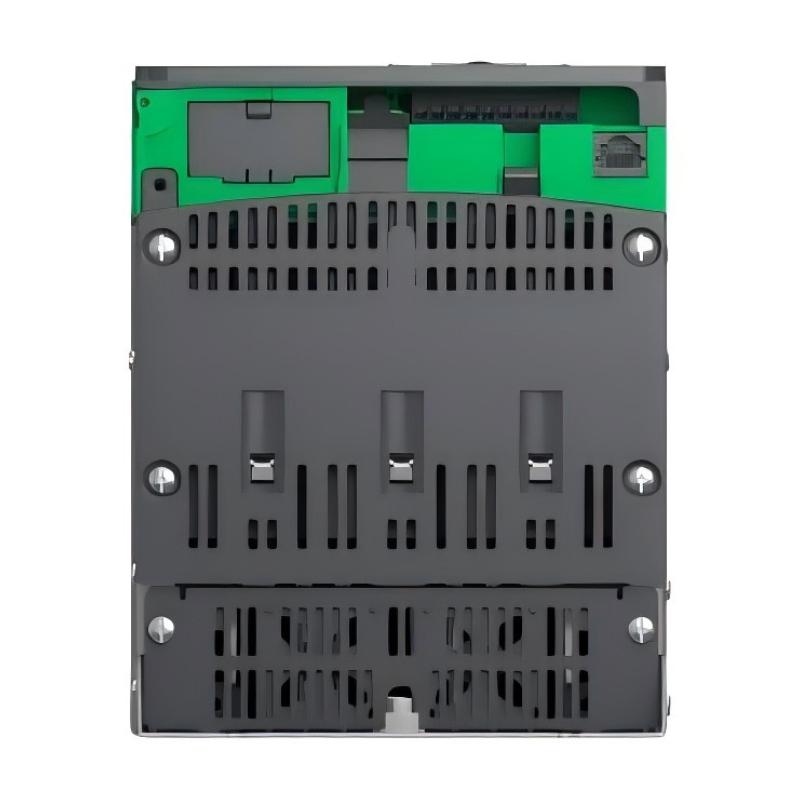

The supplied physical specifications for the ATS480D32Y are 275 × 160 × 203 mm and 4.9 kg. These dimensions correspond to a width of 160 mm, height of 275 mm, and depth of 203 mm.
Product Information
- Manufacturer: Schneider Electric
- Model: ATS480D32Y
- Series: Altivar Soft Starter ATS480
- Product Type: Soft Starter
- Rated Operational Current: 32 A
- Supply Voltage: 208–690 V AC
- Control Supply: 110–230 V AC
- Dimensions: 275 × 160 × 203 mm
- Weight: 4.9 kg
- Installation Orientation: Vertical
- Enclosure Rating: IP20
- Motor Type: Three-Phase Asynchronous Motor
- Communication: Modbus serial communication
- Primary Function: Controlled Motor Starting and Stopping
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATS480D32Y |
| Series | Altivar Soft Starter ATS480 |
| Product Type | Soft Starter |
| Rated Operational Current | 32 A |
| Supply Voltage | 208–690 V AC |
| Control Supply | 110–230 V AC |
| Dimensions | 275 × 160 × 203 mm |
| Weight | 4.9 kg |
| Installation | Vertical |
| Protection Rating | IP20 |
| Motor Type | Three-Phase Asynchronous Motor |
| Communication | Modbus Serial |
| Mounting Screws | M6 |
| Typical Application | Industrial Motor Starting and Stopping |
The published dimensional information places the ATS480D32Y in the ATS480 frame-size-A group, sharing the same 160 × 275 × 203 mm overall dimensions as several other D-series models.
Motor Application Range
The ATS480D32Y has a rated operational current of 32 A. Published ATS480 technical data lists the model for motor applications including approximately 9 kW at 230 V and 18.5 kW at 400 V in the specified heavy-duty/inside-delta configuration data. The actual usable motor rating depends on the connection method, duty, ambient conditions, motor characteristics, and application requirements.
For this reason, motor selection should always be based on motor current and application duty rather than relying solely on motor power.
How the ATS480D32Y Works
The ATS480D32Y uses controlled semiconductor switching to manage the voltage delivered to an asynchronous motor during acceleration and deceleration.
A simplified installation can be represented as:
Three-Phase AC Supply
↓
ATS480D32Y Soft Starter
↓
Three-Phase Motor
↓
Mechanical Load
↓
Normal Operating Condition
During startup, the ATS480D32Y progressively controls the motor’s electrical conditions rather than subjecting the motor to an abrupt full-voltage start.
This can help reduce:
- Starting current
- Torque shock
- Mechanical stress
- Voltage disturbances
- Belt and coupling stress
- Pump and compressor shock
The ATS480 platform also uses torque-control functionality to manage acceleration and deceleration, which is particularly useful for applications where smooth motor behavior is important.
Key Functions
The ATS480D32Y is designed to provide:
- Soft motor starting
- Controlled motor stopping
- Acceleration control
- Deceleration control
- Current management
- Motor protection functions
- Fault monitoring
- Digital control integration
- Modbus communication
- In-line motor connection
- Inside-delta motor connection
The ATS480 family is designed for process, infrastructure, and industrial-machine applications.
Industrial Applications
Pumping Systems
The ATS480D32Y is well suited to applications where smooth motor acceleration and stopping are desirable.
Typical examples include:
- Water pumps
- Cooling pumps
- Process pumps
- Wastewater systems
- Circulation pumps
Controlled stopping can also be valuable where abrupt changes in motor speed could disturb a fluid-handling process.
Fans and Blowers
Industrial fans and blowers often have significant rotating inertia. A controlled acceleration profile can reduce mechanical shock during startup.
Applications include:
- Industrial ventilation
- Exhaust systems
- Process-air systems
- Cooling systems
- Dust extraction equipment
Compressors
The ATS480D32Y can be integrated into compressor motor-control systems where controlled starting is required.
Proper configuration should consider the compressor type, motor characteristics, starting frequency, and mechanical load.
Conveyors
Conveyor systems can benefit from gradual acceleration because abrupt motor torque can cause:
- Belt tension
- Product movement
- Coupling stress
- Gearbox loading
- Mechanical shock
Mixers and Process Machinery
Mixers and other rotating process equipment may require controlled acceleration to prevent sudden torque application.
Installation Guide
1. Verify the Product
Before installation, confirm:
Schneider ATS480D32Y
Inspect the unit for:
- Physical damage
- Cracked housing
- Damaged terminals
- Loose components
- Moisture
- Foreign material
Do not install visibly damaged equipment.
2. Confirm Motor Data
Before configuring the ATS480D32Y, collect the motor nameplate information:
- Rated voltage
- Rated current
- Rated frequency
- Rated power
- Connection type
- Motor speed
- Starting characteristics
Motor current is particularly important when determining whether the soft starter is correctly sized.
3. Check Cabinet Dimensions
The supplied dimensions are:
275 × 160 × 203 mm
The published dimensional convention is:
- Height: 275 mm
- Width: 160 mm
- Depth: 203 mm
Allow additional cabinet space for:
- Power cables
- Control wiring
- Ventilation
- Protective devices
- Cable bending radius
- Maintenance access
Do not design the cabinet around the device dimensions alone.
4. Mounting
The ATS480D32Y belongs to the ATS480 frame-size-A group.

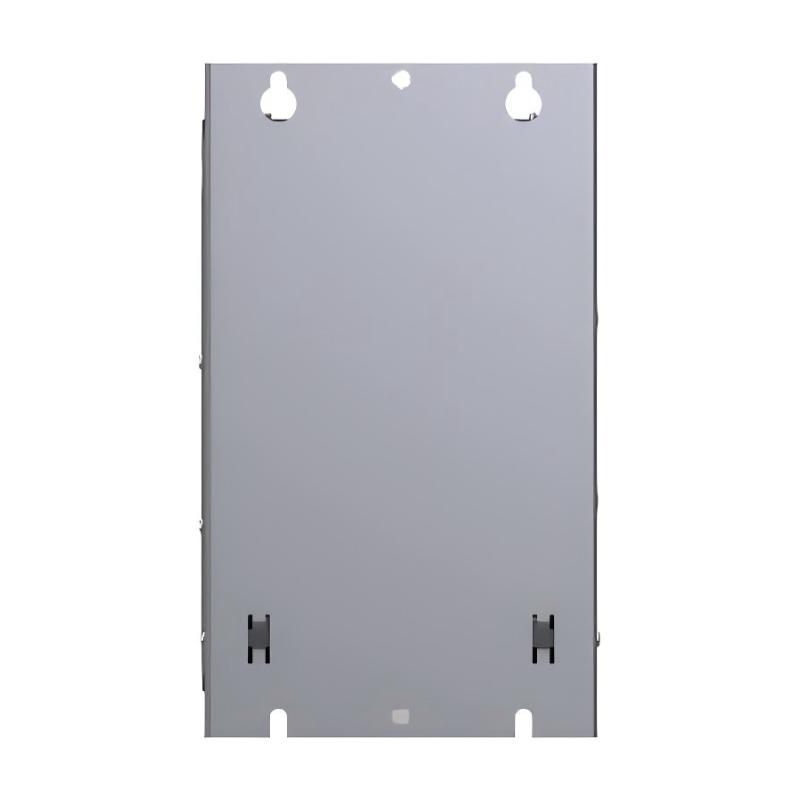

The installation documentation specifies four mounting points using M6 mounting screws for this frame size.
Before tightening the mounting hardware, verify:
- Correct vertical orientation
- Panel strength
- Mounting-hole alignment
- Adequate ventilation
- Cable access
- Maintenance clearance
5. Electrical Isolation
Before electrical installation:
- Disconnect incoming power.
- Apply lockout/tagout procedures.
- Verify absence of hazardous voltage.
- Isolate the motor.
- Confirm stored electrical energy has been safely discharged.
- Use appropriate electrical PPE.
Never perform power wiring on an energized soft starter.
6. Power Connections
Connect the incoming three-phase supply and motor circuit according to the application design.
Before energization, verify:
- Phase connections
- Cable size
- Terminal tightness
- Protective grounding
- Short-circuit protection
- Cable insulation
- Correct motor connection
The ATS480D32Y supports both in-line and inside-delta installation arrangements, but the actual wiring method must match the motor terminals and system design.
7. Control Wiring
Depending on the automation architecture, control wiring may include:
- Start command
- Stop command
- Reset
- Fault output
- Run status
- External interlocks
- PLC signals
- Emergency-stop logic
Separate control wiring from high-current power conductors where practical.
8. Communication Integration
The ATS480D32Y provides serial communication capability through its control architecture, including Modbus communication.
When integrating with a PLC or supervisory system, verify:
- Communication address
- Baud rate
- Serial settings
- Network wiring
- Control permissions
- Communication status
A communication fault should be distinguished from a power-stage or motor fault.
9. Parameter Configuration
Configure the soft starter according to the actual motor and application.
Important settings may include:
- Motor rated current
- Starting parameters
- Acceleration time
- Deceleration time
- Current limitation
- Protection settings
- Stop mode
- Control source
- Communication settings
Avoid copying parameter values from another machine unless the motor and mechanical load are genuinely equivalent.
10. Mechanical Inspection
Before the first motor start, inspect the driven machine.
Check:
- Shaft alignment
- Coupling
- Bearings
- Gearbox
- Belts
- Pump
- Fan
- Conveyor
- Mechanical guards
Make sure there is no unexpected mechanical obstruction.
Commissioning Procedure
Initial Inspection
Before energizing:
- Verify power wiring.
- Verify control wiring.
- Confirm grounding.
- Check protection devices.
- Confirm motor parameters.
- Inspect the mechanical load.
- Verify cabinet ventilation.
Initial Energization
- Energize the control system.
- Observe the ATS480D32Y status.
- Check for alarms.
- Confirm the expected control mode.
- Verify communication if used.
First Motor Start
- Issue the start command.
- Observe motor acceleration.
- Monitor motor current.
- Listen for abnormal noise.
- Check vibration.
- Verify the motor reaches normal speed.
Do not repeatedly restart a motor that demonstrates abnormal electrical or mechanical behavior.
Troubleshooting Guide
Fault 1 – ATS480D32Y Does Not Power On
Possible causes:
- Missing input voltage
- Open protection device
- Incorrect power wiring
- Control-supply problem
- Internal fault
Diagnostic Procedure
- Verify incoming voltage.
- Inspect protection devices.
- Check power connections.
- Verify control supply.
- Review the soft starter status.
Fault 2 – Motor Does Not Start
Possible causes:
- Missing start command
- Incorrect control wiring
- Active interlock
- Incorrect configuration
- Motor fault
- Mechanical obstruction
Recommended Checks
Check the command path from the PLC or control circuit to the ATS480D32Y, then inspect the motor circuit and mechanical load.
Fault 3 – Motor Accelerates Too Slowly
Possible causes:
- Acceleration time too long
- Starting parameters incorrectly configured
- Current limitation too restrictive
- Excessive mechanical load
- Mechanical resistance
Monitor motor current while checking the mechanical load.
Fault 4 – Starting Current Is Too High
Possible causes:
- Incorrect current-limit configuration
- Excessive mechanical load
- Short acceleration period
- Incorrect motor parameters
- Motor condition
Verify the motor nameplate information and compare the configured values with the actual motor.
Fault 5 – Soft Starter Trips During Acceleration
Possible causes:
- Motor overload
- Phase problem
- Incorrect wiring
- Incorrect motor parameters
- Excessive mechanical load
- Mechanical obstruction
Do not simply reset the fault repeatedly. Determine the underlying cause first.
Fault 6 – ATS480D32Y Overheats
Possible causes:
- Poor cabinet ventilation
- Blocked airflow
- High ambient temperature
- Excessive starting frequency
- Motor overload
- Cooling problem
- Dust accumulation
The ATS480D32Y is an IP20 device, so the installation enclosure must provide appropriate environmental protection.
Fault 7 – Motor Vibrates During Startup
Possible causes:
- Shaft misalignment
- Loose coupling
- Bearing wear
- Mechanical imbalance
- Incorrect acceleration configuration
- Mechanical resonance
Inspect the mechanical system rather than attempting to solve a mechanical problem through electrical parameter changes alone.
Fault 8 – Motor Stops Too Abruptly
Possible causes:
- Incorrect deceleration settings
- External stop command
- Incorrect control logic
- Inappropriate stop configuration
- High-inertia load characteristics
Review the complete stopping sequence.
Fault 9 – Communication Failure
Possible causes:
- Incorrect communication parameters
- Network wiring problem
- Incorrect address
- PLC configuration problem
- Communication module issue
- Control permissions
Check the communication path separately from the motor power circuit.
Fault 10 – Repeated Overload Faults
Repeated overload conditions may indicate:
- Excessive mechanical load
- Mechanical obstruction
- Bearing problems
- Incorrect motor parameters
- Excessive starting frequency
- Incorrect soft-starter configuration
- Abnormal process conditions
Repeated resets can hide the actual problem and should be avoided.
Fault Diagnosis Flow
A systematic troubleshooting sequence is:
Incoming Power
↓
Protection Devices
↓
ATS480D32Y Status
↓
Control Signals
↓
Communication
↓
Motor Wiring
↓
Motor
↓
Mechanical Load
↓
Operating Parameters
↓
Controlled Restart
This sequence helps technicians distinguish between electrical, communication, configuration, motor, and mechanical faults.
Preventive Maintenance
Electrical Inspection
Regularly inspect:
- Power terminals
- Control terminals
- Ground connections
- Cable insulation
- Signs of overheating
- Loose connections
Cooling Inspection
Check:
- Cabinet airflow
- Ventilation openings
- Cooling system
- Cabinet filters
- Dust accumulation
The cooling system should be kept free from unnecessary obstruction.
Mechanical Inspection
Inspect:
- Mounting screws
- Cable supports
- Motor alignment
- Couplings
- Bearings
- Vibration
Operational Monitoring
Record:
- Motor current
- Starting time
- Operating temperature
- Fault history
- Number of starts
- Communication status
- Mechanical vibration
Trend monitoring can help identify developing problems before they result in an unexpected shutdown.
Preventive Maintenance Schedule
| Maintenance Item | Recommended Action |
|---|---|
| Power Terminals | Inspect for looseness and heating |
| Control Wiring | Check connection integrity |
| Communication Wiring | Check network condition |
| Cooling System | Inspect and clean |
| Ventilation Paths | Keep unobstructed |
| Cabinet Filters | Clean or replace as required |
| Grounding | Verify continuity |
| Motor Current | Monitor during operation |
| Fault History | Review regularly |
| Mounting Hardware | Inspect periodically |
| Cable Insulation | Check condition |
| Mechanical Load | Inspect alignment and vibration |
Common Installation Mistakes
Incorrect Motor Data
Incorrect motor current or voltage settings can cause poor operation and unnecessary protection trips.
Insufficient Ventilation
Restricted airflow can raise operating temperature and shorten equipment service life.
Loose Terminals
Loose electrical connections can create localized heating and intermittent operation.
Incorrect Motor Connection
When using an inside-delta configuration, the motor terminals must be wired correctly. Incorrect connection can cause serious operational problems.
Poor Control Wiring
Incorrect start, stop, or interlock wiring can prevent normal operation.
Communication Configuration Errors
Incorrect address or communication parameters can cause the PLC to lose control or monitoring capability.
Repeated Fault Resetting
Resetting a fault without identifying the root cause can result in repeated failures and unnecessary downtime.
Industrial Automation Integration
The ATS480D32Y can be integrated into a larger industrial automation architecture.
A typical arrangement is:
PLC / DCS / HMI
↓
Start / Stop / Interlock Commands
↓
ATS480D32Y
↓
Three-Phase Motor
↓
Pump / Fan / Compressor / Conveyor
↓
Process Feedback
Communication and control integration can allow the automation system to monitor motor operation and respond to soft-starter status and faults.
Supporting Components
A complete motor-control installation may include:
- Circuit breakers
- Disconnect switches
- Fuses
- Contactors
- Motor protection devices
- PLC controllers
- HMI systems
- Control relays
- Communication equipment
- Emergency-stop circuits
- Current monitoring devices
- Motor sensors
- Process feedback devices
The actual configuration should be determined from the motor, application, electrical architecture, and applicable safety requirements.
Key Advantages
- 32 A industrial soft starter
- 208–690 V AC supply range
- 110–230 V AC control supply
- Controlled motor acceleration
- Controlled motor deceleration
- Torque-control functionality
- In-line and inside-delta connection capability
- Modbus communication capability
- Suitable for process and industrial machinery
- Compact 275 × 160 × 203 mm form factor
- Weight of 4.9 kg
Technical FAQs
What is the Schneider ATS480D32Y?
The Schneider ATS480D32Y is a 32 A Altivar ATS480 soft starter designed for controlled starting and stopping of three-phase asynchronous motors.
What voltage range does the ATS480D32Y support?
The model is specified for 208–690 V AC motor supply voltage, with a 110–230 V AC control supply.
What are the dimensions?
The supplied dimensions are 275 × 160 × 203 mm. Schneider’s dimensional information lists this as 160 mm wide × 275 mm high × 203 mm deep.
What is the weight?
The specified product weight is 4.9 kg.
What is the rated current?
The ATS480D32Y has a rated operational current of 32 A.
Can the ATS480D32Y be used inside the motor delta connection?
The ATS480 family supports both in-line and inside-delta connection arrangements. The exact wiring must follow the applicable installation configuration and motor terminal arrangement.
What communication capability does it provide?
The ATS480D32Y supports Modbus serial communication, making it suitable for integration with industrial control architectures.
Why does the motor fail to accelerate correctly?
Possible causes include incorrect motor parameters, restrictive current settings, excessive load, mechanical resistance, or an unsuitable starting configuration.
Why does the soft starter overheat?
Common causes include inadequate cabinet ventilation, blocked airflow, excessive starting frequency, overload, high ambient temperature, or dust accumulation.
What should be checked during commissioning?
Verify motor data, power wiring, control wiring, grounding, protection, cabinet ventilation, motor connection, starting parameters, motor current, and mechanical load conditions.
Conclusion
The Schneider ATS480D32Y Soft Starter is a compact 32 A motor-control device designed for industrial applications requiring controlled acceleration and deceleration. Its 208–690 V AC operating range, 110–230 V AC control supply, communication capability, and support for different motor connection arrangements make it suitable for a variety of industrial motor-control architectures.
The supplied physical dimensions are 275 × 160 × 203 mm, with a weight of 4.9 kg. The compact frame-size-A construction makes it practical for integration into appropriately designed control cabinets while still requiring adequate ventilation, wiring space, and maintenance access.
For reliable operation, the ATS480D32Y should be configured according to the actual motor and driven load. Correct motor data, power wiring, control signals, protection, grounding, ventilation, and communication settings are all important during commissioning.
When troubleshooting, technicians should work systematically from the incoming power and protection devices through the soft starter, control system, communication network, motor, and mechanical load. Regular preventive maintenance and trend monitoring can further reduce unexpected downtime and improve the long-term reliability of the complete industrial motor-control system.
