Product Overview

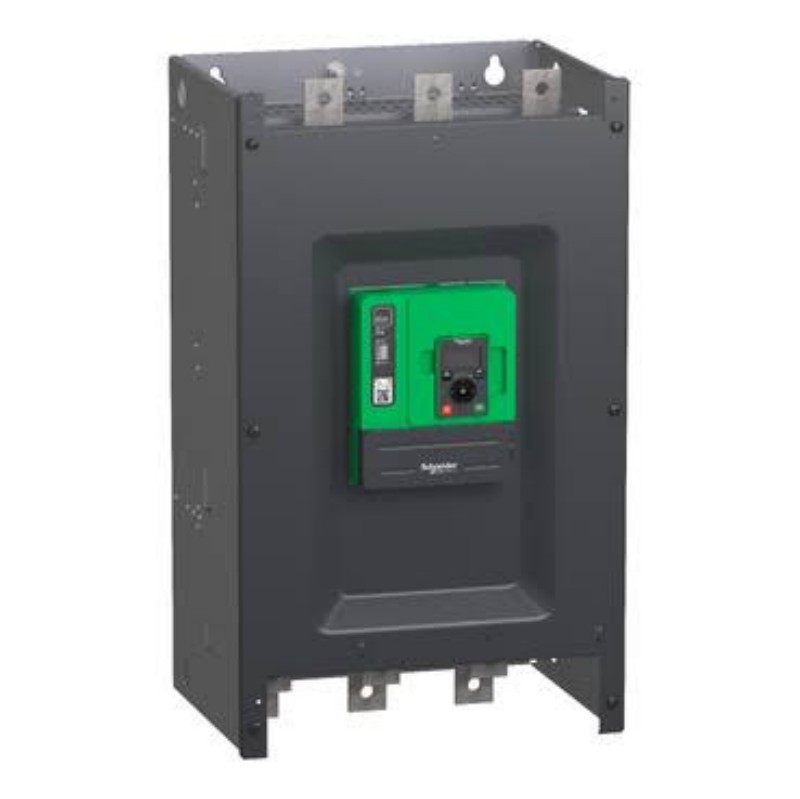

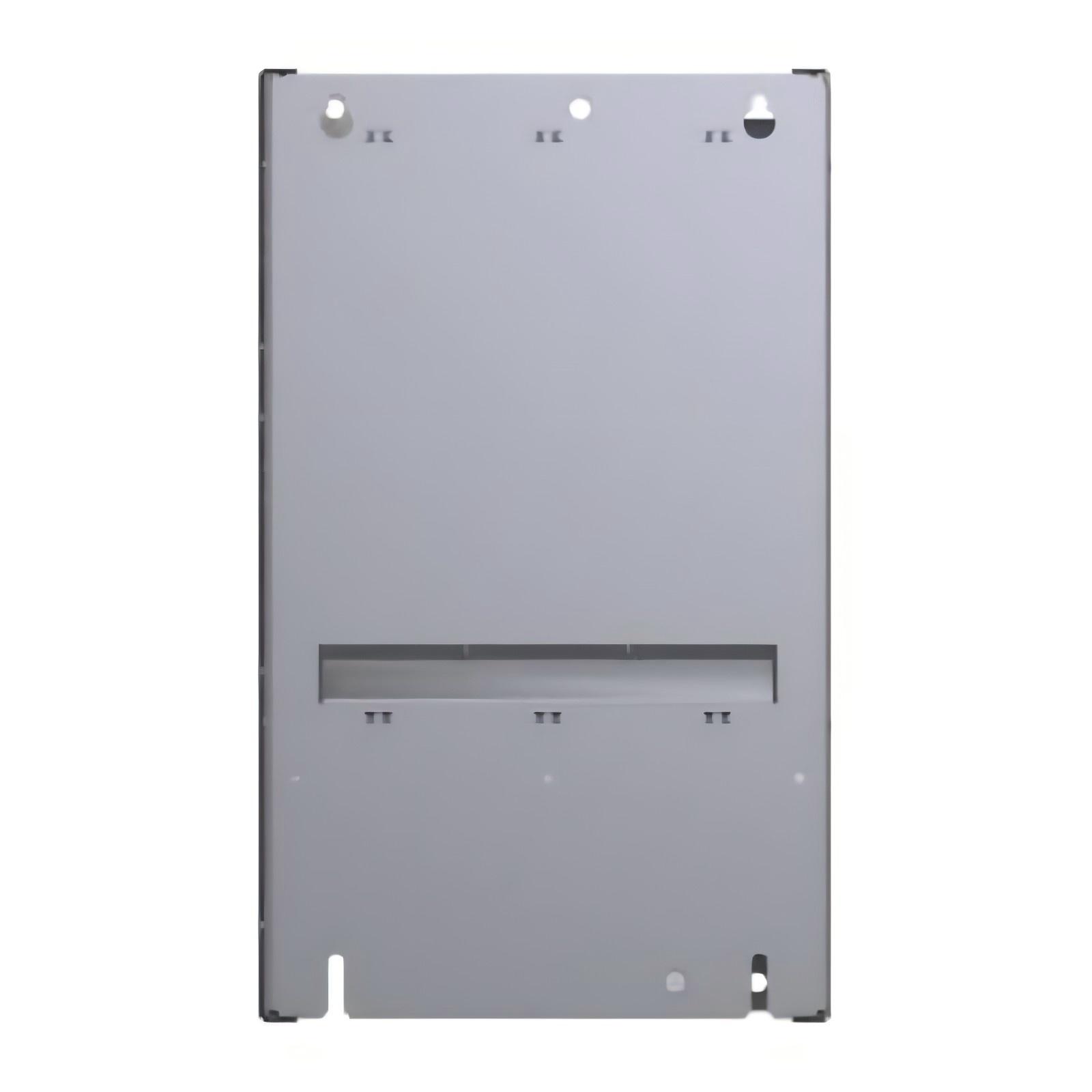

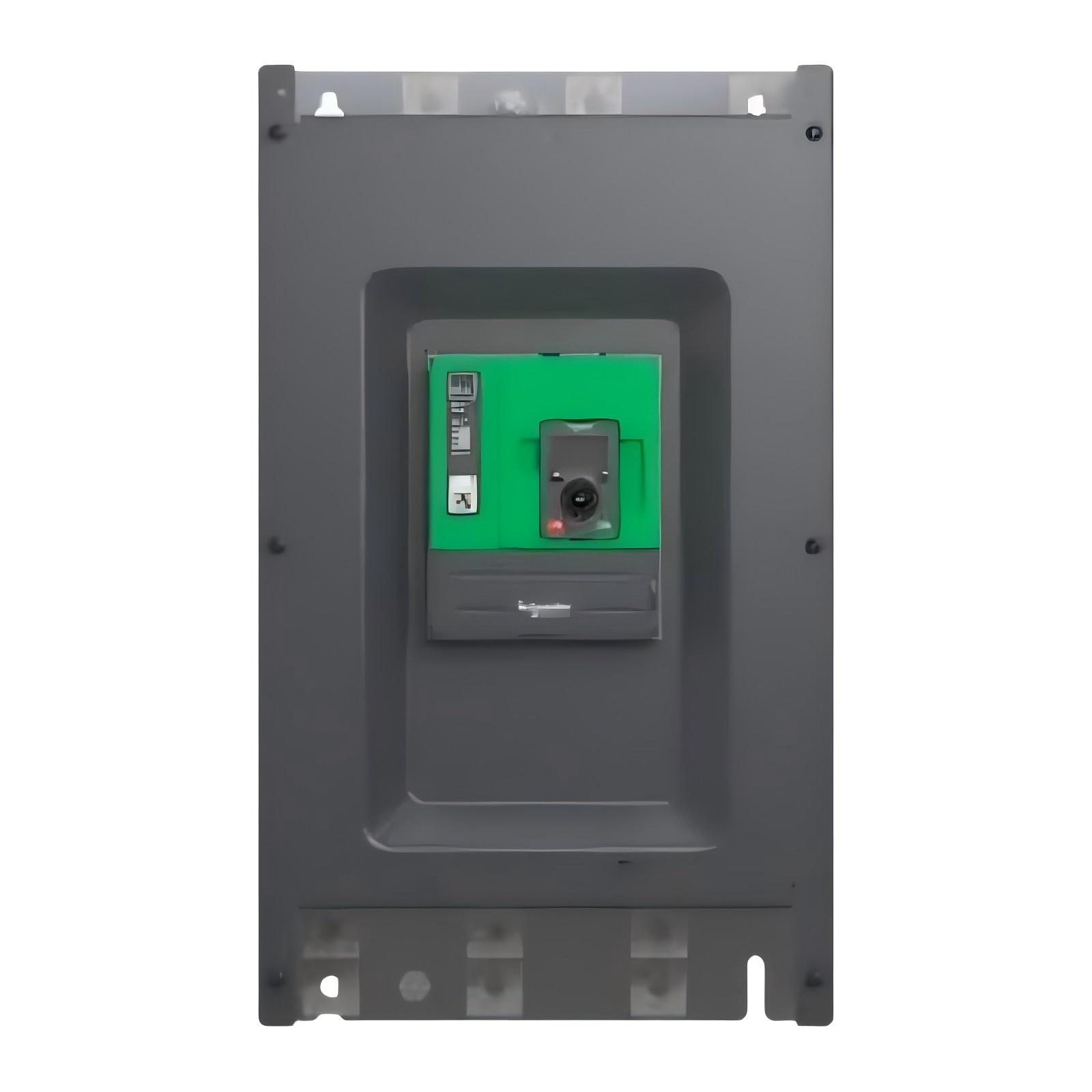

The Schneider ATS480C41Y Soft Starter is an advanced motor control device designed for the smooth starting and stopping of high-power three-phase AC induction motors. It minimizes the high inrush current and mechanical shock associated with conventional direct-on-line (DOL) motor starting, helping to improve equipment reliability, extend motor service life, and reduce maintenance costs.
Utilizing SCR (Silicon Controlled Rectifier) technology, the ATS480C41Y gradually increases motor voltage during startup and controls voltage reduction during stopping. This allows motors to accelerate and decelerate smoothly, reducing stress on shafts, couplings, gearboxes, belts, pipelines, and driven machinery.
The Schneider ATS480C41Y is suitable for demanding industrial environments including water treatment, mining, cement production, oil and gas, HVAC systems, compressors, conveyors, pumps, crushers, and other heavy-duty motor applications.
According to the supplied product information, the Schneider ATS480C41Y Soft Starter has overall dimensions of 670 × 400 × 314 mm and a shipping weight of 51.4 kg.
Product Information
- Manufacturer: Schneider Electric
- Model: ATS480C41Y
- Product Type: Soft Starter
- Dimensions: 670 × 400 × 314 mm
- Weight: 51.4 kg
- Motor Type: Three-Phase AC Induction Motor
- Installation: Motor Control Center (MCC) or Industrial Control Cabinet
- Cooling Method: Forced Air Ventilation
- Control Technology: SCR Phase Control
- Primary Function: Motor Soft Starting and Soft Stopping
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATS480C41Y |
| Product Type | Soft Starter |
| Dimensions | 670 × 400 × 314 mm |
| Weight | 51.4 kg |
| Motor Type | Three-Phase AC Induction Motor |
| Starting Method | Voltage Ramp Soft Start |
| Stop Method | Soft Stop |
| Mounting Method | Panel Mount |
| Installation Location | Industrial Control Cabinet |
| Cooling | Forced Air |
| Typical Application | Heavy Industrial Motor Control |
Working Principle
The ATS480C41Y regulates motor voltage using controlled SCR firing angles.
During startup:
Incoming AC power is gradually supplied to the motor.
This results in:
- Reduced starting current
- Smooth torque increase
- Lower mechanical stress
- Reduced voltage dip
- Improved motor protection
Typical operating sequence:
Incoming Three-Phase Power
↓
ATS480C41Y Soft Starter
↓
Three-Phase Motor
↓
Driven Equipment
↓
Normal Full-Speed Operation
During stopping, the output voltage decreases gradually, allowing the motor to slow down smoothly and reducing mechanical shock or hydraulic pressure surges.
Main Functions
The ATS480C41Y provides:
- Controlled motor acceleration
- Controlled motor deceleration
- Adjustable current limitation
- Motor protection
- Reduced mechanical wear
- Reduced electrical stress
- Stable startup performance
- Improved equipment lifespan
- Reduced maintenance requirements
- Improved production continuity
Typical Industrial Applications
The ATS480C41Y is commonly installed in:
- Water supply pumping stations
- Wastewater treatment plants
- Air compressor systems
- Cooling tower fans
- Large ventilation systems
- Belt conveyors
- Crushers
- Mixers
- Cement manufacturing
- Mining operations
- Chemical processing plants
- Oil & gas facilities
- Paper mills
- Steel plants
- General heavy industrial automation
Advantages of Soft Starting
Compared with DOL starting, the ATS480C41Y offers:
- Lower motor starting current
- Reduced voltage fluctuations
- Less mechanical shock
- Longer bearing life
- Reduced gearbox wear
- Improved coupling protection
- Lower maintenance costs
- Better process stability
- Reduced downtime
- Improved energy efficiency during startup
Installation Guide
Step 1 – Verify Equipment
Before installation, confirm:
- Schneider Electric ATS480C41Y
- Correct motor rating
- Correct power supply
- Suitable installation cabinet
- Application compatibility
Inspect the soft starter for shipping damage before installation.
Step 2 – Safety Isolation
Before beginning installation:
- Disconnect incoming power.
- Lock out and tag out the disconnect device.
- Verify absence of voltage.
- Isolate the motor circuit.
- Wear appropriate PPE.
Never perform installation or maintenance while the equipment is energized.
Step 3 – Select Installation Location
Install the ATS480C41Y inside a properly ventilated industrial control cabinet.
Avoid installation in locations exposed to:
- Excessive dust
- Water
- Condensation
- Corrosive gases
- High vibration
- Direct sunlight
- Excessive ambient temperature
Provide sufficient clearance around the unit for cooling airflow.
Step 4 – Mount the Soft Starter
Secure the soft starter using appropriate panel mounting hardware.
After installation verify:
- Correct orientation
- Secure mounting
- Adequate ventilation
- Accessible terminals
- Proper cable routing
Step 5 – Connect the Power Circuit
Connect:
- Incoming three-phase supply
- Motor output terminals
- Protective earth (PE)
Inspect:
- Cable sizing
- Terminal torque
- Phase sequence
- Cable insulation
- Ground continuity
Step 6 – Connect Control Wiring
Wire all required control circuits, including:
- Start command
- Stop command
- Reset
- Fault relay
- Status outputs
- External interlocks
Separate control wiring from power cables to minimize electrical interference.
Step 7 – Configure Operating Parameters
Configure the soft starter according to the motor and application.
Typical parameters include:
- Initial voltage
- Acceleration time
- Deceleration time
- Current limit
- Motor protection settings
- Stop mode
Proper parameter selection ensures smooth operation and protects both the motor and the driven equipment.
Step 8 – Final Inspection
Before energizing the system:
Inspect:
- Power wiring
- Control wiring
- Grounding
- Terminal tightness
- Cooling airflow
- Cable routing
- Mounting hardware
Correct any issues before startup.
Commissioning Procedure
After installation:
- Restore power.
- Observe status indicators.
- Start the motor.
- Monitor motor current.
- Verify smooth acceleration.
- Observe motor speed.
- Monitor equipment vibration.
- Test stop function.
- Check for alarms.
- Record commissioning data.
Preventive Maintenance
Routine maintenance should include:
- Inspecting power terminals
- Checking control wiring
- Cleaning cooling fans and air passages
- Removing cabinet dust
- Inspecting ventilation filters
- Checking grounding
- Verifying mounting hardware
- Monitoring operating temperature
- Reviewing event logs
- Recording maintenance activities
Troubleshooting Guide
Problem 1 – Soft Starter Does Not Power On
Possible causes:
- No input power
- Blown fuse
- Circuit breaker open
- Loose wiring
- Internal fault
Diagnostic Procedure
- Measure input voltage.
- Inspect protection devices.
- Verify wiring connections.
- Check control power.
- Inspect indicator LEDs.
Problem 2 – Motor Does Not Start
Possible causes:
- Missing start command
- Incorrect wiring
- Incorrect parameter configuration
- Motor overload
- Safety interlock active
Verify the control circuit before replacing equipment.
Problem 3 – Excessive Starting Current
Possible causes:
- Ramp time too short
- Current limit improperly configured
- Heavy mechanical load
- Motor fault
- Supply voltage issues
Adjust configuration according to application requirements.
Problem 4 – Slow Motor Acceleration
Possible causes:
- Low starting voltage
- Long acceleration time
- High mechanical load
- Incorrect settings
- Mechanical binding
Inspect both electrical settings and mechanical equipment.
Problem 5 – Soft Starter Trips During Startup
Possible causes:
- Motor overload
- Phase loss
- Short circuit
- Wiring errors
- Incorrect protection settings
Identify the fault before restarting.
Problem 6 – Unit Overheats
Possible causes:
- Cooling fan failure
- Blocked ventilation
- Dust accumulation
- High ambient temperature
- Continuous overload
Inspect the cooling system and cabinet ventilation.
Problem 7 – Motor Vibrates During Startup
Possible causes:
- Mechanical imbalance
- Misalignment
- Loose coupling
- Incorrect acceleration settings
- Bearing wear
Inspect both the motor and the driven equipment.
Problem 8 – Motor Does Not Stop Smoothly
Possible causes:
- Incorrect deceleration settings
- Excessive load inertia
- Control signal issues
- Mechanical resistance
Adjust stop parameters based on application requirements.
Problem 9 – Repeated Fault Alarms
Possible causes:
- Voltage instability
- Motor overload
- Wiring problems
- Environmental conditions
- Incorrect configuration
Review fault history and identify recurring alarm patterns.
Problem 10 – Communication or Control Problems
Possible causes:
- Loose control wiring
- PLC communication failure
- Electrical interference
- Incorrect terminal assignments
Inspect the complete control circuit before replacing the soft starter.
Fault Diagnosis Flow
Recommended troubleshooting sequence:
Incoming Power
↓
Circuit Protection
↓
ATS480C41Y Soft Starter
↓
Control Inputs
↓
Motor Wiring
↓
Motor
↓
Mechanical Load
↓
Normal Operation
Following a structured diagnostic process helps reduce troubleshooting time and unnecessary component replacement.
Replacement Procedure
Preparation
- Disconnect power.
- Lock out the electrical supply.
- Verify zero voltage.
- Label all cables.
- Prepare replacement equipment.
Removal
- Disconnect power cables.
- Disconnect control wiring.
- Remove mounting hardware.
- Carefully remove the ATS480C41Y.
Installation
- Install the replacement unit.
- Connect power wiring.
- Connect control wiring.
- Verify grounding.
- Tighten all terminals.
- Inspect cable routing.
Functional Test
- Restore power.
- Verify status indicators.
- Start the motor.
- Observe acceleration.
- Monitor current.
- Test stop function.
- Confirm stable operation.
Preventive Maintenance Schedule
| Maintenance Item | Recommended Action |
|---|---|
| Power Terminals | Inspect and tighten |
| Control Wiring | Check connections |
| Cooling Fans | Clean and inspect |
| Air Filters | Clean regularly |
| Cabinet Interior | Remove dust |
| Ground Connection | Verify continuity |
| Indicator LEDs | Monitor status |
| Mounting Hardware | Inspect security |
| Operating Temperature | Monitor routinely |
| Maintenance Records | Update after servicing |
Common Installation Mistakes
Incorrect Cable Sizing
Improper cable selection may result in overheating and voltage drop.
Loose Terminal Connections
Loose connections can cause overheating, arcing, and intermittent faults.
Poor Ventilation
Restricted airflow can reduce cooling efficiency and shorten equipment life.
Incorrect Parameter Configuration
Improper acceleration or current limit settings may prevent successful motor startup.
Insufficient Grounding
Poor grounding may increase electrical noise and reduce system reliability.
Mixing Power and Control Wiring
Power and control cables should be routed separately whenever possible.
Ignoring Environmental Conditions
High ambient temperatures and excessive dust can significantly reduce operational reliability.
Key Advantages
- High-capacity industrial soft starter
- Smooth motor acceleration and deceleration
- Reduced inrush current
- Lower mechanical stress
- Enhanced motor protection
- Improved production reliability
- Designed for heavy-duty industrial applications
- Dimensions of 670 × 400 × 314 mm
- Weight of 51.4 kg
- Suitable for large industrial motor control systems
Technical FAQs
What is the Schneider ATS480C41Y?
It is a heavy-duty industrial soft starter designed for controlled starting and stopping of three-phase AC induction motors.
What are its dimensions?
The supplied dimensions are 670 × 400 × 314 mm.
What is its weight?
The supplied weight is 51.4 kg.
What is the primary purpose of the ATS480C41Y?
It reduces motor starting current and minimizes mechanical stress during startup and shutdown.
Why does the motor start smoothly?
The SCR-based voltage ramp gradually increases motor voltage instead of applying full voltage instantly.
Why does the soft starter trip during startup?
Common causes include overload, wiring errors, phase loss, short circuits, incorrect parameter settings, or motor faults.
Why is the unit overheating?
Possible causes include blocked ventilation, cooling fan issues, excessive ambient temperature, overload conditions, or dust accumulation.
What routine maintenance is recommended?
Regular inspection of terminals, wiring, cooling systems, ventilation, grounding, cabinet cleanliness, and operating logs helps maintain reliable long-term operation.
Can the ATS480C41Y be used with pumps, compressors, and conveyors?
Yes. It is designed for a wide range of heavy-duty industrial motor applications, including pumps, compressors, conveyors, fans, crushers, and other rotating machinery.
Conclusion
The Schneider ATS480C41Y Soft Starter is a robust motor control solution for demanding industrial applications requiring reliable and controlled motor starting. By reducing inrush current and mechanical shock, it protects motors and driven equipment while improving operational stability and reducing maintenance requirements.
With overall dimensions of 670 × 400 × 314 mm and a weight of 51.4 kg, the ATS480C41Y is intended for installation in industrial control cabinets and motor control centers. Proper installation, careful parameter configuration, scheduled preventive maintenance, and systematic fault diagnosis help maximize equipment reliability, extend service life, and minimize unexpected downtime in industrial automation systems.
