Product Overview

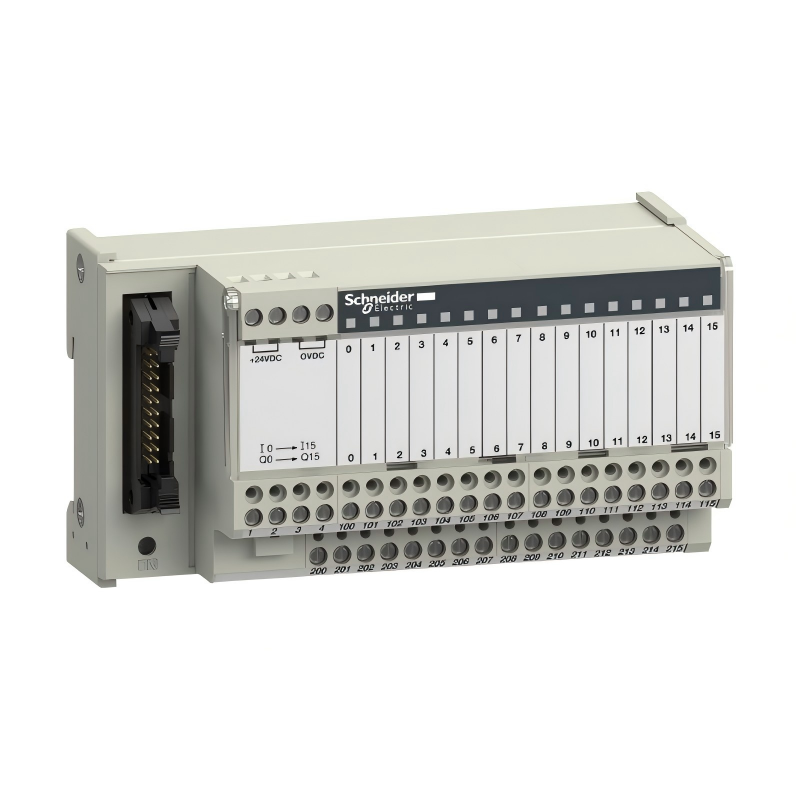

The Schneider ABE7H16R21 is a high-quality passive connector subbase designed for industrial automation systems. It provides a secure platform for mounting relays and modular components while ensuring reliable electrical connections without active circuitry. Its compact and robust design allows easy integration into control panels and distributed automation networks.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | ABE7H16R21 |
| Product Type | Passive Connector Subbase |
| Function | Electrical connection and mounting base |
| Dimensions (L x W x H) | 125 × 70 × 67 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail / Panel-mounted |
| Environment | Industrial-grade |
| Compatibility | Schneider relays and modular components |
| Material | High-strength insulating plastic |
| Rated Current | Up to 10 A per terminal |
| Rated Voltage | Up to 600 V DC/AC |
Function and Working Principle
The ABE7H16R21 subbase acts as a passive interface for modular automation components. Key functionalities include:
- Provides stable mechanical support and electrical connection for relays
- Functions as a passive interface with no active circuitry
- Simplifies installation, maintenance, and replacement of modular components
- Supports modular and scalable industrial automation system layouts
This ensures reliable operation and organized control panel installations.
Role in Industrial Control Systems
The passive connector subbase is a critical component in automation networks:
- Secures mechanical and electrical connections for relays and modular components
- Enables compact, organized, and efficient control panel layouts
- Enhances operational safety and reliability
- Supports scalable PLC-based distributed control systems
Industrial Applications
The Schneider ABE7H16R21 is commonly used in:
- Manufacturing automation and assembly lines
- Packaging and assembly machinery
- Process control systems in chemical, water treatment, and food plants
- Building automation and monitoring systems
- Distributed I/O and control panel setups
Its industrial-grade construction ensures reliable performance in demanding environments.
Installation and System Integration
To ensure optimal performance:
- Mount on DIN rails or panels according to system layout
- Secure relays or modular components onto the subbase
- Connect electrical terminals following wiring schematics
- Ensure proper grounding and adhere to industrial electrical safety protocols
- Integrate into modular distributed automation systems
Proper installation guarantees reliable electrical connectivity and system safety.
Compatible System Components
The ABE7H16R21 works seamlessly with:
- Schneider relays and timers
- Modular control components
- PLC input/output modules
- Terminal blocks and busbar connectors
- DIN rail-mounted control panels
Together, these components create a robust and scalable automation network.
Recommended Alternative Models
| Model Number | Type | Key Feature / Advantage | Application |
|---|---|---|---|
| ABE7H16R20 | Passive Connector Subbase | Standard passive relay interface | Medium automation systems |
| ABE7H16R30 | Passive Connector Subbase | Supports higher load relays | High-demand automation setups |
| ABE7H16C31 | Passive Connector Subbase | Compact design for dense panel layouts | Control cabinets |
| ABE7CPA02 | Connecting Base | Active/passive compatible base | Modular control panels |
Key Advantages
- Provides reliable passive electrical and mechanical connections for modular components
- Compact, lightweight, and durable design for flexible installation
- Supports modular and scalable distributed automation systems
- Simplifies maintenance and replacement of components
- Industrial-grade construction ensures continuous operation
Technical FAQs
Q1: What is the primary function of the ABE7H16R21?
A1: It serves as a stable, passive mounting and electrical connection platform for relays and modular components.
Q2: What is its rated voltage and current?
A2: Up to 600 V DC/AC and 10 A per terminal.
Q3: Is it suitable for industrial environments?
A3: Yes, it is industrial-grade and designed for reliable operation under demanding conditions.
Conclusion
The Schneider ABE7H16R21 passive connector subbase is a compact, reliable, and essential component for industrial automation systems. Its secure passive connections, durable construction, and modular design make it indispensable for PLC-based distributed control panels.
Engineers and system integrators can rely on this subbase for efficient installation, safe operation, and scalable industrial automation performance.
