Product Overview

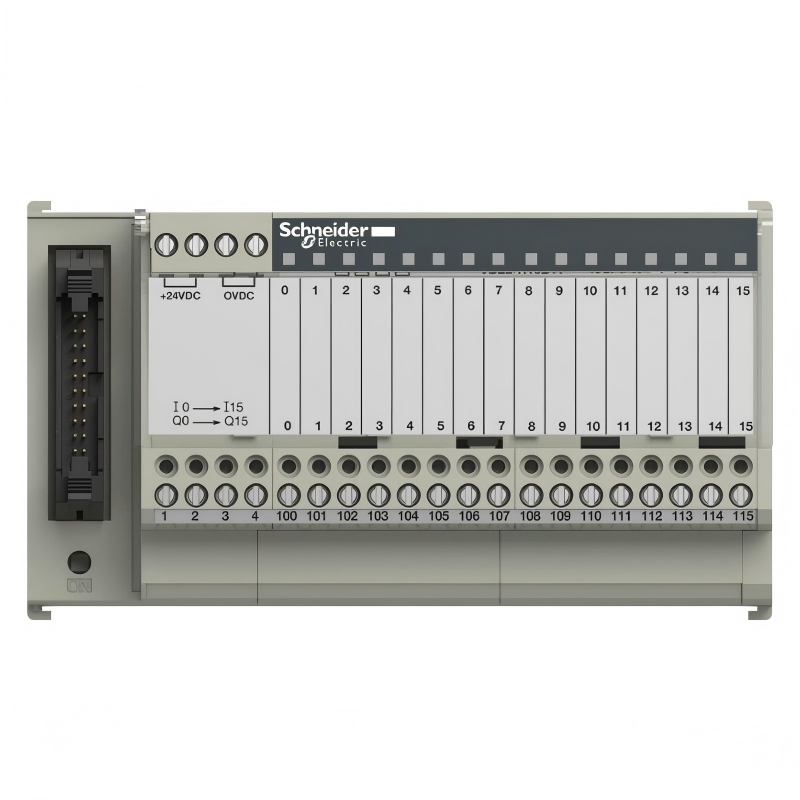

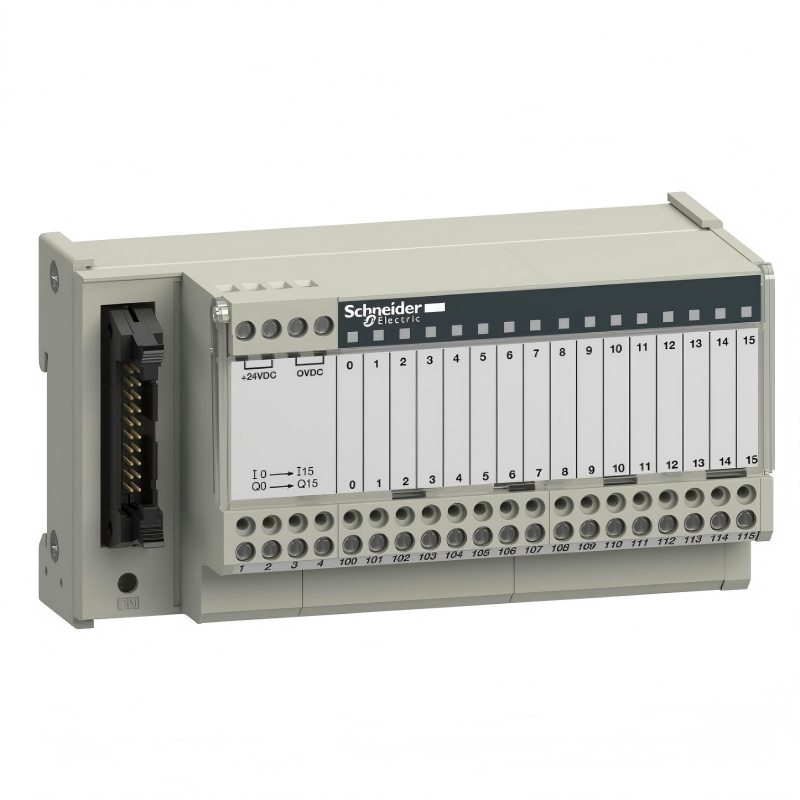

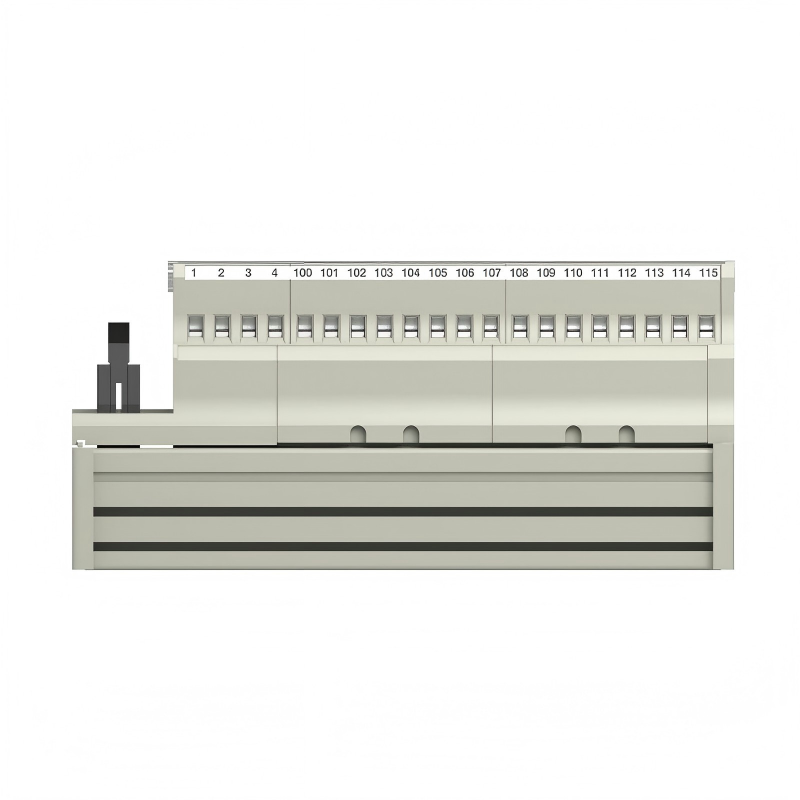

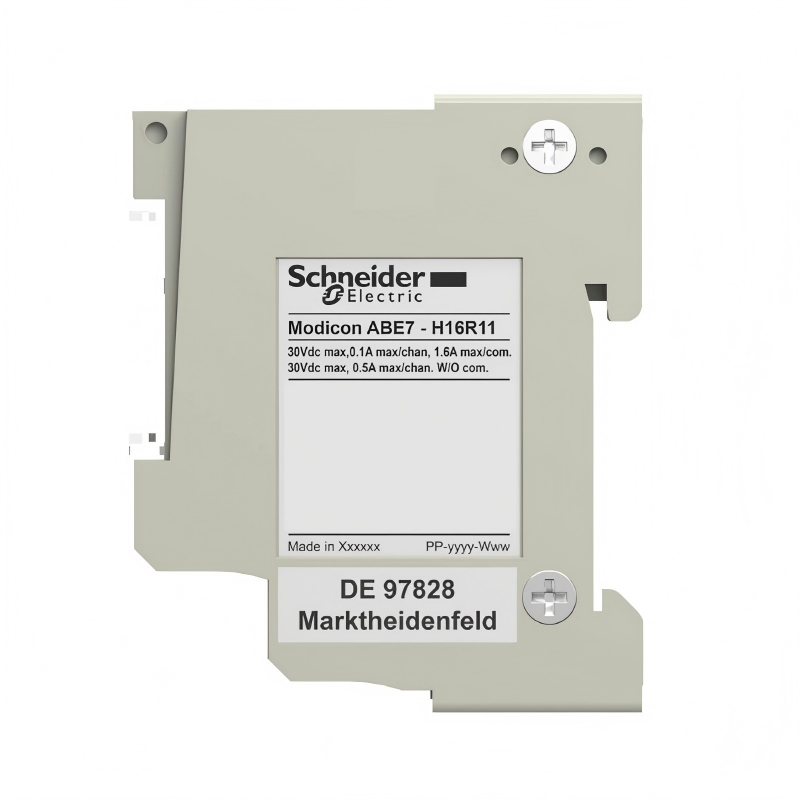

The Schneider ABE7H16R11 is a robust passive connector subbase designed for industrial automation systems. It provides a secure mounting and electrical connection interface for relays and modular components, enabling reliable operation without active circuitry. Its compact design allows seamless integration into control panels and distributed automation networks.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | ABE7H16R11 |
| Product Type | Passive Connector Subbase |
| Function | Electrical connection and mounting base |
| Dimensions (L x W x H) | 125 × 70 × 67 mm |
| Weight | 0.274 kg |
| Mounting | DIN rail / Panel-mounted |
| Environment | Industrial-grade |
| Compatibility | Schneider relays and modular components |
| Material | High-strength insulating plastic |
| Rated Current | Up to 10 A per terminal |
| Rated Voltage | Up to 600 V DC/AC |
Function and Working Principle
The ABE7H16R11 subbase serves as a passive interface for modular automation components. Key functionalities include:
- Provides stable mechanical support and electrical connection for relays
- Acts as a passive interface with no active circuitry
- Simplifies installation, maintenance, and replacement of modular components
- Supports modular and scalable automation system layouts
This ensures reliable operation and organized control panel installations.
Role in Industrial Control Systems
The passive connector subbase is a critical component in industrial automation networks:
- Secures mechanical and electrical connections for relays and modular components
- Facilitates compact and organized control panel layouts
- Enhances operational safety and system reliability
- Supports modular expansion in PLC-based distributed control systems
Industrial Applications
The Schneider ABE7H16R11 is commonly used in:
- Manufacturing automation and assembly lines
- Packaging machinery
- Process control in chemical, water treatment, and food plants
- Building automation and monitoring systems
- Distributed I/O and control panel setups
Its industrial-grade construction ensures dependable performance in demanding environments.
Installation and System Integration
For optimal performance:
- Mount on DIN rails or panels according to system layout
- Secure relays or modular components onto the subbase
- Connect electrical terminals following wiring schematics
- Ensure proper grounding and adhere to industrial electrical safety protocols
- Integrate into modular distributed automation systems
Proper installation guarantees reliable electrical connectivity and safe operation.
Compatible System Components
The ABE7H16R11 works seamlessly with:
- Schneider relays and timers
- Modular control components
- PLC input/output modules
- Terminal blocks and busbar connectors
- DIN rail-mounted control panels
These components together provide a robust and scalable industrial automation network.
Recommended Alternative Models
| Model Number | Type | Key Feature / Advantage | Application |
|---|---|---|---|
| ABE7H16C21 | Passive Connector Subbase | Standard passive relay interface | Medium automation systems |
| ABE7H16C31 | Passive Connector Subbase | Compact design for tight panel spaces | Dense control cabinets |
| ABE7H16C32 | Passive Connector Subbase | Supports additional relay connections | Large-scale automation setups |
| ABE7CPA02 | Connecting Base | Active/passive compatible base | Modular control panels |
Key Advantages
- Provides reliable passive electrical and mechanical connections for modular components
- Compact, durable design for flexible installation
- Supports modular and scalable distributed automation systems
- Simplifies maintenance and component replacement
- Industrial-grade construction ensures continuous operation
Technical FAQs
Q1: What is the primary function of the ABE7H16R11?
A1: It provides a stable, passive mounting and electrical connection platform for relays and modular components.
Q2: What is its rated voltage and current?
A2: Up to 600 V DC/AC and 10 A per terminal.
Q3: Is it suitable for industrial environments?
A3: Yes, it is industrial-grade and designed for reliable operation under demanding conditions.
Conclusion
The Schneider ABE7H16R11 passive connector subbase is a compact, reliable, and essential component for industrial automation systems. Its secure passive connections, durable construction, and modular design make it indispensable for PLC-based distributed control panels.
Engineers and system integrators can rely on this subbase for efficient installation, safe operation, and scalable industrial automation performance.
