- Schneider
- 170CPS11100
- M1 Processor Adapter Power Supply
- France
- 110 × 50 × 120 mm
- 0.284 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

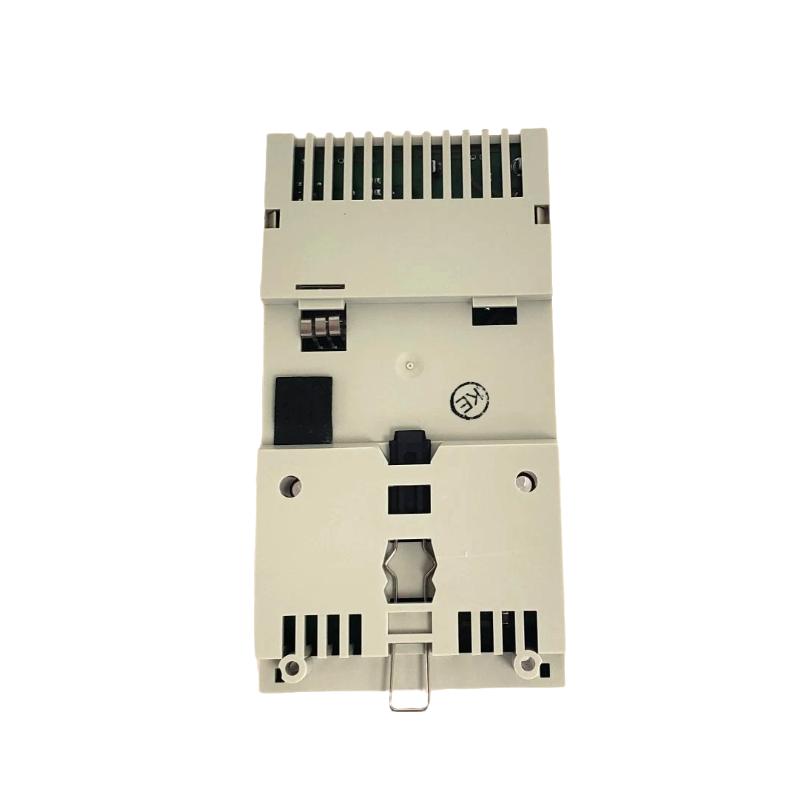

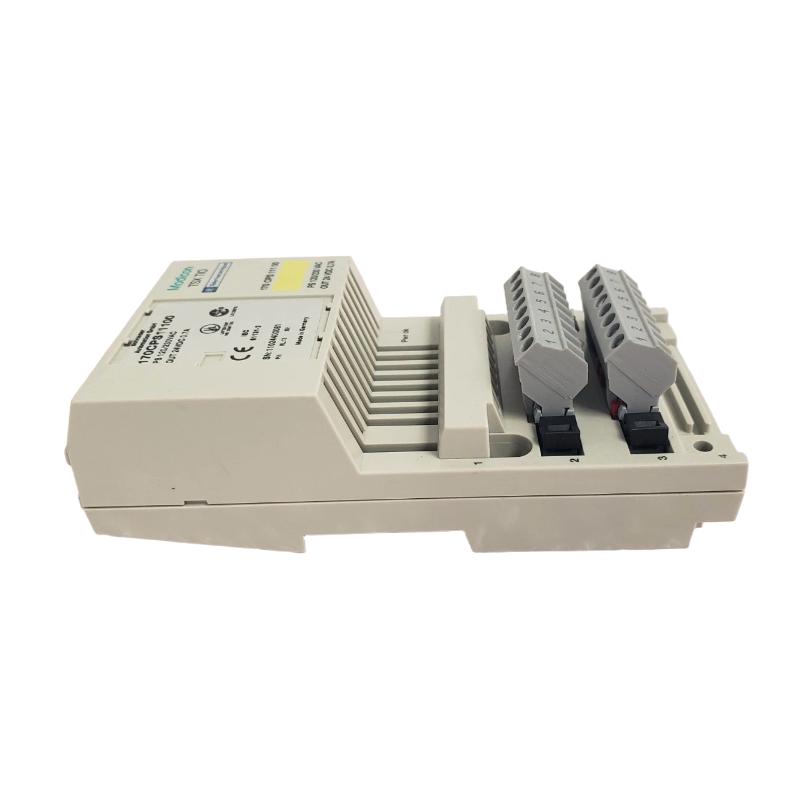

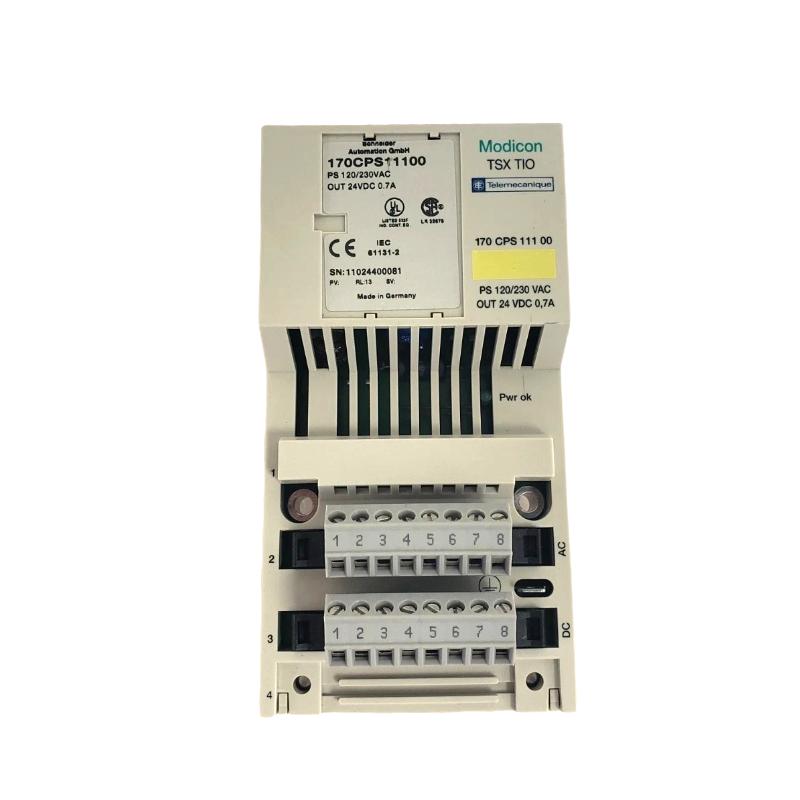

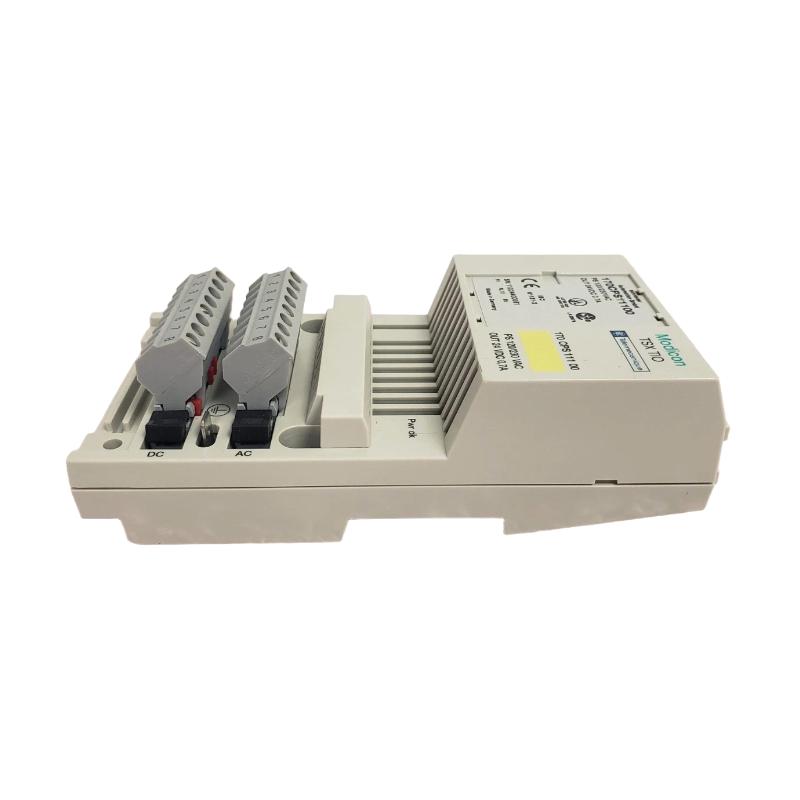

The Schneider 170CPS11100 is a reliable M1 processor adapter power supply designed for industrial automation systems. It provides stable and consistent power to Schneider PLC processors and I/O modules, ensuring uninterrupted operation of critical control systems. Its compact and lightweight design allows easy integration into control cabinets and distributed automation setups.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | 170CPS11100 |
| Product Type | M1 Processor Adapter Power Supply |
| Function | Provides power to PLC processors and modules |
| Output Voltage | 24 V DC |
| Output Current | 1–2 A (typical, depending on system load) |
| Dimensions (L x W x H) | 110 × 50 × 120 mm |
| Weight | 0.284 kg |
| Mounting | DIN rail / Rack-mounted |
| Operating Temperature Range | 0°C to +60°C |
| Environment | Industrial-grade |
| Input Voltage | 100–240 V AC |
| Protection Features | Overload, short-circuit, and overvoltage protection |
Function and Working Principle
The 170CPS11100 power supply delivers stable DC power to Schneider PLC processors and connected I/O modules. Key functionalities include:
- Converts AC mains voltage into regulated DC power for PLC components
- Ensures continuous operation of processors and modules during load variations
- Protects PLCs and modules against electrical faults, including overload and short-circuits
- Supports modular and distributed automation architectures
This ensures reliable operation of industrial control systems even in challenging environments.
Role in Industrial Control Systems
The power supply module is a critical component in industrial automation systems:
- Provides a reliable and regulated power source for M1 processors and I/O modules
- Ensures uninterrupted operation of PLC-based control systems
- Supports modular and scalable automation network expansion
- Protects connected devices from electrical disturbances and faults
Industrial Applications
The Schneider 170CPS11100 is widely used in:
- Manufacturing automation systems
- Process control in chemical, water treatment, and food plants
- Building automation networks
- Material handling and conveyor systems
- Packaging and assembly machinery
Its industrial-grade design ensures reliable performance under continuous operation conditions.
Installation and System Integration
For optimal performance:
- Mount on DIN rails or inside control cabinets
- Connect input AC mains and output to PLC processors and modules
- Ensure proper grounding and follow electrical safety practices
- Integrate into Schneider PLC systems and distributed I/O networks
- Configure load management according to system requirements
Proper installation guarantees stable and reliable power delivery to all connected devices.
Compatible System Components
The 170CPS11100 works seamlessly with:
- Schneider PLCs: Modicon M340, M580, Quantum series
- Input/Output modules for distributed automation networks
- Communication adapters: Ethernet, Modbus, Profibus
- Remote I/O expansion racks
- Other Schneider processor adapters and modules
These components form a robust, scalable, and reliable industrial automation system.
Recommended Alternative Models
| Model Number | Type | Key Feature / Advantage | Application |
|---|---|---|---|
| 170CPS11000 | Processor Adapter Power Supply | Standard output current | Basic PLC installations |
| 170CPS11200 | High-Capacity Power Supply | Higher current support | Larger automation systems |
| 170CPS11300 | Fast Response Power Supply | Rapid response to load fluctuations | Critical process control |
| 170CPS11400 | Rugged Power Supply | Enhanced durability in harsh environments | Heavy-duty industrial systems |
Key Advantages
- Provides stable and reliable DC power for M1 PLC processors and modules
- Compact and lightweight for flexible installation
- Protects connected devices from overload, short-circuits, and voltage spikes
- Supports modular and scalable distributed automation systems
- Industrial-grade design ensures continuous operation
Technical FAQs
Q1: What is the output voltage of the 170CPS11100?
A1: It provides a regulated 24 V DC output for PLC processors and modules.
Q2: Is it compatible with Modicon PLCs?
A2: Yes, it integrates seamlessly with Modicon M340, M580, and Quantum PLC series.
Q3: What protection features does it have?
A3: It includes overload, short-circuit, and overvoltage protection.
Conclusion
The Schneider 170CPS11100 M1 processor adapter power supply is a compact, reliable, and essential component for industrial automation systems. Its stable DC output, protection features, and industrial-grade design ensure continuous and safe operation of PLC processors and connected modules.
Engineers and system integrators can rely on this power supply for scalable installations, uninterrupted control system operation, and robust industrial automation performance.
