Product Overview

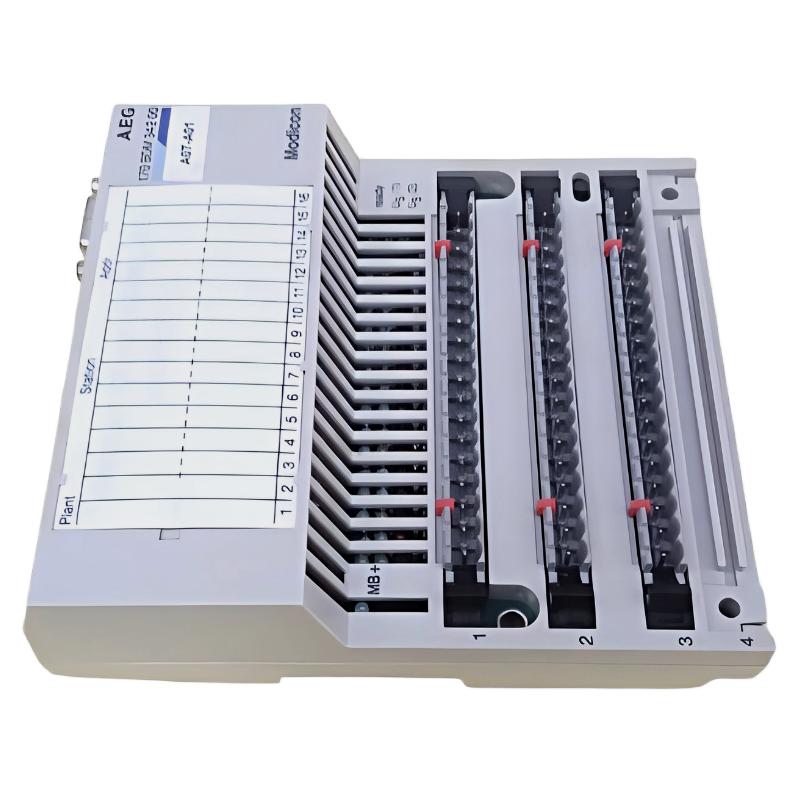

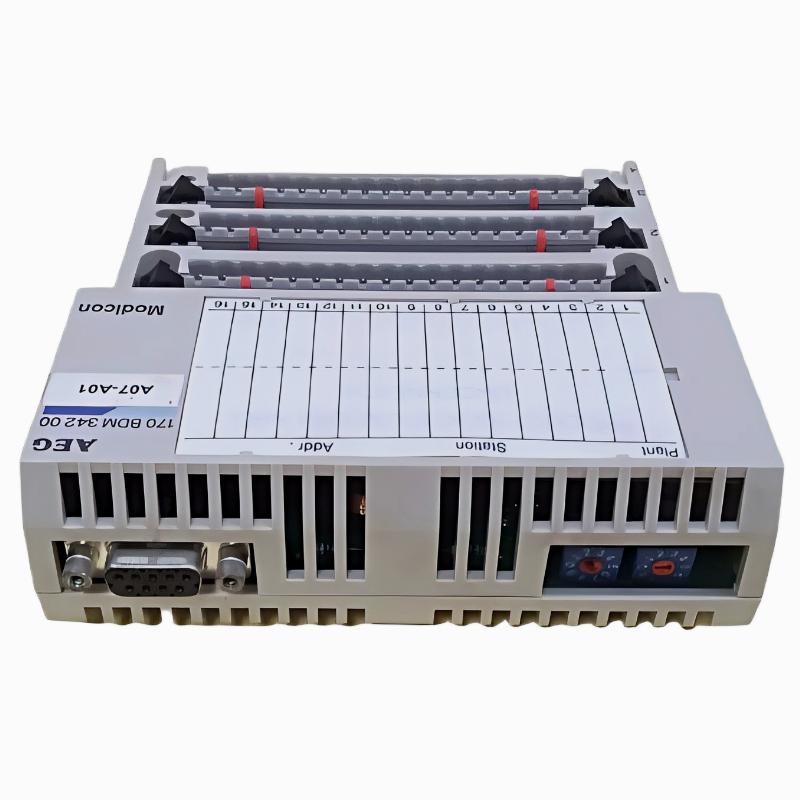

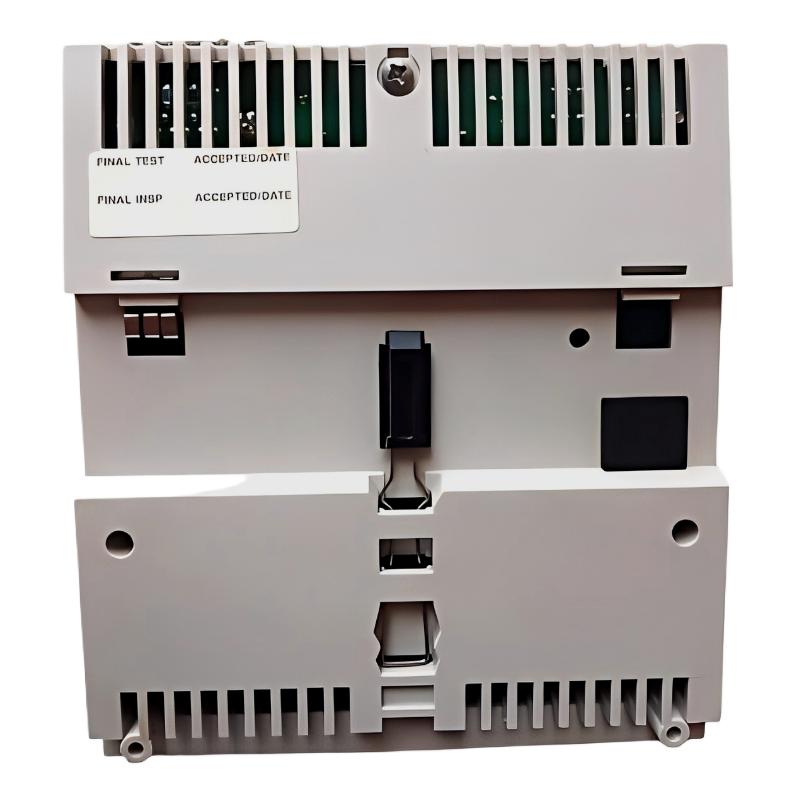

The Schneider 170BDM34401 is a compact and reliable input/output (I/O) module designed for industrial automation systems. It enables precise digital signal acquisition and control, allowing PLCs to communicate effectively with both input sensors and output devices. Its lightweight and space-saving design makes it ideal for distributed installations and dense control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | 170BDM34401 |
| Product Type | Input/Output Module |
| Function | Digital input and output control |
| Input Channels | 8–16 channels (typical) |
| Output Channels | 8–16 channels (typical) |
| Input Type | DC logic inputs (24 V DC standard) |
| Output Type | DC logic outputs (24 V DC standard) |
| Dimensions (L x W x H) | 125 × 40 × 180 mm |
| Weight | 0.159 kg |
| Mounting | DIN rail / Rack-mounted |
| Operating Temperature Range | 0°C to +60°C |
| Environment | Industrial-grade |
| Power Supply | 24 V DC |
Function and Working Principle
The 170BDM34401 module captures digital input signals from field devices and provides controlled output signals for process automation. Key functions include:
- Accurate detection of on/off states from sensors and switches
- Reliable activation of actuators, relays, and indicators
- Real-time monitoring and control of automation processes
- Modular support for scalable PLC-based architectures
This ensures efficient, precise, and stable operation across industrial automation systems.
Role in Industrial Control Systems
The input/output module is essential for modern industrial control networks:
- Provides a reliable interface for both digital inputs and outputs
- Facilitates communication between PLCs and field devices
- Supports modular expansion for scalable distributed automation systems
- Enhances system diagnostics and fault detection
Industrial Applications
The Schneider 170BDM34401 is commonly used in:
- Manufacturing automation lines
- Packaging and assembly machinery
- Process control in chemical, water treatment, and food plants
- Building automation and monitoring systems
- Material handling and conveyor systems
Its industrial-grade construction ensures reliable operation even in challenging environments.
Installation and System Integration
For optimal performance:
- Mount on DIN rails or inside control racks
- Connect input and output devices according to wiring diagrams
- Integrate with Schneider PLC backplanes and distributed control networks
- Follow standard electrical safety and grounding practices
- Configure channels via PLC programming software
Proper installation guarantees accurate signal acquisition and reliable output control.
Compatible System Components
The 170BDM34401 works seamlessly with:
- Schneider PLCs: Modicon M340, M580, Quantum series
- Digital input modules for hybrid control setups
- Digital output modules for expanded control loops
- Communication adapters: Ethernet, Modbus, Profibus
- Remote I/O expansion racks
Together, these components form a scalable and robust industrial automation network.
Recommended Alternative Models
| Model Number | Type | Key Feature / Advantage | Application |
|---|---|---|---|
| 170BDM34400 | Input/Output Module | Standard I/O configuration | Basic distributed I/O setup |
| 170BDM34500 | Rugged I/O Module | Extended temperature and durability | Harsh industrial environments |
| 170BDM34600 | Fast Response I/O Module | High-speed signal acquisition | Critical process control |
| 170BDM34700 | High-Density I/O Module | Increased channel count | Large-scale automation |
Key Advantages
- Compact and lightweight for flexible installation
- Reliable digital input and output control
- Supports modular and scalable distributed control systems
- Industrial-grade construction for continuous operation
- Compatible with a wide range of Schneider PLC and I/O modules
Technical FAQs
Q1: How many channels does the 170BDM34401 support?
A1: It typically supports 8–16 digital inputs and 8–16 digital outputs.
Q2: What type of signals does it handle?
A2: Standard DC logic signals at 24 V DC.
Q3: Is it compatible with Modicon PLCs?
A3: Yes, it integrates seamlessly with Modicon M340, M580, and Quantum PLC series.
Conclusion
The Schneider 170BDM34401 input/output module is a reliable, compact, and versatile solution for industrial automation systems, providing precise digital signal acquisition and output control. Its lightweight design, dual functionality, and industrial-grade durability make it an essential component for modern PLC-based distributed control networks.
Engineers and system integrators can depend on this module for scalable installations, accurate signal processing, and seamless integration within industrial automation systems.
