Product Overview

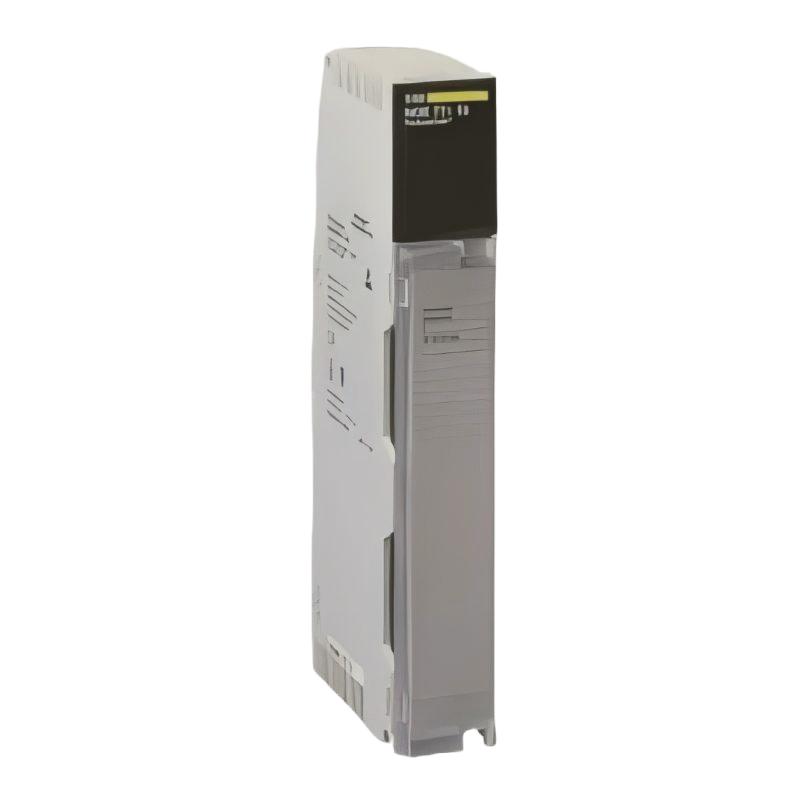

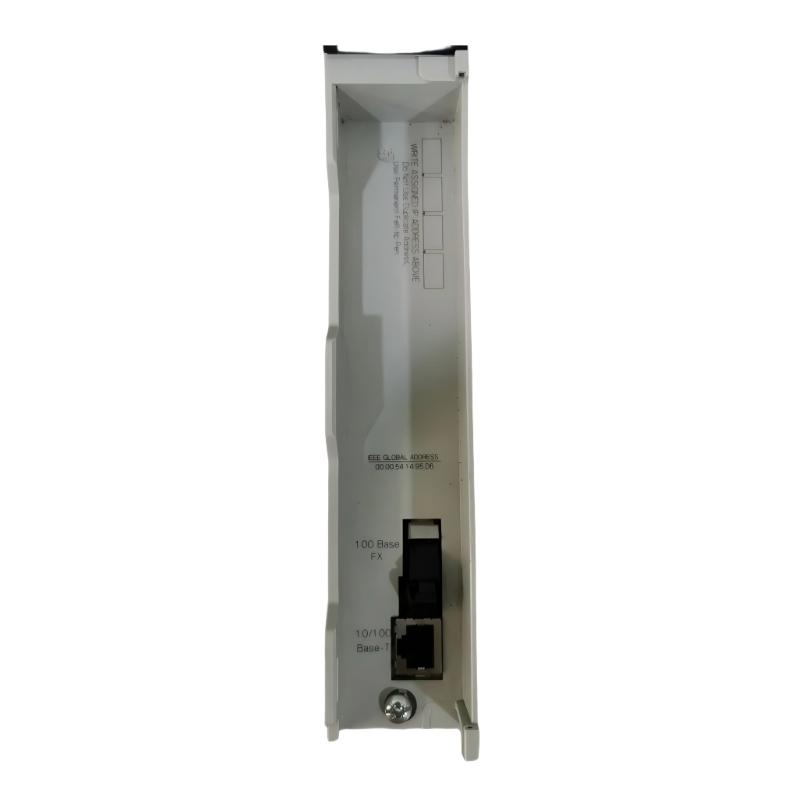

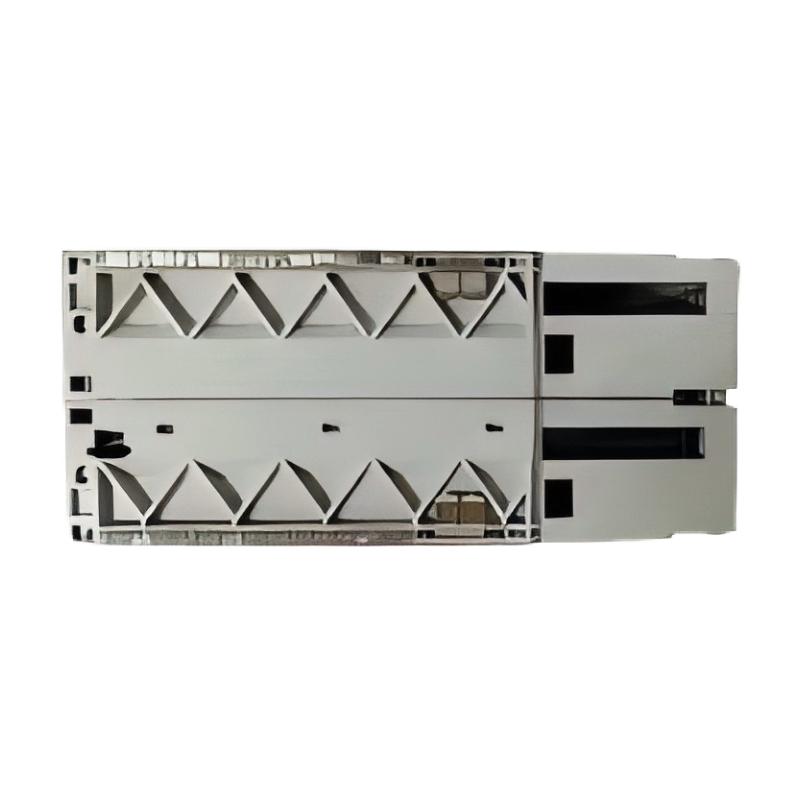

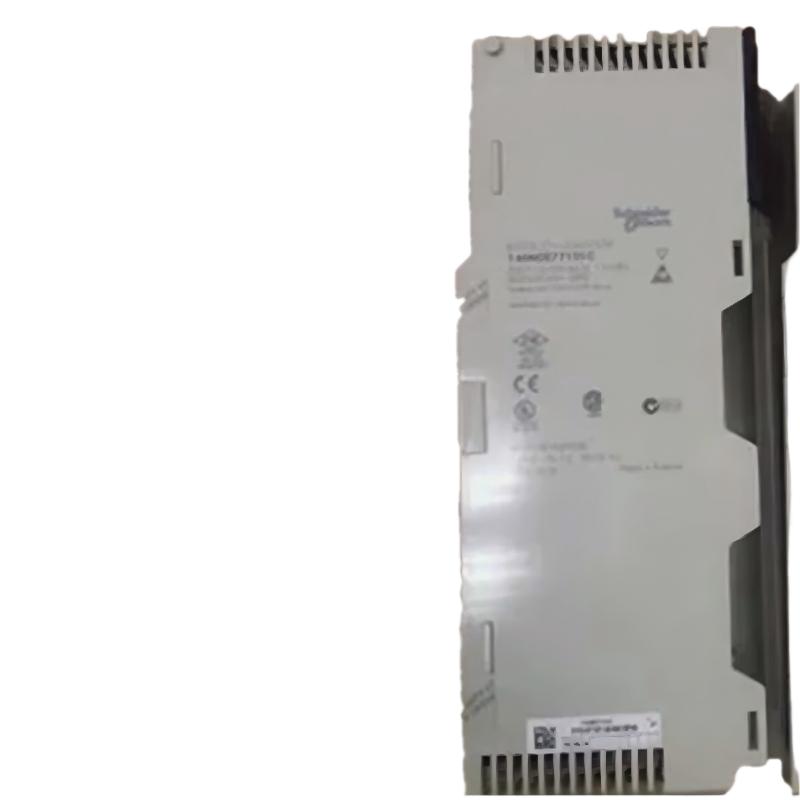

In modern industrial automation systems, reliable Ethernet communication is essential for connecting PLC controllers with supervisory systems, engineering workstations, HMIs, industrial networks, and other automation equipment. The Schneider 140NOE77101C Ethernet TCP/IP Module is a communication module designed for the Modicon Quantum PLC platform, providing Ethernet-based networking capabilities within the control architecture.

The 140NOE77101C is part of the Quantum communication-module family and is designed to provide an Ethernet interface for exchanging data between the PLC system and connected network devices.

By supporting TCP/IP-based communication, the module can connect the Quantum controller to higher-level automation networks and facilitate communication between PLC systems and industrial Ethernet devices.

The module is therefore different from a conventional digital I/O module. Rather than directly controlling field devices, it provides a communication pathway that allows control information, diagnostics, status data, and other information to be exchanged across an Ethernet network.

The specified dimensions of the 140NOE77101C are 103.9 × 40.3 × 250 mm, with a specified weight of 0.345 kg.

Technical Specifications

Function and Working Principle

The primary function of the 140NOE77101C is to provide Ethernet communication between the Modicon Quantum PLC system and external network devices.

A simplified communication path can be represented as:

Quantum PLC → 140NOE77101C → Ethernet Network → HMI / SCADA / PLC / Engineering System

The module receives communication information from the Quantum control system and transfers the relevant data through the Ethernet network.

Conversely, information received from connected Ethernet devices can be transferred into the PLC system for processing by the control application.

This makes the module useful for exchanging:

• PLC status information
• Process data
• Diagnostic information
• Control commands
• Device information
• Production data
• Supervisory-system information
• Network communication data

The Ethernet interface allows the Quantum PLC to participate in a larger automation network rather than operating as an isolated controller.

The actual communication architecture depends on the PLC program, network topology, addressing configuration, and connected devices.

Role in Industrial Control Systems

The Schneider 140NOE77101C provides an important communication layer within a Modicon Quantum PLC system.

A typical industrial control system can contain PLC processors, local I/O, remote I/O, HMIs, SCADA servers, engineering stations, drives, intelligent devices, and other controllers.

The Ethernet TCP/IP module provides the communication path required to connect the Quantum system to this wider automation environment.

It can work alongside:

• Modicon Quantum CPUs
• Quantum power supplies
• Quantum racks and backplanes
• Digital I/O modules
• Analog I/O modules
• HMI systems
• SCADA systems
• Engineering workstations
• Industrial Ethernet switches
• Other PLC controllers
• Ethernet-capable automation devices

This architecture allows process information to move between the control level and supervisory or networked systems.

Industrial Applications

The Schneider 140NOE77101C is suitable for industrial applications where Ethernet communication is required within a Quantum PLC architecture.

Typical applications include:

• Factory automation
• Process control
• Manufacturing systems
• Water and wastewater plants
• Material-handling systems
• Packaging machinery
• Production lines
• Energy-management systems
• Building automation
• Industrial monitoring
• SCADA communication
• PLC-to-PLC networking

For example, a Quantum PLC can use the Ethernet communication module to exchange process information with an HMI or SCADA system.

In a larger plant, the module can also form part of an Ethernet infrastructure connecting several controllers and supervisory systems.

Installation and System Integration

Correct installation and network configuration are important for reliable operation of the 140NOE77101C.

Before installation, technicians should verify the Quantum rack configuration, module position, network design, and IP-addressing requirements.

Recommended procedures include:

1. Shut down the relevant PLC system according to the approved procedure.
2. Isolate power where required.
3. Verify the complete 140NOE77101C model.
4. Confirm the intended Quantum rack position.
5. Inspect the module for physical damage.
6. Verify the rack and backplane condition.
7. Install the module in the designated position.
8. Secure the module correctly.
9. Connect the Ethernet network cable.
10. Verify network topology and cable routing.
11. Configure the required network parameters.
12. Verify IP addressing and communication settings.
13. Restore PLC power.
14. Check module status indicators.
15. Verify Ethernet link status.
16. Test communication with the connected network device.
17. Check PLC diagnostics.
18. Verify application-level data exchange.
19. Perform system-level communication testing.

Network configuration should be consistent with the existing industrial Ethernet architecture.

Incorrect addressing, duplicated IP addresses, incompatible network configuration, or defective cabling can cause communication failures even when the module itself is functioning correctly.

Compatible System Components

The 140NOE77101C can operate alongside multiple components within a Modicon Quantum automation system.

Together, these components allow the Quantum PLC to participate in an integrated industrial Ethernet environment.

Recommended Alternative Models

The following models may be considered when evaluating related Schneider Electric communication hardware:

These models belong to related Schneider Electric communication families, but they should not automatically be considered direct replacements.

Differences in firmware, communication services, Ethernet functionality, hardware revision, network architecture, and Quantum system compatibility may affect interchangeability.

The original module configuration should always be checked before substitution.

Key Advantages

The Schneider 140NOE77101C provides several advantages for industrial automation applications:

• Provides Ethernet TCP/IP connectivity
• Integrates with Modicon Quantum PLC systems
• Enables PLC-to-network communication
• Supports communication with supervisory systems
• Connects PLCs to industrial Ethernet infrastructure
• Supports HMI and SCADA communication
• Facilitates PLC-to-PLC data exchange
• Provides a dedicated network interface
• Suitable for centralized and distributed automation architectures
• Supports integration of legacy Quantum PLC systems into Ethernet networks

Its primary advantage is providing a dedicated Ethernet communication interface between the Quantum PLC and the wider industrial automation network.

Technical FAQs

What is Schneider 140NOE77101C?

The Schneider 140NOE77101C is a Modicon Quantum Ethernet TCP/IP Module designed to provide Ethernet communication capabilities for Quantum PLC systems.

What is the main function of 140NOE77101C?

Its main function is to connect the Quantum PLC system to an Ethernet network and enable TCP/IP-based data communication.

What are the dimensions of 140NOE77101C?

The specified dimensions are 103.9 × 40.3 × 250 mm.

What is the weight of 140NOE77101C?

The specified weight is 0.345 kg.

Is 140NOE77101C a PLC CPU?

No. It is a communication module. The PLC CPU remains responsible for executing the main control program.

Is 140NOE77101C an I/O module?

No. It is an Ethernet communication module rather than a digital or analog field-I/O module.

What can 140NOE77101C communicate with?

Depending on the configured network architecture, it can provide communication between the Quantum PLC and systems such as HMIs, SCADA platforms, engineering workstations, other controllers, and Ethernet-connected automation equipment.

Does 140NOE77101C use Ethernet TCP/IP?

Yes. The module is designed as an Ethernet TCP/IP communication interface for the Quantum automation architecture.

Where is 140NOE77101C installed?

It is installed within the appropriate Modicon Quantum rack and backplane system.

Can another Schneider Ethernet module directly replace 140NOE77101C?

Not automatically. Network services, firmware, hardware revision, PLC compatibility, addressing requirements, and application configuration should be verified before replacement.

What should be checked before replacing 140NOE77101C?

The complete model number, Quantum CPU compatibility, firmware requirements, network configuration, IP settings, rack position, Ethernet cabling, and application communication requirements should be checked.

Conclusion

The Schneider 140NOE77101C Ethernet TCP/IP Module is a dedicated communication component for Modicon Quantum PLC systems.

Its primary purpose is to provide Ethernet connectivity between the Quantum control system and external industrial network devices, including HMIs, SCADA systems, engineering workstations, other PLCs, and Ethernet-based automation equipment.

The specified dimensions are 103.9 × 40.3 × 250 mm, with a weight of 0.345 kg.

The 140NOE77101C works alongside Quantum CPUs, power supplies, racks, I/O modules, Ethernet switches, supervisory systems, and other networked components to create an integrated automation architecture.

For maintenance engineers, system integrators, and spare-parts procurement teams, accurate identification of the 140NOE77101C is important before replacement. Related Ethernet modules may provide similar networking functions while differing in firmware, communication services, hardware revisions, and system compatibility.

When correctly integrated into the existing Quantum architecture, the 140NOE77101C provides a practical Ethernet TCP/IP communication solution for connecting legacy PLC control systems with broader industrial automation networks.
