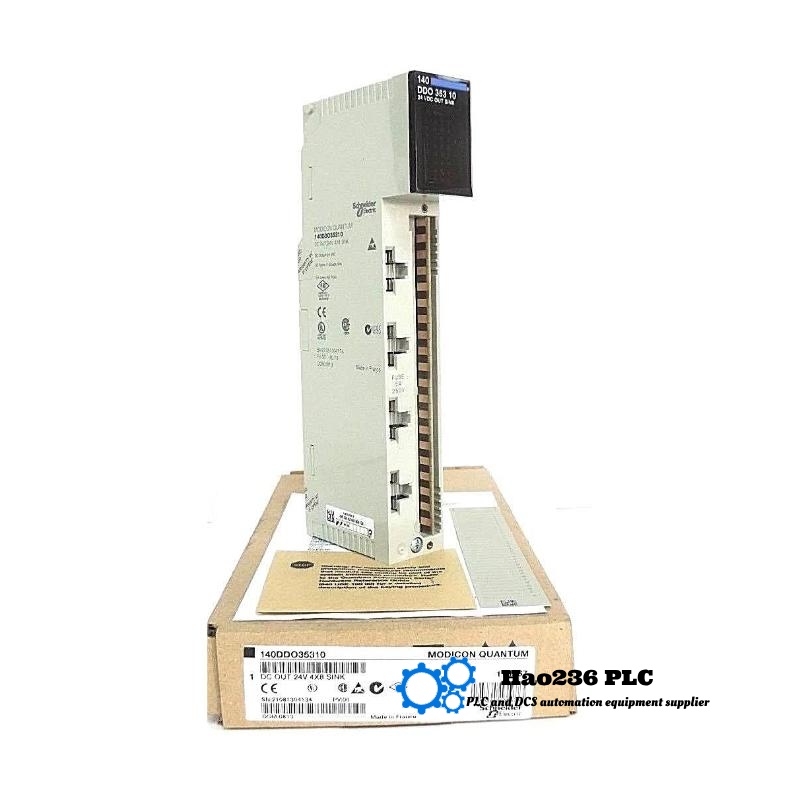

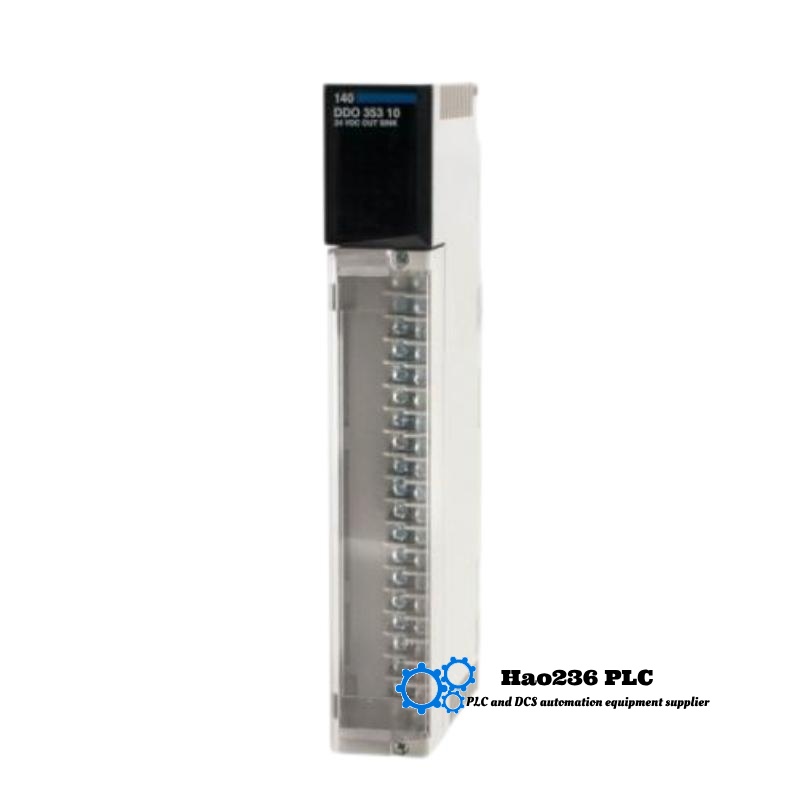

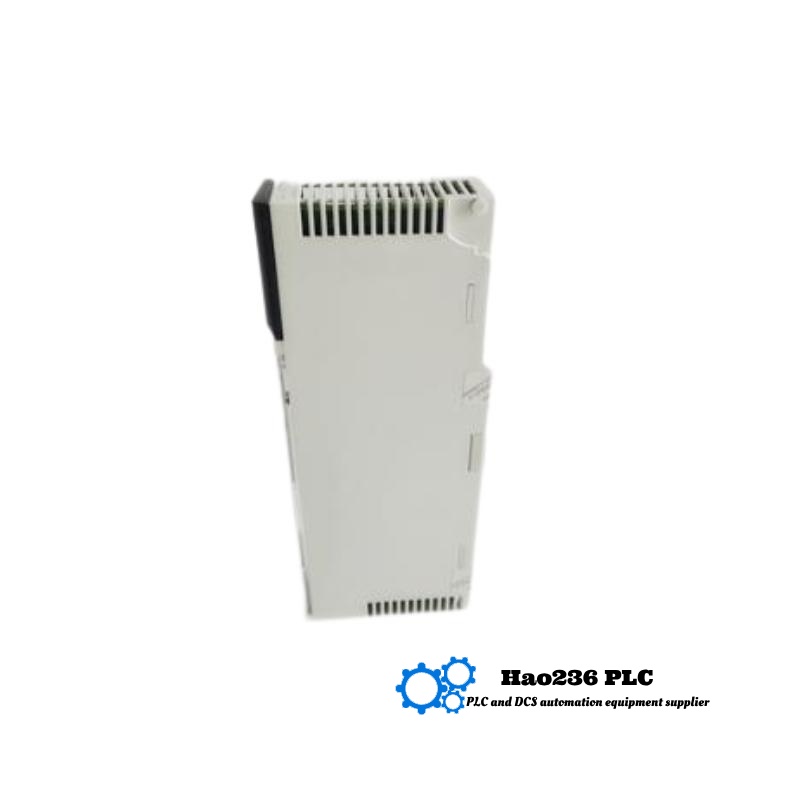

Schneider 140DDO35310 Discrete Output Module
Product Overview
The Schneider 140DDO35310 is a discrete output module designed for use within the Modicon Quantum series. It is a high-performance module that allows for efficient control of discrete outputs in a variety of industrial automation systems. The module is equipped with 16 outputs and operates on a 24V DC supply, making it ideal for controlling devices like solenoids, relays, and other digital loads in a range of industrial applications.
As part of the Modicon Quantum series, the 140DDO35310 module integrates seamlessly with other Quantum components, creating a robust and scalable control system. This module ensures fast, reliable switching of outputs and can be configured for a wide range of control applications, from simple relay control to more complex automation systems.
Key Features
-
16 Discrete Outputs: This module provides 16 discrete outputs, making it suitable for medium to large-scale control systems requiring multiple output points.
-
24V DC Supply: The module operates on a 24V DC power supply, making it compatible with a wide range of industrial control systems.
-
Compact Size: The dimensions of the module are 103.9 × 40.3 × 250 mm, making it suitable for installations where space is a constraint.
-
High Reliability: The module is designed for industrial-grade reliability, ensuring long-lasting performance in demanding environments.
-
Seamless Integration: As part of the Modicon Quantum series, it is fully compatible with other Quantum components, ensuring a hassle-free setup and configuration.
-
Easy Maintenance: With diagnostics and status indicators built into the module, maintenance and troubleshooting are streamlined.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 140DDO35310 |
| Module Type | Discrete Output Module |
| Operating Voltage | 24 V DC |
| Number of Outputs | 16 Outputs |
| Output Type | Transistor, Sinking |
| Current Rating | 0.5 A per channel |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
| Mounting | DIN Rail Mountable |
| Environmental Rating | IP20 |
| Temperature Range | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Power Consumption | 5V DC, 100 mA |
Applications
The Schneider 140DDO35310 discrete output module is suitable for a wide range of industrial automation applications. Key applications include:
-
Process Automation: Ideal for controlling solenoids, relays, and actuators in process automation systems where reliable switching of outputs is required.
-
Machine Control: Perfect for controlling various machine operations, from conveyors to robotics, ensuring that each part of the system operates in synchrony.
-
Building Automation: Used for controlling lights, HVAC systems, and other equipment in smart buildings, providing efficient management of resources.
-
Energy Management: Utilized in energy control systems to manage various energy-consuming devices such as motors and pumps.
-
Factory Automation: Its reliability and fast switching capabilities make it a great choice for controlling various outputs in factory automation systems.
Advantages
-
High Output Density: With 16 outputs in a single module, the 140DDO35310 offers high output density for controlling multiple devices with minimal space requirements.
-
Industrial-Grade Durability: Designed to withstand harsh industrial environments, ensuring long-term reliability even in challenging conditions.
-
Ease of Integration: The Modicon Quantum series ensures that the 140DDO35310 integrates easily with other Quantum modules, providing seamless control and communication.
-
Compact Design: The small dimensions of the module make it an excellent choice for installations in tight spaces without compromising on functionality.
-
Enhanced Diagnostics: The module includes built-in diagnostic features that simplify troubleshooting and maintenance, reducing downtime.
Brand Information
Schneider Electric is a global leader in energy management and automation solutions. The company is known for offering innovative, efficient, and sustainable products designed to support industries across various sectors, from energy to automation. Schneider Electric’s Modicon Quantum series is a comprehensive range of programmable logic controllers (PLCs) and I/O modules that are designed to provide reliable, scalable control for complex automation systems.
Modicon Quantum Series Overview
The Modicon Quantum series offers a wide range of PLCs, I/O modules, and communication devices, which are designed to provide high-speed, high-performance control in industrial automation applications. The series is particularly well-suited for applications requiring extensive I/O support, fast processing, and integration with other industrial systems. The Quantum series supports multiple communication protocols, including Modbus, Ethernet/IP, and PROFIBUS, ensuring flexibility and scalability.
Related Models in the Modicon Quantum Series
| Model | Module Type | Number of Outputs | Current Rating | Dimensions (H x W x D) |
|---|---|---|---|---|
| 140DDO35310 | Discrete Output Module | 16 Outputs | 0.5 A per channel | 103.9 × 40.3 × 250 mm |
| 140DDO35320 | Discrete Output Module | 16 Outputs | 1.0 A per channel | 103.9 × 40.3 × 250 mm |
| 140DOE77100 | Digital Output Module | 8 Outputs | 1.0 A per channel | 103.9 × 40.3 × 250 mm |
| 140CPS11400 | Power Supply Module | N/A | N/A | 103.9 × 40.3 × 250 mm |
| 140CPS11401 | Power Supply Module | N/A | N/A | 103.9 × 40.3 × 250 mm |
Popular Schneider Electric Models
| Model | Module Type | Ports | Network Speed | Protocols Supported |
|---|---|---|---|---|
| 140CPU67160 | CPU Module | N/A | N/A | N/A |
| 140DIO18100 | Discrete Input Module | 8 | N/A | N/A |
| 140CPS11400 | Power Supply Module | N/A | N/A | N/A |
| 140NOE77110 | Network Interface Module | 1 Ethernet | 10/100 Mbps | Modbus TCP |
| 140AIA04000 | Analog Input Module | 4 | N/A | N/A |
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the 140DDO35310 module?
A1: The 140DDO35310 is a discrete output module designed to control 16 discrete outputs in industrial automation systems.
Q2: What type of output does the 140DDO35310 provide?
A2: The module provides transistor sinking outputs, suitable for controlling solenoids, relays, and other digital devices.
Q3: What is the operating voltage for this module?
A3: The 140DDO35310 operates on a 24V DC power supply.
Q4: How many outputs does the 140DDO35310 support?
A4: The module provides 16 discrete outputs for controlling various industrial devices.
Q5: What is the current rating for each output?
A5: Each output can handle 0.5 A.
Q6: How is the 140DDO35310 mounted?
A6: The module can be mounted on a DIN rail for easy installation.
Q7: What are the dimensions of the module?
A7: The module has dimensions of 103.9 × 40.3 × 250 mm.
Q8: What is the weight of the module?
A8: The module weighs 0.45 kg.
Q9: What is the operating temperature range for the module?
A9: The module operates within a temperature range of 0°C to 60°C.
Q10: What communication protocols are supported by this module?
A10: This module does not support communication protocols as it is focused on discrete output control; however, it integrates seamlessly with other Modicon Quantum modules.
