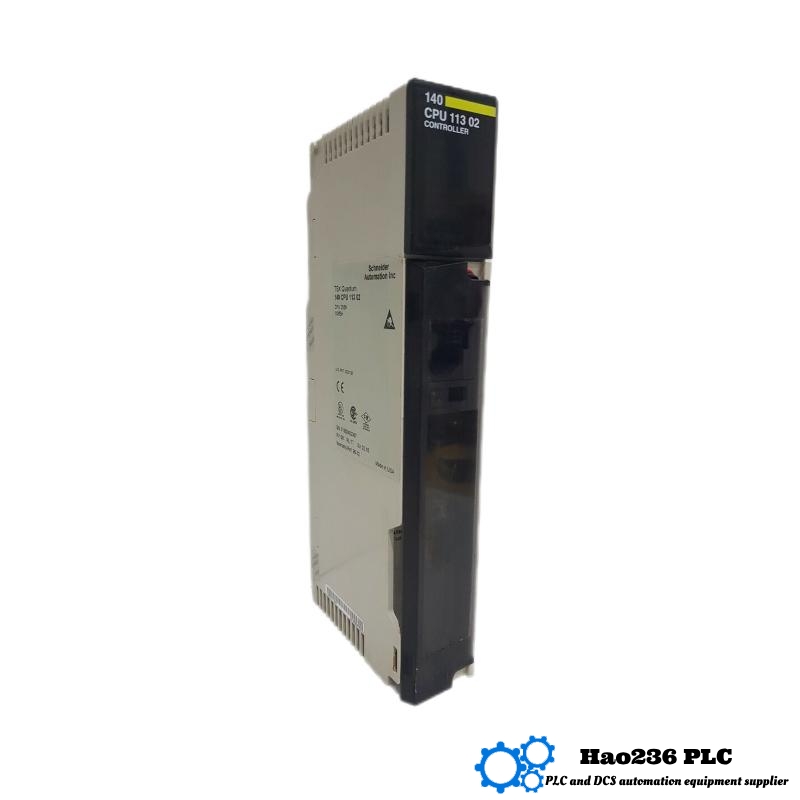

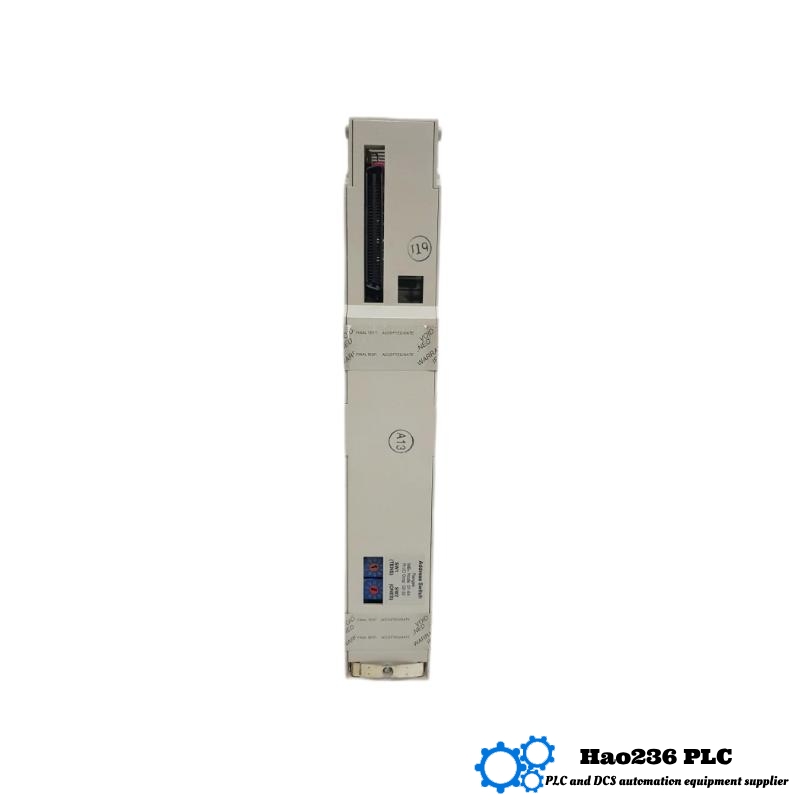

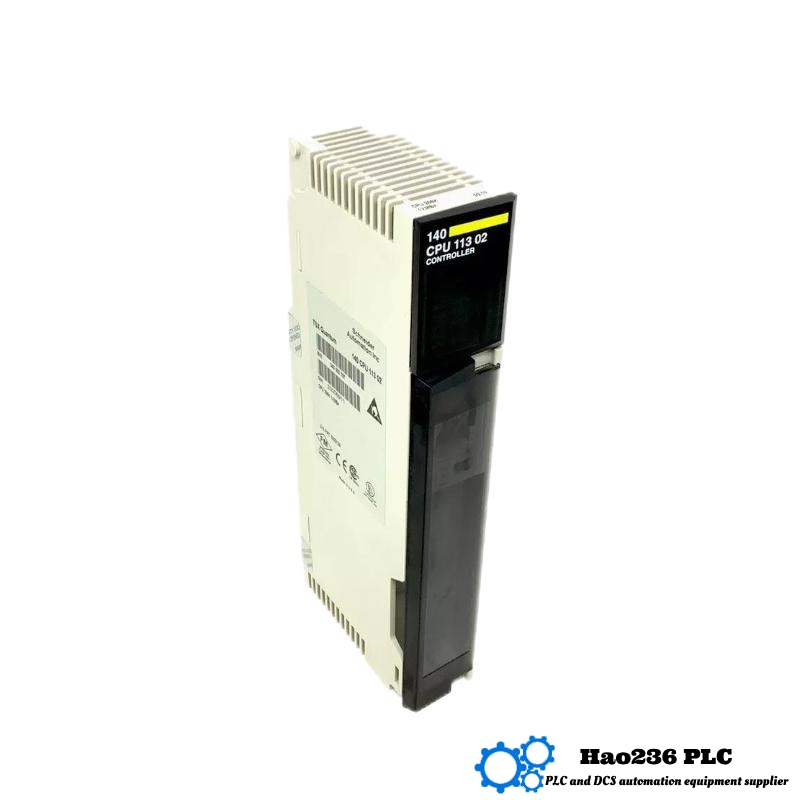

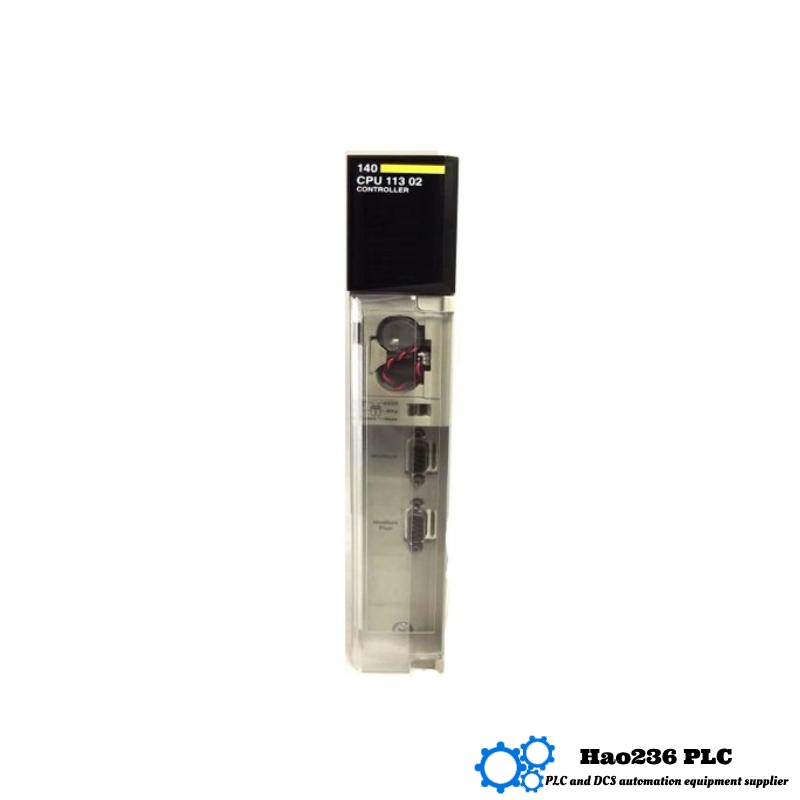

Schneider 140CPU11302 Concept Processor
Product Introduction
The Schneider 140CPU11302 is a high-performance concept processor from Schneider Electric’s Modicon Quantum series. This processor is engineered to meet the needs of complex industrial automation systems, offering advanced control and communication capabilities. It integrates seamlessly into Schneider’s Modicon Quantum platform, which is widely recognized for its modularity, scalability, and reliability in automation.
The 140CPU11302 processor is designed for demanding applications that require high processing power and flexibility. With a powerful CPU, large memory capacity, and multiple communication options, it is ideal for a wide range of control systems in industries such as manufacturing, oil and gas, water treatment, and power distribution.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 140CPU11302 |
| Brand | Schneider Electric |
| Series | Modicon Quantum |
| Processor Type | Concept Processor |
| Memory Size | 2MB (RAM) / 512KB (Flash) |
| Processor Speed | 500 MHz |
| Input Voltage | 24 V DC |
| Communication Ports | 2 x Ethernet, 1 x Serial, 2 x Modbus TCP |
| Expansion Slots | 10 I/O slots (for modular expansion) |
| Dimensions (WxHxD) | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Rack-mounted (DIN Rail) |
| Power Consumption | 1.2 W (typical) |
| Program Execution Time | 0.5 ms per instruction |
| Redundancy | Supported with additional modules |
Product Applications
The Schneider 140CPU11302 Concept Processor is suitable for a wide variety of industrial and process control applications:
-
Manufacturing Automation: Used for controlling machines, conveyor systems, and robotic arms.
-
Oil and Gas: Applied in oil refineries, petrochemical plants, and pipeline systems to monitor and control various processes.
-
Water and Wastewater Treatment: Supports automation for pumps, filtration systems, and water distribution.
-
Power Distribution: Ideal for controlling electrical substations, transformers, and power plants.
-
HVAC Systems: Can be used in building automation to regulate heating, cooling, and ventilation systems.
Product Advantages
-
High Processing Speed: With a 500 MHz processor, this CPU ensures quick execution of instructions, ideal for high-speed automation processes.
-
Large Memory Capacity: Offering 2MB of RAM and 512KB of Flash memory, it provides ample space for complex program storage and fast data handling.
-
Modular and Scalable: Designed to work with other Modicon Quantum series modules, enabling the easy expansion of control systems as needed.
-
Versatile Communication: With dual Ethernet ports, serial ports, and Modbus TCP support, this processor ensures flexible communication with various industrial devices and systems.
-
High Reliability: Engineered for continuous 24/7 operation in harsh industrial environments with a wide temperature range and built-in fault tolerance features.
-
Ease of Integration: Seamlessly integrates with other Schneider Electric automation components, simplifying system design and maintenance.
-
Rack-Mountable Design: This allows for a compact, space-efficient system setup, particularly useful in environments with limited space.
-
Redundancy Options: Redundancy support ensures enhanced reliability in mission-critical applications.
Brand and Series
-
Brand: Schneider Electric
-
Series: Modicon Quantum
Schneider Electric is a global leader in digital transformation, specializing in energy management and industrial automation. The Modicon Quantum series is part of Schneider Electric’s flagship industrial control platform, offering scalable, high-performance solutions for complex automation applications.
Recommended Models from the Same Series or Related
| Model | Processor Type | Memory Size | Communication Ports | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 140CPU11302 | Concept Processor | 2MB RAM, 512KB Flash | 2 x Ethernet, 1 x Serial, 2 x Modbus TCP | 103.9 × 40.3 × 250 | 0.65 kg |
| 140CPU53414 | Quantum Processor | 1MB RAM, 128KB Flash | 2 x Ethernet, 1 x Modbus | 103.9 × 40.3 × 250 | 0.65 kg |
| 140CPU11303 | Concept Processor | 2MB RAM, 512KB Flash | 2 x Ethernet, 1 x Modbus | 103.9 × 40.3 × 250 | 0.65 kg |
| 140CPU65150 | Quantum Processor | 4MB RAM, 512KB Flash | 2 x Ethernet, 1 x Modbus TCP | 150 × 70 × 300 | 0.75 kg |
| 140CPU11301 | Concept Processor | 1MB RAM, 512KB Flash | 1 x Ethernet, 1 x Modbus | 103.9 × 40.3 × 250 | 0.65 kg |
Popular Schneider Electric Models
| Model | Processor Type | Memory Size | Communication Ports | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 140CPU11302 | Concept Processor | 2MB RAM, 512KB Flash | 2 x Ethernet, 1 x Serial, 2 x Modbus TCP | 103.9 × 40.3 × 250 | 0.65 kg |
| 140CPU65150 | Quantum Processor | 4MB RAM, 512KB Flash | 2 x Ethernet, 1 x Modbus TCP | 150 × 70 × 300 | 0.75 kg |
| 140CPU53414 | Quantum Processor | 1MB RAM, 128KB Flash | 2 x Ethernet, 1 x Modbus | 103.9 × 40.3 × 250 | 0.65 kg |
| 140CPS11420 | Power Supply Unit | – | 2 x Modbus | 103.9 × 40.3 × 250 | 0.3 kg |
| 140DTA30000 | Analog I/O Module | – | 2 x Modbus | 103.9 × 40.3 × 250 | 0.5 kg |
FAQ – Frequently Asked Questions
Q1: What is the processor speed of the 140CPU11302?
A1: The 140CPU11302 operates with a 500 MHz processor, ensuring high-speed data processing for demanding automation tasks.
Q2: How many communication ports does the processor have?
A2: It has 2 Ethernet ports, 1 serial port, and 2 Modbus TCP ports for flexible communication options.
Q3: Can I use the 140CPU11302 in a distributed control system?
A3: Yes, the 140CPU11302 is fully compatible with other Modicon Quantum modules, enabling distributed control setups.
Q4: What is the memory capacity of the 140CPU11302?
A4: It features 2MB of RAM and 512KB of Flash memory, providing sufficient space for complex control programs and data handling.
Q5: Is this processor suitable for high-temperature environments?
A5: Yes, it can operate in environments ranging from -20°C to +60°C, making it suitable for a wide range of industrial applications.
Q6: How is the 140CPU11302 mounted in control systems?
A6: It is rack-mounted and designed for easy DIN rail installation in control panels.
Q7: Does the 140CPU11302 support redundancy?
A7: Yes, the module supports redundancy when used in conjunction with other compatible modules, ensuring higher system availability.
Q8: Can I expand the system with more I/O modules?
A8: Yes, the 140CPU11302 supports up to 10 I/O slots for modular expansion, allowing for scalable system design.
Q9: What industries use the 140CPU11302 processor?
A9: This processor is widely used in manufacturing, water treatment, oil and gas, and power distribution industries, among others.
Q10: How is the performance of the processor measured?
A10: The processor executes instructions in 0.5 ms per instruction, ensuring fast processing for time-sensitive applications.
