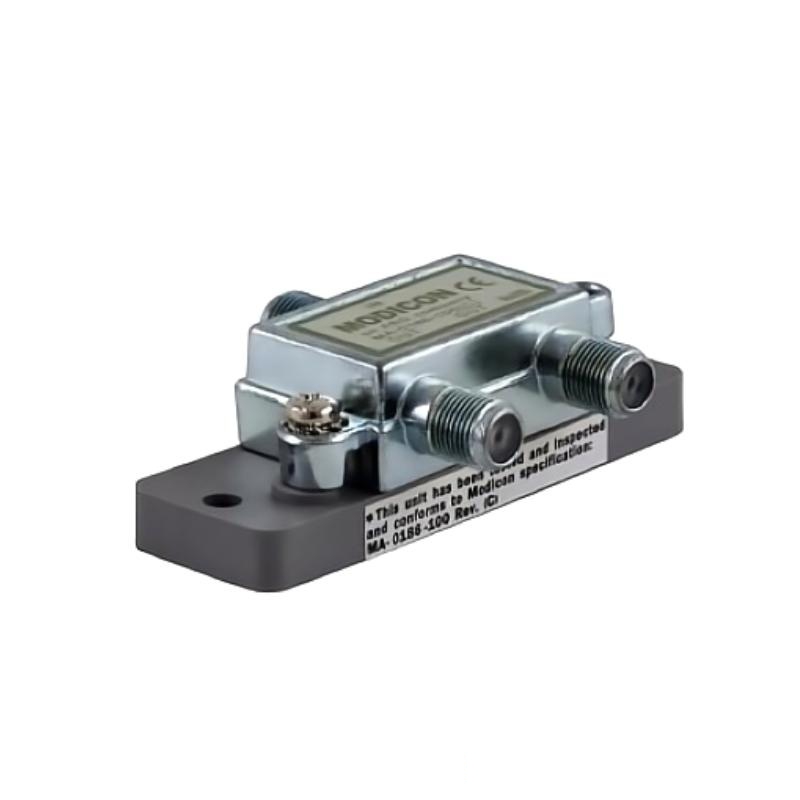

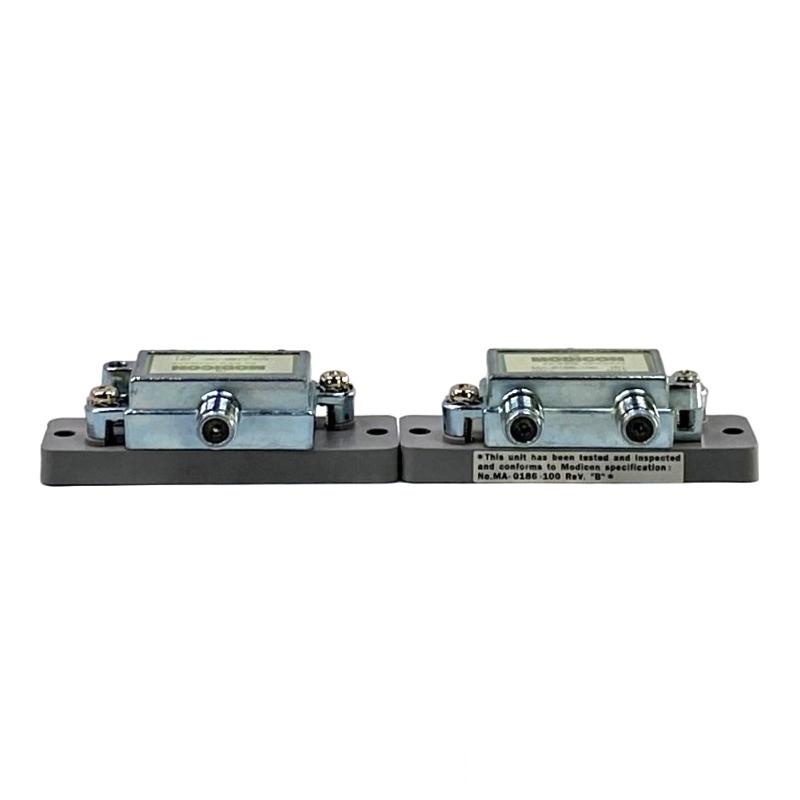

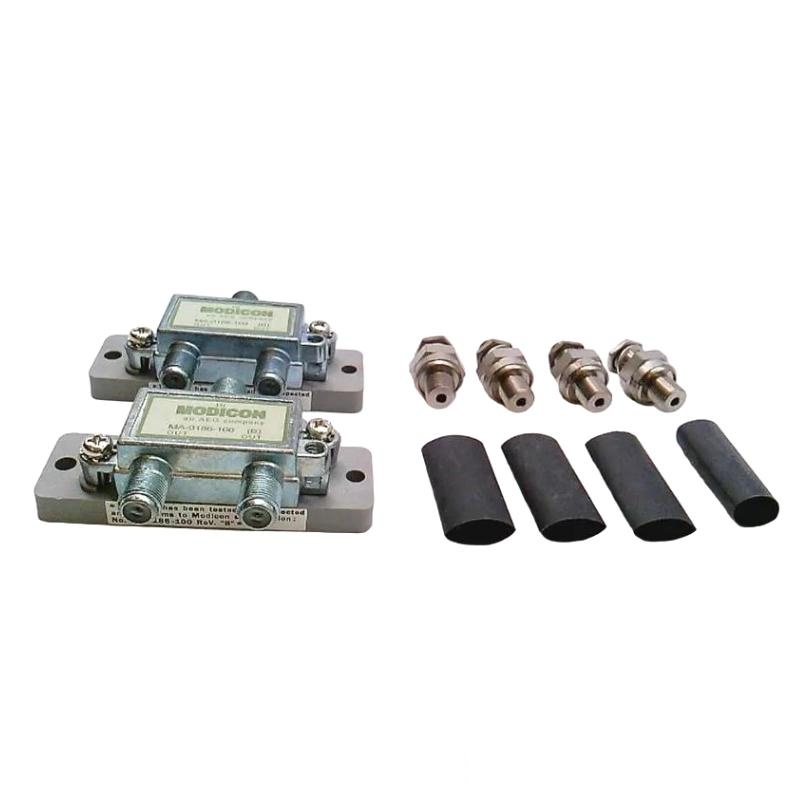

Schneider 140CHS32000 Coaxial Cable Hot Standby Splitter Kit

Product Overview:

The Schneider 140CHS32000 is a coaxial cable hot standby splitter kit designed specifically for use with Modicon Quantum PLC systems. This kit ensures redundant signal transmission in applications where signal integrity and availability are critical. It acts as a signal splitter to distribute signals between primary and backup systems, ensuring that both controllers receive identical inputs in case of a failure. The 140CHS32000 is ideal for ensuring continuous system operation in environments that demand high reliability, such as power generation, manufacturing, and industrial automation.

With its compact design, the 140CHS32000 provides a reliable and cost-effective solution for applications where signal redundancy is crucial. It is easy to install, offering quick integration into existing control systems, and helps ensure optimal performance in critical applications.

Product Specifications:

Product Applications:

The 140CHS32000 coaxial cable hot standby splitter kit is primarily used in applications where signal redundancy and high system availability are critical. Some of the primary applications include:

1. Power Generation: Used in turbine control and generator protection systems, ensuring that both primary and secondary control systems receive identical signals.

2. Oil and Gas: Provides reliable signal distribution in drilling rigs, offshore platforms, and refinery control systems, ensuring system integrity in case of failures.

3. Manufacturing: Ensures continuous operation in automated production lines, where signal loss could lead to significant downtime.

4. Industrial Automation: Critical for safety systems, ensuring backup controllers receive the same inputs as the primary controller in automation processes.

5. Telecommunications: Used in telecommunication networks where signal transmission redundancy is needed to ensure continuous service.

Product Advantages:

1. Signal Redundancy: The 140CHS32000 ensures signal redundancy, offering seamless operation in case of failure by splitting signals between the primary and backup controllers.

2. Compact Design: With dimensions of 60 × 115 × 90 mm and a weight of 0.408 kg, it is easy to mount in tight spaces, making it suitable for installations in compact control cabinets.

3. Reliable and Efficient: Designed to ensure that the primary and backup systems receive the same signals, it increases system reliability by preventing signal loss during controller failures.

4. Cost-Effective: The kit provides a cost-effective way to implement signal redundancy without the need for full system duplication, ensuring performance at a lower cost.

5. Protection Rating: With IP20 protection, the kit offers dust and contact protection, making it ideal for industrial environments.

6. Wide Temperature Range: It operates effectively within a wide temperature range of -20°C to 60°C, ensuring reliability in various industrial settings.

7. Easy Installation: The DIN rail mounting and coaxial BNC connectors make installation fast and easy without the need for specialized tools.

8. Low Power Consumption: The kit consumes only 3W, making it energy efficient while providing crucial backup functionality.

Brand and Series:

• Brand: Schneider Electric – A global leader in energy management and automation solutions, Schneider Electric is known for its commitment to sustainability and innovation in industrial automation and control.

• Series: Modicon Quantum Series – Schneider Electric’s Modicon Quantum PLC series is known for providing high-performance solutions for complex industrial control systems, offering modularity, scalability, and advanced redundancy features.
