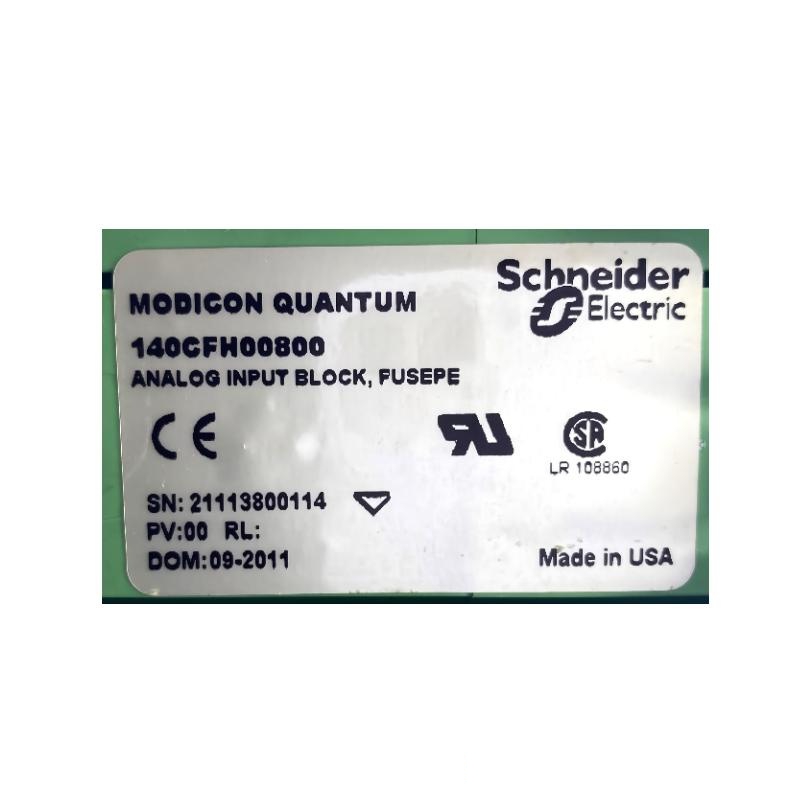

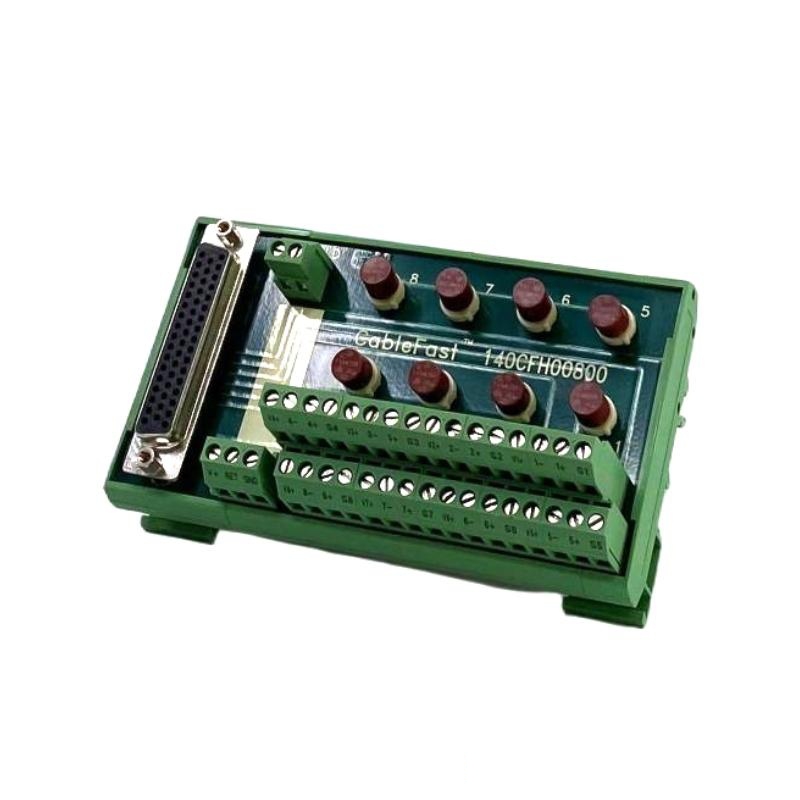

Schneider 140CFH00800 Analog Input Module

Product Introduction

The Schneider 140CFH00800 is a high-performance analog input module designed for use with the Modicon Quantum series of programmable logic controllers (PLCs). This module is designed to acquire voltage and current signals from a wide range of industrial sensors and devices, making it an essential component in automation and control systems. The 140CFH00800 is capable of supporting 8 analog input channels, each offering high precision and accuracy for data acquisition and process control.

Part of the Modicon Quantum series, the 140CFH00800 integrates seamlessly with other Schneider PLC and I/O modules, providing a scalable and flexible solution for industrial control systems. Whether in manufacturing, energy management, chemical processing, or other industrial environments, the module ensures precise and reliable input signal acquisition, enabling real-time monitoring and control of critical systems.

The 140CFH00800 module is built to perform in harsh industrial environments, offering reliable operation over a wide temperature range and maintaining high accuracy despite challenging conditions. It is DIN rail mountable, ensuring quick installation and flexibility for integration into existing systems.

Product Specifications

Product Applications

The Schneider 140CFH00800 analog input module is suitable for a wide variety of applications where precise and reliable data acquisition is essential. Key applications include:

1. Manufacturing Automation: In automated production lines, this module is used to acquire signals from sensors, temperature probes, and pressure transducers to monitor and control various manufacturing processes.

2. Energy Management: The 140CFH00800 is used to gather data from voltage sensors, current transformers, and power meters in energy generation and distribution systems, ensuring optimal performance and real-time energy monitoring.

3. Chemical Processing: In chemical plants, the module acquires analog data from chemical sensors, level transmitters, and flow meters to ensure accurate process control and product quality.

4. Environmental Monitoring: The 140CFH00800 is used in water treatment plants, environmental monitoring systems, and weather stations to monitor key environmental parameters such as water quality, air quality, and temperature.

5. Building Automation: This module is widely used in HVAC systems for temperature and humidity control, as well as lighting control systems and security systems, helping to optimize energy efficiency and comfort in commercial buildings.

Product Advantages

1. High Precision and Accuracy: The 140CFH00800 module offers an accuracy of ±0.1%, ensuring high-fidelity data acquisition for critical control applications.

2. Multiple Input Types: Supporting both voltage (0-10V) and current (4-20mA) inputs, the module is compatible with a broad range of industrial sensors and measurement devices.

3. Flexible Integration: The module is fully compatible with the Modicon Quantum system and can be integrated into larger automation systems seamlessly, providing scalability for growing industrial processes.

4. Real-Time Data Acquisition: With a sampling rate of 100 ms/channel, the 140CFH00800 offers fast and efficient data acquisition for real-time process monitoring and control.

5. Compact and Easy to Install: With dimensions of 115 x 180 x 270 mm and a weight of 0.41 kg, the module is compact and ideal for integration into systems with limited space. Its DIN rail mounting allows for simple and flexible installation.

6. Wide Operating Range: The module operates efficiently within a temperature range of -20°C to +60°C, making it suitable for use in harsh industrial environments.

7. Durability: With an IP20 protection class, the module is well-protected against dust and accidental contact with electrical parts, ensuring reliable long-term operation.

Brand and Series

• Brand: Schneider Electric

• Series: Modicon Quantum
