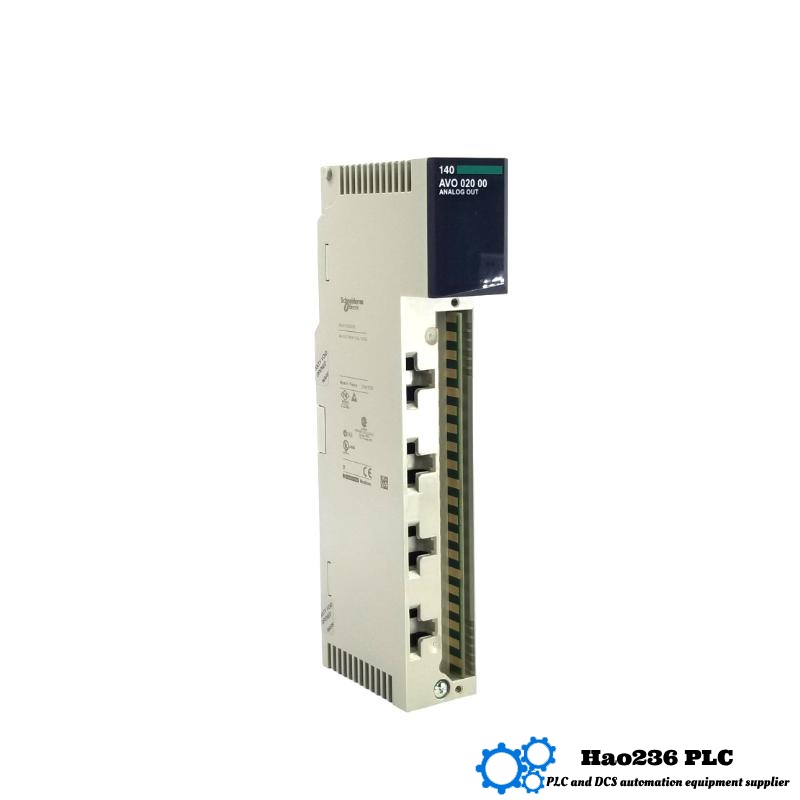

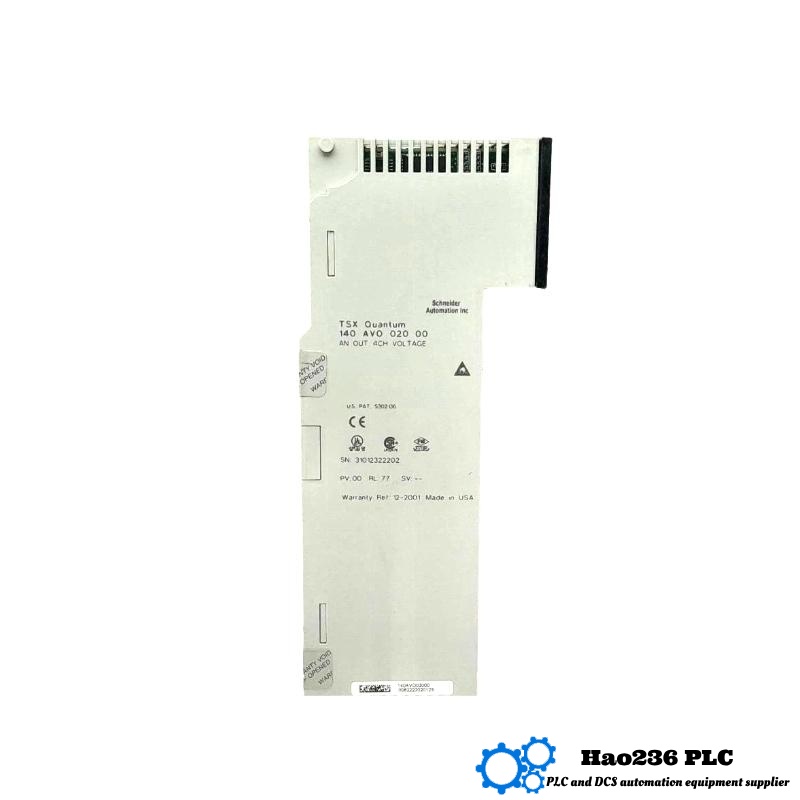

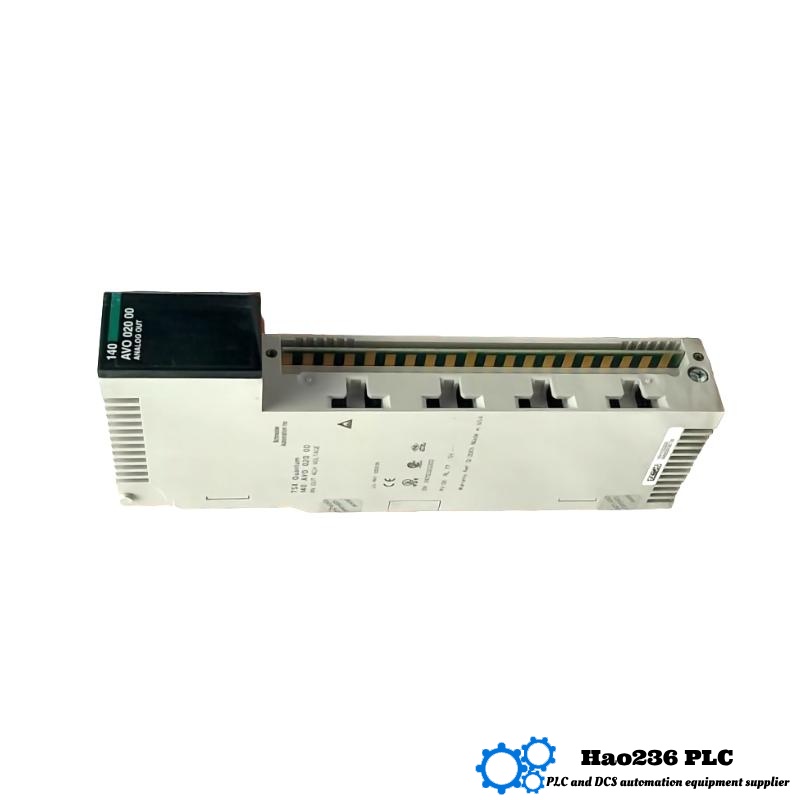

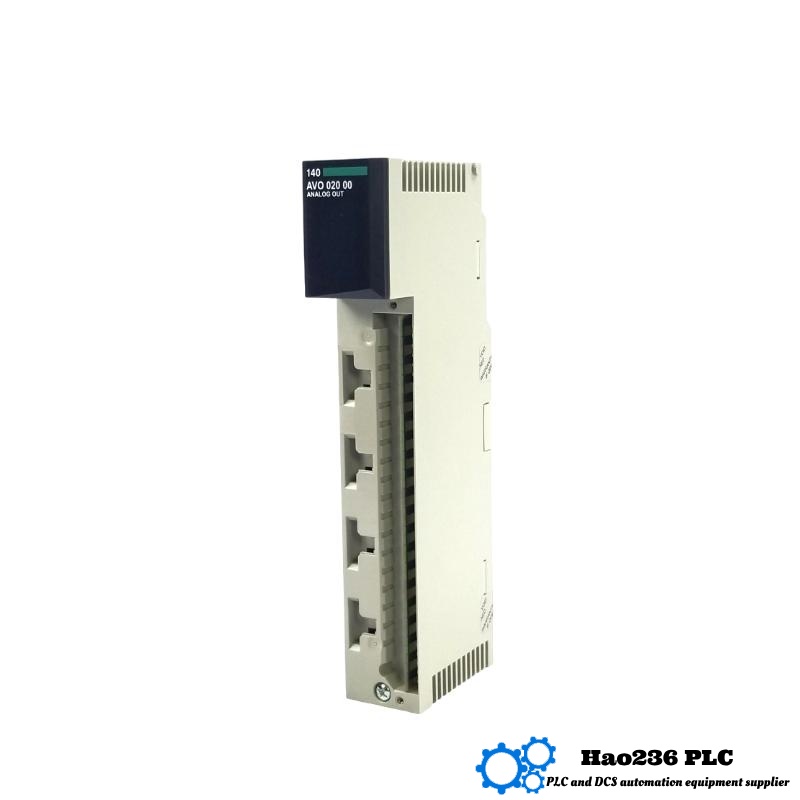

Schneider 140AVO02000C Analog Output Module
Product Introduction
The Schneider 140AVO02000C is a high-performance analog output module designed specifically for integration with the Modicon Quantum automation platform. This module provides 2 analog voltage output channels, allowing precise control of field devices such as actuators, control valves, and variable frequency drives. It supports industry-standard output ranges, ensuring compatibility with most industrial automation equipment.
Designed for demanding industrial environments, the 140AVO02000C delivers reliable analog signal output with channel-to-channel isolation, built-in diagnostics, and advanced accuracy. Its modular design makes it ideal for scalable automation architectures, enabling flexible configuration in large control systems.
This module is a vital component for processes that require accurate voltage control, especially in applications like process automation, energy management, and factory machinery regulation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 140AVO02000C |
| Type | Analog Output Module |
| Series | Modicon Quantum |
| Output Channels | 2 Analog Voltage Outputs |
| Output Range | 0–10 V, ±10 V |
| Resolution | 12 bits |
| Output Type | Voltage |
| Load Impedance | ≥ 1 kΩ |
| Isolation | Channel-to-channel and channel-to-bus |
| Diagnostics | Internal diagnostics with fault indication |
| Response Time | ≤ 1 ms |
| Hot-Swap Capability | Yes |
| Mounting | Rack-mount (Quantum Backplane) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Product Applications
-
Process Automation
Controls proportional valves, dampers, and actuators that require precise voltage levels. -
HVAC and Building Management Systems
Interfaces with variable frequency drives (VFDs), thermostats, and control panels. -
Energy Management
Regulates analog devices used in power distribution systems. -
Manufacturing and Packaging
Provides analog control to machines for speed, tension, and material handling processes. -
Water and Wastewater Treatment
Outputs analog voltage to control flow rates, dosing systems, or level control systems.
Product Advantages
-
Precision Analog Control
Enables fine-tuned voltage regulation with 12-bit resolution for reliable field device control. -
Dual Output Channels
Efficiently delivers independent voltage signals to two separate devices, saving space and cost. -
Built-in Fault Diagnostics
Monitors output channel status in real-time, aiding quick maintenance and troubleshooting. -
Hot-Swap Ready
Supports module replacement without shutting down the system, enhancing system uptime. -
High Compatibility
Supports common voltage signal standards for seamless integration with industrial equipment. -
Robust and Compact
Industrial-grade build and compact form factor ideal for harsh environments and dense control cabinets.
Brand Information
Schneider Electric is one of the world’s leading specialists in automation and energy management. The Modicon Quantum series represents its flagship line of high-performance programmable logic controllers (PLCs) and modules, designed for large-scale and high-availability industrial control systems.
The 140AVO02000C module integrates seamlessly with this architecture, providing a dependable solution for precision analog output control.
Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 140AVO02000 | 2-Channel Analog Voltage Output | 103.9 × 40.3 × 250 | 0.3 |
| 140ACI04000 | 4-Channel Analog Current Input | 103.9 × 40.3 × 250 | 0.3 |
| 140ARI03000C | 3-Channel Analog Current Input (Isolated) | 103.9 × 40.3 × 250 | 0.3 |
| 140ACO02000 | 2-Channel Analog Current Output | 103.9 × 40.3 × 250 | 0.32 |
| 140CPU65160 | Quantum PLC CPU | 243.8 × 101.6 × 226.1 | 1.3 |
Popular Schneider Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TM241CE24T | Modicon M241 Logic Controller | 150 × 110 × 70 | 0.6 |
| BMENOC0311 | M580 Ethernet Communication Module | 85 × 32 × 140 | 0.15 |
| 140NOE77101 | Quantum Ethernet TCP/IP Module | 103.9 × 40.3 × 250 | 0.35 |
| TSXPSY2600 | Quantum Power Supply | 120 × 80 × 100 | 0.5 |
| 140DDO35300 | 32-Point Digital Output Module | 103.9 × 40.3 × 250 | 0.34 |
FAQs
Q1: What type of signals does the 140AVO02000C output?
A1: It outputs analog voltage signals, specifically 0–10 V or ±10 V.
Q2: How many output channels are available?
A2: The module offers 2 independent voltage output channels.
Q3: What resolution does it support?
A3: It provides 12-bit resolution for high-accuracy signal control.
Q4: Is the module hot-swappable?
A4: Yes, it supports hot-swap within a Quantum PLC rack.
Q5: Is channel isolation available?
A5: Yes, it offers channel-to-channel and channel-to-backplane isolation.
Q6: Can it be used for process control applications?
A6: Absolutely, it is widely used in process control, energy, and HVAC systems.
Q7: What is the load impedance requirement?
A7: It requires a minimum load impedance of 1 kΩ.
Q8: What are the environmental tolerances?
A8: It operates between 0°C to 60°C and tolerates 5–95% humidity.
Q9: Is it CE or UL certified?
A9: Yes, it carries CE, UL, and CSA certifications.
Q10: What are the dimensions and weight?
A10: Its size is 103.9 × 40.3 × 250 mm and it weighs 0.3 kg.
