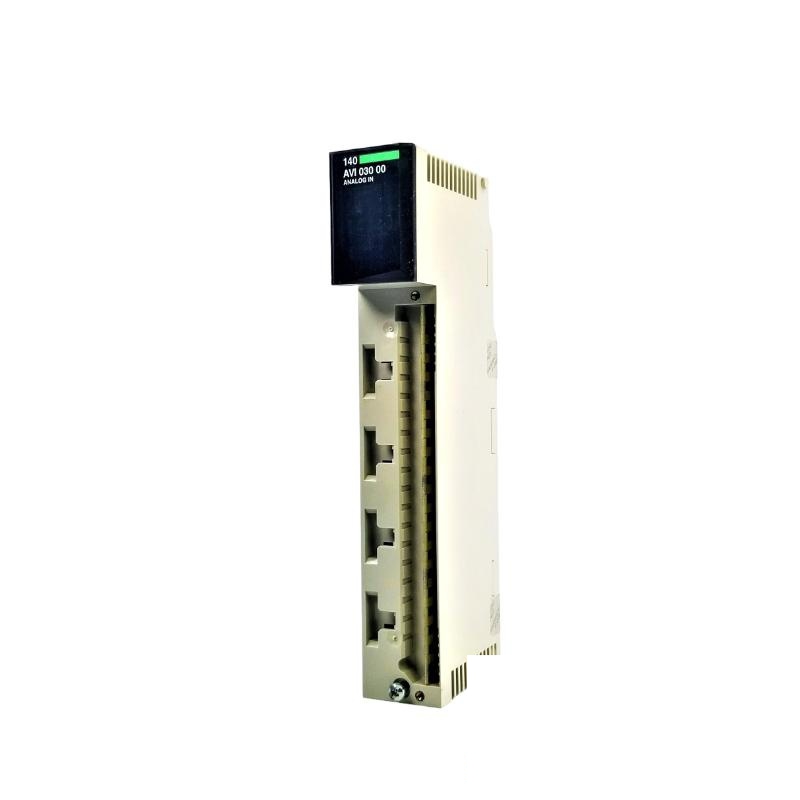

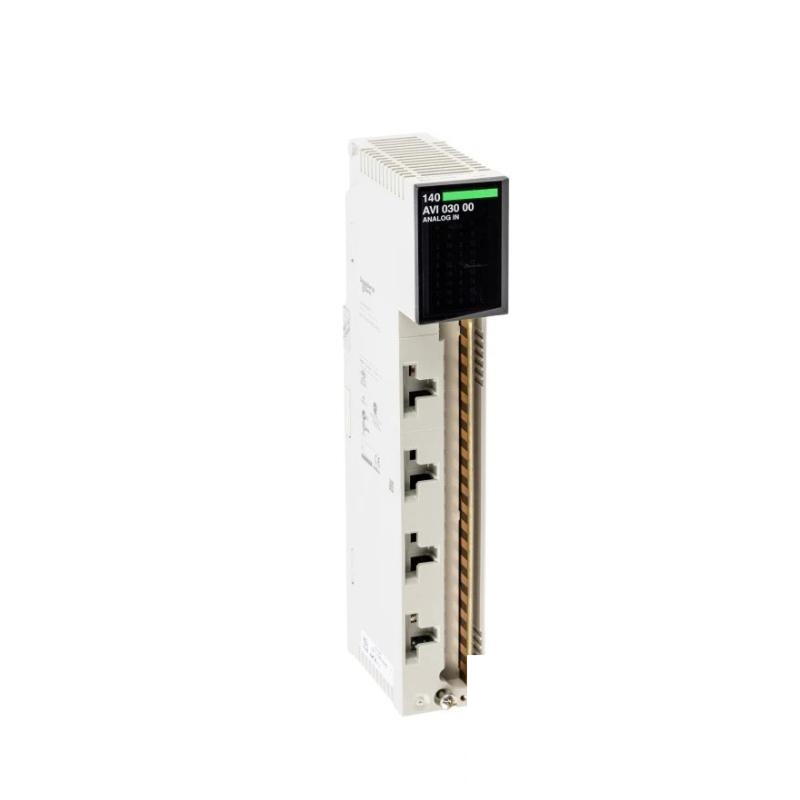

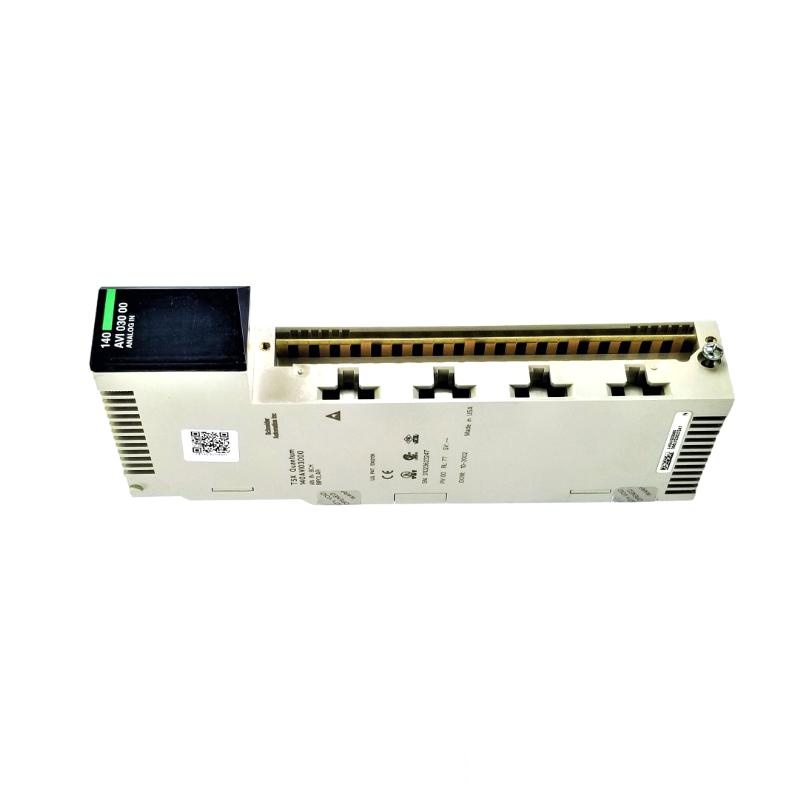

Schneider 140AVI03000C Analog Input Module
Product Introduction
The Schneider 140AVI03000C is a high-performance analog input module designed for use in the Modicon Quantum series of programmable logic controllers (PLCs). This module offers precise analog signal acquisition for a variety of industrial control applications. It is engineered to capture and convert analog inputs such as voltage or current signals from field instruments into digital data that can be processed by the control system.
Built with robust technology, the 140AVI03000C ensures reliable and accurate data acquisition, enabling real-time monitoring and control of industrial processes. Its compact design and easy integration into the Modicon Quantum system make it an ideal choice for modern automation projects requiring high accuracy and stability.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 140AVI03000C |
| Product Type | Analog Input Module |
| Series | Modicon Quantum |
| Brand | Schneider Electric |
| Number of Inputs | 8 analog inputs |
| Input Types | Voltage (±10 V), Current (4-20 mA) |
| Input Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Input Impedance | Voltage input: >100 kΩ |
| Sampling Rate | Up to 10 samples per second per channel |
| Communication | Modbus over Quantum bus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Applications
-
Process Control Systems — Monitoring analog signals such as pressure, flow, and temperature in process industries.
-
Manufacturing Automation — Precise measurement of sensors and transducers for efficient production control.
-
Power Plants — Analog signal acquisition for monitoring electrical parameters and environmental conditions.
-
Water and Wastewater Treatment — Real-time data acquisition from sensors for flow, level, and chemical dosing control.
-
Oil & Gas Industry — Accurate analog input processing for drilling and refining operations.
Advantages
-
High Accuracy and Resolution: Provides precise 16-bit analog signal conversion ensuring reliable data for control decisions.
-
Wide Input Compatibility: Supports both voltage and current inputs, enabling connection to a variety of field devices.
-
Robust Build Quality: Designed for industrial environments with temperature tolerance and high immunity to electrical noise.
-
Seamless Integration: Compatible with Modicon Quantum PLCs for easy system expansion and control.
-
Compact Design: Saves panel space without compromising performance.
Brand Overview
Schneider Electric is a global leader in energy management and automation solutions, recognized for delivering innovative, reliable, and sustainable technologies. The Modicon Quantum series represents Schneider’s flagship PLC range, designed to meet the demands of complex and critical industrial automation systems. Schneider’s commitment to quality and performance is embodied in the 140AVI03000C analog input module, making it a trusted choice for precise data acquisition in demanding industrial applications.
Related Models (Same Series or Related Products)
| Model | Description | Number of Inputs | Input Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 140AVI02000 | Analog input module | 8 | Voltage, Current | 103.9 × 40.3 × 250 | 0.3 kg |
| 140ADI44000 | Analog input module | 4 | RTD, Thermocouple | 103.9 × 40.3 × 250 | 0.35 kg |
| 140AOW06000 | Analog output module | 6 | Voltage, Current | 103.9 × 40.3 × 250 | 0.3 kg |
| 140DDI65300 | Digital input module | 32 | Digital inputs | 103.9 × 40.3 × 250 | 0.4 kg |
| 140CPU65160 | Quantum CPU module | N/A | CPU module | 100 × 250 × 200 | 1.5 kg |
Popular Models (Same Brand)
| Model | Description | Series | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 140ADI44000 | Analog input RTD/thermocouple | Modicon Quantum | 103.9 × 40.3 × 250 | 0.35 kg |
| 140DDO35300 | Digital output module | Modicon Quantum | 50 × 165 × 310 | 0.75 kg |
| 140DDI35300 | Digital input module | Modicon Quantum | 50 × 165 × 310 | 0.75 kg |
| 140CPU65160 | Quantum CPU | Modicon Quantum | 100 × 250 × 200 | 1.5 kg |
| 140ACI32000 | Analog current/voltage input | Modicon Quantum | 50 × 165 × 310 | 0.8 kg |
FAQ (Q&A)
Q1: How many analog inputs does the 140AVI03000C support?
A1: It supports 8 analog inputs.
Q2: What types of signals can the module accept?
A2: It accepts voltage signals (±10 V) and current signals (4-20 mA).
Q3: What is the input resolution of this module?
A3: The module uses a 16-bit ADC for high resolution.
Q4: Is the module compatible with other Modicon Quantum PLC modules?
A4: Yes, it integrates seamlessly with the Modicon Quantum series.
Q5: What are the physical dimensions of the module?
A5: The module measures 103.9 mm (W) × 40.3 mm (H) × 250 mm (D).
Q6: What is the operating temperature range?
A6: The module operates between -20°C and +60°C.
Q7: How much does the module weigh?
A7: It weighs approximately 0.3 kg.
Q8: What is the input impedance for voltage signals?
A8: The input impedance for voltage inputs is greater than 100 kΩ.
Q9: Can this module sample signals at a high rate?
A9: Yes, it can sample up to 10 samples per second per channel.
Q10: What communication protocol does it use?
A10: It uses Modbus protocol over the Quantum bus.
