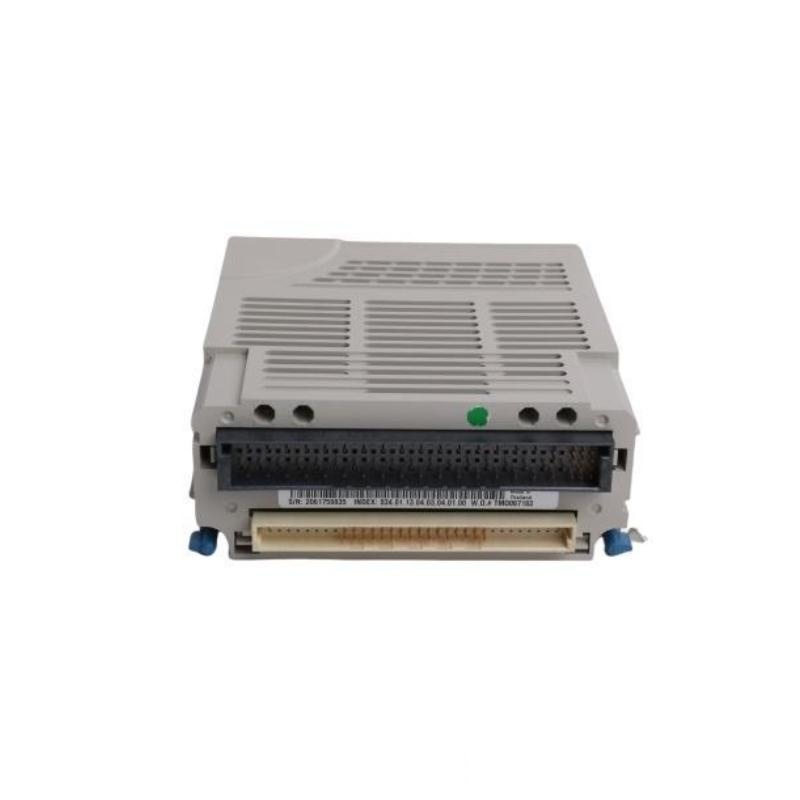

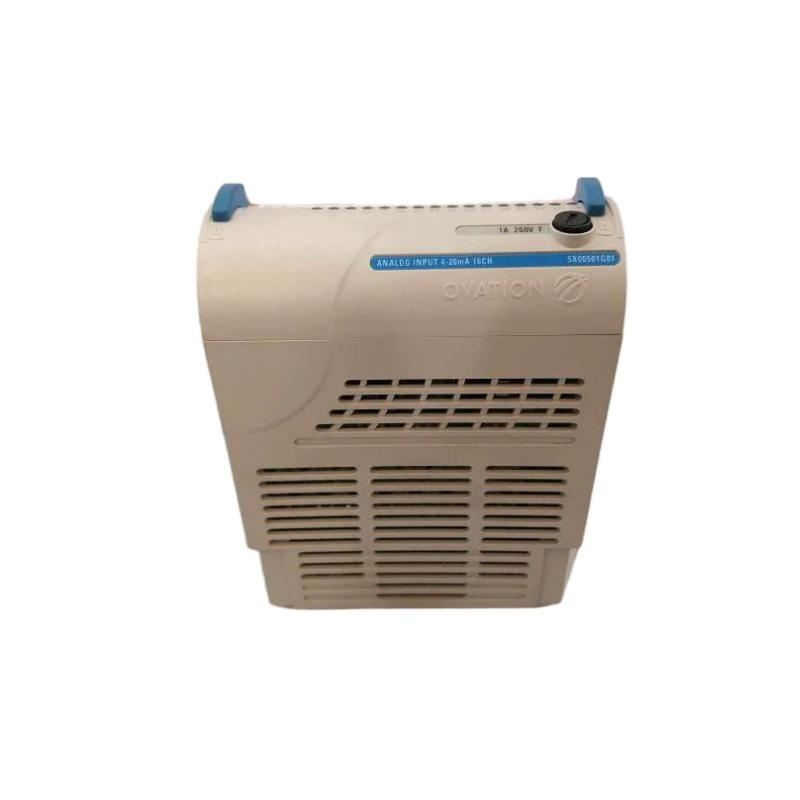

Ovation 5X00501G01 4-20mA 16-Channel Analog Input Module
Product Overview
The Ovation 5X00501G01 is a 16-channel analog input module engineered for accurate and reliable signal acquisition in Emerson’s Ovation Distributed Control System (DCS). Designed to receive 4-20mA analog signals, this module allows the precise monitoring of process variables such as pressure, temperature, flow, and level from field instrumentation.
The 5X00501G01 provides high-resolution signal conversion and built-in diagnostic capabilities, ensuring stable performance across a wide range of industrial applications. Its compact and rugged design ensures long-term reliability, even in harsh environments. The module integrates seamlessly into Ovation I/O racks and communicates efficiently with the Ovation controller, making it an essential component in process automation systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 5X00501G01 |
| Function | Analog Input Module |
| Input Signal Type | 4-20mA Current Loop |
| Number of Channels | 16 |
| Resolution | 12-bit or better |
| Input Impedance | Typically 250 ohms |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Input wire-off detection, channel diagnostics |
| Operating Voltage Range | 18–30V DC (via rack system) |
| Operating Temperature | 0°C to +60°C |
| Mounting Type | Backplane / Rack Mount |
| Dimensions (W × H × D) | 41 × 159 × 108 mm |
| Weight | 0.32 kg |
| Compatible System | Emerson Ovation DCS |
| Brand | Emerson |
| Product Series | Ovation Control System Series |
Product Applications
-
Power Plants: Measures turbine parameters like steam pressure, temperature, and feedwater flow.
-
Chemical Industry: Monitors chemical reactions by reading sensor data for pH, conductivity, and fluid dynamics.
-
Water & Wastewater: Acquires data from flow meters, level sensors, and analyzers to regulate treatment processes.
-
Oil & Gas Processing: Captures pressure and temperature signals from pipelines and processing equipment.
-
Food & Beverage: Monitors environmental variables such as humidity, tank levels, and flow rates for quality control.
Product Advantages
-
High-Accuracy Signal Conversion: Converts analog signals with excellent precision for critical process control.
-
Channel Isolation: Reduces noise and interference, ensuring consistent input readings across all channels.
-
Space-Efficient Design: Compact module fits seamlessly into Ovation racks with minimal footprint.
-
Diagnostic Intelligence: Built-in monitoring helps detect wiring issues and sensor faults early.
-
Robust Compatibility: Fully integrated with Emerson Ovation DCS systems, ensuring consistent performance across platforms.
Brand
-
Brand: Ovation
The Ovation series is known for its high reliability and comprehensive functionality, making it a key automation solution in critical infrastructure and process control environments.
Recommended Related Models (Same Series or Function)
| Model | Description | Channels | Signal Type | Weight |
|---|---|---|---|---|
| 5X00500G01 | 16-Channel Digital Output Module | 16 | 24V DC | 0.70 kg |
| 5X00106G01 | 8-Channel Analog Input Module | 8 | 0-10V/4-20mA | 0.72 kg |
| 5X00109G01 | 8-Channel Analog Output Module | 8 | 4-20mA | 0.75 kg |
| 5X00790G01 | 32-Channel Digital Input Module | 32 | 24V DC | 0.69 kg |
| 5X00501G02 | Enhanced 16-Channel Analog Input Module | 16 | 4-20mA | 0.34 kg |
Popular Emerson Modules (Same Brand)
| Model | Description | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 1C31125G02 | Communication Interface Module | Interface Module | 190 × 50 × 110 | 0.62 kg |
| 1C31129G03 | I/O Termination Module | Terminal Block | 150 × 50 × 110 | 0.60 kg |
| 1C31234G01 | Analog Multiplexer Module | Multiplexer | 180 × 45 × 120 | 0.58 kg |
| 1C31110G03 | Power Supply Module | Power Module | 150 × 60 × 130 | 0.85 kg |
| 1C31227G01 | Network Interface Controller | Network Interface | 140 × 40 × 120 | 0.67 kg |
Frequently Asked Questions (FAQ)
Q1: What type of signal does the 5X00501G01 module accept?
A1: It accepts analog input signals in the 4-20mA current loop range.
Q2: How many channels does this module have?
A2: It provides 16 independent analog input channels.
Q3: Is the module compatible with legacy Ovation systems?
A3: Yes, it is fully compatible with existing Ovation DCS installations.
Q4: Can the module detect sensor or wiring failures?
A4: Yes, it includes diagnostic capabilities such as wire-off detection.
Q5: Does the module support isolation between channels?
A5: Yes, each channel is electrically isolated to prevent interference.
Q6: What is the resolution of the input signal conversion?
A6: It supports 12-bit resolution or better, ensuring precise measurements.
Q7: What is the module’s operating temperature range?
A7: It operates from 0°C to +60°C.
Q8: How is the module mounted?
A8: It mounts into the Ovation backplane or rack system.
Q9: What is the size and weight of this module?
A9: It measures 41 × 159 × 108 mm and weighs 0.32 kg.
Q10: In what industries is this module commonly used?
A10: It is widely used in power, water treatment, chemical, oil & gas, and manufacturing sectors.
