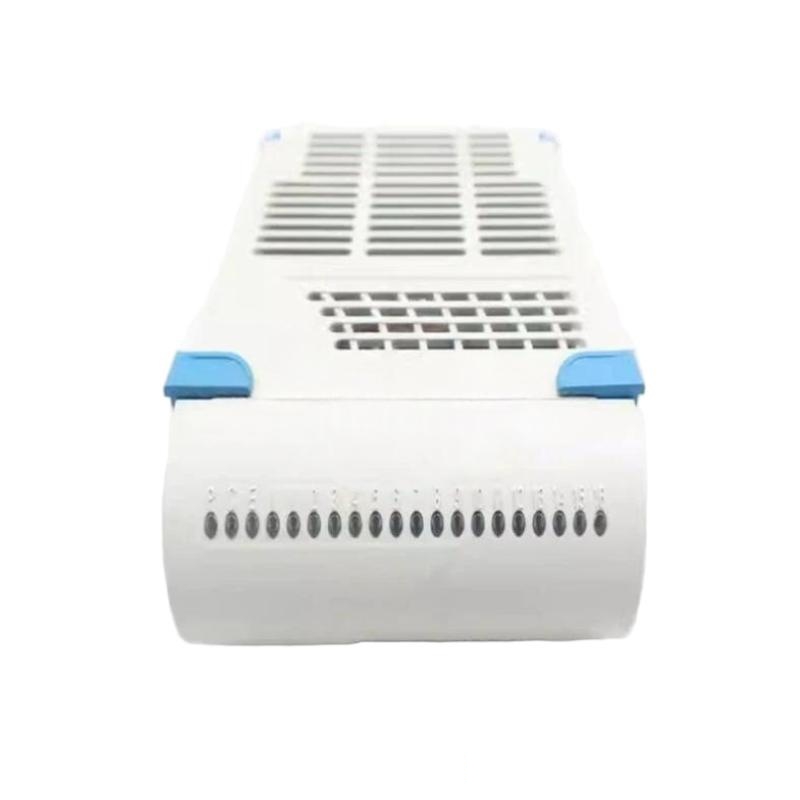

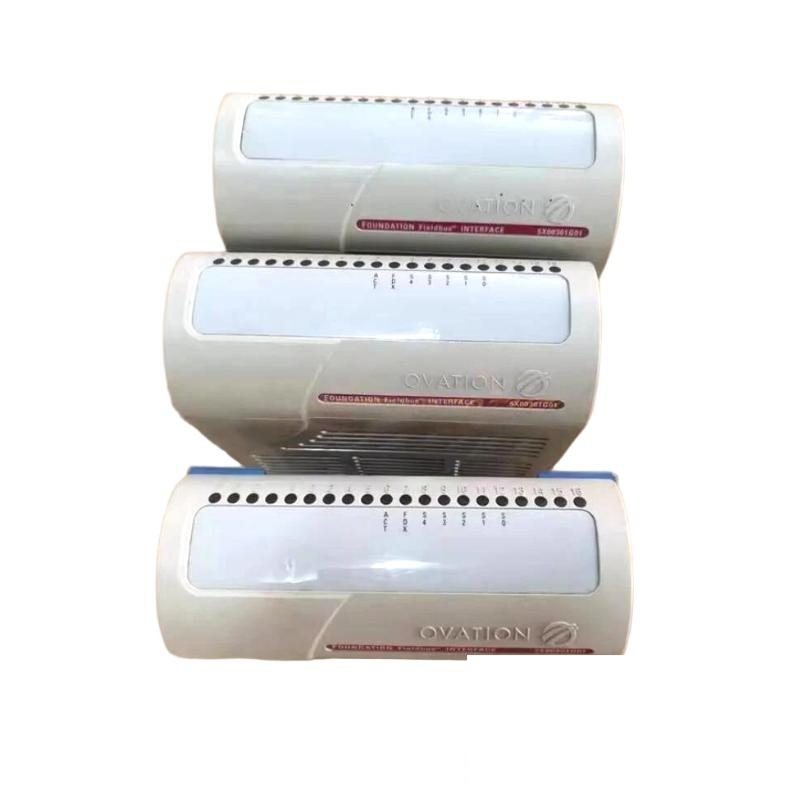

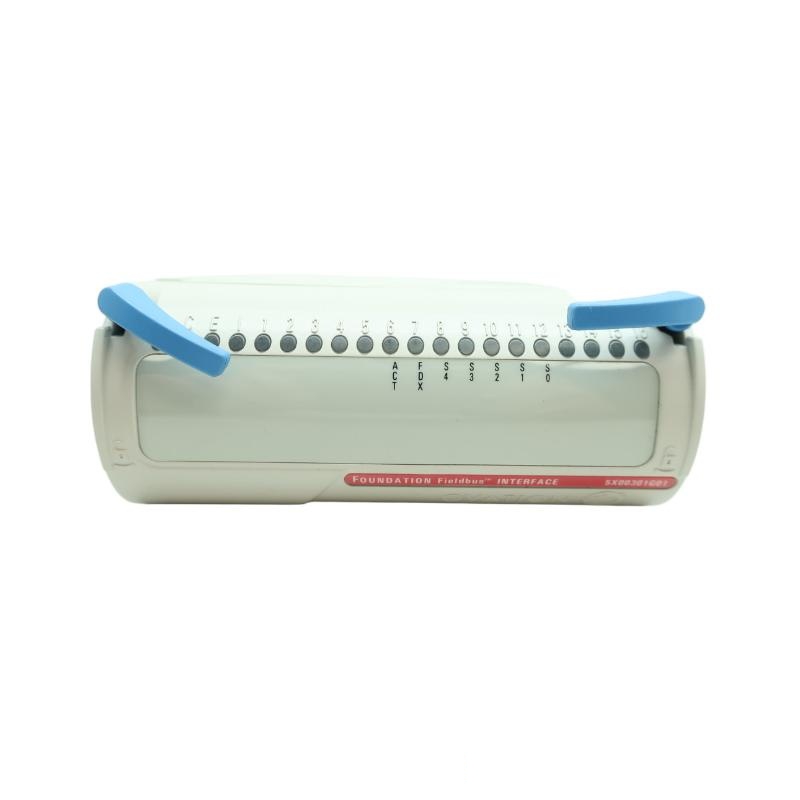

Ovation 5X00301G01 Analog Output Module
Product Overview
The Ovation 5X00301G01 is an advanced analog output module designed for use within Ovation’s integrated control systems. This module allows for high-precision output of analog signals for control and feedback in industrial automation processes. The 5X00301G01 module is widely used in critical applications where accurate control and real-time monitoring of outputs are required, such as in power plants, oil and gas, and manufacturing industries. It supports a wide range of control systems, delivering reliable and continuous performance.
This module is engineered to support a variety of industrial processes and integrates seamlessly into Ovation’s platform, ensuring consistent and precise control of output devices such as actuators, valves, and motors.
Product Specifications
| Feature | Specification |
|---|---|
| Product Type | Analog Output Module |
| Model Number | 5X00301G01 |
| Dimensions (L x W x H) | 41 x 159 x 108 mm |
| Weight | 0.3 kg |
| Output Range | 4-20 mA, 0-10 V |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Power Consumption | 2.5 W |
| Operating Temperature | -25°C to +60°C |
| Mounting Type | DIN Rail |
| Output Impedance | 500 Ω |
| Compliance | CE Certified |
Product Applications
The Ovation 5X00301G01 analog output module is utilized in a wide array of industrial and automation applications, including:
-
Power Generation: Used in power plants to control critical processes such as turbine speed, pressure, and temperature.
-
Oil and Gas: Provides reliable signal outputs for process control in drilling, refining, and distribution processes.
-
Manufacturing Automation: Ideal for controlling actuators, valves, and other control devices in automated production lines.
-
Chemical Processing: Used to regulate chemical dosing and reaction conditions in plants, ensuring accurate product quality and process consistency.
-
Building Automation: Supports precise control in HVAC systems and energy management applications.
Product Advantages
-
High Precision: With 16-bit resolution and ±0.1% accuracy, the 5X00301G01 provides superior precision in controlling industrial processes.
-
Versatile Output Options: The module supports both 4-20 mA and 0-10 V outputs, making it adaptable to a wide range of applications.
-
Energy Efficient: With a low power consumption of only 2.5 W, the module is designed to minimize operational costs.
-
Wide Operating Temperature Range: Capable of operating between -25°C and +60°C, this module is suitable for harsh industrial environments.
-
Easy Integration: The module is compatible with the Ovation system and can be easily integrated into existing setups without complex configuration.
-
Compact Design: Its small dimensions (41 x 159 x 108 mm) make it an excellent choice for installations with limited space.
Brand
-
Brand: Ovation (Emerson)
Similar Models or Related Products
Here are five similar models within the Ovation series or related products:
| Model | Description | Output Range | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| 5X00302G01 | Analog output module, 16 channels | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.35 kg |
| 5X00303G01 | High-precision analog output module | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.32 kg |
| 5X00304G01 | Analog output module with extended features | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.33 kg |
| 5X00305G01 | Digital output module with analog feedback | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.30 kg |
| 5X00306G01 | 8-channel analog output module | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.40 kg |
Popular Emerson Models
Here are five popular Emerson models within the same brand:
| Model | Description | Output Range | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| 5X00301G02 | Analog input/output module | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.35 kg |
| 5X00306G02 | High-performance analog output module | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.37 kg |
| 5X00307G01 | Multifunction analog output module | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.34 kg |
| 5X00308G01 | Industrial-grade analog output module | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.39 kg |
| 5X00309G01 | Compact analog output module | 4-20 mA, 0-10 V | 41 x 159 x 108 mm | 0.32 kg |
FAQs
-
Q: What is the output range of the Ovation 5X00301G01 module?
A: The output range is 4-20 mA and 0-10 V. -
Q: How many channels does the Ovation 5X00301G01 support?
A: The module supports 1 analog output channel. -
Q: What is the resolution of the analog output?
A: The module provides 16-bit resolution. -
Q: What is the operating temperature range of the Ovation 5X00301G01?
A: The operating temperature range is from -25°C to +60°C. -
Q: How much power does the Ovation 5X00301G01 consume?
A: The module consumes 2.5 W of power. -
Q: What is the size of the Ovation 5X00301G01 module?
A: The dimensions are 41 x 159 x 108 mm. -
Q: What is the weight of the Ovation 5X00301G01?
A: The module weighs 0.3 kg. -
Q: How is the module mounted?
A: The module is mounted using a DIN rail. -
Q: What compliance certifications does the module have?
A: The Ovation 5X00301G01 module is CE certified. -
Q: Is the Ovation 5X00301G01 compatible with other Emerson systems?
A: Yes, it is fully compatible with other Emerson Ovation control systems.
