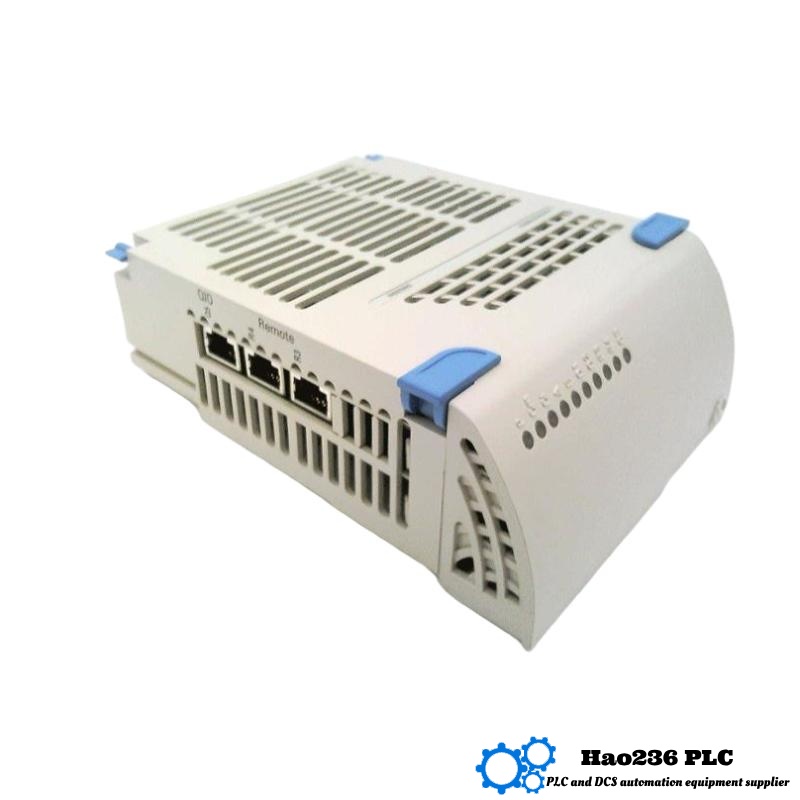

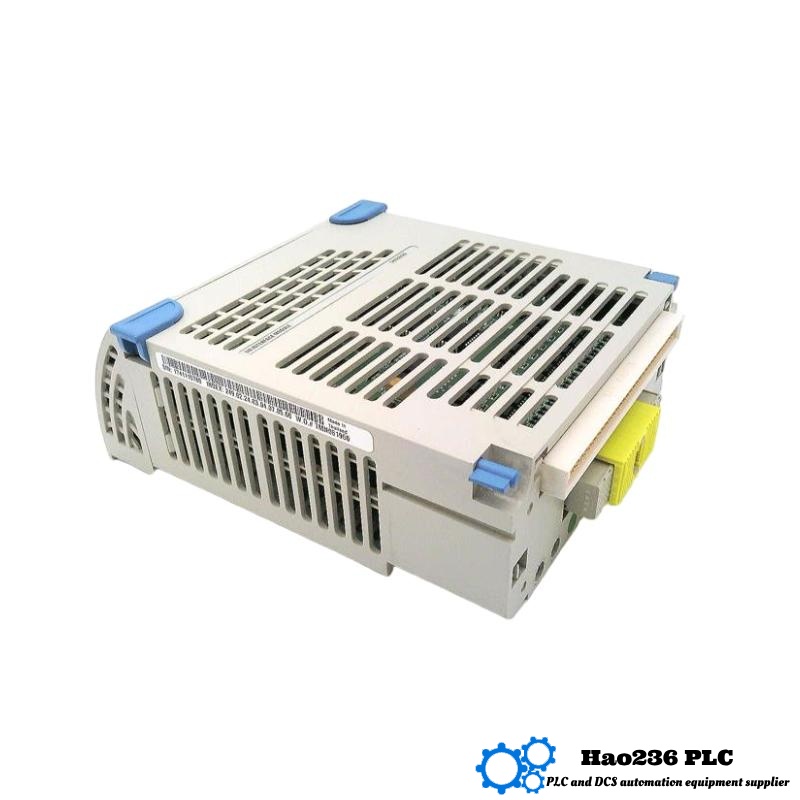

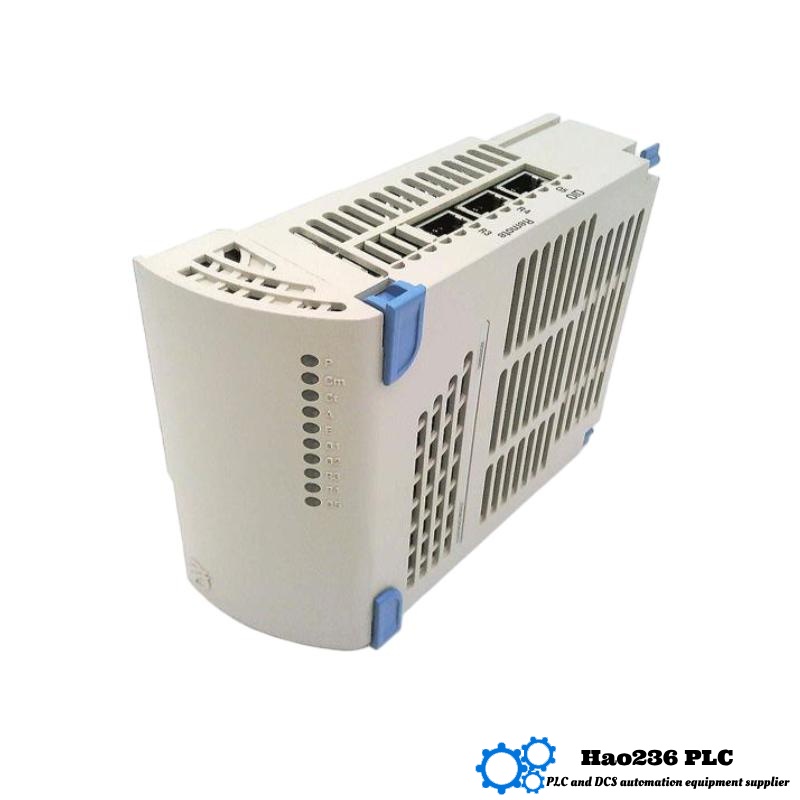

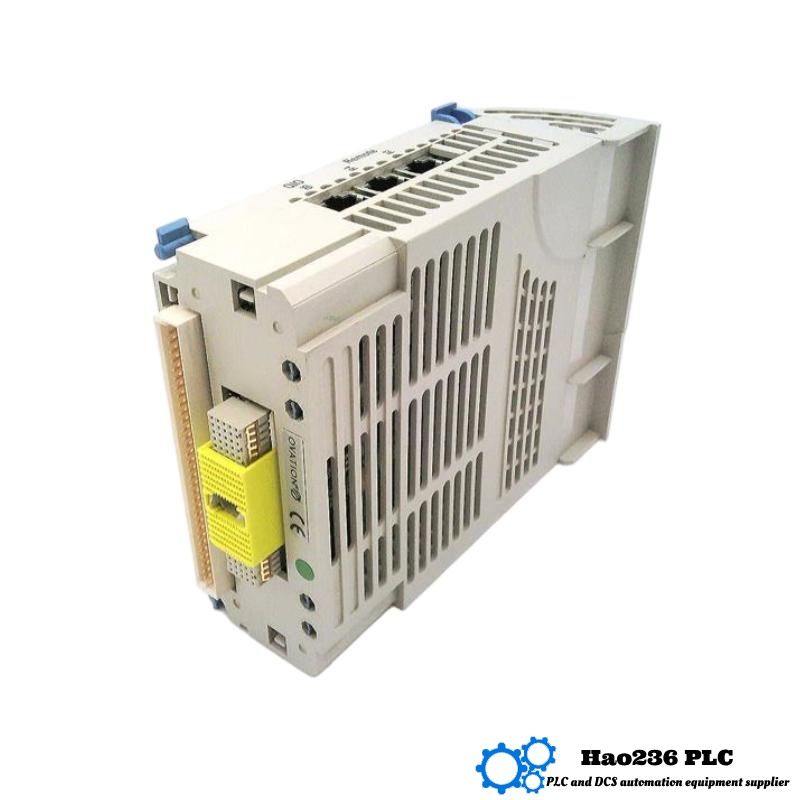

Ovation 5X00226G02 I/O Interface Module
Product Introduction
The Ovation 5X00226G02 is a versatile and high-performance I/O interface module developed for the Emerson Ovation distributed control system (DCS). This module provides seamless and reliable communication between field devices and control processors, enabling efficient data acquisition and output signal transmission critical to process automation.
Designed with robust engineering and built to withstand demanding industrial environments, the 5X00226G02 offers both analog and digital I/O support. Its compact size and durable construction ensure easy installation and long-term operational stability in power generation, oil & gas, and other process industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 5X00226G02 |
| Dimensions (WxHxD) | 180 x 120 x 45 mm |
| Weight | 0.34 kg |
| Module Type | I/O Interface Module |
| Input Voltage | 24 V DC |
| Communication Protocol | Ovation Proprietary Protocol |
| Operating Temperature | -20°C to +60°C |
| Mounting | Rack-mounted |
| Interfaces | Analog/Digital I/O |
| Response Time | < 10 ms |
Product Applications
The Ovation 5X00226G02 module finds extensive applications in:
-
Power plant process control systems
-
Chemical and petrochemical industry automation
-
Real-time monitoring and control in oil & gas operations
-
Data acquisition from field sensors and actuators
-
Water and wastewater treatment plant automation
-
Industrial manufacturing process control requiring precise I/O management
Product Advantages
-
Seamless Integration: Designed specifically for Emerson Ovation DCS ensuring full compatibility.
-
Dual I/O Capability: Supports both analog and digital input/output, enhancing control flexibility.
-
Fast Response: Provides real-time data exchange with response times under 10 milliseconds.
-
Compact and Robust: Measures only 180 x 120 x 45 mm and weighs 0.34 kg, with a durable industrial design.
-
Wide Operating Range: Reliable operation in environments ranging from -20°C to +60°C.
-
Rack-Mountable Design: Simplifies installation and maintenance in existing system architectures.
Brand Affiliation and Series
The Ovation 5X00226G02 is part of Emerson’s Ovation distributed control system family, recognized worldwide for its advanced automation capabilities and reliability. This module contributes to the extensive Ovation I/O portfolio, designed to meet diverse industrial automation needs.
Related Models in the Same Series or Relevant Products
| Model | Dimensions (mm) | Weight (kg) | Module Type | Notes |
|---|---|---|---|---|
| 5X00225G01 | 180 x 120 x 45 | 0.290 | I/O Interface Module | Variant with additional digital inputs |
| 5X00227G01 | 180 x 120 x 45 | 0.300 | I/O Interface Module | Enhanced analog input capabilities |
| 5X00228G01 | 180 x 120 x 45 | 0.305 | I/O Interface Module | Supports wider input voltage range |
| 5X00229G01 | 180 x 120 x 45 | 0.310 | I/O Interface Module | Extended temperature rating |
| 5X00230G01 | 180 x 120 x 45 | 0.315 | I/O Interface Module | Includes additional communication ports |
Popular Ovation I/O Modules
| Model | Dimensions (mm) | Weight (kg) | Module Type | Notes |
|---|---|---|---|---|
| 5X00220G01 | 180 x 120 x 45 | 0.285 | Digital I/O Module | Basic digital interface module |
| 5X00221G01 | 180 x 120 x 45 | 0.290 | Analog I/O Module | Supports high-accuracy analog inputs |
| 5X00222G01 | 180 x 120 x 45 | 0.295 | Hybrid I/O Module | Combined analog and digital I/O |
| 5X00223G01 | 180 x 120 x 45 | 0.300 | Communication Module | Ethernet and serial interfaces |
| 5X00224G01 | 180 x 120 x 45 | 0.305 | Power Supply Module | Provides stable power to I/O modules |
FAQ (Q&A Format)
Q1: What are the dimensions of the Ovation 5X00226G02 module?
A1: The module measures 180 x 120 x 45 mm.
Q2: How much does the module weigh?
A2: It weighs approximately 0.34 kg.
Q3: What types of I/O interfaces does it support?
A3: It supports both analog and digital input/output interfaces.
Q4: Which communication protocol does this module use?
A4: It uses Emerson’s proprietary Ovation communication protocol.
Q5: What is the operating temperature range for this module?
A5: The module operates reliably between -20°C and +60°C.
Q6: Can this module be mounted in a rack?
A6: Yes, it is designed for rack mounting.
Q7: What is the typical response time?
A7: The response time is less than 10 milliseconds.
Q8: Is this module compatible with other Ovation system components?
A8: Yes, it is designed for full compatibility with Emerson Ovation systems.
Q9: What industries commonly use this module?
A9: Power generation, chemical processing, oil & gas, and water treatment sectors.
Q10: How durable is the module in harsh industrial conditions?
A10: It has a robust design suitable for demanding industrial environments.
