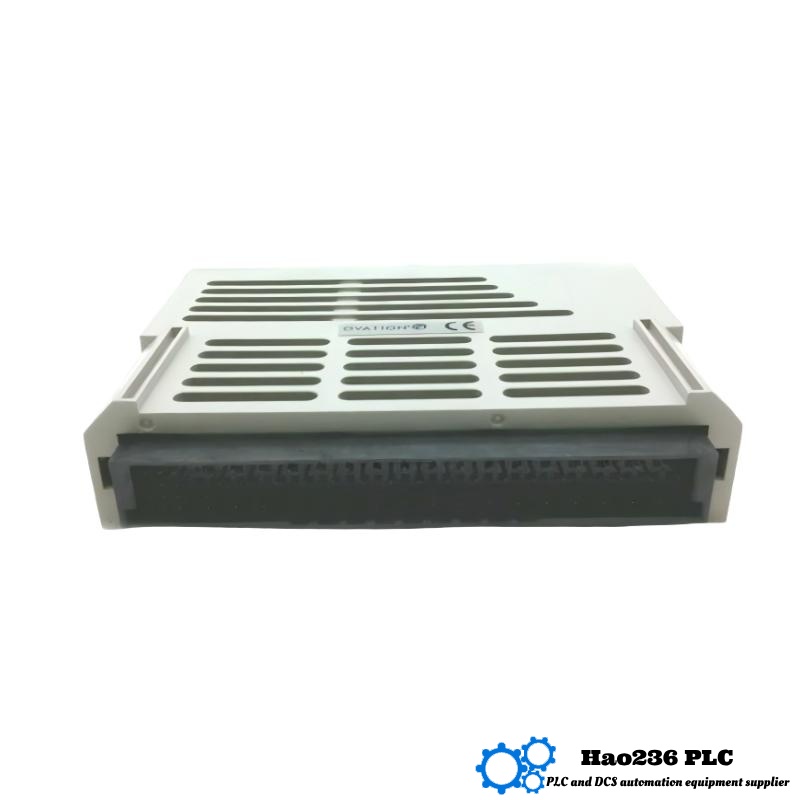

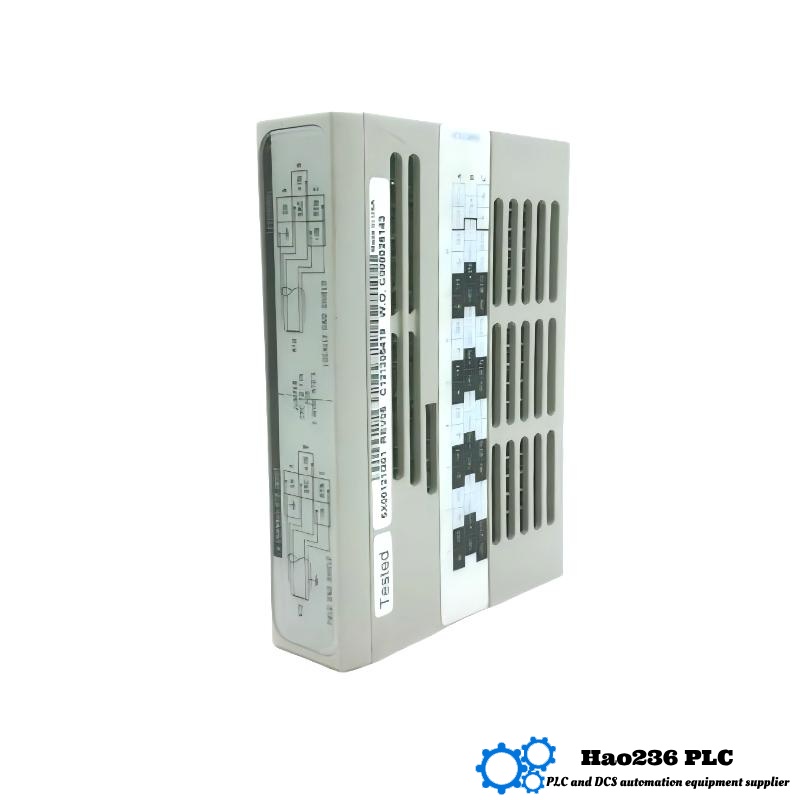

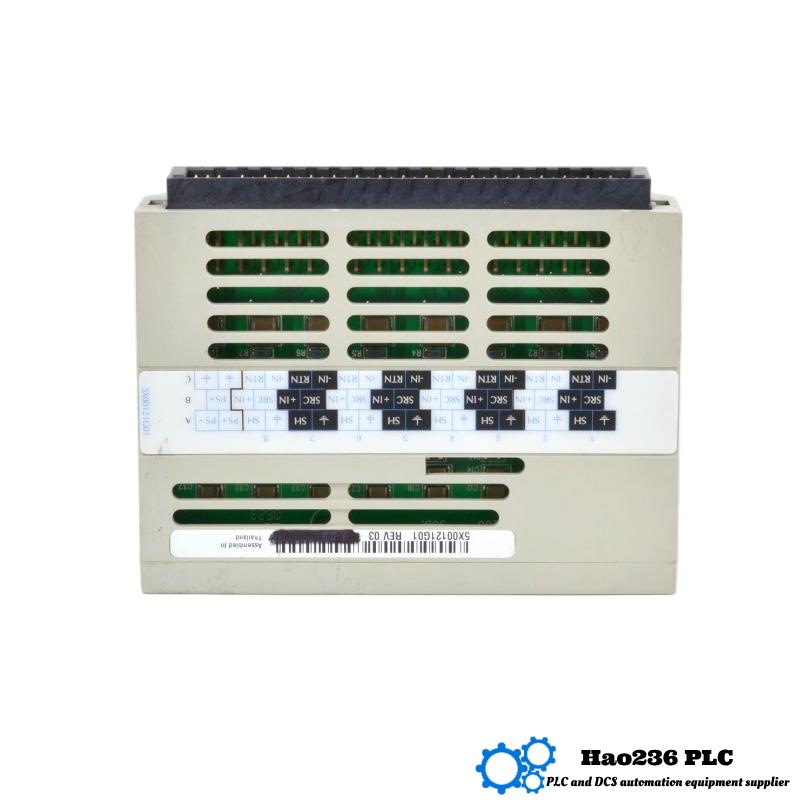

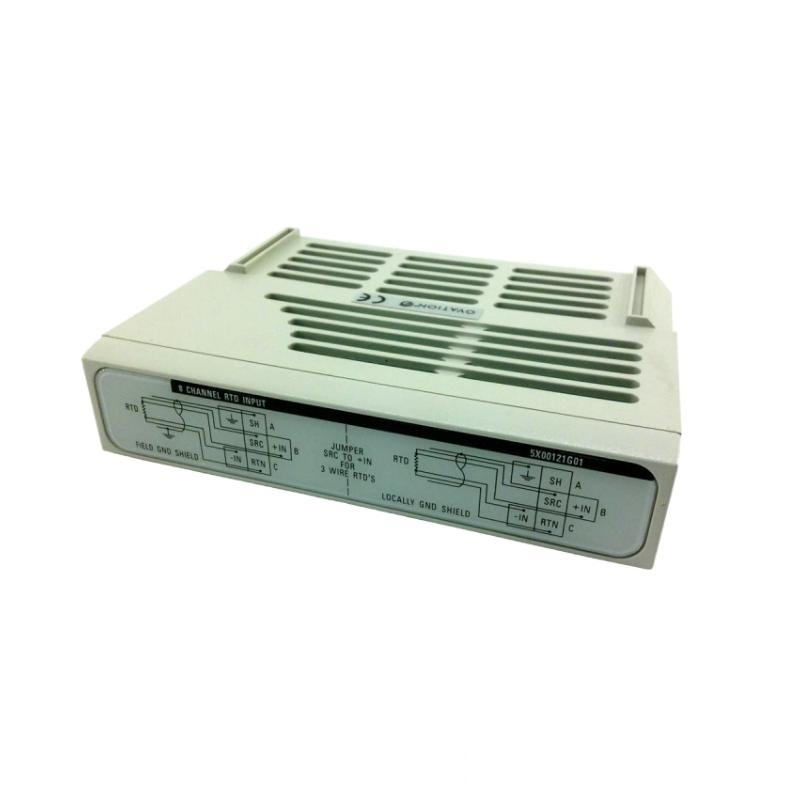

Ovation 5X00121G01 8-Channel RTD Input Module
Product Overview
The Ovation 5X00121G01 is an advanced 8-channel RTD (Resistance Temperature Detector) input module designed for precise temperature measurement in industrial automation systems. Part of the Ovation control system, this module ensures accurate monitoring of temperature sensors (RTDs) in a variety of process control applications.
Specifically engineered for industries such as power generation, chemical processing, and oil & gas, the 5X00121G01 offers outstanding performance and reliability. By converting analog RTD signals into digital values, it provides real-time data for process monitoring, optimizing operational efficiency, and enhancing system performance.
This module is particularly valuable for systems that require high precision and scalability in temperature measurement and monitoring, providing an optimal solution for critical temperature monitoring tasks.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 5X00121G01 |
| Input Type | RTD (Resistance Temperature Detector) |
| Number of Channels | 8 |
| Dimensions | 100 x 160 x 220 mm |
| Weight | 0.32 kg |
| Input Resistance | 1000 ohms |
| Temperature Range | -200°C to 850°C |
| Accuracy | ±0.2°C |
| Power Supply | 24 V DC |
| Mounting | DIN Rail |
| Signal Conditioning | 16-bit resolution |
| Operating Temperature | -40°C to +70°C |
Applications
The Ovation 5X00121G01 8-Channel RTD Input Module is highly versatile and is used across several industries that require real-time, accurate temperature measurements. Some key applications include:
-
Power Generation: Monitoring the temperature of turbines, boilers, and heat exchangers in power plants to ensure proper thermal conditions for optimized performance.
-
Chemical Processing: Used in reactors, distillation columns, and cooling systems to control and maintain the temperature of chemical reactions, enhancing safety and process efficiency.
-
Oil & Gas: Provides critical temperature monitoring for upstream and downstream operations, including pipeline temperature control, wellheads, and refineries, improving safety and performance.
-
HVAC Systems: Temperature measurement and regulation in heating, ventilation, and air conditioning systems for residential, commercial, and industrial buildings.
-
Food & Beverage Production: Ensures the correct temperature for storage, fermentation, and cooking processes to maintain product quality and consistency.
Advantages
The Ovation 5X00121G01 8-Channel RTD Input Module offers several advantages that make it a reliable and cost-effective solution for temperature monitoring:
-
High Precision: With an accuracy of ±0.2°C, the module delivers high-quality temperature data, ensuring accurate control and monitoring for critical processes.
-
Wide Temperature Range: The module supports a broad temperature range of -200°C to 850°C, making it suitable for a wide variety of applications across different industries.
-
Flexible and Scalable: It offers 8 channels, providing flexibility to monitor multiple RTD sensors simultaneously, which is ideal for large-scale systems with complex temperature measurement requirements.
-
Reliable Operation: Designed for industrial environments, the module features robust construction and operates within a temperature range of -40°C to +70°C, ensuring reliable performance even in challenging conditions.
-
Easy Integration: The Ovation 5X00121G01 module integrates seamlessly with Ovation control systems, enabling fast setup and efficient data collection across various devices.
-
Compact and Efficient Design: The module’s compact size (100 x 160 x 220 mm) ensures easy installation in limited spaces, while its lightweight design (0.32 kg) allows for simple handling and mounting.
Brand Information
Ovation, a product family of Emerson, is widely known for its high-performance process control systems used in industrial automation. Emerson’s Ovation products offer exceptional accuracy, reliability, and scalability, making them the preferred choice in industries like power generation, chemical processing, oil and gas, and many others. The 5X00121G01 RTD Input Module is a key part of Emerson’s trusted portfolio, providing accurate temperature measurements to enhance process efficiency and system performance.
Related Models
Here are five related models from the Ovation series or similar product lines:
| Model | Description | Channels | Dimensions | Weight |
|---|---|---|---|---|
| 5X00121G02 | 16-channel RTD input module | 16 | 100 x 160 x 220 mm | 0.35 kg |
| 5X00122G01 | 4-channel thermocouple input module | 4 | 100 x 160 x 220 mm | 0.30 kg |
| 5X00123G01 | 12-channel RTD input module | 12 | 100 x 160 x 220 mm | 0.33 kg |
| 5X00119G01 | 8-channel thermocouple input module | 8 | 100 x 160 x 220 mm | 0.32 kg |
| 5X00124G01 | Analog input module with RTD and thermocouple compatibility | 8 | 100 x 160 x 220 mm | 0.29 kg |
Popular Models from Emerson (Ovation Series)
Below are five popular models from Emerson‘s Ovation or similar series:
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| 5X00481G03 | Universal I/O Interface Module | 170 × 105 × 45 | 0.50 | Mixed I/O support, hot-swappable, LED status indicators |
| 5X00481G04 | Enhanced I/O Interface Module | 170 × 105 × 45 | 0.52 | Advanced diagnostics, fault detection, improved performance |
| 5X00500G01 | Redundant Controller Interface Module | 175 × 110 × 50 | 0.55 | Dual-redundancy support, system failover handling |
| 5X00501G02 | High-Speed Digital Input Module | 165 × 100 × 45 | 0.48 | 32 DI channels, noise filtering, surge protection |
| 5X00482G02 | Analog Output Module | 160 × 100 × 42 | 0.47 | High-accuracy DAC, redundant channel support |
FAQs
Q1: What is the primary function of the 5X00121G01 RTD Input Module?
A1: The module is designed to measure temperature through RTD sensors and convert the signals to digital data for integration into the Ovation control system.
Q2: How many channels does the 5X00121G01 support?
A2: It supports 8 RTD channels for simultaneous temperature monitoring.
Q3: What temperature range is supported by the 5X00121G01 module?
A3: The module can measure temperatures within a range of -200°C to 850°C.
Q4: What is the accuracy of the 5X00121G01 module?
A4: The module provides an accuracy of ±0.2°C, ensuring precise temperature measurements.
Q5: How is the 5X00121G01 module powered?
A5: It is powered by a 24 V DC supply.
Q6: How is the module mounted?
A6: The 5X00121G01 module is designed for DIN rail mounting.
Q7: What is the operating temperature range for the 5X00121G01?
A7: The module operates in environments with temperatures ranging from -40°C to +70°C.
Q8: Can the 5X00121G01 module be used for applications beyond power generation?
A8: Yes, it is also ideal for applications in chemical processing, oil & gas, HVAC, and food & beverage industries.
Q9: What are the dimensions of the module?
A9: The module measures 100 x 160 x 220 mm and weighs 0.32 kg.
Q10: Is the module compatible with other Ovation products?
A10: Yes, the 5X00121G01 integrates seamlessly with other Ovation control system components.
