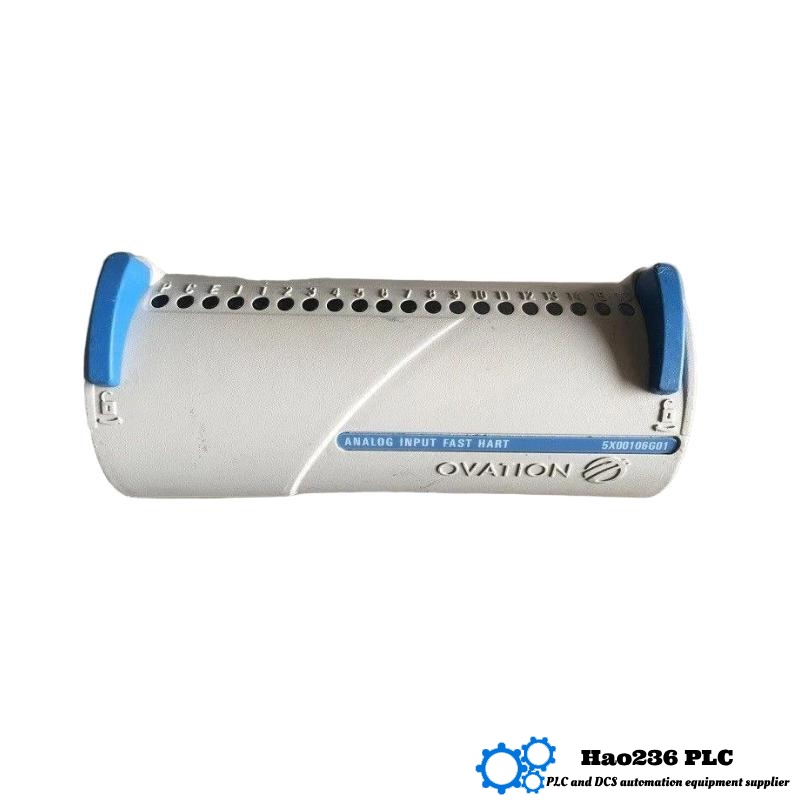

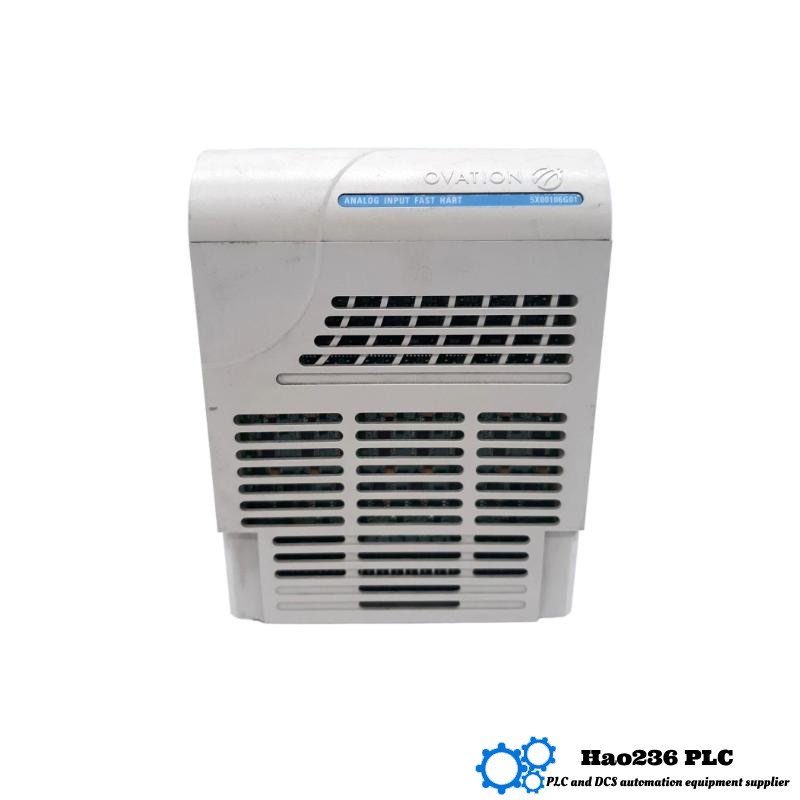

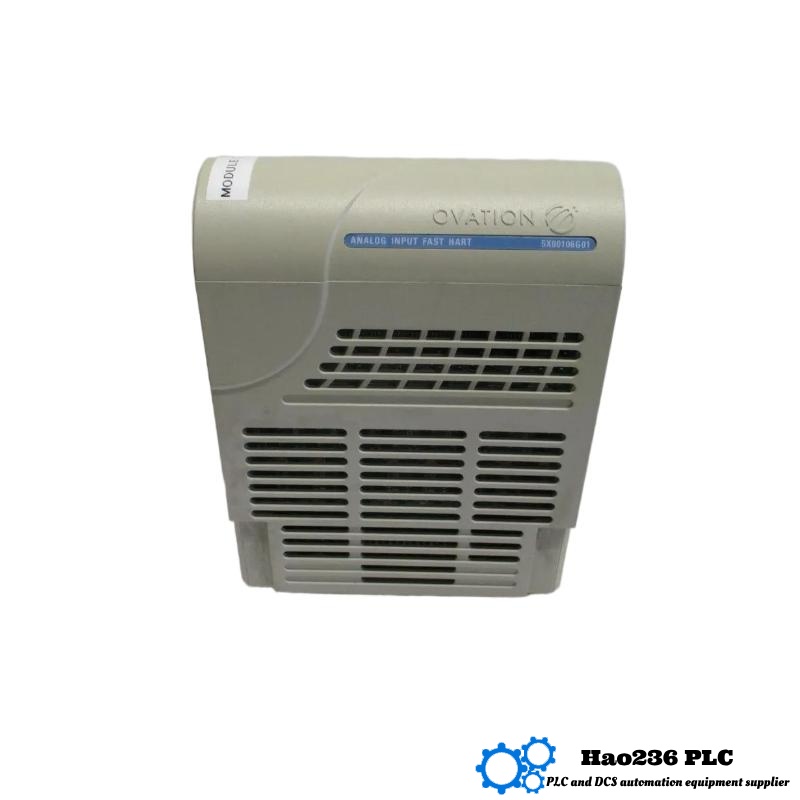

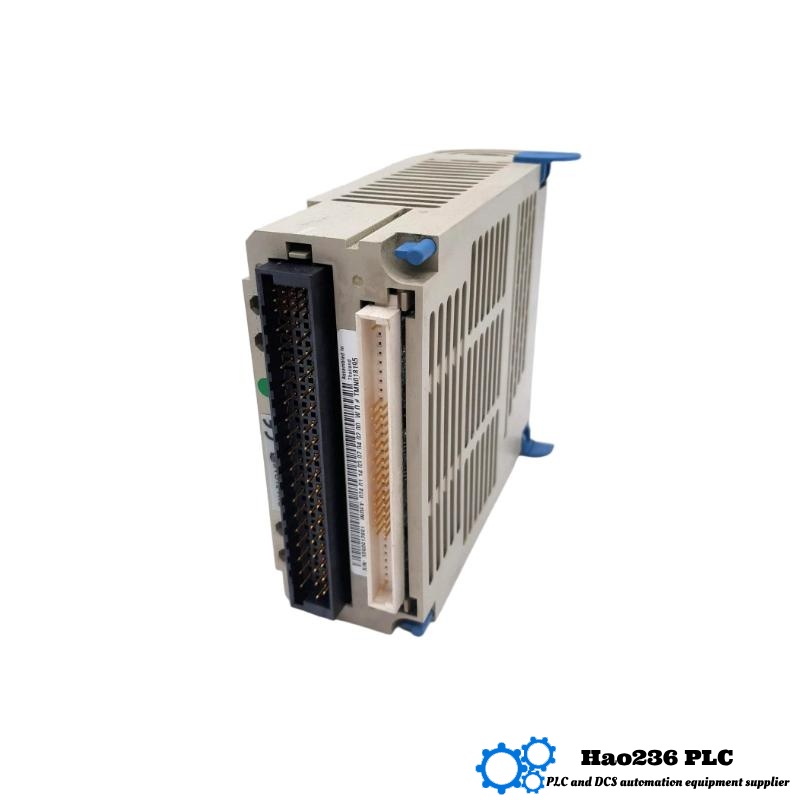

Ovation 5X00106G01 Analog Input HART High-Speed Module
Product Introduction
The Ovation 5X00106G01 is a high-performance analog input module with fast scan and HART protocol capabilities, designed for integration in Emerson’s Ovation distributed control system. Specifically tailored for demanding industrial applications, this module offers reliable acquisition of analog signals with embedded HART digital communication support for intelligent device management. The module ensures precise signal conversion, advanced diagnostics, and seamless process control integration.
With its rugged design and quick sampling rate, the 5X00106G01 is an ideal solution for processes requiring both accuracy and speed. Its compliance with HART standards makes it suitable for advanced applications involving smart field instrumentation and remote configuration.
Product Parameters
| Parameter | Value |
|---|---|
| Product Name | Analog Input HART High-Speed Module |
| Model Number | 5X00106G01 |
| Brand | Ovation (Emerson) |
| Series | Ovation Control System |
| Input Channels | 8 Analog Inputs |
| Signal Type | 4–20 mA with HART Communication |
| Input Resolution | 16-bit |
| Scan Rate | High-Speed (typically ≤100ms) |
| HART Compatibility | Yes (Full HART pass-through) |
| Isolation | Channel-to-channel and system |
| Diagnostics | Advanced with fault detection |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Power Supply | 24 VDC |
| Dimensions | 263 x 183 x 55 mm |
| Weight | 0.85 kg |
| Mounting Type | DIN rail or system backplane |
| Certifications | CE, CSA, UL |
Product Applications
The 5X00106G01 is widely used in the following industrial environments:
-
Power generation plants (thermal, nuclear, renewable)
-
Oil & gas refineries and offshore platforms
-
Water and wastewater treatment facilities
-
Chemical and petrochemical processing units
-
Pulp and paper manufacturing systems
-
Steel and cement production environments
Its fast response and support for HART communication make it especially suitable for critical control loops and asset management of HART-enabled field devices.
Product Advantages
-
High-Speed Input Capability: Enables fast acquisition of analog signals, enhancing control response time in dynamic processes.
-
Integrated HART Support: Facilitates real-time communication with smart field instruments, supporting diagnostics and remote configuration.
-
Advanced Diagnostics: Built-in diagnostics provide real-time status monitoring and fault identification, increasing plant safety and reliability.
-
System Integration: Designed specifically for seamless integration within the Ovation DCS environment, reducing commissioning time and system complexity.
-
Compact and Robust Design: Offers compact dimensions with reliable operation in industrial conditions, suitable for high-density installations.
Brand Information
-
Brand: Ovation
-
Emerson’s Ovation platform is a globally recognized DCS solution used primarily in power and water industries. It emphasizes precision, cybersecurity, system flexibility, and long lifecycle support.
Related Models from the Same Series
| Model | Description | Input Type | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 5X00106G02 | Analog Input HART module, standard speed | 4–20 mA + HART | 8 | 263 x 183 x 55 | 0.83 |
| 5X00121G01 | Analog Output module | 4–20 mA | 8 | 263 x 183 x 55 | 0.82 |
| 5X00105G01 | Standard analog input module | 4–20 mA | 8 | 263 x 183 x 55 | 0.80 |
| 5X00106G03 | High-density analog input module | 4–20 mA + HART | 16 | 263 x 183 x 55 | 0.88 |
| 5X00489G01 | HART Multiplexer Module | Digital/HART | 32 | 263 x 183 x 55 | 0.87 |
Popular Emerson/Ovation Models
| Model | Description | Application Area | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 5X00790G01 | Ovation controller processor module | Core control logic | 265 x 185 x 60 | 1.10 |
| 5X00790G02 | Advanced processor with expanded memory | Power plants | 265 x 185 x 60 | 1.12 |
| 1C31125G02 | Power supply module | DCS power management | 120 x 200 x 80 | 0.95 |
| 1C31194G01 | Digital Output 24VDC module | Actuator and solenoid control | 140 x 180 x 65 | 0.76 |
| 5X00368G01 | Ethernet communication interface module | Network and remote comms | 160 x 130 x 50 | 0.85 |
FAQ – Frequently Asked Questions
Q1: What does the “HART High-Speed” feature mean?
A1: It indicates that the module supports both rapid analog signal acquisition and full HART digital communication for smart instrument interfacing.
Q2: Can this module be used with non-HART analog devices?
A2: Yes, it supports standard 4–20 mA analog inputs as well, making it compatible with traditional transmitters.
Q3: What kind of isolation does it provide?
A3: It provides both channel-to-channel and system isolation for signal integrity and safety.
Q4: Is it compatible with older Ovation systems?
A4: Yes, it maintains backward compatibility with legacy Ovation platforms.
Q5: How many channels are supported?
A5: The 5X00106G01 supports 8 analog input channels.
Q6: Can it be hot-swapped?
A6: Yes, the module supports hot-swapping within the Ovation backplane without system shutdown.
Q7: What are the main advantages over standard analog input modules?
A7: Faster scan rate, HART support, and enhanced diagnostics are the primary benefits.
Q8: How is it mounted?
A8: It is mounted via DIN rail or directly into the Ovation system backplane.
Q9: What is the warranty period?
A9: Emerson typically offers a 1-year standard warranty, extendable via service agreements.
Q10: Is it suitable for use in hazardous areas?
A10: It is certified for industrial environments, and further compatibility with hazardous areas depends on installation methods and additional components.
