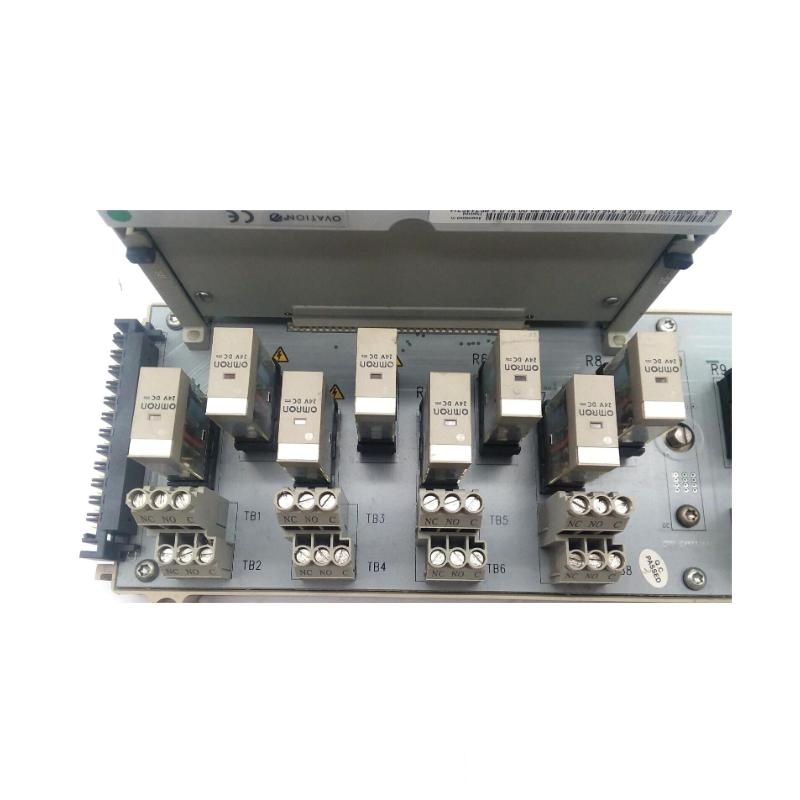

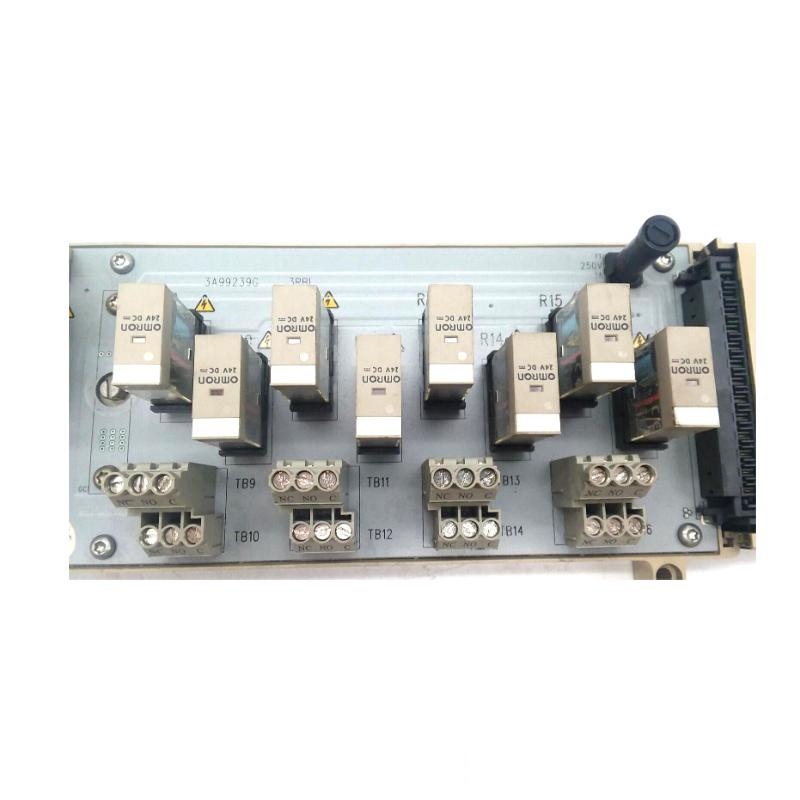

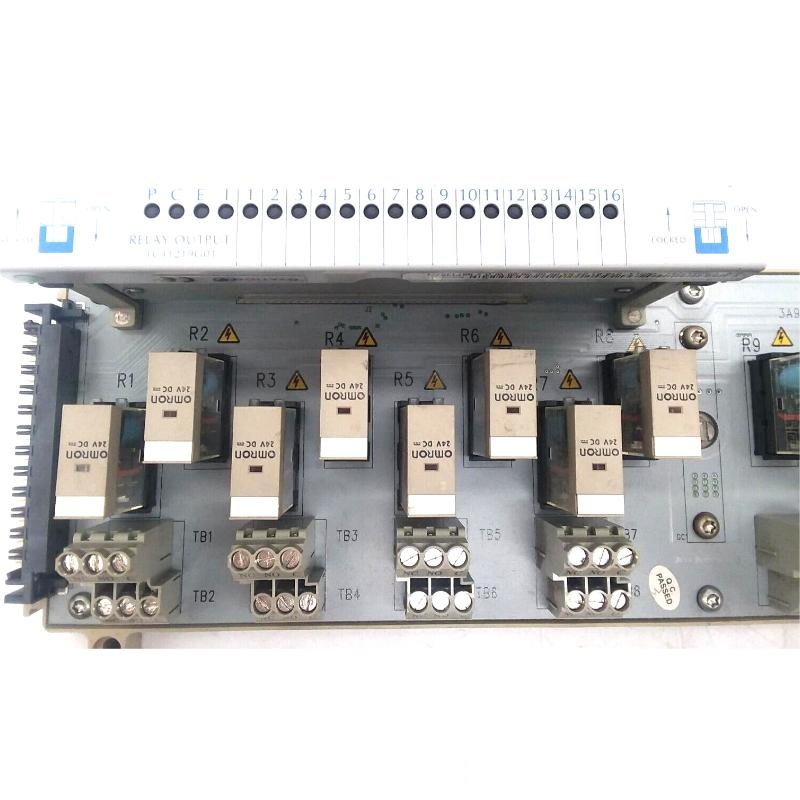

Ovation 1C31223G01 Relay Output Basic Module
Product Introduction
The Ovation 1C31223G01 is a high-performance relay output module designed for use within Ovation systems, a leading platform in process control and automation. This module serves as a critical component for actuating relays based on digital output signals from the system, providing reliable control and operational feedback in industrial environments.
Manufactured by Emerson, the Ovation platform is widely recognized for its scalability, flexibility, and robust performance in industries such as power generation, oil and gas, and chemical processing. The 1C31223G01 relay output module is designed to handle various relay control tasks, from simple on/off control to more complex logic-driven outputs, ensuring that your automation processes operate smoothly and efficiently.
The module’s compact design, ease of integration, and strong performance characteristics make it an ideal solution for controlling devices such as motors, pumps, valves, and alarms. Whether used in monitoring and control systems, safety systems, or other process management tasks, this module guarantees reliable operation even in demanding industrial settings.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 1C31223G01 |
| Brand | Ovation (Emerson) |
| Module Type | Relay Output Basic Module |
| Dimensions (L x W x H) | 165 mm x 114 mm x 63.5 mm |
| Weight | 1.5 kg |
| Input Type | Digital |
| Output Type | Relay (Form C) |
| Output Rating | 250 V AC / 30 V DC, 5 A Max |
| Power Supply | 24 V DC |
| Mounting | DIN Rail |
| Operating Temperature | -20°C to +60°C |
| Certifications | UL, CE |
| Compatibility | Ovation Control Systems |
Product Applications
The Ovation 1C31223G01 Relay Output Module is widely used in the following applications:
-
Process Control Systems: It provides precise relay actuation for controlling devices such as pumps, motors, and valves within automated systems.
-
Alarm Systems: The module can trigger alarms or warning signals based on set conditions or inputs.
-
Safety Instrumented Systems: It can be used in safety-critical applications where reliable relay control is required for system shutdowns or failsafe operations.
-
Power Generation Plants: Essential for controlling turbine governor valves, circuit breakers, and other critical equipment.
-
Industrial Automation: Ideal for integrating and controlling various actuators and relays in industrial automation systems.
The module’s versatility and high reliability make it suitable for a variety of industries, including oil and gas, power generation, chemicals, and manufacturing.
Product Advantages
-
High Reliability: The Ovation 1C31223G01 module is designed for continuous, reliable operation in harsh industrial environments, ensuring longevity and uptime for your systems.
-
Versatile Control Options: With Form C relay outputs, it supports a wide range of control applications, from simple on/off switching to more complex logic-driven control.
-
Wide Compatibility: Seamlessly integrates with Ovation control systems and offers smooth communication with other modules and components.
-
Compact Design: Its compact size allows for installation in space-constrained control panels while maintaining robust performance.
-
Industry Certifications: UL and CE certified, ensuring compliance with global safety and quality standards.
-
Temperature Resilience: Operates in a wide temperature range of -20°C to +60°C, making it suitable for diverse industrial environments.
-
Easy Installation: DIN rail mounting provides easy integration into existing systems, reducing installation time and labor.
Brand Introduction
Ovation is a trusted automation brand under Emerson, known for reliable control systems used in power, water, and industrial process applications worldwide.
Recommended Related Models (Same Series or Similar)
| Model Number | Brand | Module Type | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|---|
| 1C31223G02 | Ovation | Relay Output Advanced | 165 x 115 x 63.5 | 1.6 | Enhanced output capacity, higher power rating |
| 1C31223G03 | Ovation | Relay Output Basic | 165 x 114 x 63.5 | 1.5 | Optimized for digital control systems |
| 1C31223G04 | Ovation | Relay Output Basic | 165 x 115 x 63.5 | 1.55 | Supports high-frequency relay switching |
| 1C31223G05 | Ovation | Relay Output Intermediate | 170 x 120 x 65 | 1.7 | Includes extended relay capabilities |
| 1C31223G06 | Ovation | Relay Output High Power | 165 x 114 x 63.5 | 1.6 | Higher output voltage and current handling |
Recommended Popular Ovation Models
| Model Number | Brand | Module Type | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|---|
| 1C31223G07 | Ovation | Digital Input Module | 160 x 110 x 60 | 1.4 | High-speed digital signal input |
| 1C31223G08 | Ovation | Analog Input Module | 165 x 115 x 62 | 1.45 | Supports 4-20 mA signals |
| 1C31223G09 | Ovation | Output Relay Module | 165 x 114 x 63.5 | 1.5 | Advanced relay control options |
| 1C31223G10 | Ovation | Controller Interface Module | 180 x 120 x 65 | 1.6 | Interface for system integration |
| 1C31223G11 | Ovation | Power Supply Module | 170 x 110 x 65 | 1.7 | Provides stable power to control systems |
FAQ (Q&A)
Q1: What is the weight of the Ovation 1C31223G01 relay output module?
A1: The weight of the module is 1.5 kilograms.
Q2: What are the dimensions of the module?
A2: The dimensions of the module are 165 mm x 114 mm x 63.5 mm.
Q3: What is the input type for this module?
A3: The input type is digital.
Q4: What is the output rating of the module?
A4: The output rating is 250 V AC / 30 V DC, with a maximum of 5 A.
Q5: How is the module powered?
A5: The module is powered by 24 V DC.
Q6: What is the mounting style for this module?
A6: The module is mounted using a DIN rail.
Q7: What temperature range can the module operate in?
A7: The module can operate between -20°C and +60°C.
Q8: Is the module UL and CE certified?
A8: Yes, the module is UL and CE certified.
Q9: What is the primary function of this module?
A9: The primary function is to provide relay outputs for controlling various industrial devices.
Q10: Is this module compatible with other Ovation system components?
A10: Yes, it is fully compatible with Ovation control systems and integrates smoothly with other components.
