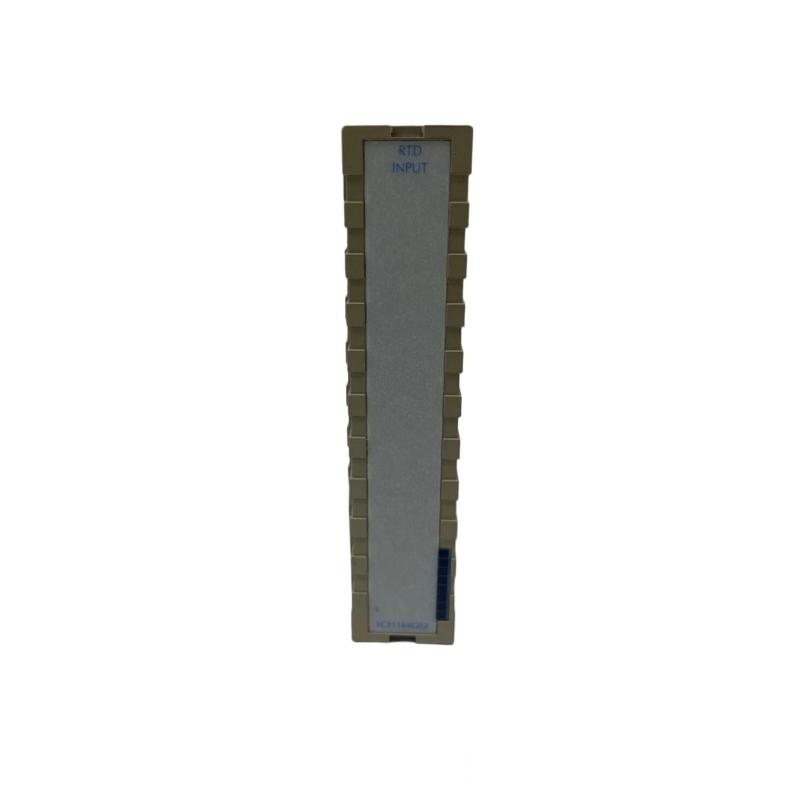

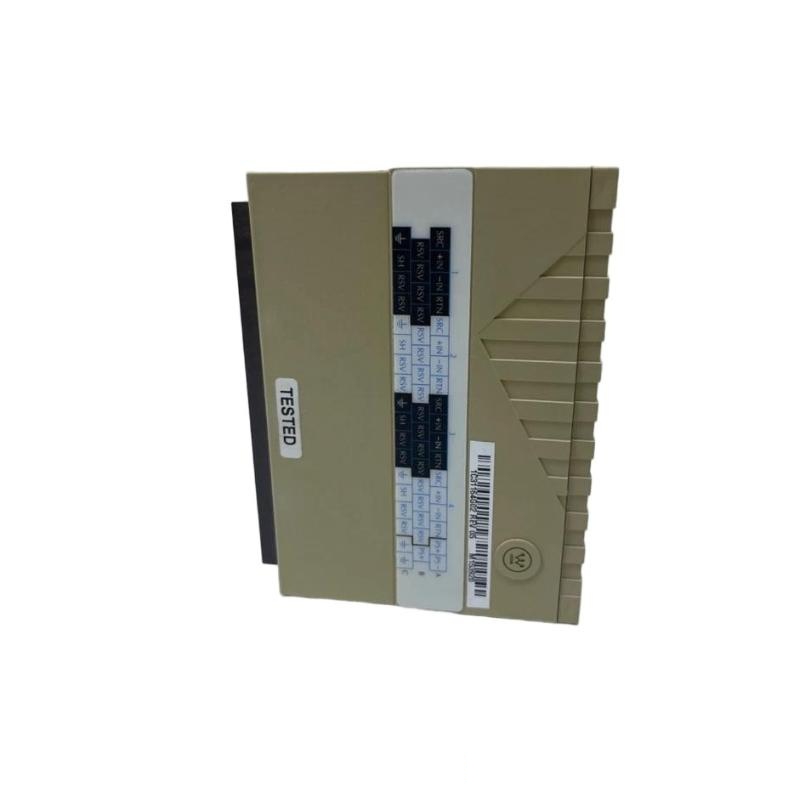

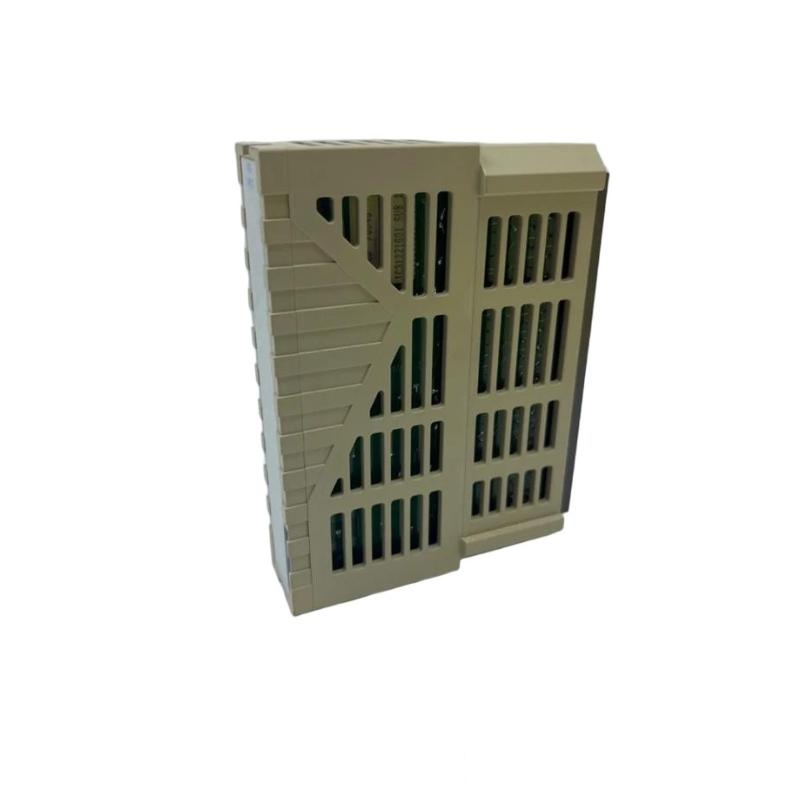

Ovation 1C31164G02 RTD Input Module
Product Introduction
The Ovation 1C31164G02 is an RTD (Resistance Temperature Detector) input module designed for use with Ovation systems, a specialized solution from Emerson used in power generation and industrial automation. The module provides accurate and reliable temperature measurement using RTDs, ideal for temperature sensing in various industrial applications.
The 1C31164G02 is engineered to provide precise temperature monitoring for critical processes, such as boiler systems, turbines, and cooling systems. It integrates seamlessly into Ovation’s distributed control system (DCS), enabling real-time data processing and optimal performance monitoring. The RTD input module is designed for flexibility, ease of installation, and long-term durability, making it a critical component for temperature monitoring in process control systems.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 1C31164G02 |
| Dimensions | 140 x 150 x 35 mm |
| Weight | 0.5 kg |
| Input Type | RTD (Resistance Temperature Detector) |
| Input Channels | 4 Channels |
| Temperature Range | -200°C to +850°C |
| Accuracy | ±0.1% of reading |
| Power Supply | 24 V DC |
| Signal Output | 4-20 mA |
| Protection Class | IP20 |
Applications
The Ovation 1C31164G02 RTD input module is designed to support a range of temperature measurement applications in industries where precise control and monitoring of temperature are essential. Typical applications include:
-
Power Generation: Used in turbine and boiler monitoring to ensure optimal operating conditions and prevent overheating or failure.
-
Chemical and Petrochemical Plants: Measures reactor temperatures, distillation columns, and cooling systems, helping to maintain the correct process conditions.
-
Oil and Gas Industry: Wellhead temperature monitoring, pipeline temperature control, and pressure vessels benefit from the precision of the 1C31164G02 module.
-
HVAC Systems: Monitors temperature conditions in heating, ventilation, and air conditioning systems to optimize energy efficiency.
-
Food and Beverage: Ensures temperature-sensitive processes, such as pasteurization and fermentation, stay within acceptable parameters for quality and safety.
Advantages
-
High Precision: The 1C31164G02 offers ±0.1% accuracy, ensuring precise temperature measurements critical for sensitive applications in industrial control.
-
Wide Temperature Range: The module supports a wide temperature range of -200°C to +850°C, making it suitable for a variety of extreme temperature environments.
-
Multiple Input Channels: With 4 input channels, the module can handle multiple RTD inputs simultaneously, ideal for monitoring various points in a system or process.
-
Flexible Integration: Seamlessly integrates into Ovation DCS, providing real-time data acquisition for automated control systems and optimization of process performance.
-
Compact Design: With compact dimensions of 140 x 150 x 35 mm, the module is easy to install and fits within a variety of control systems with limited space.
-
Durability: Built to last in harsh industrial environments, with an IP20 rating that ensures protection against dust and accidental contact.
-
Cost-Effective: Provides an affordable solution for temperature measurement needs, offering both reliable performance and value for money.
Brand
-
Brand: Ovation by Emerson
Recommended Models in the Same Series
| Model | Description | Weight | Dimensions | Key Feature |
|---|---|---|---|---|
| 1C31164G01 | 8-channel RTD input module with extended temperature range | 0.6 kg | 140 x 150 x 35 mm | Ideal for larger systems needing more channels |
| 1C31165G02 | 4-channel thermocouple input module | 0.55 kg | 140 x 150 x 35 mm | Provides thermocouple compatibility for broad temperature applications |
| 1C31163G02 | 4-channel analog input module | 0.5 kg | 140 x 150 x 35 mm | Versatile input module for other sensor types |
| 1C31166G02 | 12-channel digital input module | 0.7 kg | 140 x 150 x 35 mm | High-density I/O for large control systems |
| 1C31164G03 | 2-channel RTD input module with improved precision | 0.45 kg | 140 x 150 x 35 mm | Enhanced accuracy for critical temperature measurements |
Popular Ovation Models
| Model | Description | Weight | Dimensions | Application |
|---|---|---|---|---|
| 1C31150G01 | Ovation CPU module with Ethernet communication | 1.5 kg | 300 x 200 x 60 mm | Central control module for Ovation systems |
| 1C31160G02 | I/O module with 24-channel digital I/O | 0.9 kg | 150 x 150 x 40 mm | Ideal for larger systems with high I/O requirements |
| 1C31161G02 | PID control module for advanced control algorithms | 0.8 kg | 160 x 160 x 50 mm | Perfect for complex control loops in power plants |
| 1C31170G02 | Redundant power supply for Ovation DCS | 1.2 kg | 250 x 200 x 80 mm | Ensures high availability and fault tolerance |
| 1C31175G01 | Communication module for Modbus and OPC integration | 0.6 kg | 140 x 120 x 40 mm | Connects Ovation system to external networks |
Frequently Asked Questions (FAQ)
-
Q: What power supply is required for the Ovation 1C31164G02?
A: The Ovation 1C31164G02 requires a 24 V DC power supply. -
Q: How many input channels are supported by the Ovation 1C31164G02?
A: The module supports 4 RTD input channels. -
Q: What is the temperature range for the Ovation 1C31164G02?
A: The 1C31164G02 supports a temperature range of -200°C to +850°C. -
Q: What is the accuracy of the Ovation 1C31164G02?
A: The accuracy of the 1C31164G02 is ±0.1% of the reading. -
Q: What type of output does the Ovation 1C31164G02 provide?
A: The module provides 4-20 mA analog output. -
Q: What is the size of the Ovation 1C31164G02 module?
A: The 1C31164G02 has dimensions of 140 x 150 x 35 mm. -
Q: What is the weight of the Ovation 1C31164G02 module?
A: The 1C31164G02 weighs 0.5 kg. -
Q: Can the Ovation 1C31164G02 be used in hazardous environments?
A: The Ovation 1C31164G02 is rated IP20, suitable for indoor industrial use. It should be housed in a protective enclosure for hazardous environments. -
Q: How is the Ovation 1C31164G02 module mounted?
A: The 1C31164G02 is designed for DIN rail mounting, making it easy to integrate into control panels. -
Q: What industries can use the Ovation 1C31164G02 module?
A: The module is suitable for industries like power generation, chemical processing, oil and gas, and manufacturing.
