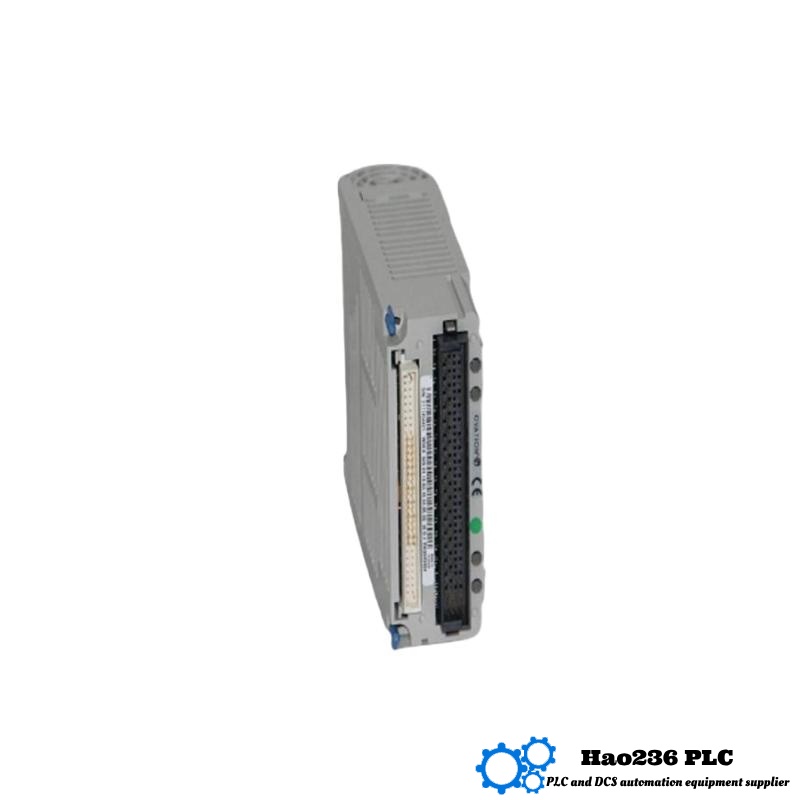

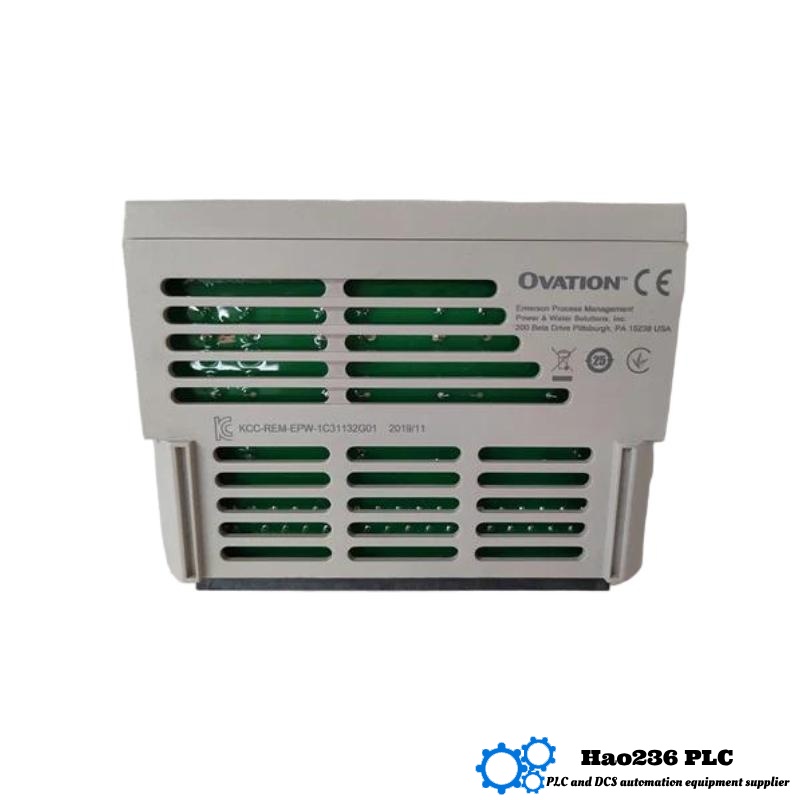

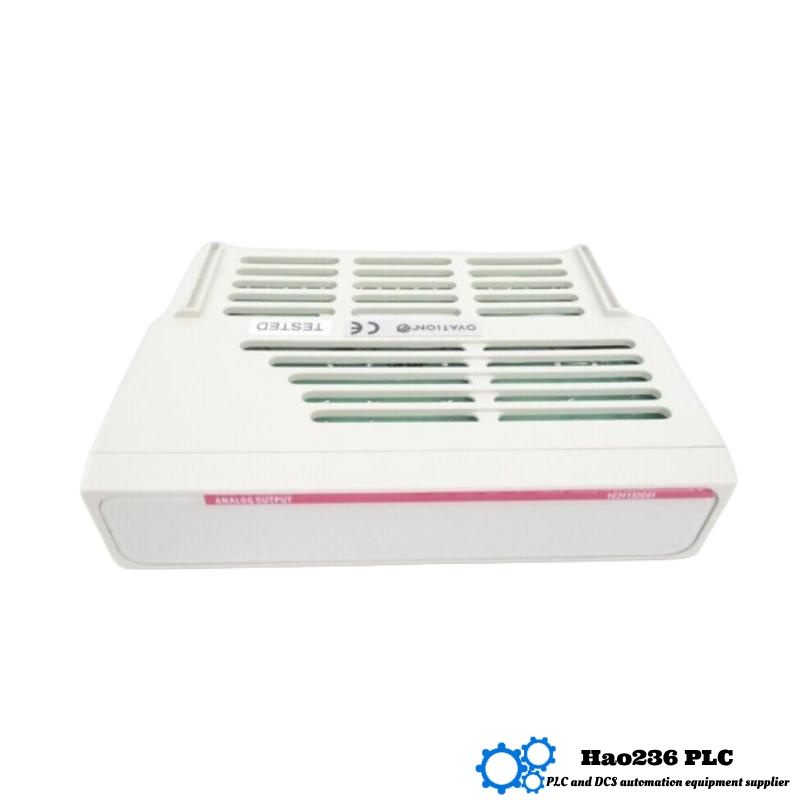

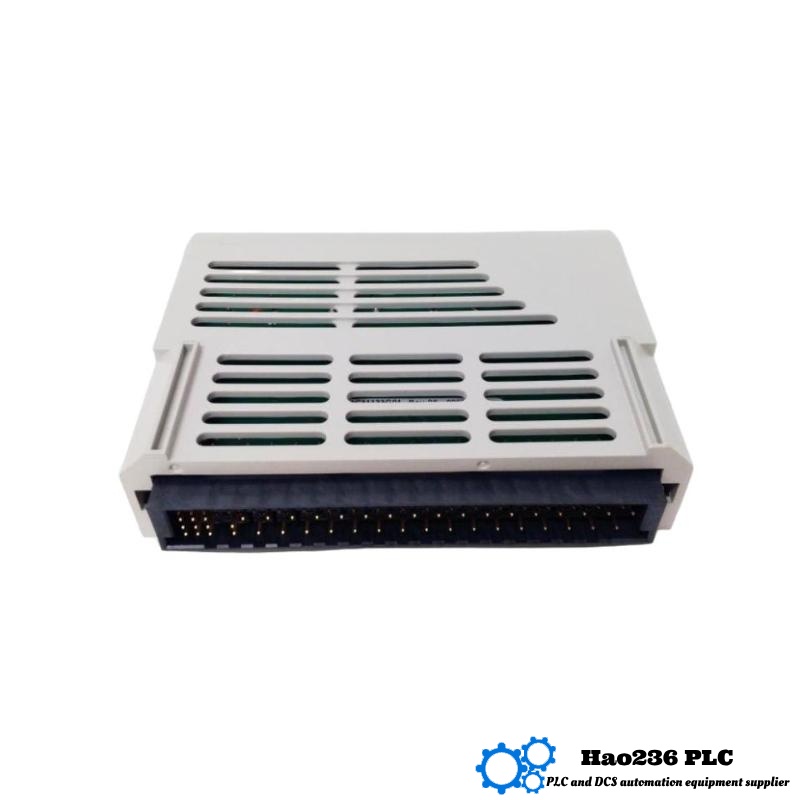

Ovation 1C31132G01 – Analog Output Module
Product Introduction
The Ovation 1C31132G01 is a high-performance analog output module developed for Emerson’s Ovation Distributed Control System (DCS). This module is designed to convert digital control signals into analog current or voltage outputs, which are used to operate field equipment such as valves, actuators, and control drives. The module is renowned for its precise output, excellent isolation, and robust integration capabilities within large-scale industrial control environments.
This device is especially suited for mission-critical operations where the accurate delivery of analog signals is essential for system stability and control responsiveness. Whether in power plants, water facilities, or oil and gas platforms, the 1C31132G01 plays a vital role in maintaining system integrity and process efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31132G01 |
| Output Channels | 8 Analog outputs |
| Output Signal Type | 4–20 mA or 0–10 V (configurable per channel) |
| Resolution | 16-bit Digital-to-Analog Conversion (DAC) |
| Accuracy | ±0.1% of full scale |
| Response Time | <10 milliseconds |
| Output Load | Up to 600 ohms for current output |
| Isolation | Channel-to-channel and channel-to-system |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted in Ovation system |
| Dimensions (W×H×D) | 25.4 x 273 x 267 mm |
| Shipping weight | 2.0 kg |
Product Applications
The Ovation 1C31132G01 module is widely utilized across various industries that require precision analog signal output. It enables accurate control of industrial processes and supports mission-critical tasks where consistency and precision are paramount.
-
Power Generation: Controls turbine actuators, boiler systems, and cooling valves with high accuracy.
-
Water & Wastewater Treatment: Operates chemical feed systems, pH balancing pumps, and automated valves.
-
Oil & Gas: Used in the control of compressors, pressure regulation systems, and remote well sites.
-
Pharmaceuticals & Chemicals: Supports precise control in batch processes and reactor systems.
-
Pulp & Paper: Drives motors and valves essential for continuous production processes.
Product Advantages
-
Exceptional Signal Accuracy: Ensures smooth and exact analog signal delivery, minimizing process variability.
-
Versatile Output Options: Supports both voltage and current signals, adaptable to various instrumentation.
-
High-Level Isolation: Reduces electrical interference and ensures system stability and protection.
-
Easy Integration: Fully compatible with existing Ovation systems for seamless deployment.
-
Durability in Harsh Conditions: Engineered to perform reliably under wide temperature and humidity ranges.
Brand and Series
-
Brand: Emerson
-
Series: Ovation Distributed Control System (DCS)
Emerson’s Ovation series is a world-renowned control platform tailored for complex industrial processes, known for reliability and precision control.
Related Models within the Same Series
| Model Number | Description | Output Channels | Weight |
|---|---|---|---|
| 1C31131G01 | Analog Output Module, 4-channel | 4 | 1.1 kg |
| 1C31133G01 | High Precision Analog Output | 8 | 2.0 kg |
| 1C31134G01 | Analog Output with Diagnostics | 8 | 2.1 kg |
| 1C31135G01 | 16-Channel Analog Output | 16 | 3.5 kg |
| 1C31136G01 | Fast Response Analog Output Module | 8 | 2.0 kg |
Popular Models from Emerson Ovation Brand
| Model Number | Description | Function Type | Weight |
|---|---|---|---|
| 1C31110G02 | Digital Input Module | 16 Inputs | 0.16 kg |
| 1C31120G01 | Analog Input Module | 8 Inputs | 1.1 kg |
| 1C31125G01 | Digital Output Module | 16 Outputs | 0.16 kg |
| 1C31130G01 | Pulse Input Module | 8 Inputs | 0.16 kg |
| 1C31140G01 | Analog Output, High Power | 4 Outputs | 2.5 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the Ovation 1C31132G01 module?
A1: It converts digital signals from the DCS into analog outputs (voltage or current) to control field equipment such as valves and actuators.
Q2: How many output channels does the 1C31132G01 provide?
A2: It provides eight independent analog output channels.
Q3: Are the output signal types configurable?
A3: Yes, each channel can be configured to output either 4–20 mA current or 0–10 V voltage.
Q4: What type of isolation does the module offer?
A4: It offers both channel-to-channel and channel-to-system isolation to ensure safety and signal integrity.
Q5: Can this module be used in harsh environmental conditions?
A5: Yes, it is designed to operate within a wide temperature and humidity range, suitable for industrial environments.
Q6: What are the dimensions of the module?
A6: The module measures approximately 25.4 mm wide, 273 mm high, and 267 mm deep.
Q7: What is the weight of the module?
A7: The shipping weight is 2.0 kg.
Q8: Is this module hot-swappable in Ovation racks?
A8: No, power to the system must be turned off before installation or removal to ensure safety.
Q9: How is this module configured in the Ovation system?
A9: Configuration is performed through Emerson’s Ovation engineering software, allowing for channel assignments and calibration.
Q10: Where can I get the technical documentation for this module?
A10: Official datasheets and manuals are available via Emerson’s customer support portal or authorized distributors.
