- OVATION
- 1C31129G32

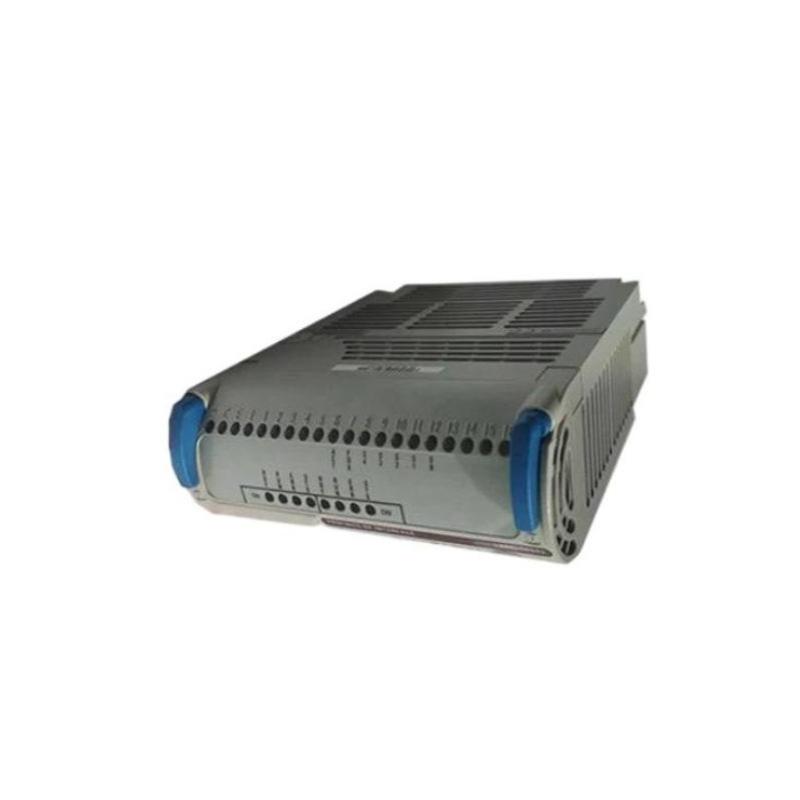

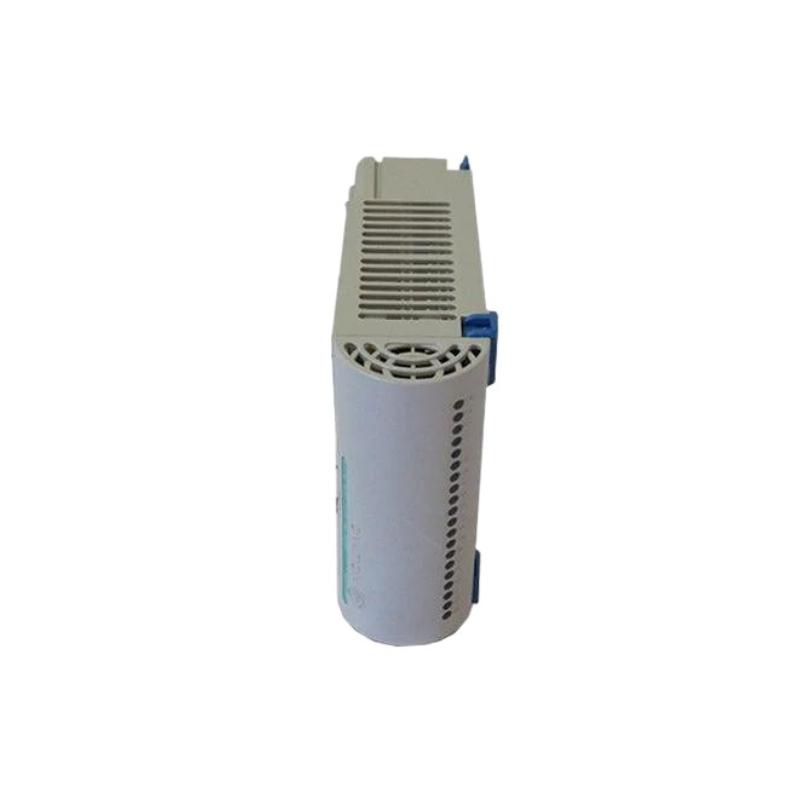

- Westinghouse Emerson Loop Interface Module
- USA
- 130 mm × 100 mm × 70 mm
- 0.5kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
OVATION 1C31129G32 – Product Profile
OVERVIEW
The OVATION 1C31129G32 is a high-performance analog output module for industrial automation systems. Designed for distributed control systems (DCS), it provides precise 0–20 mA current outputs with advanced diagnostic features. This module is ideal for controlling actuators, valves, and other field devices where high accuracy and reliability are critical. It is engineered for operation in harsh industrial environments, including power plants, chemical plants, and manufacturing facilities.
PRODUCT DESCRIPTION
The 1C31129G32 features 8 analog output channels with 16-bit resolution, delivering highly accurate current signals. Unlike standard output modules, it incorporates extended diagnostics for monitoring channel performance and detecting potential faults. Each channel has LED indicators for quick visual confirmation of operational status. The module is modular and mounts into the Ovation I/O rack, allowing for easy integration, maintenance, and expansion of the automation system.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Model | OVATION 1C31129G32 |
| Function | 0–20 mA Analog Output Module with Diagnostics |
| Brand | Emerson / Ovation |
| Series | 1C311xx I/O Series |
| Output Channels | 8 Analog Channels |
| Resolution | 16 bit |
| Output Range | 0–20 mA |
| Accuracy | ±0.05 % |
| Update Rate | 500 Hz |
| Communication Interface | Backplane Bus |
| Protection Rating | IP20 |
| Operating Temperature | -40 °C to +70 °C |
| Dimensions (L×W×H) | 130 mm × 100 mm × 70 mm |
| Weight (approx.) | 0.35 kg – 0.50 kg |
| LED Indicators | Yes, per channel |
| Diagnostics | Full channel monitoring |
| Warranty | 1 year typical |
PRODUCT APPLICATIONS
The OVATION 1C31129G32 is widely used in:
-
Power generation plants (thermal, nuclear, and combined-cycle)
-
Chemical and petrochemical process automation
-
Oil refining and gas production systems
-
Metallurgical process control
-
Large-scale manufacturing requiring precise current control
-
Systems that require real-time fault detection and high reliability
Its current output capability and diagnostics make it suitable for mission-critical applications.
PRODUCT ADVANTAGES
Advanced Diagnostics: Continuously monitors all channels to detect faults early.
High Accuracy: 16-bit resolution provides precise control over current outputs.
Reliability: Designed to operate in harsh industrial environments with vibration and temperature tolerance.
Modular Integration: Compatible with Ovation I/O racks for easy installation, maintenance, and expansion.
Environmental Tolerance: Resistant to shock, vibration, and humidity common in industrial environments.
Long Service Life: Built for long-term operation, reducing downtime and maintenance frequency.
BRAND & SERIES
-
Brand: Emerson (Ovation automation systems)
-
Series: Ovation 1C311xx I/O module family, including analog input/output, digital input/output, and loop interface modules.
RELATED MODELS (Same Series or Function)
| Model | Function | Typical Parameters |
|---|---|---|
| 1C31129G03 | Analog Output Module (±10 V) | 16 bit, 8 channels, LED diagnostics |
| 1C31129G04 | Analog Output Module (0–20 mA) | 16 bit, 8 channels, current output |
| 1C31129G05 | Analog Output Module (0–10 V) | 16 bit, 8 channels, enhanced diagnostics |
| 1C31129G31 | Analog Output Module (0–10 V / ±10 V) | 16 bit, 8 channels, full diagnostics |
| 1C31132G01 | Multi-channel Analog Output | 16 bit, 8–16 channels |
RELATED POPULAR MODELS (Same Brand – Emerson Ovation)
| Model | Typical Function | Notes |
|---|---|---|
| 1C31161G02 | RTD Input Module | Temperature sensor interface |
| 1C31166G01 | Link Controller (RS-232/RS-485) | Communication interface |
| 1C31169G02 | RS-485 Link Controller | Field communication |
| 1C31157G01 | Sequence of Events Module | Event timing & logging |
| 1C31174G01 | Mixed AI/AO Loop Interface | Combined analog input/output |
FREQUENTLY ASKED QUESTIONS (FAQ)
Q1: What is the OVATION 1C31129G32 used for?
A1: It is a 0–20 mA analog output module with diagnostics, used to control field devices like actuators and valves.
Q2: How many channels does it have?
A2: 8 analog output channels.
Q3: What is the output range?
A3: 0–20 mA current output.
Q4: Does it have diagnostic monitoring?
A4: Yes, it provides full channel monitoring for early fault detection.
Q5: How does it communicate with the control system?
A5: Via the backplane bus of the Ovation I/O rack.
Q6: What is the operating temperature range?
A6: -40 °C to +70 °C.
Q7: What is the module’s weight?
A7: Approximately 0.35 kg to 0.50 kg.
Q8: Can it be used in modular systems?
A8: Yes, it is fully compatible with Ovation modular I/O systems.
Q9: Which industries typically use this module?
A9: Power generation, chemical, petrochemical, refining, metallurgical, and industrial manufacturing.
Q10: What advantages does it have over standard analog outputs?
A10: It provides precise current control, enhanced diagnostics, environmental resilience, and easy integration into modular systems.
