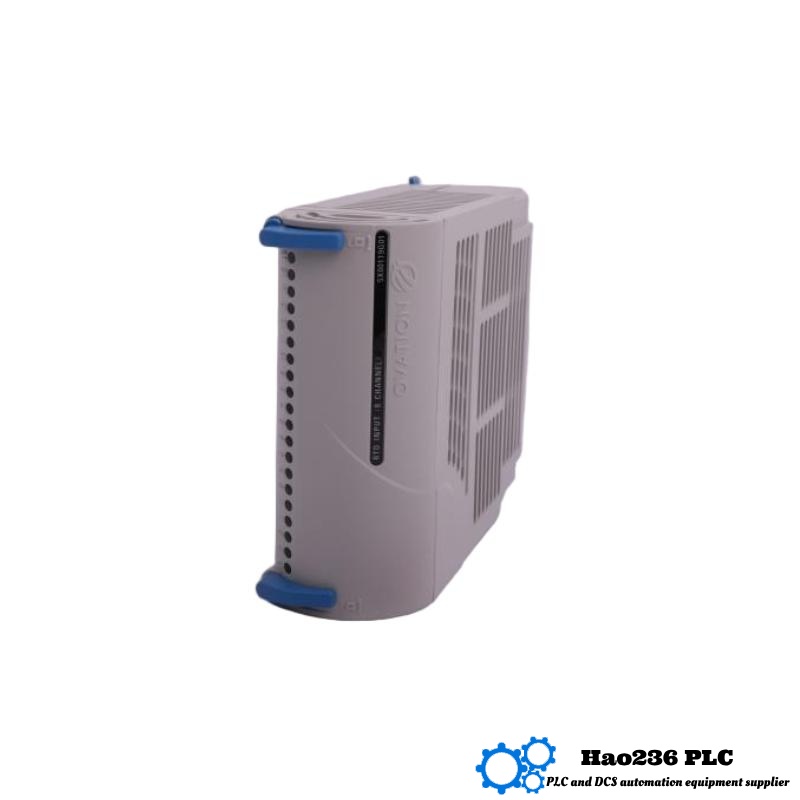

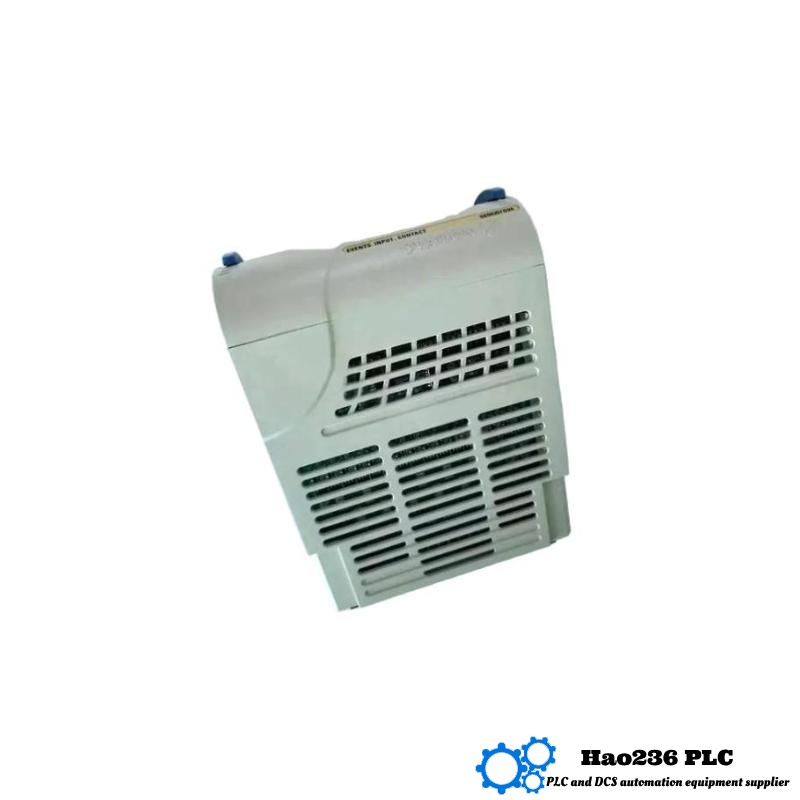

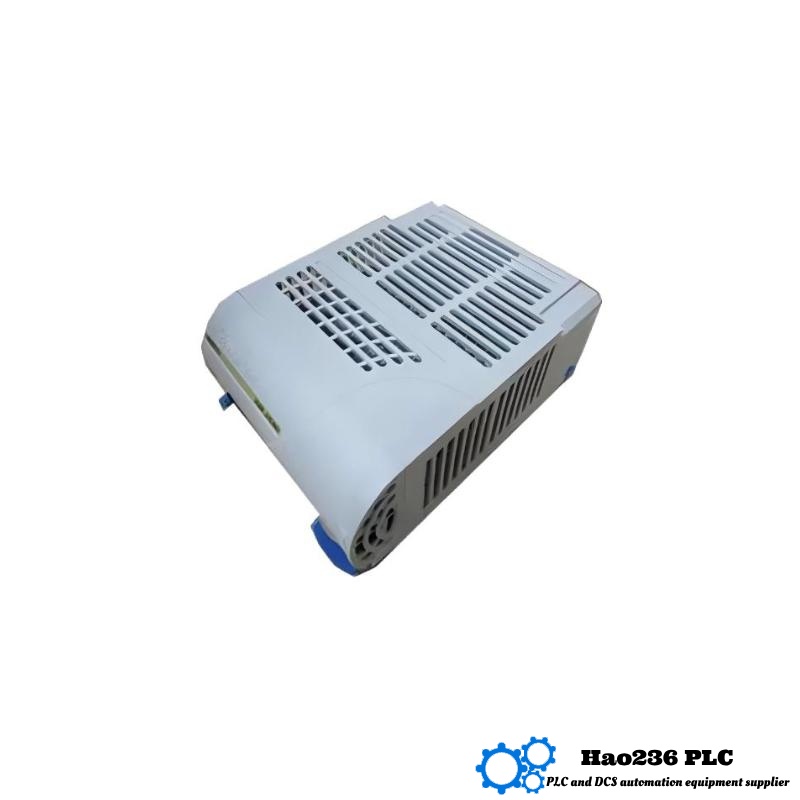

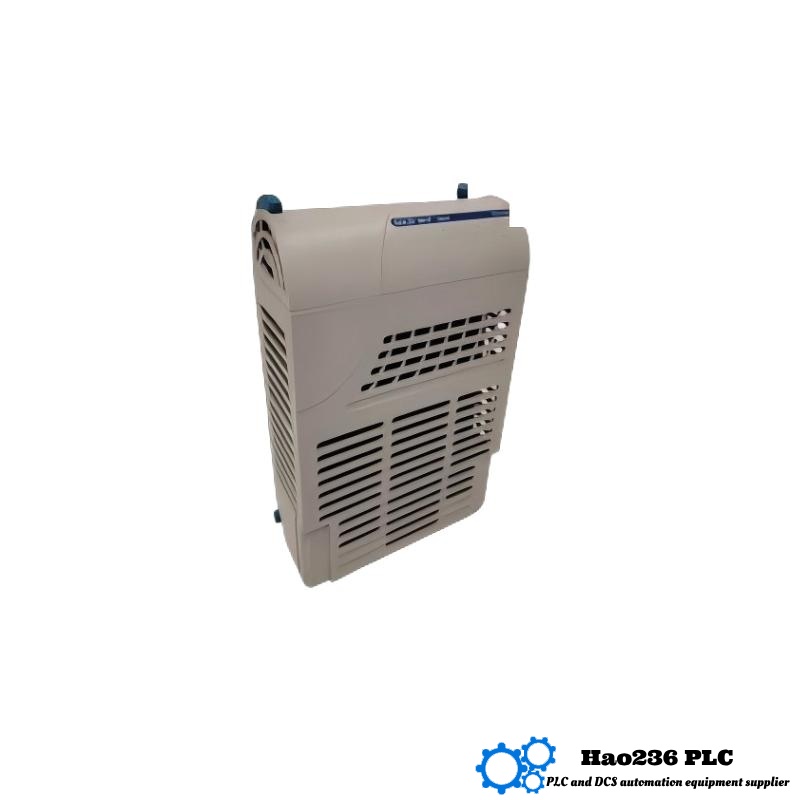

Ovation 1C31116G01 Analog Input Module

Product Overview

The Ovation 1C31116G01 is a state-of-the-art analog input module designed for industrial automation and control systems. It provides high-precision analog signal conversion and is ideal for use in process control, energy management, and complex industrial applications. The module ensures accurate and reliable data acquisition, which is crucial for controlling various processes in industries such as power generation, water treatment, and oil & gas.

With advanced features and exceptional performance, the Ovation 1C31116G01 allows seamless integration with the Ovation control system, delivering top-tier reliability and efficiency in industrial settings.

Product Parameters

Here are the key parameters of the Ovation 1C31116G01 Analog Input Module:

Product Introduction

The Ovation 1C31116G01 Analog Input Module is designed for demanding industrial environments where precision and reliability are paramount. This module offers 16 input channels, capable of handling both differential and single-ended signals, allowing it to process a wide range of input signals such as voltage and current. The module’s 16-bit resolution ensures that even small variations in input are accurately captured, making it ideal for high-precision control systems.

With its ±10 V DC input voltage range and ±20 mA current input range, the module is flexible enough to integrate with a variety of industrial sensors and devices. The Ovation 1C31116G01 provides an accuracy of 0.1% of full scale, ensuring precise data transmission.

Its robust construction with a protection rating of IP20 and a wide operating temperature range of -20°C to 70°C makes it suitable for use in harsh industrial environments.

Product Advantages

• High Precision: With a 0.1% accuracy and 16-bit resolution, the Ovation 1C31116G01 provides exceptional precision for critical industrial applications.

• Versatile Input Options: The module supports both differential and single-ended signals, making it compatible with a wide variety of industrial sensors and devices.

• Compact Design: The module features compact dimensions of 45 x 120 x 200 mm, allowing it to be easily integrated into existing control systems without taking up much space.

• Wide Operating Temperature: The -20°C to 70°C temperature range ensures the module performs reliably in a variety of environments.

• Robust Construction: With IP20 protection and a rugged design, the module can withstand harsh industrial environments, ensuring durability over time.

• High Channel Count: With 16 input channels, the module is well-suited for applications that require the monitoring of multiple analog signals simultaneously.

Applications

The Ovation 1C31116G01 Analog Input Module is ideal for a wide range of industrial applications, including:

1. Process Control: Accurately monitors and controls various process variables such as temperature, pressure, and flow rates in industries like chemicals and oil & gas.

2. Energy Management: Used for measuring energy consumption and controlling energy systems in power plants and manufacturing facilities.

3. Power Generation: Enables the monitoring of critical parameters such as voltage, current, and frequency in power plants, ensuring efficient and safe operation.

4. Water Treatment: Used in water and wastewater treatment facilities to monitor parameters such as pH, turbidity, and chemical dosing levels.

5. Industrial Automation: Provides precise analog signal acquisition in automated systems, enhancing control and monitoring of machinery and equipment.

Brand: Ovation (Emerson)

Ovation is a renowned brand by Emerson, a global leader in industrial automation and control systems. The Ovation control system is specifically designed to meet the needs of critical process industries like power generation, oil & gas, water treatment, and more. Emerson’s Ovation system delivers high-performance, reliability, and efficiency, helping industries optimize their processes, improve safety, and enhance operational efficiency.
