Product Overview

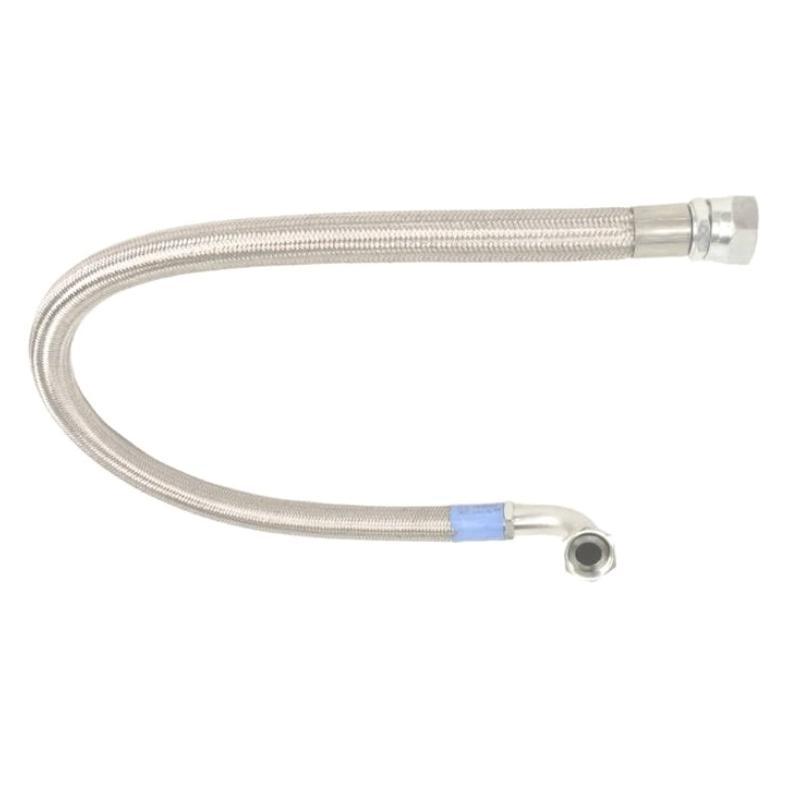

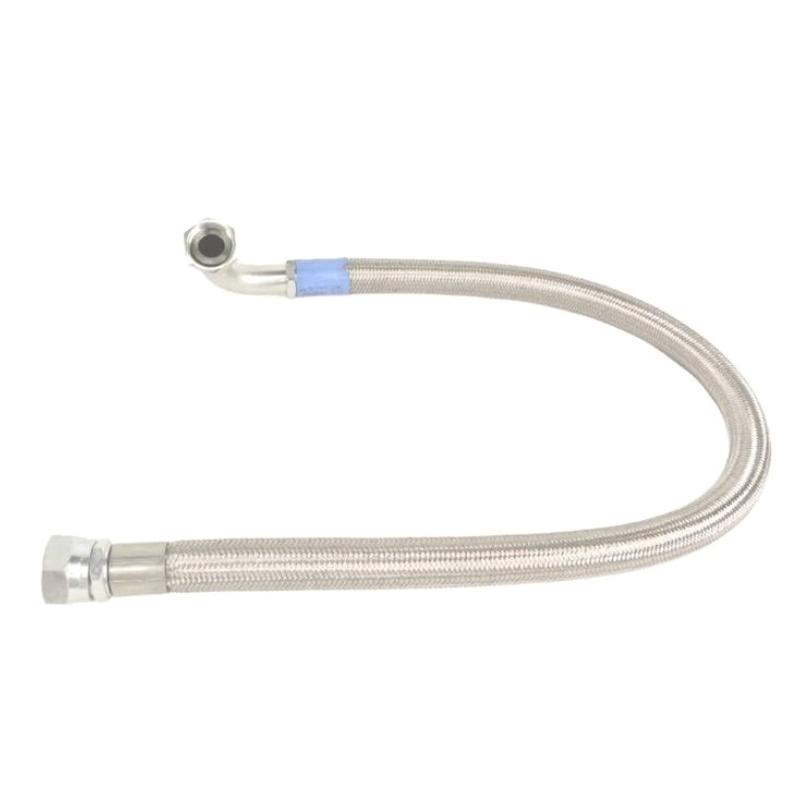

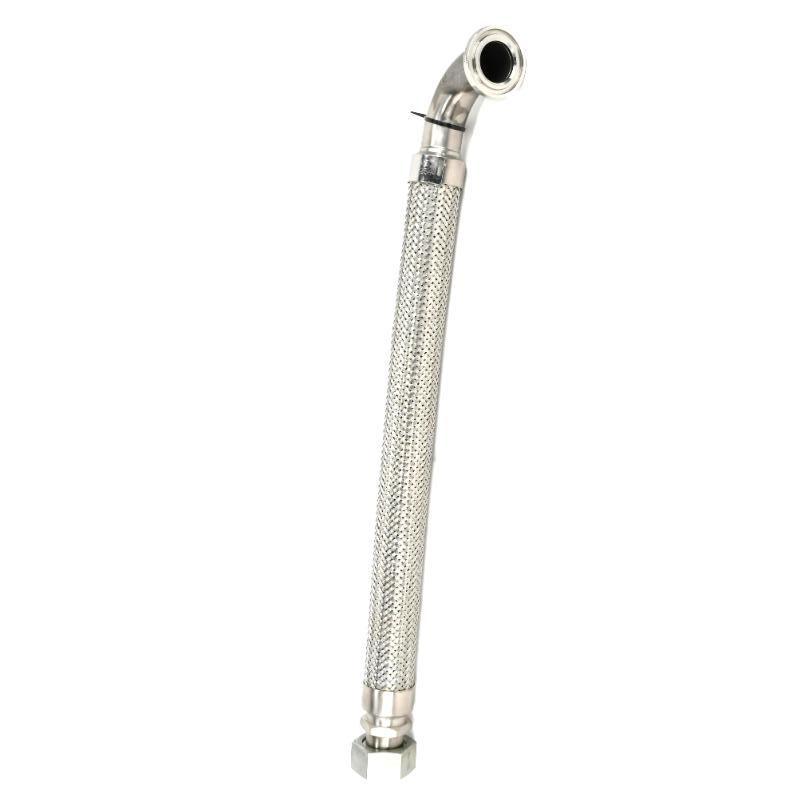

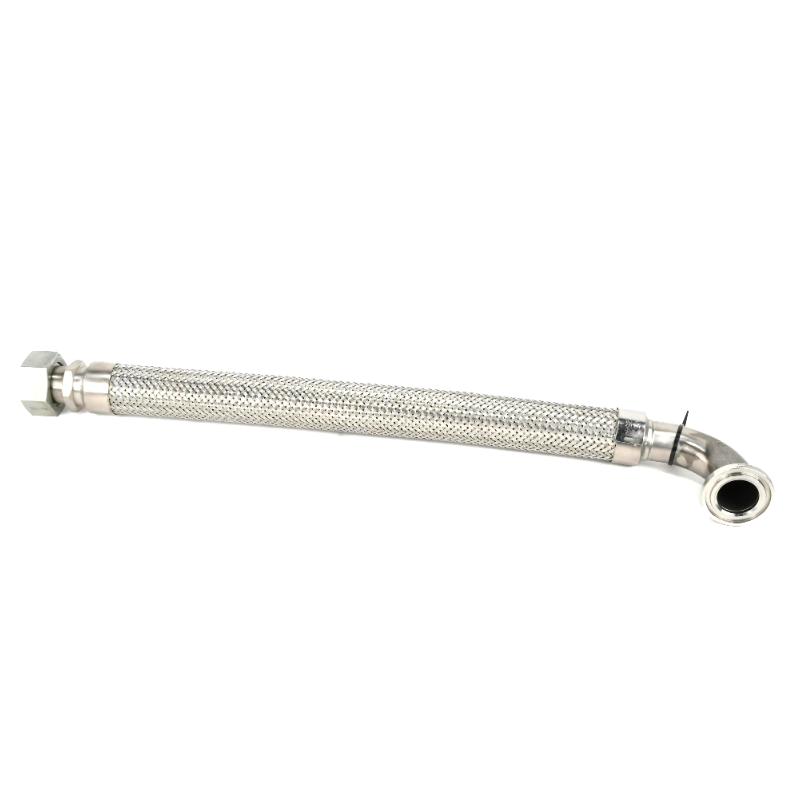

The Ingersoll Rand 47704460001 24266223 Hose is a flexible hose assembly used in compatible Ingersoll Rand industrial equipment. It serves as a flexible connection between system components, allowing the connected circuit to accommodate equipment vibration, movement, and normal operating stresses.
In compressor and plant utility equipment, hoses are often used where rigid piping would transmit excessive mechanical loads to connected components. A properly installed hose can maintain the required connection while allowing controlled flexibility during operation.
The 24266223 is therefore primarily a mechanical connection and fluid-transfer component rather than an active control device. Its service condition can directly affect the integrity of the circuit in which it is installed, making hose inspection and replacement an important part of equipment maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47704460001 |
| Component Number | 24266223 |
| Product Type | Hose |
| Application | Industrial Equipment / Compressor Service |
| Hose Length | 44 in |
| Shipping Weight | 3 kg |
Product Features
The 24266223 hose is intended for flexible connection applications in compatible Ingersoll Rand equipment.
Key characteristics include:
- Ingersoll Rand hose assembly
- Part number 47704460001
- Component number 24266223
- 44-inch hose length
- Flexible connection between equipment components
- Suitable for industrial equipment maintenance
- Helps accommodate equipment vibration and movement
- Suitable for replacement and service applications
- Requires correct routing and connection during installation
The hose should be selected according to the original equipment configuration and connection arrangement rather than based solely on hose length.
Working Principle
The hose establishes a flexible passage between two connected components.
A simplified arrangement is:
Upstream Component → 24266223 Hose → Downstream Component
During operation, the hose carries the applicable medium between the connected components while allowing limited mechanical movement.
This flexibility helps isolate connected components from some of the mechanical stress associated with vibration and movement. At the same time, the hose must maintain its structural integrity under the operating conditions of the equipment.
If the hose develops cracking, abrasion, deformation, fitting damage, or leakage, the connected circuit can lose its intended pressure or fluid containment.
Role in an Industrial Equipment System
The 47704460001 24266223 occupies the flexible connection section of the equipment circuit.
Its position can be viewed as:
System Component → Flexible Hose → System Component
The specific circuit depends on the Ingersoll Rand equipment in which the hose is installed. Depending on the application, hoses may connect components associated with compressed air, lubrication, cooling, or other equipment functions.
For maintenance engineers, the hose should therefore be considered together with its fittings and connected components. A leakage problem does not necessarily originate from the hose body itself; fitting condition, connection sealing, routing, and vibration can also contribute.
Industrial Applications
The 47704460001 24266223 hose is relevant to industrial maintenance applications involving compatible Ingersoll Rand equipment.
| Application | Typical Use |
|---|---|
| Screw Compressor Maintenance | Flexible hose replacement |
| Industrial Air Systems | Maintaining equipment connections |
| Manufacturing Plants | Compressor service and repair |
| Plant Utility Equipment | Flexible circuit connections |
| Compressor Overhaul | Replacement of aging hoses |
| Preventive Maintenance | Scheduled hose inspection |
| Field Service | Restoration of damaged connections |
| Industrial Machinery | Managing vibration at connections |
The actual function of the hose depends on the equipment circuit and connection points where it is installed.
Installation and Maintenance
Correct installation helps prevent premature hose deterioration.
Recommended service practices include:
- Confirm the complete 47704460001 part number.
- Verify component number 24266223.
- Identify the original installation position.
- Record the existing hose routing before removal.
- Isolate and depressurize the relevant equipment circuit.
- Inspect fittings and connection points.
- Remove the existing hose without damaging adjacent components.
- Check the replacement hose for visible damage.
- Route the hose without sharp bends or twisting.
- Prevent contact with abrasive or excessively hot surfaces.
- Avoid installing the hose under unnecessary tension.
- Ensure fittings are properly seated.
- Secure the hose according to the original equipment arrangement.
- Restore system pressure gradually.
- Inspect the complete connection for leakage.
A 44-inch hose should not be forced into a shorter routing path. Excessive bending or twisting can create mechanical stress and may reduce service life.
Related Components
The 24266223 hose can work alongside various components within the equipment circuit.
| Component | Function |
|---|---|
| Hose Fittings | Provide mechanical connections |
| Valves | Control applicable air or fluid flow |
| Pressure Components | Monitor or regulate system pressure |
| Compressor Assembly | Provides the primary equipment function |
| Oil Circuit Components | Circulate compressor lubrication oil |
| Cooling Components | Manage equipment operating temperature |
| Piping | Provides rigid sections of the circuit |
| Sealing Components | Maintain connection integrity |
| Clamps / Retainers | Support hose positioning |
| Filters | Remove contaminants from applicable circuits |
Inspecting these components together can help identify the cause of leakage or hose deterioration.
Recommended Related Models
| Model / Part | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47704460001 24266223 | Hose | Flexible equipment connection |
| Ingersoll Rand 47704460001 24260853010 | Hose | Flexible equipment connection |
| Ingersoll Rand 47690462001 23392368 | Minimum Pressure Valve Service Kit | Compressor valve maintenance |
| Ingersoll Rand 47690462001 95028502 | O-Ring | Mechanical sealing |
| Ingersoll Rand 47690462001 95987988 | O-Ring | Mechanical sealing |
| Ingersoll Rand Compressor Service Components | Maintenance Parts | Compressor repair and servicing |
The two 47704460001 hose components should not be treated as interchangeable solely because they share the same primary part-number family. The specified hose length and equipment installation position should be verified before selection.
Key Advantages
- Ingersoll Rand hose assembly
- Part number 47704460001
- Component number 24266223
- 44-inch hose length
- Suitable for flexible equipment connections
- Helps accommodate vibration and limited movement
- Useful for compressor maintenance
- Suitable for replacement and overhaul work
- Supports the integrity of connected air or fluid circuits
Technical FAQs
How does hose length affect installation of the 24266223?
The specified 44-inch length determines the available routing distance between the associated connection points. The hose should be installed with sufficient freedom for normal movement while avoiding excessive slack, sharp bends, or tension.
What are common signs that an industrial compressor hose needs replacement?
Visible cracking, abrasion, bulging, deformation, leakage, damaged fittings, or abnormal surface deterioration are common indicators. Repeated pressure cycling and vibration can also accelerate hose degradation.
Why should the fittings be inspected when replacing the 24266223 hose?
The fitting interface directly affects sealing and mechanical retention. A damaged, contaminated, or incorrectly seated fitting can cause leakage even when the replacement hose itself is in good condition.
How can vibration shorten the service life of a compressor hose?
Continuous vibration can create repeated bending and mechanical stress around the hose body and fittings. If the hose is incorrectly routed or restrained, these stresses can become concentrated at specific points and accelerate fatigue or wear.
