Product Overview

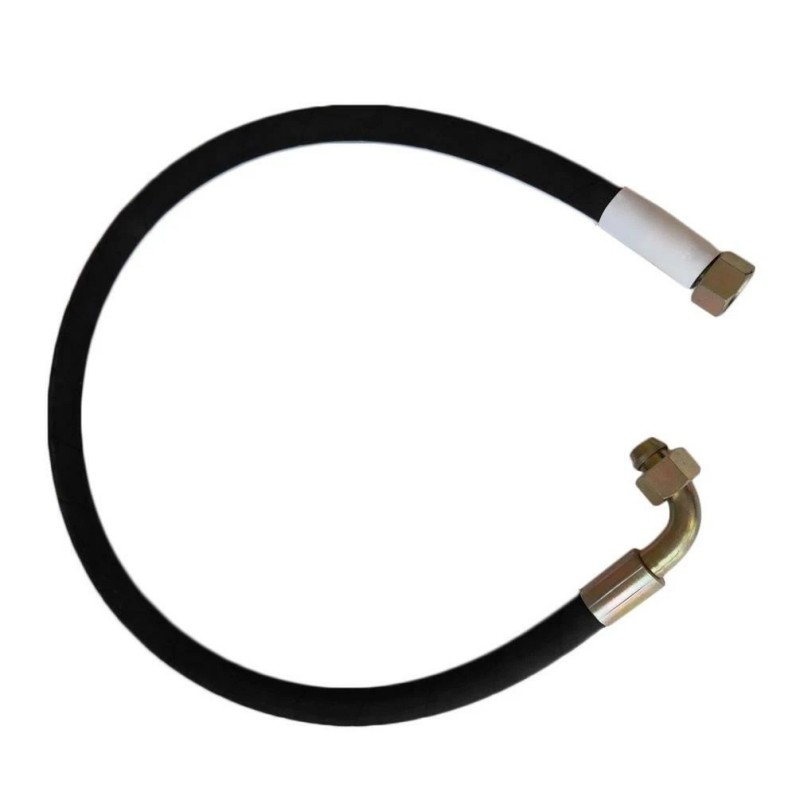

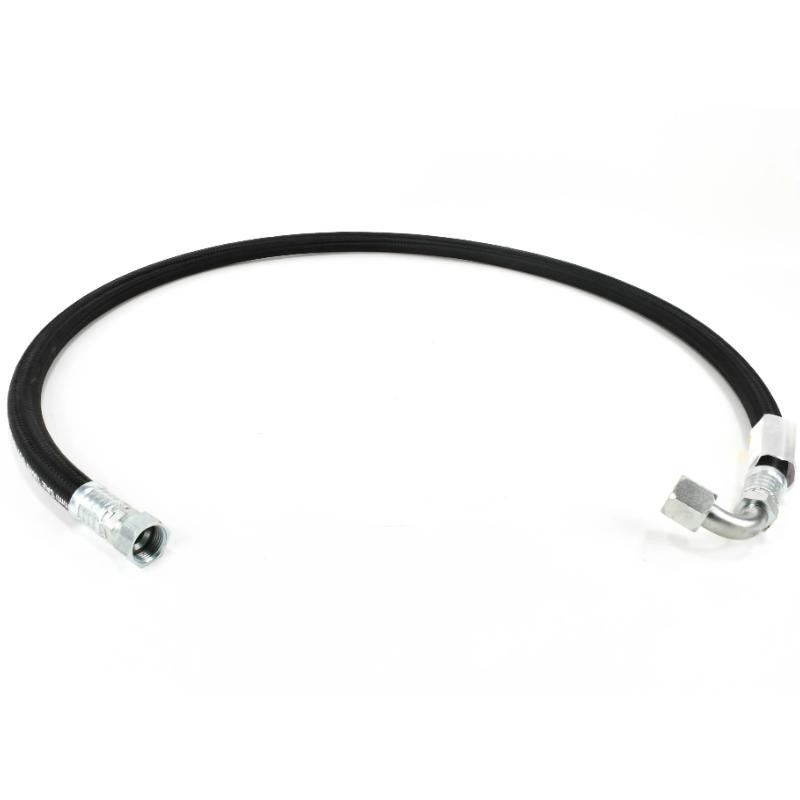

The Ingersoll Rand 47704460001 24260804013 Hose is an industrial replacement hose component used in Ingersoll Rand compressor systems and pneumatic equipment assemblies. It provides a flexible connection path between internal components, allowing compressed air or system fluids to be transferred while accommodating equipment vibration and installation limitations.
Within compressor equipment, hose assemblies are commonly used in locations where rigid piping may introduce mechanical stress or make maintenance more difficult. The flexible structure helps compensate for minor movement between connected components while maintaining a stable connection.
The 24260804013 hose is mainly applied in compressor maintenance, equipment repair, and replacement projects where restoring the original connection configuration is required. Selecting the correct hose length and part number helps ensure proper routing, sealing performance, and long-term operating reliability.
For service engineers maintaining Ingersoll Rand systems, inspection of hose condition is an important part of preventive maintenance because aging, vibration, abrasion, and improper installation can affect pneumatic system performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 24260804013 |
| Assembly Series | 47704460001 |
| Product Type | Industrial Hose |
| Application | Compressor / Pneumatic System |
| Function | Flexible Air or Fluid Transfer Connection |
| Hose Length | 34 in |
| Shipping Weight | 3 kg |
Product Features
The Ingersoll Rand 24260804013 Hose provides flexible connection capability for industrial compressor applications.
Key characteristics include:
- Ingersoll Rand replacement hose component
- Model 24260804013
- Associated with assembly series 47704460001
- Hose length of 34 inches
- Suitable for compressor equipment maintenance
- Provides flexible connection between system components
- Helps accommodate equipment vibration
- Supports installation in limited spaces
- Suitable for repair and replacement applications
- Maintains original equipment connection layout
- Designed for industrial service environments
The hose serves as a mechanical connection element that helps maintain proper airflow or fluid routing within the equipment system.
Working Principle
The Ingersoll Rand 24260804013 Hose functions as a flexible transfer channel between connected compressor components.
A simplified connection path is:
Compressor Assembly → 24260804013 Hose → Internal Pneumatic Circuit / Equipment Component
During compressor operation, compressed air or system fluid flows through the hose between different assemblies. The flexible construction allows the connection to absorb minor movement and vibration while maintaining continuous flow.
Typical functions include:
- Connecting internal compressor assemblies
- Supporting flexible equipment routing
- Reducing mechanical stress on rigid connections
- Providing easier access during maintenance
The hose does not perform control or measurement functions but supports the mechanical integrity of the compressor system.
Role in Compressor System Architecture
The 24260804013 Hose operates as a flexible connection component within an Ingersoll Rand compressor system.
A typical arrangement can be represented as:
Compressor Unit → Air Circuit Components → Hose Connection → Pneumatic Assembly
Within this structure:
- Compressor components generate and manage compressed air.
- The hose transfers air or fluid between sections.
- Connected valves and assemblies perform system operations.
- Maintenance personnel can replace the hose without modifying the complete system layout.
Reliable hose connections are important because leaks or damaged flexible lines can reduce system efficiency and affect equipment operation.
Industrial Applications
The Ingersoll Rand 24260804013 Hose is commonly used in industrial equipment servicing and compressor applications.
| Application | Typical Use |
|---|---|
| Industrial Compressor Systems | Internal connection replacement |
| Manufacturing Facilities | Pneumatic equipment maintenance |
| Process Industries | Compressor system servicing |
| Workshop Air Systems | Flexible air line replacement |
| Production Equipment | Maintaining pneumatic circuits |
| Industrial Repair | Original spare part replacement |
| Equipment Overhaul | Compressor refurbishment |
| OEM Maintenance | Restoring equipment performance |
The actual application depends on the specific compressor model and installation configuration.
Installation and Maintenance
Proper installation is important for maintaining hose performance and preventing leakage or premature damage.
Recommended practices include:
- Confirm the correct 24260804013 part number before installation.
- Verify hose length and connection orientation.
- Inspect fittings before assembly.
- Check sealing surfaces and connection points.
- Avoid sharp bending or twisting.
- Ensure the hose is routed away from abrasion sources.
- Inspect for aging, cracks, or deformation.
- Verify connection tightness after installation.
- Perform operational leakage checks.
When repeated hose failures occur, engineers should also inspect vibration levels, mounting conditions, nearby components, and operating environment.
Related Components
The 24260804013 Hose works with various compressor system components.
| Component | Function |
|---|---|
| Compressor Assembly | Generates compressed air |
| Hose Assembly | Provides flexible connection |
| Valves | Controls airflow paths |
| Fittings and Connectors | Secures hose installation |
| Air Circuit Components | Transfers compressed air |
| Pneumatic Equipment | Uses supplied air |
| Maintenance Spare Parts | Supports equipment servicing |
These components work together to maintain reliable compressor operation.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47704460001 24260804013 | Industrial Hose | Compressor connection application |
| Ingersoll Rand 47704460001 23626443 | Industrial Hose | Flexible pneumatic connection |
| Ingersoll Rand 47704460001 24266223 | Hose Assembly | Compressor maintenance replacement |
| Ingersoll Rand 47704460001 24260853010 | Hose Assembly | Equipment servicing application |
| Ingersoll Rand Compressor Hose Series | Replacement Hose Components | Industrial compressor repair |
Model selection should be based on equipment compatibility, hose routing requirements, connection specifications, and original assembly design.
Key Advantages
- Ingersoll Rand industrial replacement hose
- Model 24260804013
- Assembly series 47704460001
- Hose length 34 inches
- Provides flexible equipment connection
- Suitable for compressor maintenance applications
- Helps reduce vibration-related stress
- Supports stable air or fluid transfer
- Simplifies equipment servicing
- Suitable for industrial pneumatic systems
- Helps maintain original equipment configuration
Technical FAQs
What equipment is the Ingersoll Rand 24260804013 Hose used with?
The hose is used as a replacement connection component in compatible Ingersoll Rand compressor and pneumatic equipment assemblies.
How does hose length affect compressor system installation?
The correct hose length ensures proper routing, prevents excessive tension or bending, and helps maintain reliable connections between components.
What are common signs that a compressor hose requires replacement?
Typical indicators include air leakage, visible wear, cracks, abrasion marks, deformation, or reduced connection reliability during operation.
Why should the original hose specification be followed during replacement?
Using the correct hose specification ensures compatibility with the equipment layout, connection points, and operating requirements of the compressor system.
