Product Overview

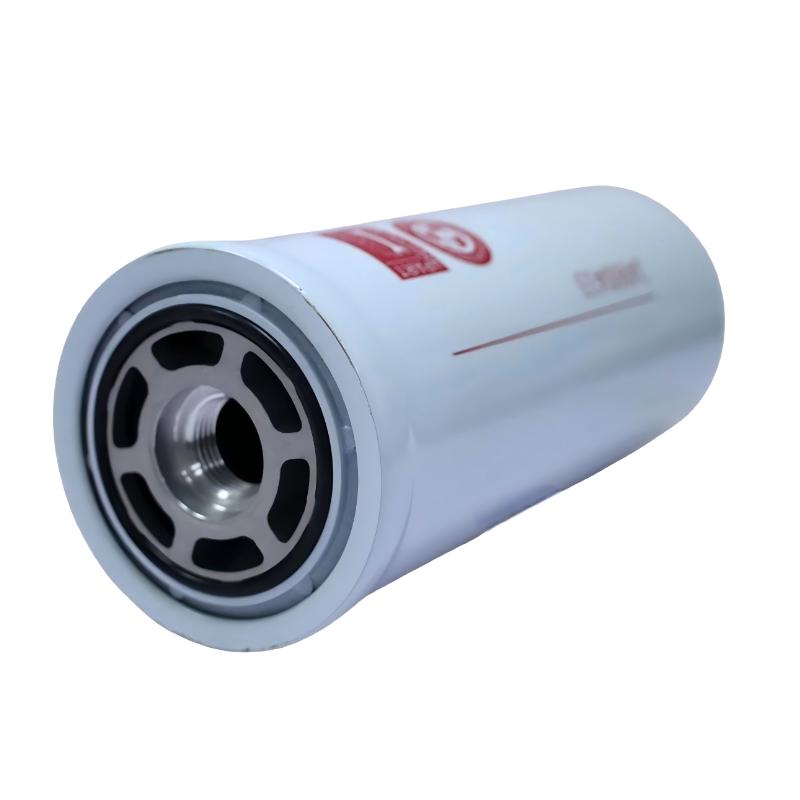

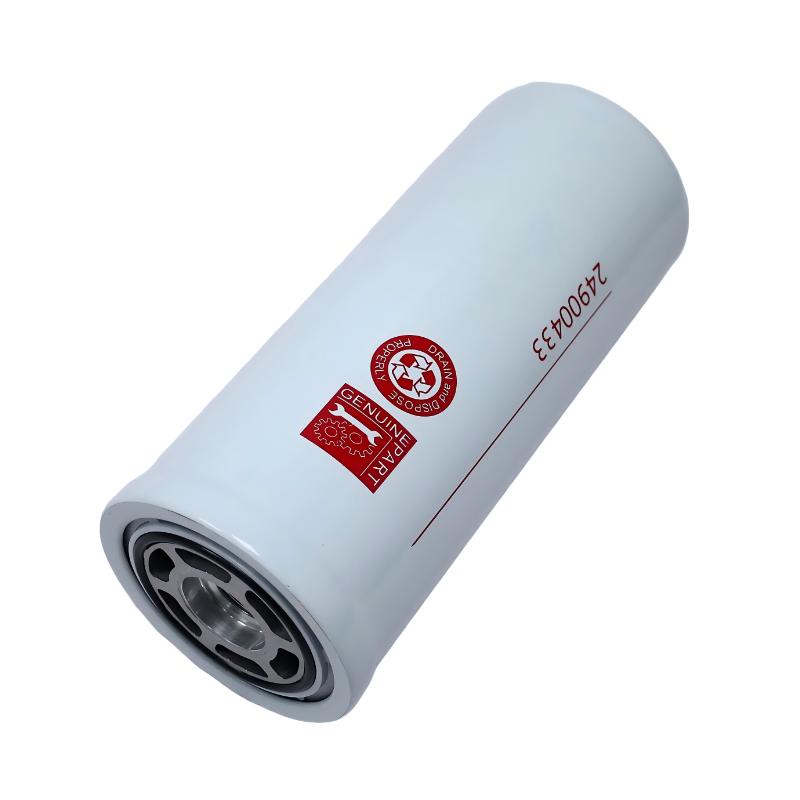

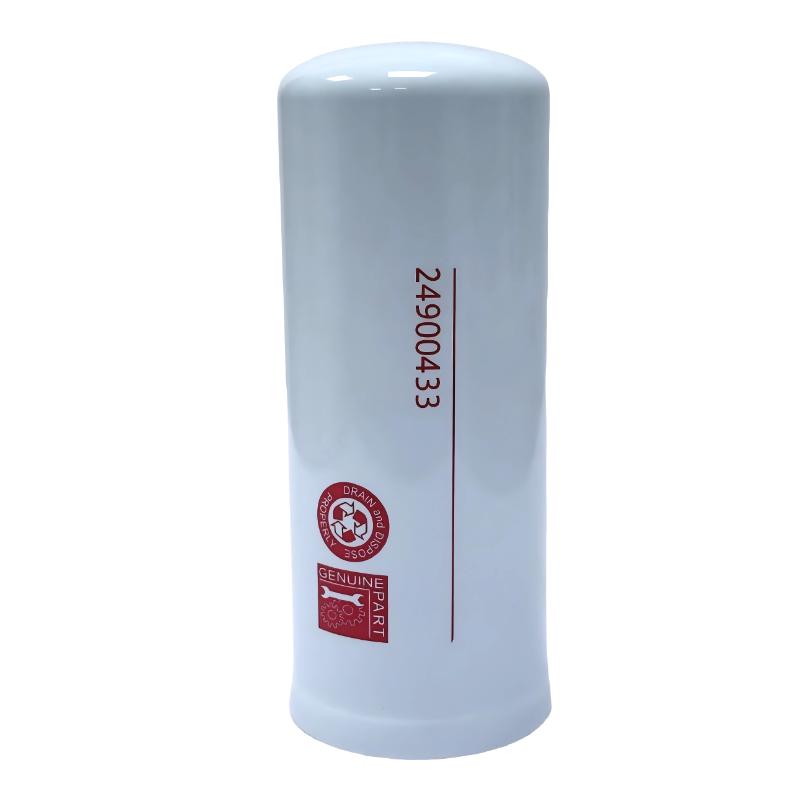

The Ingersoll Rand 47704435001 (24900433) Oil Filter is an industrial filtration component designed for use in compatible Ingersoll Rand equipment and compressed-air or industrial machinery systems. Oil filtration is an important part of equipment maintenance because contaminants circulating through a lubrication system can accelerate component wear, reduce operating efficiency, and shorten the service life of critical mechanical components.

An oil filter helps remove suspended particles, metallic debris, contamination, and other unwanted materials from the oil circuit. Maintaining clean oil is particularly important in systems containing precision mechanical components, bearings, gears, rotors, and other continuously moving parts.

The 47704435001 is associated with the 24900433 part number and is intended to provide filtration within the corresponding equipment configuration. With dimensions of 208 × 50 × 95 mm and a specified weight of approximately 1.36 kg, the filter has a compact form factor suitable for industrial equipment maintenance.

Correct filter selection is essential. Even when two filters appear physically similar, differences in filtration characteristics, sealing dimensions, pressure requirements, or application compatibility can make them unsuitable substitutes. The 47704435001 should therefore be selected according to the equipment model and maintenance requirements.

Technical Specifications

Function and Working Principle

The primary function of the Ingersoll Rand 47704435001 (24900433) is to remove contaminants from the oil circulating through compatible equipment.

A simplified lubrication and filtration process can be represented as:

Oil Reservoir / Circuit → Oil Filter → Lubricated Components → Return / Circulation

As oil passes through the filter, contaminants are captured by the filtration media. Cleaner oil can then continue through the lubrication circuit to protect the associated mechanical components.

Typical contaminants that an oil filter is intended to help control can include:

• Dust and particulate contamination
• Metallic wear particles
• Carbon or combustion-related deposits where applicable
• General debris
• Contaminants introduced during maintenance
• Particles generated by component wear

The filtration process helps maintain the cleanliness of the lubrication system.

Over time, the filter element accumulates contaminants. As contamination increases, the filter can become increasingly restricted. This is why oil filter replacement is an important part of preventive maintenance.

Role in Industrial Equipment Systems

The 47704435001 oil filter can play an important role in maintaining the lubrication system of compatible Ingersoll Rand equipment.

Depending on the equipment configuration, the lubrication circuit may include:

• Oil separator
• Oil reservoir
• Oil filter
• Oil cooler
• Lubrication lines
• Bearings
• Rotating components
• Compressor elements
• Valves
• Pumps
• Monitoring sensors
• Temperature sensors
• Pressure monitoring devices

The filter works as part of this complete lubrication system rather than as an independent component.

Clean lubrication oil is important because contaminants can contribute to mechanical wear. A properly maintained filtration system can help reduce the circulation of unwanted particles and support stable equipment operation.

Industrial Applications

The Ingersoll Rand 47704435001 can be used for maintenance of compatible industrial equipment where the specified oil filter is required.

Industrial Air Compressors

Oil-lubricated compressor systems rely on clean lubrication oil to protect internal mechanical components. An appropriate oil filter is therefore an important maintenance component.

Manufacturing Facilities

Compressed-air systems are widely used in manufacturing plants for pneumatic tools, actuators, automation equipment, and production machinery.

Process Industries

Industrial compressors and associated equipment are often used in continuous production environments. Proper filtration helps support reliable equipment operation.

Automotive and Component Manufacturing

Manufacturing facilities may use compressed-air equipment throughout production lines. Routine filter maintenance helps maintain equipment reliability.

Heavy Industrial Equipment

Industrial machinery operating under continuous load can place significant demands on lubrication systems. Regular filtration maintenance can help control oil contamination.

Installation and Maintenance

The 47704435001 should be installed according to the maintenance procedure applicable to the specific Ingersoll Rand equipment model.

Before replacing the filter, maintenance personnel should verify:

• Correct equipment model
• Correct filter part number
• Existing filter condition
• Oil type
• Oil condition
• Filter housing condition
• Seal condition
• Thread condition
• Service interval
• Equipment operating temperature

Basic Replacement Procedure

1. Shut down the equipment according to the manufacturer’s maintenance procedure.
2. Isolate the equipment from its energy sources.
3. Allow hot oil and components to cool to a safe maintenance temperature.
4. Relieve applicable system pressure.
5. Prepare an appropriate container for used oil or contamination.
6. Locate the existing oil filter.
7. Remove the old filter using suitable maintenance tools.
8. Inspect the filter mounting area.
9. Check the sealing surface for damage or contamination.
10. Compare the replacement filter with the removed component.
11. Install the new 47704435001 filter correctly.
12. Tighten the filter according to the equipment maintenance specification.
13. Check the oil level and oil condition.
14. Restore the equipment to operating condition.
15. Start the equipment and inspect for leaks.
16. Verify oil pressure and operating conditions.
17. Monitor the system during initial operation.

The exact replacement procedure can vary depending on the Ingersoll Rand equipment model. The filter should not be installed solely based on physical dimensions.

Compatible System Components

The oil filter is typically used together with other components associated with the equipment’s lubrication and compressed-air system.

The exact configuration depends on the specific compressor or industrial equipment model.

Recommended Alternative Models

The following components may be considered when evaluating related filtration requirements. They are not automatically direct replacements for the 47704435001, and application compatibility should be confirmed before installation.

For replacement selection, the equipment model, original part number, filter dimensions, sealing arrangement, filtration specification, pressure requirements, and service application should all be verified.

Key Advantages

• Designed for oil filtration in compatible industrial equipment
• Helps control particulate contamination in the lubrication circuit
• Supports clean oil circulation
• Helps protect lubrication-dependent mechanical components
• Suitable for preventive maintenance programs
• Compact industrial filter design
• Dimensions of 208 × 50 × 95 mm
• Product weight of approximately 1.36 kg
• Associated with part number 24900433
• Suitable for maintenance and replacement applications
• Helps support long-term equipment reliability
• Can contribute to stable lubrication-system performance

Technical FAQs

What is the Ingersoll Rand 47704435001?

The Ingersoll Rand 47704435001 is an Oil Filter used in compatible Ingersoll Rand industrial equipment and lubrication systems.

What is the associated part number?

The filter is associated with 24900433.

What is the main function of the oil filter?

Its primary function is to remove unwanted particles and contaminants from circulating oil.

What are the dimensions of 47704435001?

The specified dimensions are 208 × 50 × 95 mm.

How much does the filter weigh?

The specified weight is approximately 1.36 kg.

Why is oil filtration important?

Oil filtration helps control contamination in the lubrication system. Excessive contamination can contribute to component wear and reduced equipment reliability.

When should the oil filter be replaced?

Replacement should follow the maintenance interval specified for the applicable equipment. The filter may also require earlier replacement if contamination, pressure restrictions, abnormal oil conditions, or other maintenance indicators are observed.

Can any filter with the same dimensions replace 47704435001?

No. Physical dimensions alone are not sufficient to establish compatibility. Filtration characteristics, sealing dimensions, pressure requirements, connection design, and equipment application must also be verified.

What equipment can use this oil filter?

It should be used only with compatible Ingersoll Rand equipment for which the 47704435001 or 24900433 is specified.

What should be checked during filter replacement?

Maintenance personnel should inspect the filter housing, sealing surface, connection area, oil condition, filter seating, and system for leaks after installation.

Conclusion

The Ingersoll Rand 47704435001 (24900433) Oil Filter is an industrial filtration component designed to support clean lubrication within compatible Ingersoll Rand equipment. By removing unwanted particles and contaminants from circulating oil, the filter contributes to the protection of lubrication-dependent mechanical components and supports reliable equipment operation.

With dimensions of 208 × 50 × 95 mm and a specified weight of approximately 1.36 kg, the filter provides a compact maintenance solution for compatible industrial equipment.

Oil filtration is particularly important in continuously operating machinery because contamination can gradually increase mechanical wear and affect system performance. Regular filter replacement, together with proper oil selection and overall lubrication-system maintenance, can help maintain equipment reliability.

For maintenance engineers and industrial equipment operators, correct part-number identification is essential before purchasing or installing a replacement filter. The 47704435001 / 24900433 designation, equipment model, mounting arrangement, filtration requirements, sealing configuration, and maintenance specifications should all be checked to ensure proper compatibility and dependable operation.
