- Ingersoll Rand
- 47704435001 23708423
- Air-Oil Separator Outer
- USA
- 240 mm
- 4.9 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 2
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

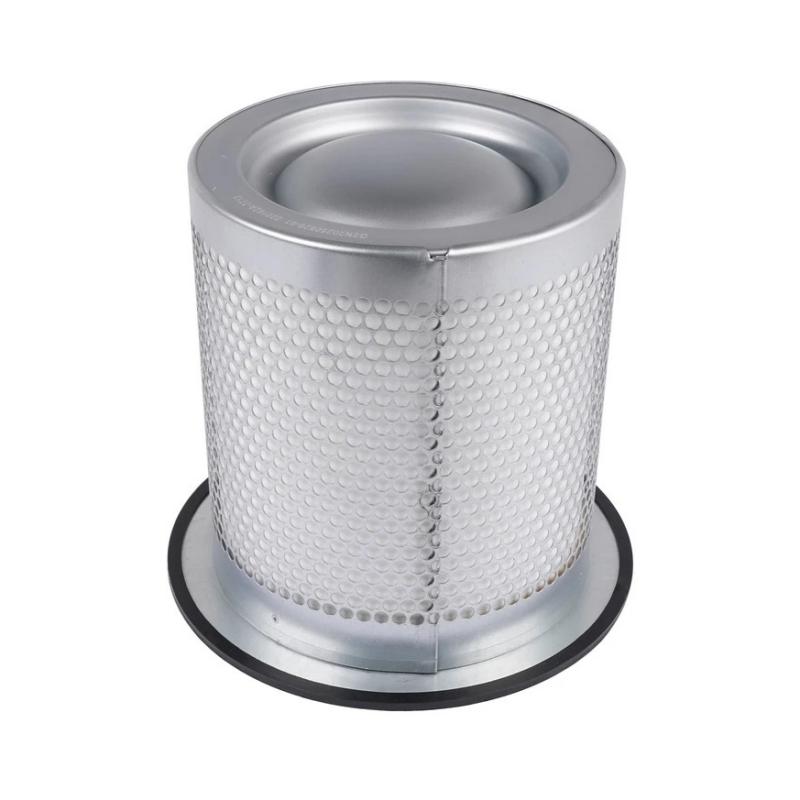

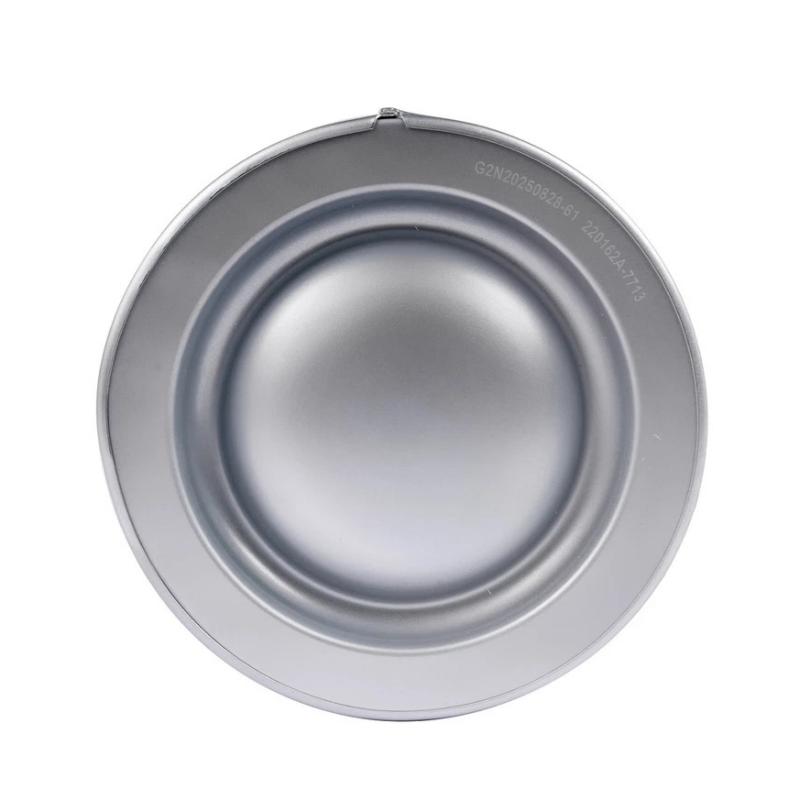

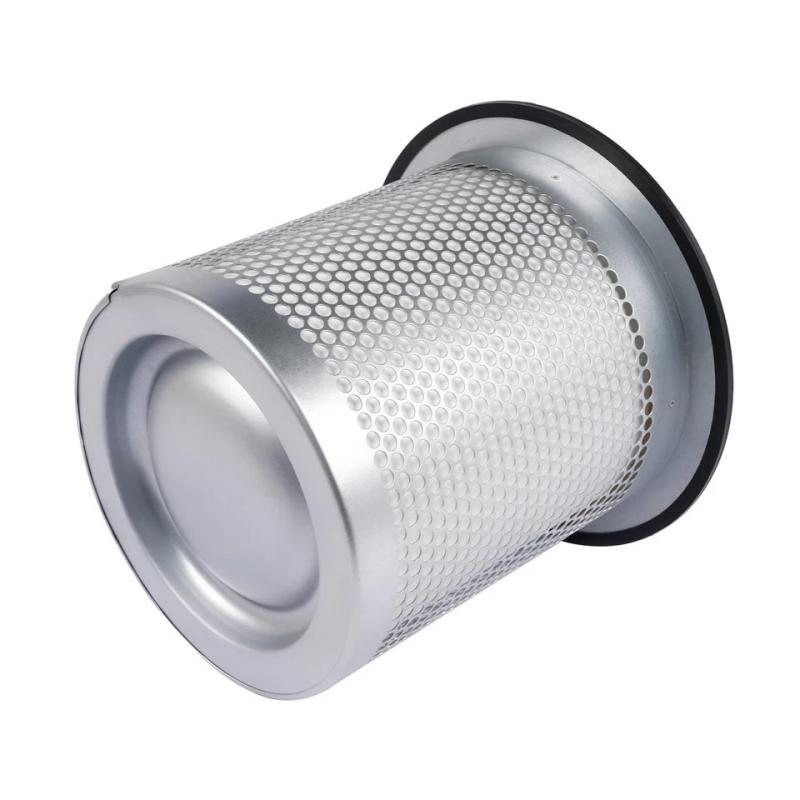

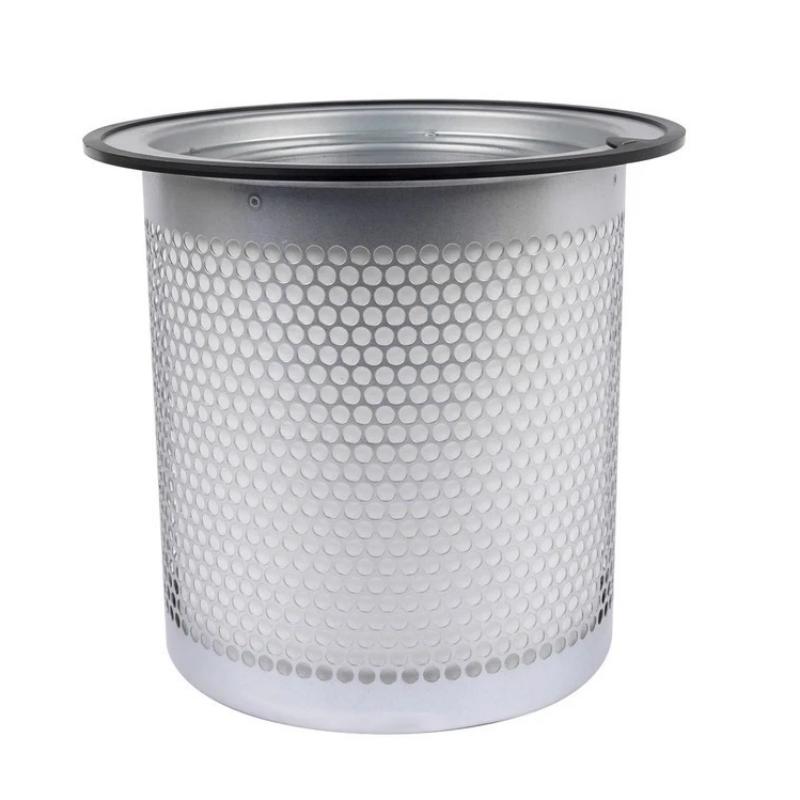

The Ingersoll Rand 47704435001 23708423 Air-Oil Separator is an industrial separation component designed for use in compatible Ingersoll Rand oil-injected compressor systems. Its primary function is to separate oil from compressed air after the compression process, helping maintain efficient oil circulation while reducing the amount of oil carried into the compressed-air outlet.
In an oil-injected compressor, lubrication oil performs several important functions, including lubrication, cooling, and sealing within the compression system. After compression, the resulting air-oil mixture must be processed so that the majority of the oil can be separated from the compressed air and returned to the lubrication circuit.
The air-oil separator is a critical component in this process. It works as part of the separator vessel or related separation assembly, allowing separated oil to return to the compressor lubrication system while cleaner compressed air continues toward downstream equipment.
The supplied specification identifies 23708423 as the associated part number. The specified outer diameter is 240 mm, with a product weight of approximately 4.9 kg.
Because separator dimensions, sealing arrangements, pressure characteristics, and internal construction can vary between compressor models, the 47704435001 / 23708423 separator should always be matched to the applicable equipment before installation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Ingersoll Rand |
| Product / Part Number | 47704435001 |
| Associated Part Number | 23708423 |
| Product Type | Air-Oil Separator |
| Primary Function | Separation of oil from compressed air |
| Application | Oil-injected compressor systems |
| Separation Medium | Compressed air / lubrication oil mixture |
| Outer Diameter | 240 mm |
| Weight | 4.9 kg |
| Installation | Separator vessel / compressor assembly |
| Mounting | Equipment-specific separator housing |
| Maintenance Category | Service / replacement component |
| Operating Environment | Industrial compressor environment |
| Service Application | Compressor maintenance and replacement |
Function and Working Principle
The main purpose of the Ingersoll Rand 47704435001 23708423 Air-Oil Separator is to separate lubrication oil from compressed air after the air and oil have been mixed during the compression process.
A simplified process can be represented as:
Ambient Air → Compression Element → Air/Oil Mixture → Separator → Compressed Air Outlet
At the same time, separated oil follows a return path:
Separator → Oil Return Circuit → Compressor Lubrication System
During compression, oil is introduced into the compression system to provide lubrication, cooling, and sealing. This produces a mixture of compressed air and oil.
The separator provides a controlled environment in which oil droplets and aerosols can be separated from the compressed air.
The separated oil can then be returned to the compressor’s lubrication circuit, while the treated compressed air proceeds to the downstream air system.
This separation process is important for several reasons:
- Reduces oil carryover
- Supports oil recovery
- Helps maintain lubrication efficiency
- Protects downstream compressed-air equipment
- Supports compressor performance
- Helps maintain proper oil levels
- Reduces contamination of the compressed-air system
The separator therefore performs a critical function within an oil-injected compressor.
Role in Industrial Compressor Systems
The air-oil separator is one of the key components of an oil-injected rotary screw compressor system.
A typical system may contain:
- Air Filter
- Intake Valve
- Compressor Element
- Oil Injection System
- Air-Oil Separator
- Oil Filter
- Oil Cooler
- Air Cooler
- Minimum Pressure Valve
- Oil Return Line
- Pressure Sensors
- Temperature Sensors
- Controller
- Compressed-Air Outlet
The separator works together with the oil filter and oil-return system.
After the compression element produces an air-oil mixture, the mixture enters the separation system. The separator removes a significant portion of the oil from the compressed air. The recovered oil is returned to the lubrication circuit, while the compressed air continues downstream.
This process allows the compressor to reuse lubrication oil instead of continuously losing it with the compressed-air output.
Industrial Applications
The Ingersoll Rand 47704435001 / 23708423 air-oil separator is intended for compatible industrial compressor applications.
Industrial Manufacturing
Factories rely on compressed air for pneumatic tools, actuators, production equipment, instrumentation, and automated machinery. Stable compressor operation is therefore essential.
Automotive Manufacturing
Automotive production plants use compressed air throughout assembly, painting, tooling, and automation processes. Effective oil separation helps maintain compressed-air quality.
Packaging Equipment
Packaging machinery frequently uses pneumatic cylinders, valves, and actuators. Proper compressor operation helps maintain stable pneumatic performance.
Process Industries
Oil-injected compressors can be used in a wide variety of industrial process applications. Separator maintenance is an important part of compressor reliability.
General Plant Utilities
Compressed air is often treated as a plant utility. A properly maintained separator helps maintain compressor performance and control oil carryover.
Continuous-Duty Compressor Systems
Compressors operating for long periods place significant demands on filtration and separation components. Regular separator inspection and replacement can therefore be an important part of preventive maintenance.
Installation and Maintenance
Correct installation of the 47704435001 / 23708423 Air-Oil Separator is critical because the separator operates within a pressurized compressor system.
Before replacement, maintenance personnel should verify:
- Compressor model
- Correct separator part number
- Separator dimensions
- Outer diameter
- Sealing arrangement
- Separator housing
- Gasket or O-ring condition
- Oil condition
- Separator vessel condition
- Maintenance interval
Basic Replacement Procedure
- Shut down the compressor according to the approved maintenance procedure.
- Isolate the compressor from electrical and pneumatic energy sources.
- Allow the equipment to cool to a safe maintenance temperature.
- Fully relieve applicable internal pressure.
- Verify that the separator vessel is safe to open.
- Access the air-oil separator assembly.
- Remove the existing separator according to the equipment maintenance procedure.
- Inspect the separator housing.
- Clean the sealing surfaces as required.
- Inspect gaskets, O-rings, fittings, and related sealing components.
- Compare the replacement separator with the removed component.
- Install the new 47704435001 / 23708423 separator correctly.
- Ensure that all sealing components are correctly positioned.
- Secure the separator according to the equipment specifications.
- Reconnect the oil-return and related connections.
- Restore the equipment to service.
- Start the compressor under controlled conditions.
- Check for oil or air leakage.
- Monitor operating pressure and temperature.
- Check oil carryover and compressor operating condition.
- Record the maintenance activity.
Because separator assemblies operate under pressure, maintenance should only be performed after the equipment has been properly shut down, isolated, and depressurized.
Air-Oil Separator Maintenance Considerations
Separator performance can gradually change as the component accumulates contamination or becomes restricted.
Maintenance personnel should monitor:
- Separator differential pressure
- Oil carryover
- Compressor operating pressure
- Oil consumption
- Oil level
- Compressor temperature
- Separator age
- Equipment operating hours
- Abnormal pressure behavior
An increase in differential pressure may indicate that the separator is becoming restricted.
Excessive oil carryover can also indicate a problem with the separator or another part of the compressor system.
However, oil carryover should not automatically be attributed to a defective separator. Other possible causes can include:
- Incorrect oil level
- Blocked oil-return line
- Damaged seals
- Incorrect operating conditions
- Contaminated oil
- Compressor-system problems
- Incorrect separator installation
A complete system diagnosis is therefore recommended when abnormal oil carryover occurs.
Compatible System Components
The air-oil separator works together with several other components within an oil-injected compressor system.
| Component | Function |
|---|---|
| Air-Oil Separator | Separates oil from compressed air |
| Compressor Element | Compresses incoming air |
| Air Filter | Removes contaminants from intake air |
| Oil Filter | Removes contaminants from circulating oil |
| Oil Cooler | Controls lubrication oil temperature |
| Air Cooler | Reduces compressed-air temperature |
| Oil Return Line | Returns separated oil to the compressor |
| Minimum Pressure Valve | Maintains required system pressure |
| Intake Valve | Controls compressor air intake |
| Oil Reservoir | Stores and circulates lubrication oil |
| Pressure Sensor | Monitors system pressure |
| Temperature Sensor | Monitors operating temperature |
| Compressor Controller | Controls and monitors compressor operation |
The exact component configuration depends on the specific Ingersoll Rand compressor model.
Recommended Alternative Models
The following related components and product categories may be considered when evaluating compressor separation and filtration requirements. They are not automatically direct replacements for the 47704435001 / 23708423.
| Model / Series | Type | Key Feature | Application |
|---|---|---|---|
| Ingersoll Rand 47704435001 / 23708423 | Air-Oil Separator | Compressed-air and oil separation | Compatible compressor systems |
| Ingersoll Rand Separator Series | Air-Oil Separator | Oil carryover control | Oil-injected compressors |
| Ingersoll Rand Oil Filter Series | Oil Filter | Lubrication oil filtration | Compressor maintenance |
| Ingersoll Rand Air Filter Series | Air Filter | Intake air filtration | Compressor intake systems |
| Ingersoll Rand Oil Cooler Series | Oil Cooler | Oil temperature control | Compressor systems |
| Ingersoll Rand Air Cooler Series | Air Cooler | Compressed-air cooling | Industrial compressors |
| Ingersoll Rand Oil Return Components | Oil Return Assembly | Separated-oil recovery | Compressor lubrication systems |
When selecting an alternative separator, engineers should verify the compressor model, separator part number, outer diameter, height, sealing arrangement, pressure requirements, filtration/separation characteristics, and housing configuration.
Key Advantages
- Designed for air-oil separation in compatible compressor systems
- Helps reduce oil carryover into compressed-air lines
- Supports recovery of separated lubrication oil
- Helps maintain compressor lubrication efficiency
- Supports stable compressor operation
- Helps protect downstream compressed-air equipment
- Suitable for industrial oil-injected compressors
- Outer diameter of 240 mm
- Product weight of approximately 4.9 kg
- Associated with part number 23708423
- Suitable for preventive maintenance programs
- Useful for compressor service and replacement
- Supports long-term compressor reliability
Technical FAQs
What is the Ingersoll Rand 47704435001 23708423?
The Ingersoll Rand 47704435001 / 23708423 is an Air-Oil Separator designed for compatible oil-injected compressor systems.
What is the main function of an air-oil separator?
Its primary function is to separate lubrication oil from compressed air after the compression process.
Why is oil separation important?
Oil separation allows recovered lubrication oil to return to the compressor system while reducing oil carryover into the compressed-air outlet.
What is the outer diameter of the separator?
The specified outer diameter is 240 mm.
How much does the separator weigh?
The specified product weight is approximately 4.9 kg.
What happens when an air-oil separator becomes restricted?
A restricted separator can increase differential pressure and may affect compressor operating conditions. The appropriate maintenance action depends on the equipment’s diagnostic information and service requirements.
What can cause excessive oil carryover?
Possible causes include a worn or restricted separator, blocked oil-return line, incorrect oil level, contaminated oil, incorrect operating conditions, or other compressor-system problems.
How often should the separator be replaced?
Replacement intervals depend on the specific compressor model, operating hours, oil condition, environmental conditions, and applicable maintenance requirements.
Can another separator with the same outer diameter be used?
Not necessarily. Outer diameter alone does not establish compatibility. Height, sealing configuration, internal construction, pressure characteristics, connection design, and compressor requirements must also be verified.
What should be checked before installing the separator?
Maintenance personnel should verify the compressor model, part number, separator dimensions, housing configuration, sealing components, oil-return circuit, and applicable maintenance specifications.
Is the separator a pressure-containing component?
The separator operates within a pressurized compressor separation system. Maintenance must therefore be performed only after proper shutdown, isolation, and depressurization.
Conclusion
The Ingersoll Rand 47704435001 23708423 Air-Oil Separator is an important component in compatible oil-injected compressor systems. Its primary function is to separate lubrication oil from compressed air after the compression process, allowing recovered oil to return to the lubrication circuit while helping reduce oil carryover into the compressed-air system.
The supplied specification identifies an outer diameter of 240 mm and a product weight of approximately 4.9 kg. The associated 23708423 part number provides an additional identification reference when selecting the correct replacement component.
Effective air-oil separation contributes to compressor efficiency, lubrication management, compressed-air quality, and long-term equipment reliability. However, separator performance depends on the complete compressor system, including the oil filter, oil-return circuit, separator housing, oil level, operating pressure, and temperature.
For maintenance engineers and industrial equipment operators, correct part-number identification is essential before replacement. The 47704435001 / 23708423 designation, compressor model, separator dimensions, sealing arrangement, and system requirements should all be verified before installation.
Regular inspection and timely replacement of the air-oil separator can help control oil carryover, maintain efficient oil recovery, and support reliable long-term operation of compatible Ingersoll Rand compressor systems.
