Product Overview

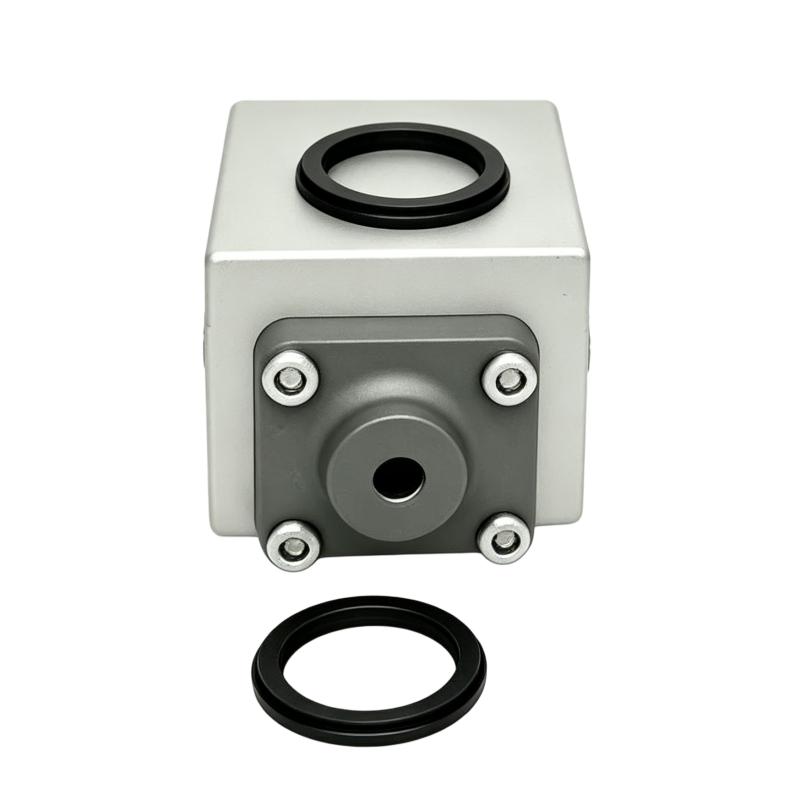

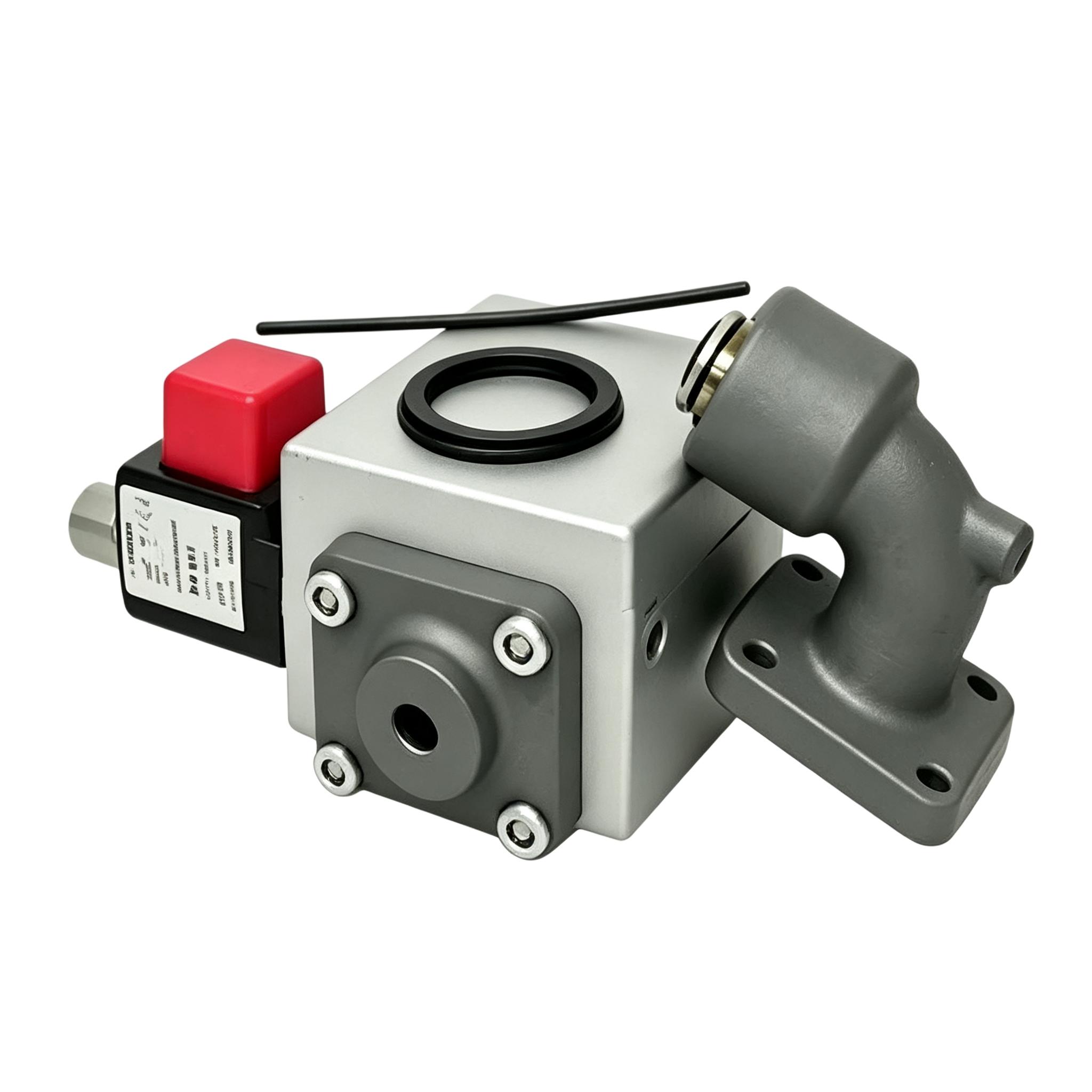

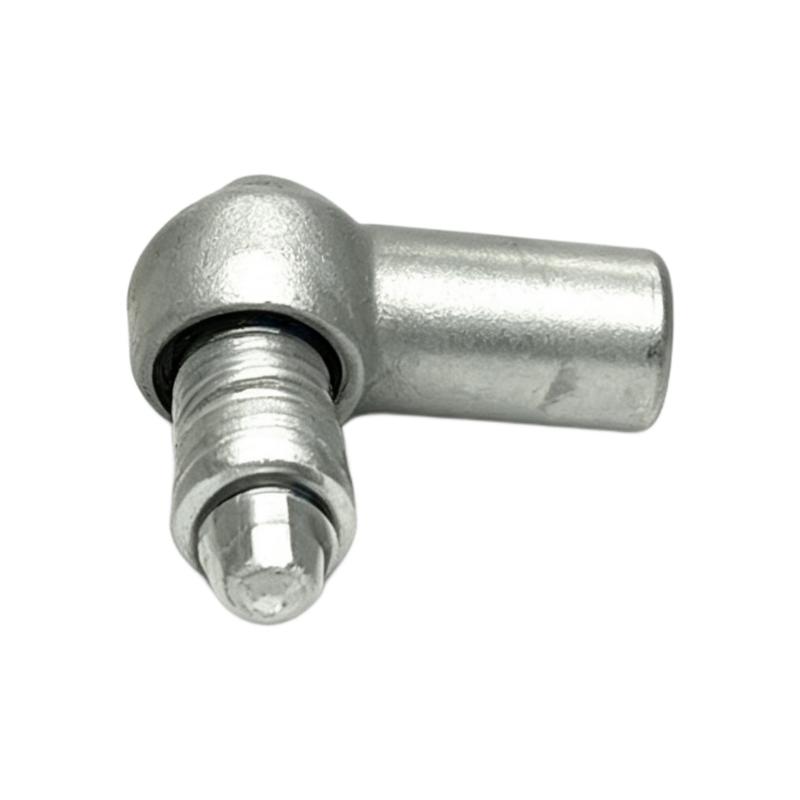

The Ingersoll Rand 47704432001 47704440001 Intake Valve Maintenance Kit is a maintenance replacement kit designed for servicing the intake valve assembly of compatible industrial air compressor systems. The intake valve plays an important role in controlling the amount of air entering the compressor during loading, unloading, and capacity-control operations.
A properly functioning intake valve helps maintain the compressor’s expected operating sequence. When the valve becomes contaminated, worn, damaged, or unable to respond correctly, the compressor may experience symptoms such as unstable loading, reduced air delivery, excessive unloading, abnormal pressure behavior, or increased energy consumption.
The maintenance kit provides replacement components intended to support scheduled service and restoration of the intake valve assembly. For maintenance teams, using a dedicated service kit can simplify component replacement and help reduce the risk of retaining worn sealing or valve components during compressor maintenance.
The supplied dimensions for the 47704440001 kit are 100 × 15 × 80 mm, with a supplied weight of 0.4 kg. Because the kit contains service components rather than a complete compressor assembly, the actual contents and installation arrangement should be confirmed against the equipment configuration being serviced.
Product Identification
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Main Reference | 47704432001 |
| Maintenance Kit Part Number | 47704440001 |
| Product Type | Intake Valve Maintenance Kit |
| Application | Air Compressor Maintenance |
| Primary Function | Intake Valve Servicing |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.4 kg |
| Installation | Compressor Intake Valve Assembly |
| Maintenance Type | Preventive / Corrective Maintenance |
| Typical Equipment | Industrial Air Compressors |
Technical Specifications
| Technical Item | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Reference | 47704432001 |
| Kit Number | 47704440001 |
| Component Category | Intake Valve Service Kit |
| Application Area | Compressor Air Intake System |
| Service Function | Intake Valve Maintenance |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.4 kg |
| Installation Location | Compressor Intake Valve |
| Maintenance Purpose | Restoration of Valve Performance |
| Typical Use | Scheduled Compressor Service |
What Is an Intake Valve?
An intake valve is an important component in many compressor control systems. It regulates or controls the flow of atmospheric air into the compressor’s compression element.
During normal compressor operation, the intake valve works together with the compressor control system to manage loading and unloading.
A simplified operating sequence is:
Ambient Air
↓
Intake Filter
↓
Intake Valve
↓
Compressor Air End
↓
Air/Oil Separation
↓
Compressed Air System
The intake valve therefore directly influences compressor loading behavior and overall air production.
Function of the 47704440001 Maintenance Kit
The 47704440001 Intake Valve Maintenance Kit is intended to support servicing of a compatible intake valve assembly.
Depending on the specific compressor configuration and service requirement, maintenance of the intake valve may involve replacement of worn service components such as:
- Sealing elements
- Valve-related wear components

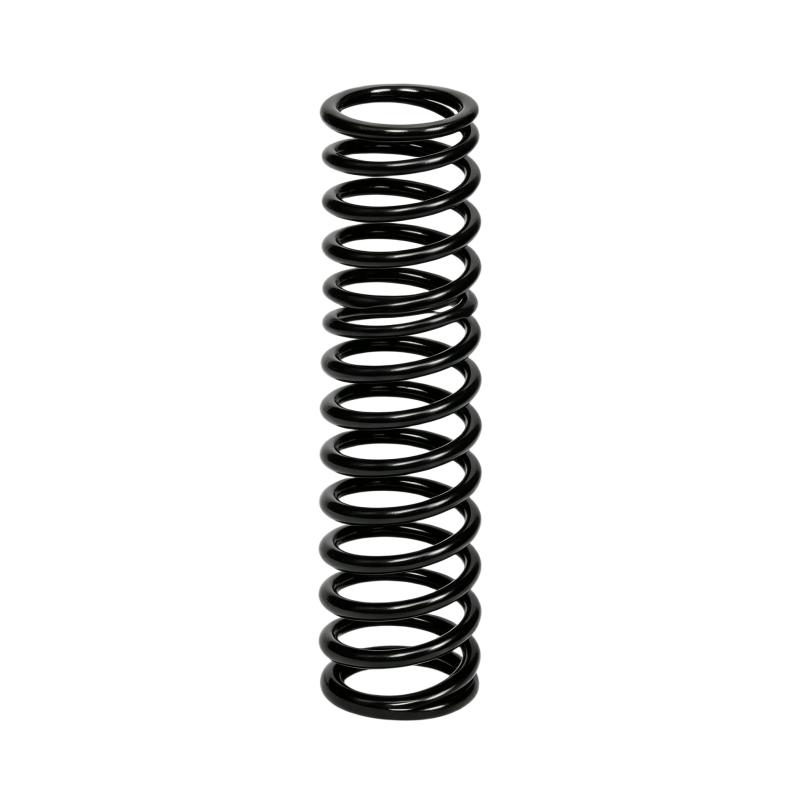

- Springs
- Small hardware
- Gaskets
- Other service components
The exact kit contents should be verified before installation rather than assuming that every compressor configuration uses identical internal components.
Why Intake Valve Maintenance Matters
The intake valve operates as part of the compressor’s capacity-control system. If it does not move correctly, seal correctly, or respond to the control system as intended, compressor operation may become unstable.
Potential consequences include:
- Difficult loading
- Delayed unloading
- Excessive unloading
- Reduced air delivery
- Pressure instability
- Increased power consumption
- Abnormal compressor cycling
- Increased mechanical wear
Regular maintenance can help identify deterioration before it develops into a larger compressor problem.
Typical Applications
The maintenance kit can be used as part of maintenance programs for compatible Ingersoll Rand industrial compressor equipment.
Typical applications include:
Factory Air Systems
Compressed air is commonly used for:
- Pneumatic cylinders
- Control valves
- Assembly equipment
- Production machinery
- Instrument air
A reliable compressor intake system helps maintain stable plant air production.
Process Air Systems
Process compressors may operate for extended periods and therefore require scheduled inspection of critical control components.
Workshop Compressors
Industrial workshops may depend on compressed air for tools, cleaning, automation, and machinery.
Continuous-Duty Compressor Installations
Compressors operating continuously can place significant operating hours on intake control components, making preventive maintenance particularly important.
Installation Guide
1. Confirm the Compressor Model
Before ordering or installing the kit, verify:
- Compressor model
- Compressor serial number
- Intake valve configuration
- Existing valve assembly
- Maintenance kit number
- Service documentation
The reference 47704432001 / 47704440001 should be checked against the actual equipment configuration.
2. Prepare the Compressor
Before maintenance:
- Stop the compressor.
- Isolate the electrical supply.
- Prevent accidental startup.
- Isolate the compressed-air system.
- Relieve internal pressure.
- Allow hot components to cool.
- Confirm the equipment is safe to service.
Never begin intake-valve maintenance while the compressor is energized or pressurized.
3. Inspect the Existing Intake Valve
Before removing components, inspect the intake valve for:
- Dirt
- Oil contamination
- Damaged seals
- Corrosion
- Cracked components
- Broken springs
- Abnormal wear
- Restricted movement
Record the condition of the original components before disassembly.
4. Clean the Work Area
Intake-valve components can be sensitive to contamination.
Before opening the assembly:
- Clean the surrounding area.
- Prevent dust from entering the intake system.
- Prepare a clean work surface.
- Organize removed components.
- Protect open compressor passages.
Avoid introducing lint, metal particles, or other foreign material into the compressor.
5. Remove the Existing Valve Components
Follow the compressor-specific maintenance procedure.
Carefully remove:
- Retaining hardware
- Valve components
- Seals
- Springs
- Gaskets
- Other service parts
Keep removed parts organized so that their positions can be identified during inspection.
6. Inspect Mating Surfaces
Inspect:
- Valve body
- Valve seat
- Contact surfaces
- Threads
- Mounting surfaces
- Moving components
Look for:
- Scratches
- Pitting
- Excessive wear
- Cracks
- Deformation
- Corrosion
Do not install new service components onto a severely damaged valve body without evaluating the complete assembly.
7. Compare Replacement Components
Before installation, compare the new kit components with the removed parts.
Verify:
- Dimensions
- Shape
- Quantity
- Sealing surfaces
- Springs
- Hardware
- Gaskets
Do not force a component into position if it does not fit correctly.
8. Install New Service Components
Install the replacement components according to the applicable compressor maintenance procedure.
Pay particular attention to:
- Seal orientation
- Spring position
- Valve movement
- Gasket placement
- Retaining hardware
Incorrect orientation can cause abnormal valve operation.
9. Check Valve Movement
After assembly, manually verify the appropriate valve movement where permitted by the equipment design.
The valve should move smoothly without:
- Binding
- Excessive friction
- Abnormal looseness
- Mechanical obstruction
10. Reassemble the Intake System
Reconnect all removed components.
Check:
- Fasteners
- Seals
- Connections
- Intake piping
- Control lines
- Electrical connections where applicable
Fasteners should be tightened according to the applicable equipment service specification.
11. Inspect the Intake Filter
Because the intake valve is directly downstream of the intake system, inspect the intake filter at the same time.
A restricted filter can create abnormal intake conditions even when the valve itself is properly serviced.
12. Initial Start-Up
After completing maintenance:
- Confirm all tools are removed.
- Confirm guards are installed.
- Confirm the compressor is correctly reassembled.
- Restore power.
- Start the compressor under controlled conditions.
- Observe loading behavior.
- Observe unloading behavior.
- Monitor pressure and temperature.
Commissioning Verification
After replacing the intake valve service components, verify:
Loading
The compressor should transition into the loaded condition without excessive delay or abnormal noise.
Unloading
The compressor should respond correctly when unloading is commanded.
Pressure
Monitor discharge pressure for abnormal fluctuations.
Current
Check compressor motor current for unusual changes.
Temperature
Verify that operating temperatures remain within the expected range.
Noise
Listen for:
- Valve chatter
- Air leakage
- Mechanical vibration
- Abnormal compressor noise
Troubleshooting Guide
Compressor Will Not Load
Possible causes include:
- Intake valve incorrectly assembled
- Damaged valve component
- Incorrect seal installation
- Control signal problem
- Control air problem
- Intake restriction
- Compressor control-system fault
Begin by checking whether the intake valve physically responds to the load command.
Compressor Loads Slowly
Possible causes:
- Restricted intake filter
- Intake valve sticking
- Incorrectly installed seal
- Valve contamination
- Control-system delay
- Mechanical wear
Inspect the complete intake path rather than replacing the valve components repeatedly.
Compressor Does Not Unload
Possible causes include:
- Intake valve not closing correctly
- Damaged sealing component
- Control signal failure
- Control air problem
- Valve contamination
- Incorrect assembly
Verify the control sequence before disassembling the compressor again.
Compressor Cycles Excessively
Frequent loading and unloading can be caused by:
- Incorrect pressure settings
- System demand fluctuations
- Intake valve malfunction
- Control-system problems
- Air leakage
- Insufficient receiver capacity
Do not assume that the intake valve is the only possible cause.
Reduced Air Delivery
Potential causes include:
- Restricted intake filter
- Intake valve not fully opening
- Valve leakage
- Air-end wear
- Separator restriction
- Downstream system restriction
Compare compressor operating conditions before and after maintenance.
Excessive Air Leakage
Inspect:
- Valve seals
- Gaskets
- Connections
- Intake piping
- Valve seating surfaces
A damaged or incorrectly installed seal can cause significant leakage.
Abnormal Intake Noise
Possible causes:
- Valve vibration
- Incorrect valve assembly
- Loose components
- Intake restriction
- Damaged valve components
- Foreign material
Stop the compressor if the noise indicates possible mechanical damage.
Oil Carryover Appears Abnormal
Oil carryover is not necessarily caused by the intake valve.
Investigate:
- Separator condition
- Oil level
- Operating pressure
- Air-end condition
- Oil return system
- Compressor operating conditions
Avoid replacing the intake valve unnecessarily without confirming the fault.
Compressor Overheats
Possible causes include:
- Restricted airflow
- High ambient temperature
- Dirty cooler
- Excessive operating load
- Inadequate ventilation
- Compressor control problem
The intake valve should only be considered one part of the overall troubleshooting process.
Valve Becomes Stuck
Possible causes:
- Contamination
- Corrosion
- Damaged seal
- Mechanical deformation
- Improper assembly
- Excessive wear
Remove the valve and inspect the complete moving mechanism.
Preventive Maintenance
Intake System Inspection
Regularly inspect:
- Intake filter
- Intake valve
- Valve seals
- Control lines
- Intake piping
Valve Condition
Look for:
- Wear
- Corrosion
- Contamination
- Cracks
- Sticking
- Abnormal movement
Compressor Operating Data
Monitor:
- Load/unload frequency
- Discharge pressure
- Motor current
- Operating temperature
- Air delivery
- Compressor runtime
Changes in these parameters can provide early indications of control or mechanical problems.
Maintenance Replacement Checklist
| Inspection Item | Verification |
|---|---|
| Compressor Model | Confirmed |
| Serial Number | Confirmed |
| Main Reference | 47704432001 |
| Maintenance Kit | 47704440001 |
| Kit Dimensions | 100 × 15 × 80 mm |
| Kit Weight | 0.4 kg |
| Compressor Isolated | Completed |
| Pressure Released | Completed |
| Intake Valve Inspected | Completed |
| Existing Components Removed | Completed |
| Replacement Components Verified | Completed |
| Seals Installed Correctly | Verified |
| Valve Movement Checked | Completed |
| Intake Filter Inspected | Completed |
| Compressor Reassembled | Completed |
| Load Test | Completed |
| Unload Test | Completed |
Compatible Maintenance Components
The intake valve service procedure may involve other compressor components depending on the specific machine configuration.
| Component | Function |
|---|---|
| Intake Valve Assembly | Controls Compressor Air Intake |
| Intake Filter | Removes Contaminants From Incoming Air |
| Air-Oil Separator | Separates Oil From Compressed Air |
| Minimum Pressure Valve | Maintains System Pressure |
| Temperature Control Valve | Manages Oil Temperature |
| Oil Filter | Removes Contaminants From Compressor Oil |
| Compressor Air End | Produces Compressed Air |
| Control System | Manages Compressor Operating Modes |
Compatibility should always be verified using the compressor’s actual model and configuration.
Key Advantages
Dedicated Maintenance Solution
The 47704440001 kit provides a convenient approach to servicing the compatible intake valve assembly.
Supports Compressor Reliability
Replacing worn service components can help restore proper intake-valve operation and reduce the likelihood of control-related compressor problems.
Helps Maintain Loading Performance
A properly serviced intake valve supports predictable compressor loading and unloading.
Compact Service Package
The supplied kit dimensions are only 100 × 15 × 80 mm, with a supplied weight of 0.4 kg, making it convenient to store as a maintenance spare.
Preventive Maintenance Friendly
The kit can be incorporated into scheduled compressor maintenance programs where intake-valve service is required.
Frequently Asked Questions
What is Ingersoll Rand 47704440001?
It is an Intake Valve Maintenance Kit associated with the supplied reference 47704432001, intended for servicing compatible compressor intake-valve assemblies.
What are the dimensions of the kit?
The supplied dimensions are:
100 × 15 × 80 mm
What is the weight?
The supplied weight is:
0.4 kg
What does the intake valve do?
The intake valve regulates the flow of air entering the compressor and participates in compressor loading and unloading control.
Why does an intake valve require maintenance?
Continuous operation can cause seals and mechanical components to wear, become contaminated, or lose their ability to move and seal correctly.
What are common symptoms of an intake valve problem?
Typical symptoms can include:
- Failure to load
- Slow loading
- Failure to unload
- Unstable compressor operation
- Reduced air delivery
- Abnormal intake noise
- Increased energy consumption
Should the intake filter be inspected during valve maintenance?
Yes. A restricted intake filter can produce symptoms similar to an intake-valve problem and should be checked as part of the intake-system inspection.
Can the maintenance kit be used on any Ingersoll Rand compressor?
No. Compatibility must be confirmed against the actual compressor model, serial number, valve configuration, and applicable parts documentation.
What should be checked after installation?
Verify valve movement, compressor loading, unloading, pressure stability, motor current, temperature, noise, and overall operating behavior.
Conclusion
The Ingersoll Rand 47704432001 47704440001 Intake Valve Maintenance Kit is a practical service component for maintaining the intake-valve system of compatible industrial air compressors. The intake valve has a direct influence on compressor loading, unloading, airflow management, and overall operating stability, making its condition important to both compressor performance and maintenance reliability.
With supplied dimensions of 100 × 15 × 80 mm and a weight of 0.4 kg, the kit is compact enough for convenient maintenance inventory while providing the replacement components required for an appropriate intake-valve service procedure.
For best results, maintenance should be performed with the compressor fully isolated, depressurized, and cooled. The existing valve should be inspected carefully before replacement components are installed. After assembly, valve movement, loading behavior, unloading response, pressure, temperature, motor current, and abnormal noise should all be checked.
When correctly matched to the compressor configuration and installed according to the applicable maintenance procedure, the 47704440001 Intake Valve Maintenance Kit can help restore reliable intake-valve operation and support stable performance of compatible Ingersoll Rand compressor systems.
