Product Overview

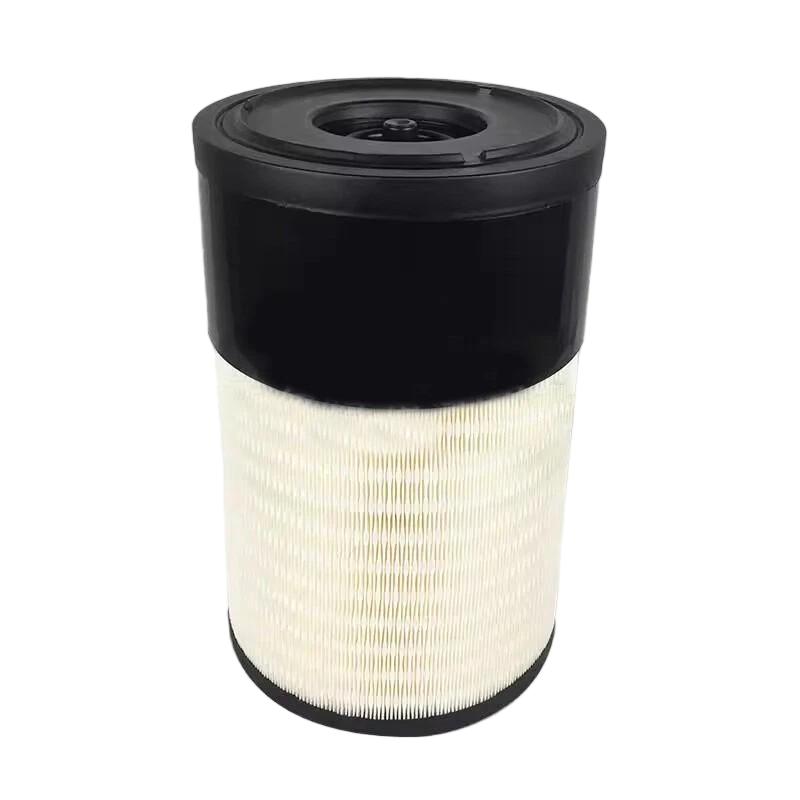

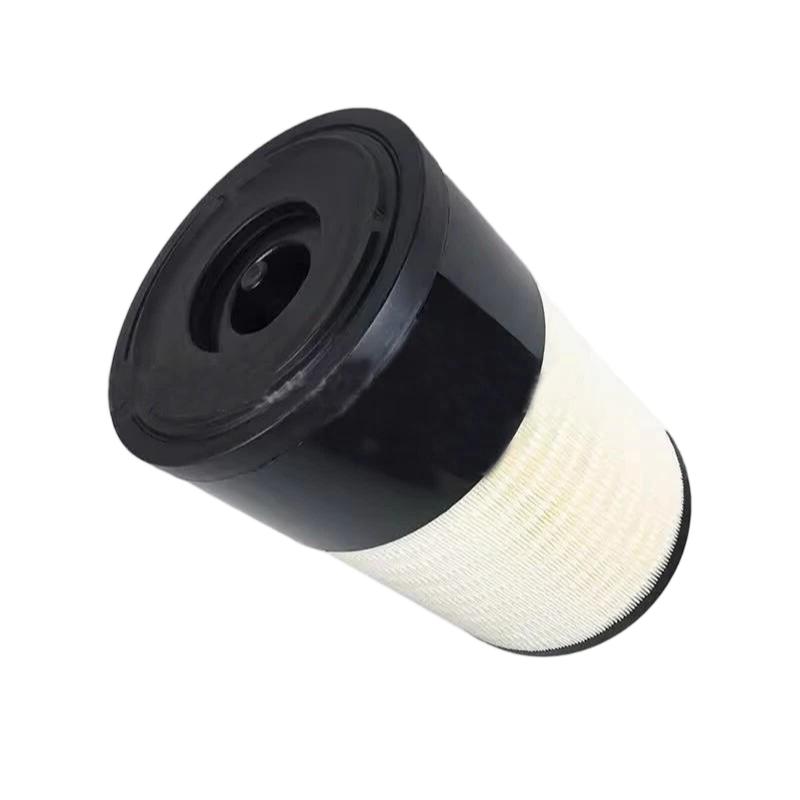

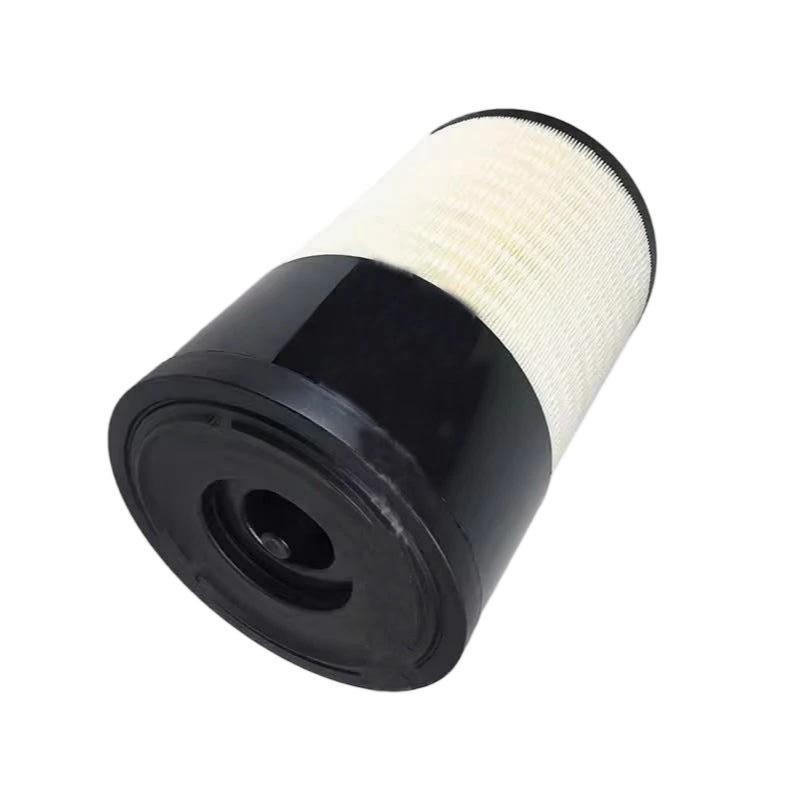

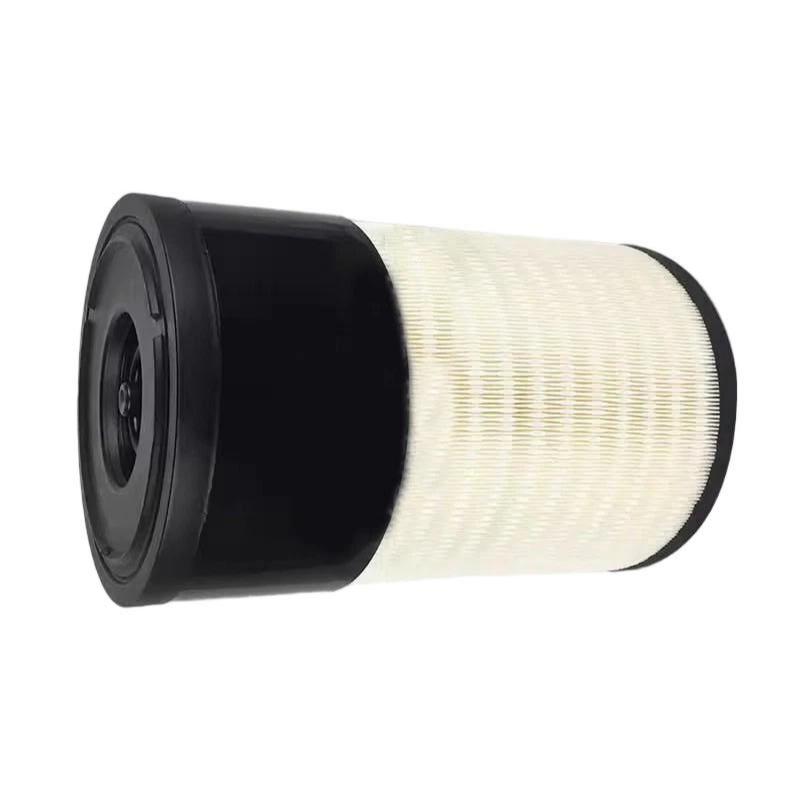

The Ingersoll Rand 47557738001 Air Filter is a high-performance replacement intake air filter designed for industrial rotary screw air compressors. Used in conjunction with compressor service kit 47704432001, this filter effectively removes airborne dust, dirt, moisture droplets, and other contaminants before they enter the compressor air end, helping to maintain clean intake airflow and protect critical internal components.

Clean intake air is essential for maximizing compressor efficiency, extending lubricant life, reducing component wear, and maintaining stable compressed air production. A clogged or damaged air filter can restrict airflow, increase energy consumption, elevate discharge temperatures, and shorten the service life of the compressor.

With overall dimensions of 212 × 345 × 132 mm and a weight of approximately 2.4 kg, the 47557738001 Air Filter is engineered for reliable performance in demanding industrial environments such as manufacturing plants, mining operations, chemical facilities, power stations, food processing plants, and automotive production lines.

Product Identification

Technical Specifications

Function and Working Principle

The primary function of the 47557738001 Air Filter is to prevent airborne contaminants from entering the compressor.

Operating sequence:

Ambient Air

↓

Air Filter

↓

Clean Intake Air

↓

Compressor Air End

↓

Compression Process

↓

Compressed Air System

As ambient air passes through the filter media, dust, dirt, sand, fibers, and other contaminants are trapped while clean air continues into the compressor. This reduces wear on the air end, improves compression efficiency, and helps maintain consistent system performance.

Importance in Compressor Systems

The intake air filter plays a critical role by:

• Preventing dust from entering the compressor
• Protecting rotors and bearings
• Reducing internal component wear
• Maintaining compressor efficiency
• Lowering maintenance costs
• Extending lubricant service life
• Improving compressed air quality
• Supporting long-term equipment reliability

Typical Industrial Applications

The 47557738001 Air Filter is suitable for compressors used in:

• Manufacturing plants
• Automotive production
• Metal fabrication
• Chemical processing
• Mining operations
• Cement plants
• Power generation
• Food processing
• Pharmaceutical production
• Textile factories
• Electronics manufacturing
• General industrial facilities

Installation Guide

1. Verify the Replacement Part

Before installation, confirm the replacement part number:

47557738001

Also verify compatibility with service kit:

47704432001

Using the correct replacement filter ensures proper airflow and sealing performance.

2. Prepare the Compressor

Before replacing the filter:

• Shut down the compressor.
• Disconnect electrical power.
• Relieve system pressure.
• Allow hot components to cool.
• Follow plant lockout/tagout procedures.

3. Inspect the New Filter

Before installation, inspect for:

• Damaged filter media
• Dented frame
• Torn sealing gasket
• Moisture contamination
• Shipping damage

Do not install a damaged filter element.

4. Remove the Old Filter

Open the intake filter housing according to compressor maintenance procedures.

Carefully remove the used filter while preventing accumulated dust from entering the intake duct.

5. Clean the Filter Housing

Inspect and clean:

• Housing interior
• Sealing surface
• Air inlet
• Dust accumulation
• Mounting components

Do not use compressed air to blow contaminants into the compressor intake.

6. Install the New Filter

Install the 47557738001 Air Filter in the correct orientation.

Verify:

• Proper seating
• Even gasket contact
• Correct airflow direction
• Secure housing closure

Avoid excessive force during installation.

7. Reassemble the Housing

Ensure:

• Cover is fully seated
• Fasteners are tightened evenly
• No air leakage paths exist
• Housing is securely closed

8. Restart the Compressor

Restore power and monitor:

• Intake airflow
• Pressure readings
• Noise level
• Air filter restriction indicators
• System performance

Preventive Maintenance

Routine maintenance helps maximize filter life and compressor efficiency.

Recommended inspections include:

Daily

• Check compressor intake area.
• Observe abnormal noise.
• Monitor restriction indicators if installed.

Weekly

• Inspect filter housing.
• Check for loose fasteners.
• Inspect intake ducting.

Monthly

• Examine the filter for excessive dust loading.
• Check sealing surfaces.
• Inspect surrounding intake environment.

Scheduled Service

Replace the filter according to:

• Operating hours
• Differential pressure
• Environmental conditions
• Manufacturer’s maintenance schedule

Do not continue operating with a heavily contaminated filter.

Troubleshooting Guide

Problem 1 — Reduced Compressor Capacity

Possible causes:

• Clogged air filter
• Restricted intake
• Dirty filter housing
• Blocked intake duct

Corrective action:

Inspect and replace the filter if necessary.

Problem 2 — High Energy Consumption

Possible causes:

• Excessive intake restriction
• Dirty filter media
• Airflow blockage

Restricted airflow forces the compressor to work harder, increasing power consumption.

Problem 3 — High Discharge Temperature

Possible causes:

• Insufficient intake airflow
• Blocked filter
• Poor ventilation
• Compressor overload

Check the intake filter before investigating other cooling components.

Problem 4 — Dust Found Inside Compressor

Possible causes:

• Torn filter media
• Improper installation
• Damaged gasket
• Incorrect replacement filter

Replace the damaged filter immediately and inspect internal components.

Problem 5 — Frequent Filter Clogging

Possible causes:

• Extremely dusty environment
• Damaged intake duct
• Poor installation location
• Inadequate maintenance interval

Consider shortening replacement intervals in severe environments.

Problem 6 — Air Filter Housing Leakage

Inspect:

• Housing cover
• Gasket
• Fasteners
• Mounting surfaces

Replace damaged sealing components.

Problem 7 — Compressor Noise Increases

Possible causes:

• Intake restriction
• Loose housing
• Air leakage
• Improper filter installation

Verify all mounting components.

Problem 8 — Short Filter Service Life

Possible causes:

• High dust concentration
• Moisture contamination
• Oil contamination
• Incorrect maintenance practices

Evaluate operating conditions and maintenance frequency.

Diagnostic Procedure

Recommended inspection sequence:

Ambient Air

↓

Air Intake

↓

Filter Housing

↓

47557738001 Air Filter

↓

Compressor Air End

↓

Compression System

↓

Discharge Performance

This systematic approach helps isolate intake-related problems efficiently.

Replacement Procedure

1. Stop the compressor.
2. Disconnect electrical power.
3. Release system pressure.
4. Open the filter housing.
5. Remove the old filter.
6. Clean the housing.
7. Inspect sealing surfaces.
8. Install the new 47557738001 Air Filter.
9. Reassemble the housing.
10. Restore power.
11. Start the compressor.
12. Verify normal airflow and operation.

Preventive Maintenance Checklist

Key Advantages

• High-efficiency intake air filtration
• Protects compressor air end components
• Reduces internal wear
• Maintains compressor performance
• Improves energy efficiency
• Extends lubricant service life
• Compact and durable construction
• Easy replacement during routine maintenance
• Suitable for demanding industrial environments
• Supports long-term compressor reliability

Frequently Asked Questions

What is the Ingersoll Rand 47557738001?

The 47557738001 is an industrial compressor intake air filter designed to remove airborne contaminants before air enters the compressor.

Which service kit includes this filter?

It is supplied as part of Ingersoll Rand service kit 47704432001.

What are the dimensions?

212 × 345 × 132 mm

What is the weight?

Approximately 2.4 kg.

What is the primary function of the filter?

To remove dust, dirt, and other airborne particles from intake air, protecting the compressor and maintaining efficient operation.

What happens if the filter becomes clogged?

A clogged filter can reduce airflow, decrease compressor efficiency, increase energy consumption, and raise operating temperatures.

Can the filter be cleaned and reused?

Maintenance practices depend on compressor operating conditions and maintenance procedures. In most industrial applications, replacement at scheduled service intervals is recommended to maintain optimal filtration performance.

How often should the filter be replaced?

Replacement intervals should be based on operating hours, environmental conditions, dust concentration, and the compressor’s preventive maintenance schedule.

What should be inspected during filter replacement?

Inspect the filter housing, sealing gasket, intake duct, mounting surfaces, and surrounding components to ensure a proper seal and unrestricted airflow.

Conclusion

The Ingersoll Rand 47557738001 Air Filter is a critical maintenance component for rotary screw air compressors, providing efficient intake air filtration that protects internal compressor components from dust and airborne contaminants. With dimensions of 212 × 345 × 132 mm and a weight of 2.4 kg, it is designed for dependable operation in demanding industrial environments.

Proper installation, routine inspection, and timely replacement help maintain compressor efficiency, reduce energy consumption, extend equipment life, and minimize unplanned downtime. Following a structured maintenance program and systematic troubleshooting approach ensures the air filtration system continues to deliver reliable performance throughout the compressor’s service life.
