- Ingersoll Rand
- 47704432001 24242398
- Filter Cartridge
- USA
- 130 × 35 × 100 mm
- 0.45 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

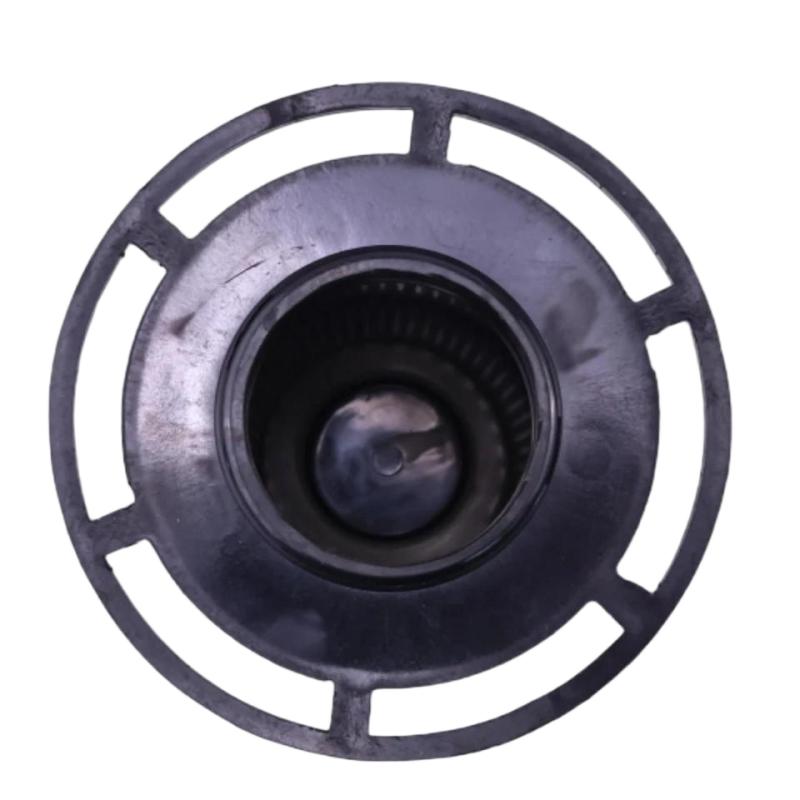

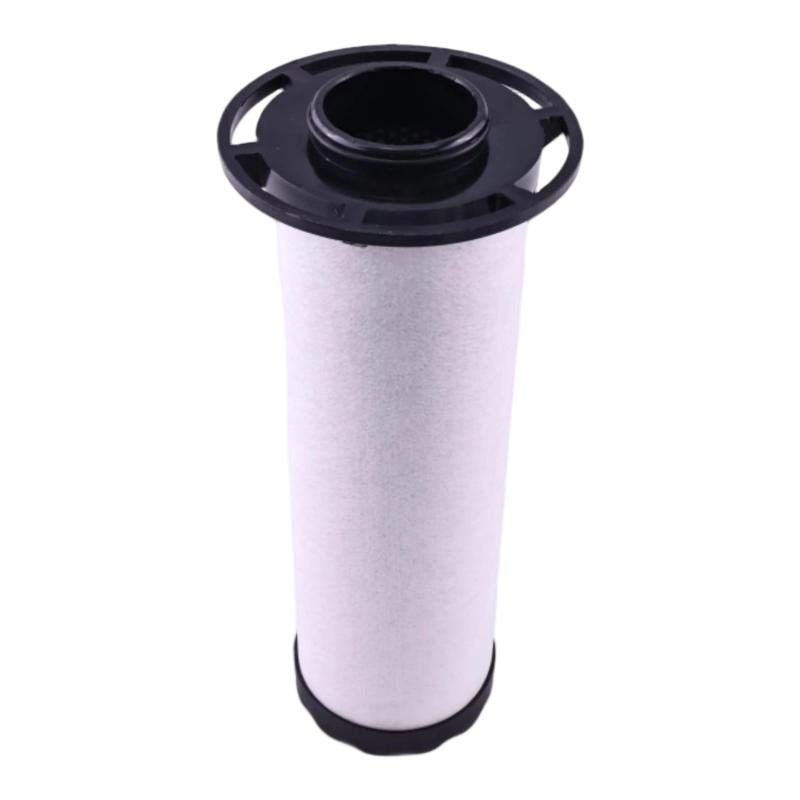

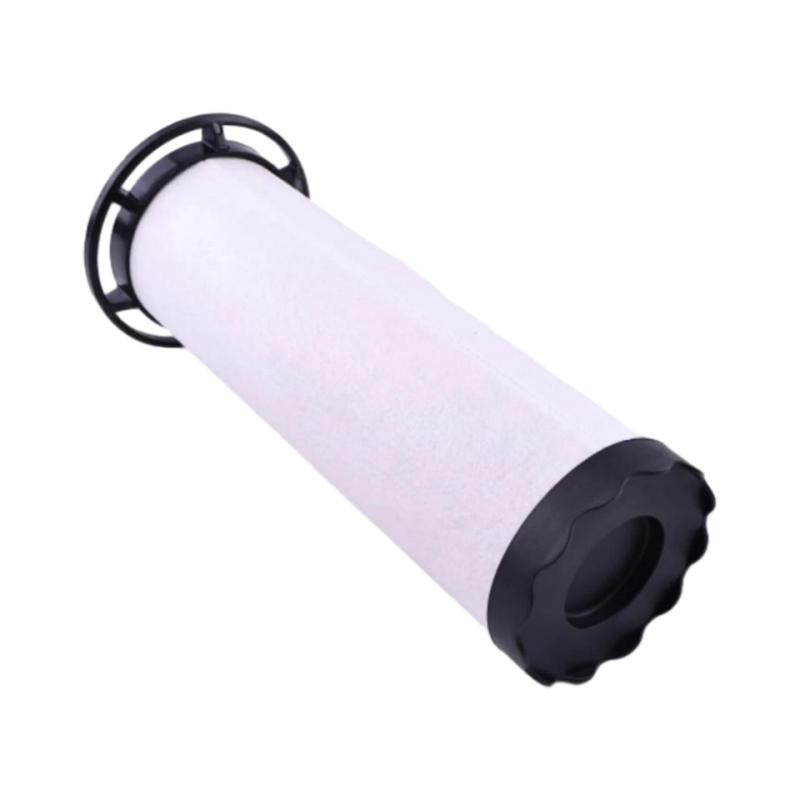

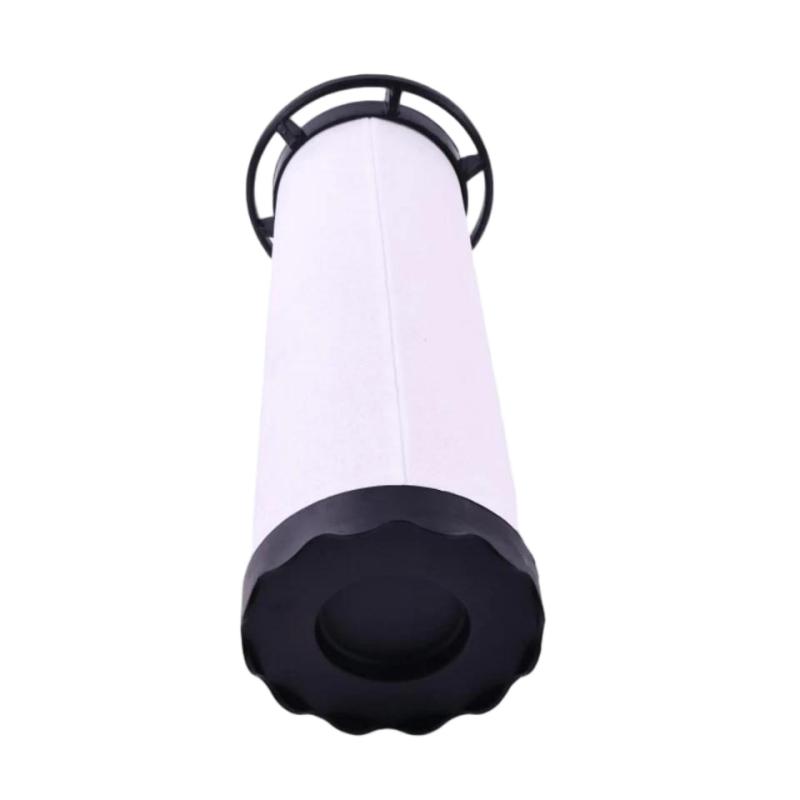

The Ingersoll Rand 47704432001 24242398 Filter Cartridge is an industrial compressor replacement component designed to support reliable filtration within compatible Ingersoll Rand compressed-air equipment. Filter cartridges are essential consumable components in compressor systems because they help remove contaminants from the relevant fluid or air stream and protect downstream components from particulate accumulation.
A filter cartridge that becomes heavily loaded with contaminants can gradually increase pressure drop, restrict flow, reduce system efficiency, and contribute to abnormal operating conditions. For this reason, filter condition should be considered part of routine compressor preventive maintenance rather than treated only as a corrective-maintenance item.
The supplied dimensions for the 24242398 filter cartridge are 130 × 35 × 100 mm, with a weight of 0.45 kg. Its compact form makes it convenient for maintenance inventory and scheduled replacement.
Because filtration arrangements vary between compressor models, the exact installation location, filtration medium, sealing arrangement, and service interval should always be confirmed against the specific compressor configuration before installation.
Product Identification
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Main Reference | 47704432001 |
| Filter Cartridge Part Number | 24242398 |
| Product Type | Filter Cartridge |
| Application | Industrial Compressor Maintenance |
| Primary Function | Filtration / Contaminant Removal |
| Dimensions | 130 × 35 × 100 mm |
| Weight | 0.45 kg |
| Installation | Compatible Compressor Filter Assembly |
| Maintenance Type | Preventive / Corrective Maintenance |
| Typical Equipment | Industrial Air Compressor Systems |
Technical Specifications
| Technical Item | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Reference | 47704432001 |
| Part Number | 24242398 |
| Component Category | Filter Cartridge |
| Application Area | Compressor Filtration System |
| Function | Contaminant Filtration |
| Dimensions | 130 × 35 × 100 mm |
| Weight | 0.45 kg |
| Installation Type | Replacement Cartridge |
| Maintenance Purpose | Restore Filtration Performance |
| Typical Use | Scheduled Compressor Service |
Filter Cartridge Function
A filter cartridge provides a controlled filtration barrier between a contaminated fluid stream and protected downstream components.
Depending on the compressor system and filter assembly in which the cartridge is installed, filtration may help control:
- Particulate contamination
- Dust
- Solid debris
- Oil-related contaminants
- Process contamination
The cartridge works as part of a larger filtration assembly rather than as an independent component.
A simplified filtration process is:
Contaminated Air / Fluid
↓
Filter Housing
↓
24242398 Filter Cartridge
↓
Filtered Air / Fluid
↓
Protected Downstream Components
The actual filtration purpose depends on the equipment configuration in which the cartridge is installed.
Why Filter Cartridge Maintenance Matters
Filter cartridges gradually accumulate contaminants during normal operation. As contamination increases, the pressure differential across the filter can rise.
A heavily loaded cartridge may result in:
- Increased pressure drop
- Reduced flow
- Higher compressor workload
- Reduced operating efficiency
- Increased temperature
- Poor downstream performance
- Unstable process operation
Replacing the cartridge at the appropriate maintenance interval helps maintain the intended filtration performance.
Typical Industrial Applications
The 24242398 Filter Cartridge can be incorporated into maintenance programs for compatible Ingersoll Rand compressor equipment.
Potential application environments include:
Manufacturing Plants
Compressed air systems supply:
- Pneumatic tools
- Automation equipment
- Control valves
- Production machinery
Process Industries
Clean and stable compressed-air systems can be important for:
- Instrumentation
- Process control
- Material handling
- Production equipment
Workshop Air Systems
Industrial workshops depend on compressed air for tools, cleaning, assembly, and machinery.
Continuous-Duty Compressor Systems
Continuous operation places greater demand on filtration components, making regular inspection and replacement particularly important.
Installation Guide
1. Verify Part Information
Before installation, confirm:
- Compressor model
- Compressor serial number
- Filter housing
- Existing cartridge
- Part number 24242398
- Main reference 47704432001
Do not install a cartridge based solely on physical similarity.
2. Prepare the Compressor
Before opening the filter assembly:
- Stop the compressor.
- Isolate electrical power.
- Prevent accidental startup.
- Isolate the relevant air or fluid circuit.
- Release stored pressure.
- Allow hot components to cool.
- Confirm the equipment is safe to service.
Never remove a pressurized filter housing.
3. Locate the Filter Assembly
Identify the filter housing associated with the cartridge.
Before removal, inspect:
- Housing condition
- Connections
- Seals
- Fasteners
- Pressure indicators
- Drain arrangements
Record any abnormal condition for later investigation.
4. Remove the Existing Cartridge
Open the filter housing according to the equipment service procedure.
Carefully remove the used cartridge.
Avoid:
- Dropping contaminants into the housing
- Damaging the housing
- Scratching sealing surfaces
- Allowing debris into downstream passages
Place the used filter in an appropriate container.
5. Inspect the Filter Housing
Before installing the new cartridge, inspect the housing for:
- Corrosion
- Cracks
- Dirt
- Oil deposits
- Damaged threads
- Damaged sealing surfaces
- Foreign material
Clean the housing using an appropriate maintenance procedure.
6. Inspect the Sealing Components
Check:
- O-rings
- Gaskets
- Sealing faces
- Retaining components
A new filter cartridge cannot compensate for a damaged housing seal.
Replace damaged sealing components when required by the equipment maintenance procedure.
7. Verify the New Cartridge
Compare the new 24242398 cartridge with the removed component.
Verify:
- Part number
- Overall dimensions
- End configuration
- Sealing arrangement
- Physical condition
The cartridge should be clean, dry, and free of visible damage.
8. Install the Filter Cartridge
Install the cartridge into the housing using the correct orientation.
Verify that:
- The cartridge is fully seated.
- Seals are correctly positioned.
- Retaining components are correctly installed.
- No foreign material is trapped inside the housing.
Do not force the cartridge into position.
9. Close the Filter Housing
Reinstall the housing cover and associated hardware.
Check:
- Correct alignment
- Proper sealing
- Fastener condition
- Connections
- Drain arrangement
Tighten components according to the applicable equipment service procedure.
10. Restore the System
After confirming that the filter housing is properly assembled:
- Remove tools.
- Confirm all connections are secure.
- Restore the relevant system isolation valves.
- Restore electrical power.
- Start the compressor according to normal operating procedures.
11. Check for Leakage
During initial operation, inspect the filter housing for:
- Air leakage
- Fluid leakage
- Abnormal vibration
- Seal extrusion
- Pressure abnormalities
Stop the equipment if significant leakage is detected.
Commissioning Verification
After installing the cartridge, monitor:
Pressure
Check for abnormal pressure drop across the filtration system.
Flow
Verify that the system achieves expected airflow or fluid flow.
Temperature
Monitor compressor and downstream operating temperatures.
Leakage
Inspect housing seals and connections.
Differential Pressure
Where differential-pressure monitoring is available, confirm that the filter operates within the expected range.
Troubleshooting Guide
Reduced Airflow
Possible causes include:
- Filter cartridge blockage
- Incorrect cartridge installation
- Intake or downstream restriction
- Contaminated filter housing
- Incorrect system configuration
First inspect the filter condition and pressure differential.
High Differential Pressure
A high pressure drop may indicate:
- Cartridge contamination
- Incorrect cartridge specification
- Excessive system flow
- Filter installation problem
- Restricted downstream piping
If the cartridge is heavily contaminated, replacement is normally required.
Filter Housing Leakage
Possible causes:
- Damaged O-ring
- Incorrect gasket installation
- Dirty sealing surface
- Loose housing
- Damaged housing
- Incorrect cartridge seating
Inspect the entire sealing interface.
Compressor Pressure Instability
A filter restriction can contribute to pressure problems, but other components should also be considered.
Inspect:
- Filter cartridge
- Intake system
- Pressure-control components
- Air receiver
- Downstream demand
- Compressor control system
Abnormal Temperature
Potential causes include:
- Restricted airflow
- Excessive filter pressure drop
- High ambient temperature
- Cooler contamination
- Compressor overload
- Ventilation problems
Check the filter together with the complete cooling and airflow system.
Filter Becomes Dirty Too Quickly
Rapid contamination may indicate:
- Excessive environmental dust
- Poor upstream filtration
- Damaged intake filter
- Incorrect operating conditions
- Contaminated process air
- Inadequate maintenance intervals
Instead of simply replacing the cartridge repeatedly, determine why contamination is occurring.
Downstream Contamination
If contaminants continue to appear downstream after cartridge replacement, inspect:
- Filter installation
- Seals
- Housing
- Bypass paths
- Downstream piping
- Other filtration stages
A damaged seal or bypass path can allow contaminated air or fluid to bypass the filter medium.
Unusual Noise After Replacement
Possible causes:
- Loose housing components
- Incorrect cartridge seating
- Air leakage
- Vibration
- Incorrect assembly
Stop the system if the noise suggests mechanical damage.
Preventive Maintenance
Routine Filter Inspection
Monitor:
- Differential pressure
- Airflow
- Compressor performance
- Filter condition
- Housing condition
Housing Maintenance
Regularly inspect:
- Sealing surfaces
- O-rings
- Threads
- Fasteners
- Corrosion
- Contamination
Operating Condition Monitoring
Record:
- Compressor runtime
- Load/unload cycles
- Operating pressure
- Temperature
- Filter differential pressure
Trend data can help identify filter degradation before it causes major operating problems.
Filter Replacement Checklist
| Inspection Item | Verification |
|---|---|
| Compressor Model | Confirmed |
| Serial Number | Confirmed |
| Main Reference | 47704432001 |
| Filter Cartridge | 24242398 |
| Cartridge Dimensions | 130 × 35 × 100 mm |
| Cartridge Weight | 0.45 kg |
| System Isolated | Completed |
| Pressure Released | Completed |
| Existing Cartridge Removed | Completed |
| Housing Inspected | Completed |
| Seals Inspected | Completed |
| New Cartridge Verified | Completed |
| Cartridge Installed | Completed |
| Housing Closed | Completed |
| Leakage Test | Completed |
| Pressure Drop Checked | Completed |
| Compressor Test Run | Completed |
Compatible Compressor Components
The filter cartridge normally operates as part of a larger compressor maintenance system.
| Component | Typical Function |
|---|---|
| Filter Housing | Holds Filter Cartridge |
| Filter Cartridge | Removes Contaminants |
| Intake Valve | Controls Compressor Air Intake |
| Air-Oil Separator | Separates Oil From Compressed Air |
| Minimum Pressure Valve | Maintains Minimum System Pressure |
| Temperature Control Valve | Regulates Oil Temperature |
| Oil Filter | Removes Contaminants From Compressor Oil |
| Compressor Air End | Produces Compressed Air |
Actual compatibility depends on the compressor model and installed configuration.
Key Advantages
Compact Replacement Component
The supplied 130 × 35 × 100 mm dimensions allow convenient storage as a maintenance spare.
Moderate Service Weight
At 0.45 kg, the cartridge can be handled easily during routine maintenance.
Supports Filtration Performance
A correctly installed replacement cartridge helps restore the filtration capacity of the associated filter assembly.
Helps Protect Downstream Equipment
Effective filtration reduces the potential for contaminants to reach downstream components.
Suitable for Preventive Maintenance
The cartridge can be incorporated into scheduled compressor maintenance programs based on operating hours, pressure differential, contamination level, and equipment requirements.
Frequently Asked Questions
What is Ingersoll Rand 24242398?
The 24242398 is a filter cartridge associated with the supplied 47704432001 reference for compatible Ingersoll Rand compressor equipment.
What are the dimensions of the filter cartridge?
The supplied dimensions are:
130 × 35 × 100 mm
What is the weight?
The supplied weight is:
0.45 kg
What is the function of a compressor filter cartridge?
It provides filtration to help remove contaminants from the applicable air or fluid stream and protect downstream compressor components.
What happens when a filter cartridge becomes blocked?
A blocked cartridge can create increased pressure drop, restricted flow, reduced efficiency, and abnormal compressor operating conditions.
How do I know when the cartridge needs replacement?
Useful indicators include excessive differential pressure, reduced flow, visible contamination, increased compressor workload, and the maintenance interval specified for the applicable equipment.
Should the filter housing be cleaned during replacement?
Yes. The housing and sealing surfaces should be inspected and cleaned as appropriate before installing the replacement cartridge.
Can this cartridge be installed in any Ingersoll Rand compressor?
No. Compatibility should be confirmed using the compressor model, serial number, existing filter assembly, and applicable maintenance documentation.
What should be checked after replacement?
Check filter seating, housing sealing, leakage, differential pressure, airflow, compressor temperature, and overall system performance.
Installation Checklist
| Item | Status |
|---|---|
| Correct Cartridge Identified | ✓ |
| Compressor Isolated | ✓ |
| Pressure Released | ✓ |
| Existing Cartridge Removed | ✓ |
| Housing Cleaned | ✓ |
| Seals Inspected | ✓ |
| Replacement Cartridge Verified | ✓ |
| Cartridge Correctly Installed | ✓ |
| Housing Secured | ✓ |
| Leakage Test Completed | ✓ |
| Differential Pressure Checked | ✓ |
| System Performance Verified | ✓ |
Conclusion
The Ingersoll Rand 47704432001 24242398 Filter Cartridge is an important maintenance component for compatible industrial compressor filtration systems. Proper filtration helps control contamination, maintain airflow, protect downstream equipment, and support stable compressor operation.
With supplied dimensions of 130 × 35 × 100 mm and a weight of 0.45 kg, the cartridge is compact and practical for routine maintenance inventory. Its replacement should be performed as part of a controlled compressor service procedure that includes system isolation, pressure release, housing inspection, seal inspection, correct cartridge installation, and post-maintenance leakage and performance testing.
Regular monitoring of pressure differential, airflow, operating temperature, and compressor performance can help maintenance personnel identify filter degradation early. When the 24242398 cartridge is correctly matched to the applicable compressor configuration and properly installed, it can contribute to reliable filtration and efficient long-term operation of the compressed-air system.
