Product Overview

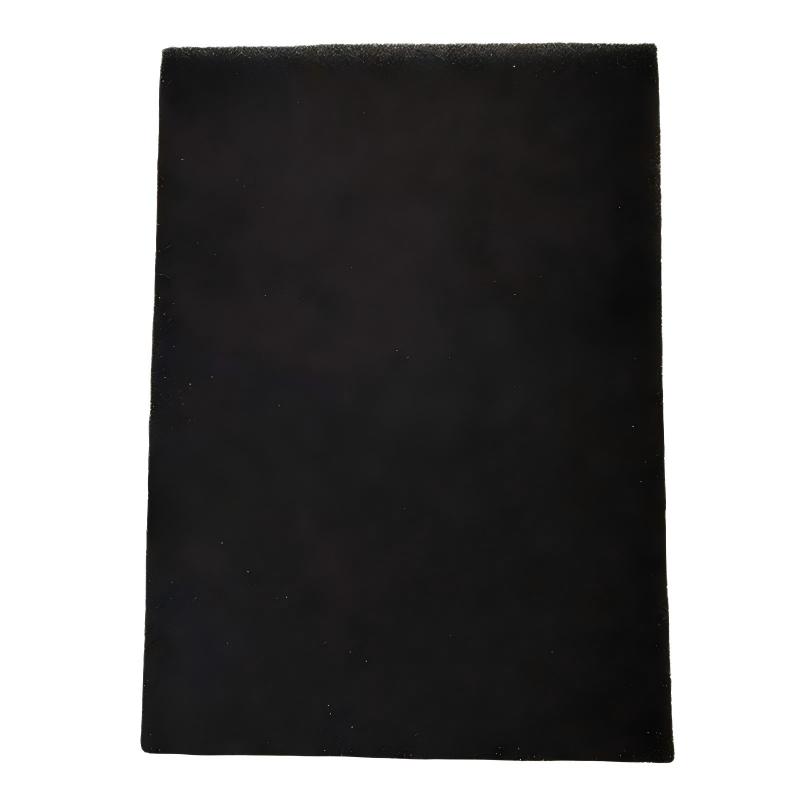

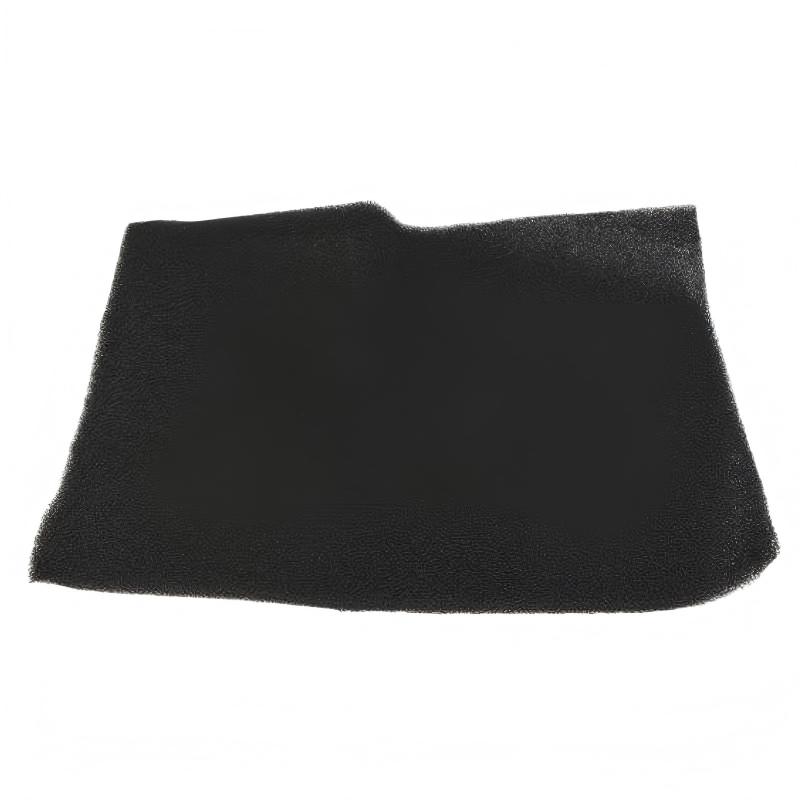

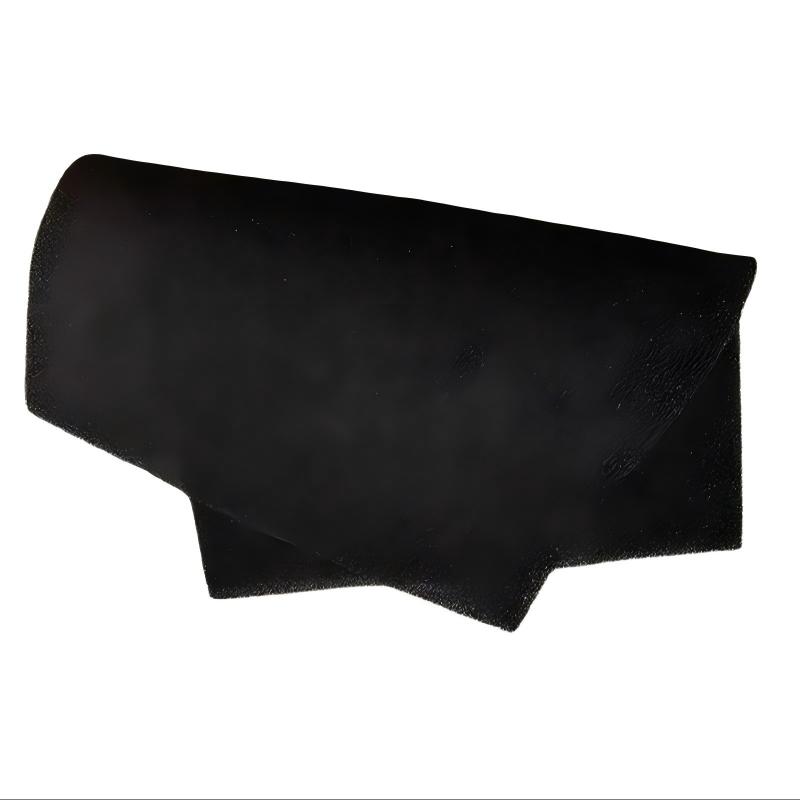

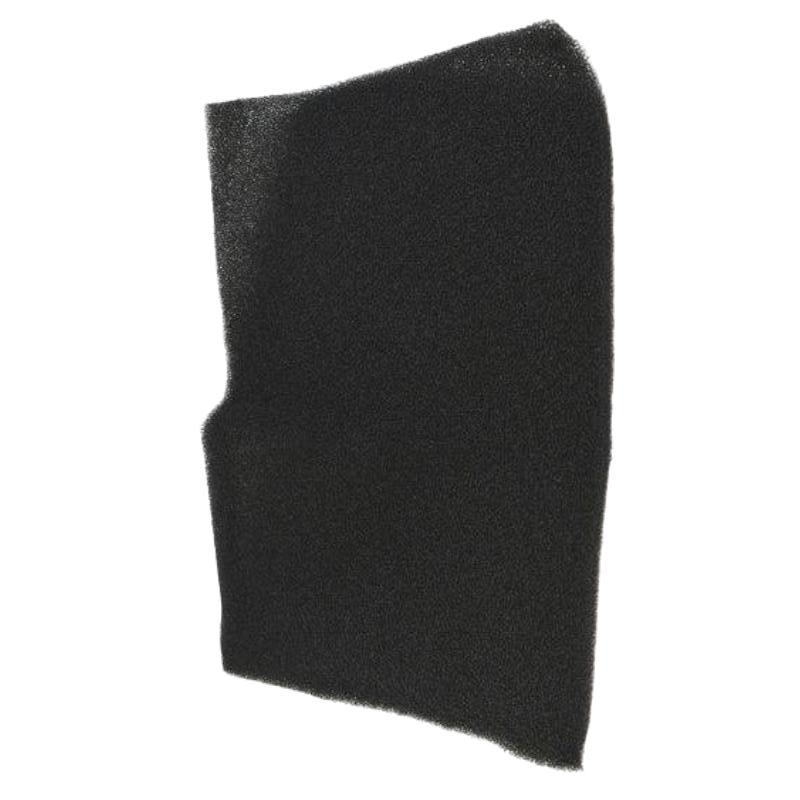

The Ingersoll Rand 47704428001 (47569978001) is an industrial Pre-Filter designed for use in compatible Ingersoll Rand air compressor and air filtration systems. As a pre-filtration component, it provides an initial filtration stage for incoming air, helping remove larger airborne particles before the air reaches downstream filtration or compressor equipment.

In industrial environments, ambient air can contain dust, fibers, dirt, and other particulate contamination. If these contaminants enter an air-handling system without adequate pre-filtration, they can accumulate on downstream filters and increase their contamination rate. A suitable pre-filter helps reduce this initial particulate load and supports more stable operation of the complete filtration system.

The 47704428001, associated with part number 47569978001, is therefore an important maintenance component in compatible compressed-air and air-treatment installations. Its role is primarily protective: it provides an upstream filtration stage that helps extend the service condition of downstream filtration components.

The supplied dimensions are approximately 500 × 25 × 350 mm, with a product weight of approximately 0.2 kg. Its relatively thin profile makes it suitable for filtration assemblies where available installation space is limited but an initial air-cleaning stage is required.

For maintenance engineers, compressor service technicians, and industrial spare-parts buyers, correct identification is essential. Pre-filters that look similar may have different filtration media, dimensions, airflow characteristics, sealing arrangements, and equipment compatibility. The complete part number should therefore be checked before replacement.

Technical Specifications

Function and Working Principle

The primary function of the Ingersoll Rand 47704428001 pre-filter is to provide an initial filtration stage for incoming air.

Ambient air entering an industrial air system may contain a variety of contaminants, including dust, dirt, fibers, and larger airborne particles. The pre-filter is positioned upstream of more sensitive filtration components and helps capture a portion of this contamination before it moves further through the system.

A simplified filtration arrangement can be represented as:

Ambient Air → Pre-Filter → Main Air Filter → Compressor / Air Treatment System → Clean Air Circuit

The exact configuration depends on the specific equipment and filtration architecture. In some installations, the pre-filter may be installed as part of an air filtration cabinet or intake assembly rather than directly inside the compressor.

As particles accumulate in the filtration media, the filter gradually becomes loaded. A contaminated pre-filter can eventually increase airflow resistance, which is why regular inspection and timely replacement are important.

The main advantage of pre-filtration is that it reduces the particulate burden placed on downstream filtration components. This can help maintain their operating condition and may contribute to longer service intervals when the complete filtration system is correctly designed and maintained.

Role in Industrial Air Systems

The 47704428001 pre-filter serves as an initial protective barrier in an industrial air filtration system. Its position before downstream filtration components allows it to intercept larger or more easily captured contaminants before they reach finer filtration stages.

This function can be particularly useful in environments where the ambient air contains elevated particulate levels.

The pre-filter can contribute to:

• Reducing airborne particulate loading
• Protecting downstream air filters
• Supporting cleaner compressor intake air
• Reducing contamination entering air-treatment equipment
• Supporting stable airflow through the filtration system
• Improving the overall efficiency of staged filtration maintenance
• Supporting preventive maintenance programs

It should be understood that a pre-filter is not necessarily a substitute for the main compressor air filter or fine filtration stage. Each filter in a multi-stage system performs a specific filtration function.

Industrial Applications

Industrial Compressor Systems

The pre-filter can be used in compatible Ingersoll Rand compressor-related air filtration systems to reduce the initial particulate load entering the air intake or filtration assembly.

Compressed-Air Treatment

Compressed-air systems may incorporate multiple filtration stages to achieve the required air cleanliness. A pre-filter can provide the first stage of particulate control before finer filters.

Manufacturing Plants

Manufacturing facilities can generate significant quantities of dust and airborne particles. A suitable pre-filtration stage helps protect downstream air-handling equipment from excessive particulate contamination.

Industrial Workshops

Workshops and maintenance areas may expose compressor systems to dust, fibers, and other contaminants. Installing and maintaining an appropriate pre-filter can help improve the cleanliness of incoming air.

Preventive Maintenance Programs

The 47704428001 can be maintained as a replacement spare for scheduled filtration-system maintenance. Having the correct pre-filter available can help minimize service delays.

Installation and Maintenance

Correct installation is important because the pre-filter must cover the intended air path without creating an unintended bypass route.

1. Verify the Part Number

Before installation, confirm the complete part identification as 47704428001 and the associated number 47569978001. Equipment compatibility should be confirmed rather than relying only on dimensions.

2. Shut Down the Air System

Before accessing the filter assembly, shut down the applicable compressor or air-handling equipment according to the appropriate maintenance procedure. Ensure that the system is in a safe condition.

3. Remove the Existing Pre-Filter

Remove the existing filter carefully to prevent accumulated dust and debris from entering the downstream air path.

4. Inspect the Filter Housing

Check the filter frame, housing, sealing surfaces, retaining components, and surrounding air passages. Remove loose contamination where appropriate.

5. Inspect the Replacement Filter

Before installation, inspect the new pre-filter for deformation, damage, contamination, or other physical defects.

6. Install the New Pre-Filter

Install the 47704428001 in the designated orientation and position. Ensure that the filter is correctly seated and retained.

7. Check for Air Bypass

Verify that there are no obvious gaps around the filter that could allow unfiltered air to bypass the filtration media.

8. Restart and Inspect

After reassembling the filtration system, restart the equipment and check for abnormal airflow noise, vibration, filter movement, or other signs of incorrect installation.

Compatible System Components

The 47704428001 pre-filter is normally part of a larger air filtration and compressor maintenance system. Its exact companion components depend on the specific equipment configuration.

Recommended Alternative Models

Pre-filters should be selected according to the complete equipment configuration rather than dimensions alone. Filtration characteristics, airflow requirements, mounting arrangement, filter housing design, and service requirements should all be considered before selecting an alternative.

Key Advantages

• Designed for compatible Ingersoll Rand air filtration applications
• Provides an initial stage of particulate filtration
• Helps reduce contamination reaching downstream filters
• Supports cleaner compressor intake air
• Can help reduce the particulate load on finer filtration stages
• Suitable for industrial preventive maintenance programs
• Primary identification number 47704428001
• Associated identification number 47569978001
• Compact filter thickness of approximately 25 mm
• Overall dimensions of approximately 500 × 25 × 350 mm
• Approximate product weight of 0.2 kg
• Suitable for staged air filtration applications

Technical FAQs

What is Ingersoll Rand 47704428001?

The 47704428001 is an Ingersoll Rand industrial pre-filter designed for compatible air filtration and compressor systems. It provides an initial filtration stage for incoming air.

What is the associated part number?

The associated part number provided for this pre-filter is 47569978001. These identification numbers should be checked when sourcing the replacement component.

What are the dimensions of 47704428001?

The specified dimensions are approximately 500 × 25 × 350 mm.

How much does the 47704428001 pre-filter weigh?

The specified weight is approximately 0.2 kg.

What is the purpose of a pre-filter?

A pre-filter provides an initial filtration stage that removes a portion of airborne particulate contamination before the air reaches downstream filters or compressor components.

Is the 47704428001 the same as a main air filter?

No. A pre-filter and a main air filter can perform different filtration functions. A pre-filter generally provides upstream particulate protection, while the main filter is designed for the filtration requirements of the primary intake system.

Why is pre-filtration important?

Pre-filtration can reduce the amount of particulate contamination reaching downstream filtration stages. This can help maintain the condition of downstream filters and support a more stable overall filtration system.

When should the pre-filter be replaced?

Replacement should follow the maintenance requirements of the specific equipment and operating environment. Frequent inspection is particularly important in dusty or heavily contaminated industrial locations.

Can another filter with the same dimensions replace 47704428001?

Not automatically. Physical dimensions are only one part of filter compatibility. Filtration efficiency, airflow capacity, pressure drop, mounting design, and sealing characteristics should also be verified.

Is 47704428001 an electrical component?

No. It is a mechanical filtration component and does not perform electrical control, measurement, or communication functions.

Conclusion

The Ingersoll Rand 47704428001 (47569978001) Pre-Filter is an industrial filtration component designed to provide an initial stage of particulate removal in compatible compressor and air filtration systems.

With supplied dimensions of approximately 500 × 25 × 350 mm and a weight of approximately 0.2 kg, the pre-filter provides a relatively thin filtration solution that can be integrated into suitable staged air filtration assemblies.

Its primary role is to reduce the particulate burden placed on downstream filtration components and help maintain cleaner air conditions within the compressor or air-treatment system. Regular inspection and replacement are important because accumulated contamination can increase airflow resistance and reduce filtration-system performance.

For maintenance engineers, compressor technicians, system operators, and industrial spare-parts buyers, the complete 47704428001 and 47569978001 identification should be verified before purchasing or installing a replacement. Matching the filter to the correct equipment and filtration assembly is more important than relying on physical dimensions alone.
