- Ingersoll Rand
- 47627671001 22421853
- Side Panel Pre Filter
- USA
- 457 × 15 × 304 mm
- 0.45 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 38
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

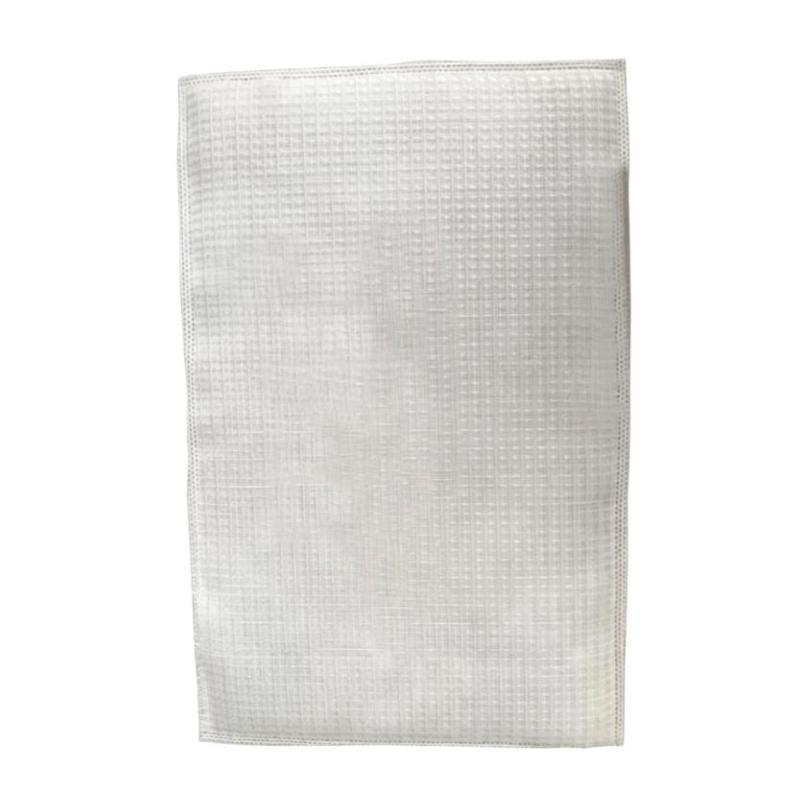

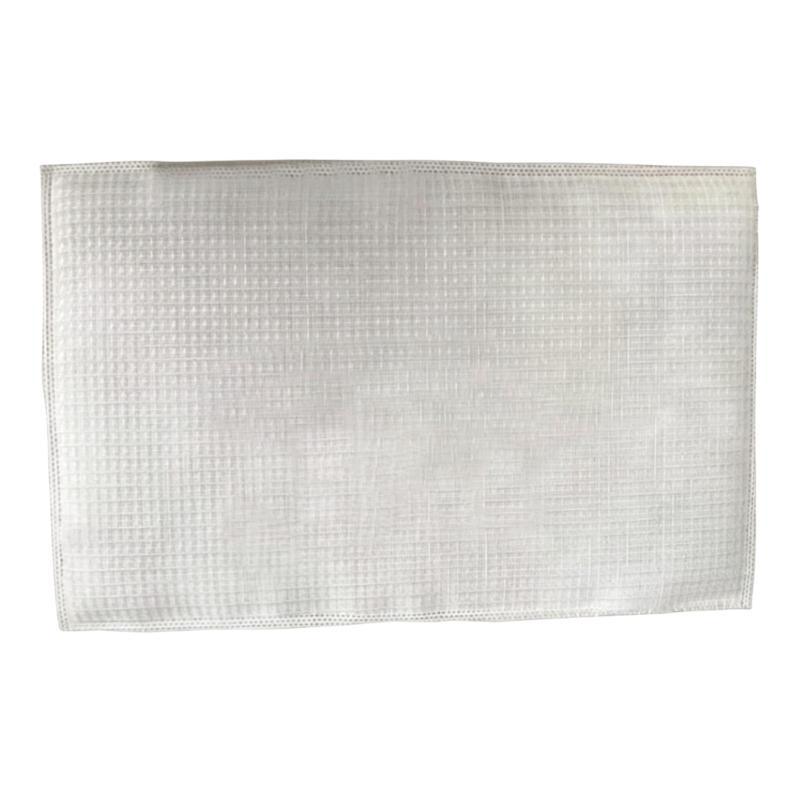

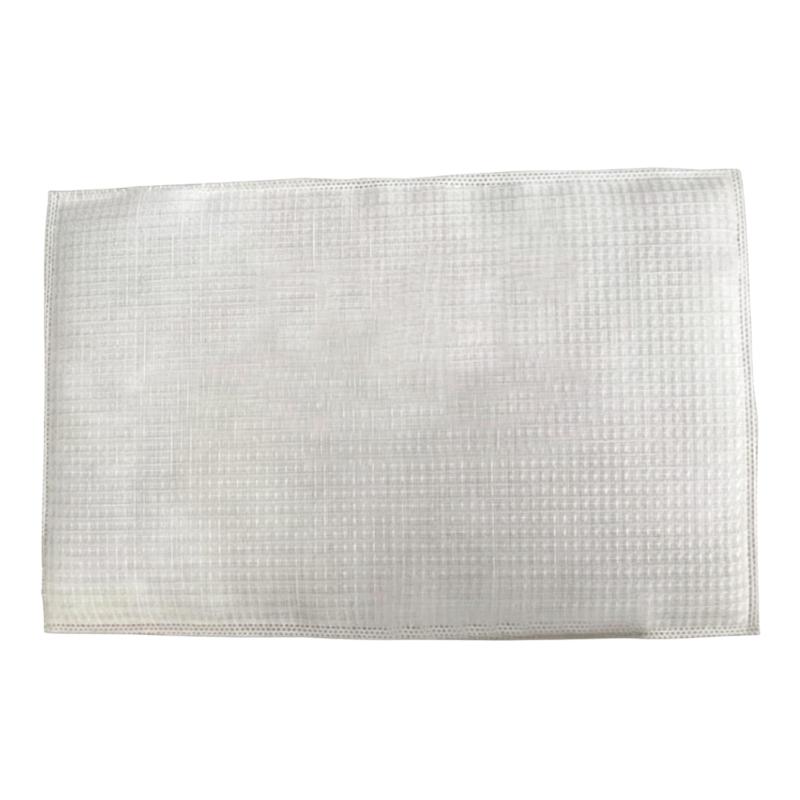

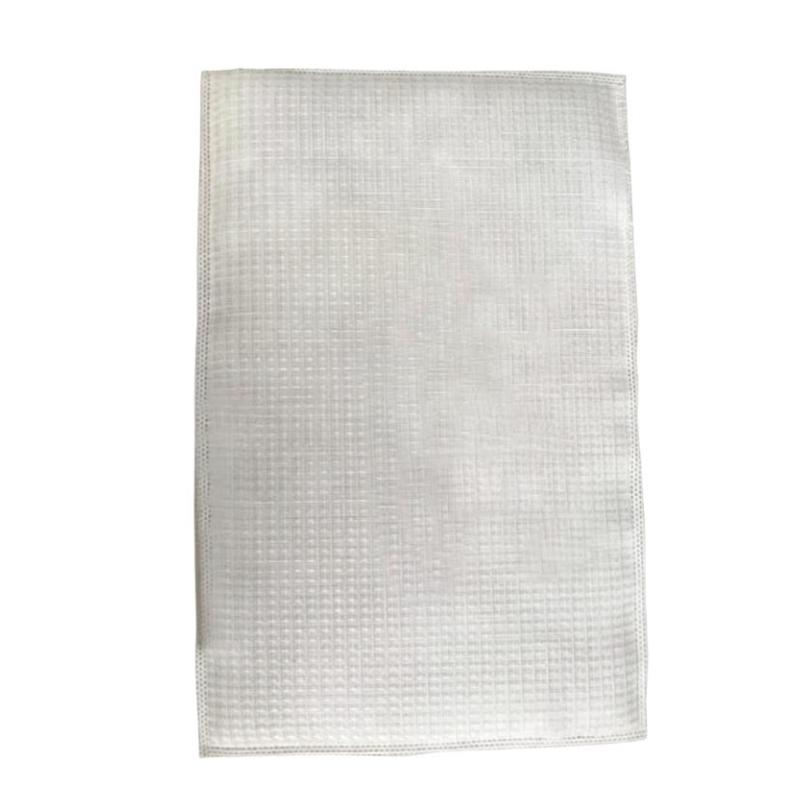

The Ingersoll Rand 47627671001 / 22421853 Side Panel Pre Filter is a replacement filtration component used in the side-panel air path of compatible Ingersoll Rand compressor equipment. It sits upstream of the main equipment airflow and catches airborne contamination before it can move farther into the intake system.
In a working compressor room, the surrounding air may contain dust, fibers, oil mist, and other suspended particles. A side-panel pre-filter is exposed to this environment continuously, so it gradually collects contamination during normal operation. For maintenance teams, its condition is therefore relevant to both airflow management and the cleanliness of the downstream intake path.
The component is a passive filter rather than an electrical or control device. It is normally replaced as part of equipment servicing when the existing element is loaded, damaged, or otherwise no longer suitable for continued use. The 47627671001 and 22421853 references should be checked against the installed equipment configuration before ordering a replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 47627671001 |
| Alternate Part Number | 22421853 |
| Product Type | Side Panel Pre Filter |
| Manufacturer | Ingersoll Rand |
| Product Category | Compressor Filtration Component |
| Filter Function | Pre-Filtration |
| Installation Position | Side Panel / Air Intake Area |
| System Role | Upstream Air Filtration |
| Application | Ingersoll Rand Compressor Equipment |
| Maintenance Type | Replaceable Service Component |
| System Integration | Compressor Air Intake Arrangement |
| Component Type | Passive Filtration Element |
| Dimensions | 457 × 15 × 304 mm |
| Weight | 0.45 kg |
Product Features
- Side-panel pre-filter for compatible Ingersoll Rand compressor equipment
- Positioned at the upstream stage of the associated air path
- Retains airborne particulate contamination before it reaches downstream components
- Passive filtration element with no electrical control function
- Suitable for routine compressor inspection and replacement
- Helps maintain the intended airflow path through the side-panel intake arrangement
- Useful in industrial environments with dust and airborne debris
- Identified by Ingersoll Rand part number 47627671001 and reference 22421853
- Suitable for maintenance and refurbishment work where the installed filtration arrangement matches the part
Working Principle
The 47627671001 / 22421853 operates directly in the incoming air path. Ambient air passes through the filter media as the equipment draws air into the intake arrangement, while suspended particulate matter is retained by the filter.
The practical airflow path can be represented as:
Ambient Air → Side Panel Pre Filter → Intake / Downstream Air Path → Compressor Equipment
As operating time increases, the filter collects material from the surrounding environment. Dust accumulation can affect airflow resistance, which is why the filter is inspected during maintenance rather than treated as a permanent component.
The filter does not measure airflow, control compressor operation, or process the air electronically. Its function is physical filtration at the upstream side of the equipment, reducing the amount of airborne contamination entering the downstream air path.
Role in a Compressor Air Intake Architecture
The side-panel pre-filter forms an early filtration stage within the compressor air-handling arrangement. It works ahead of downstream intake components and is therefore one of the first components exposed to environmental contamination.
| System Layer | Typical Component | Function |
|---|---|---|
| Ambient Environment | Plant / Room Air | Provides the surrounding air source |
| Pre-Filtration | 47627671001 / 22421853 | Retains airborne particulate contamination |
| Intake Housing | Side Panel / Filter Housing | Holds and directs the incoming airflow |
| Intake Path | Air Passage / Ducting | Carries filtered air toward the compressor |
| Compressor Equipment | Ingersoll Rand Compressor | Uses the incoming air within the operating system |
| Control System | Compressor Controller | Monitors and manages applicable compressor functions |
| Plant Air System | Compressed-Air Equipment | Uses or distributes the compressor output |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Compressor Systems | Maintains the upstream filtration stage of compatible Ingersoll Rand equipment |
| Manufacturing Plants | Helps reduce airborne particulate entry into compressor intake paths |
| Process Facilities | Used during planned filtration maintenance |
| Workshops | Supports intake filtration on compressors operating in dusty environments |
| Plant Utility Systems | Replaces an existing side-panel pre-filter during service |
| Compressor Refurbishment | Restores the original side-panel filtration arrangement |
| Preventive Maintenance | Used as a replacement component during scheduled inspection and servicing |
Installation and Maintenance
- Confirm the part identification — Verify the compressor or equipment documentation and confirm that 47627671001 / 22421853 matches the installed filter arrangement.
- Shut down the equipment — Stop the associated compressor and follow the applicable isolation and lockout procedure before accessing the filter.
- Establish a safe maintenance condition — Make sure moving equipment has stopped and applicable stored energy or pressure has been addressed.
- Inspect the existing filter — Check for accumulated dust, deformation, tears, excessive contamination, or other visible deterioration.
- Inspect the filter housing — Examine the side-panel mounting area and surrounding intake passage for debris or damage.
- Remove the used filter carefully — Avoid releasing accumulated contamination into the downstream intake path during removal.
- Clean the mounting area — Remove loose debris from the filter seat and surrounding housing as required by the equipment maintenance procedure.
- Inspect the replacement filter — Confirm the part number and check the filter for visible damage before installation.
- Install the new filter — Position the replacement element correctly in the original mounting arrangement and ensure it is seated properly.
- Check the intake path — Confirm that the filter is unobstructed and that no loose material remains in the surrounding airflow passage.
- Restart and monitor the equipment — Return the compressor to service according to the normal startup procedure and check for abnormal operating indications.
- Record the maintenance activity — Document the replacement date, part number, equipment identification, and relevant inspection findings for future service.
Related Components
| Component | Function |
|---|---|
| Ingersoll Rand Compressor | Uses the filtered incoming air within the compressor system |
| Side Panel / Filter Housing | Holds the pre-filter and forms part of the intake structure |
| Air Intake Passage | Directs incoming air through the filtration arrangement |
| Downstream Air Filter | Provides additional filtration where included in the equipment configuration |
| Compressor Controller | Monitors and manages compressor operating functions |
| Intake Ducting | Provides the airflow route toward the compressor |
| Compressor Oil Filter | Filters circulating lubricant within applicable compressor systems |
| Compressor Service Components | Support scheduled equipment maintenance |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Ingersoll Rand 22421853 | Side Panel Pre Filter | Alternate part-number reference for the current filter |
| Ingersoll Rand 47627670001 | Side Panel Pre Filter | Related Ingersoll Rand filter reference |
| Ingersoll Rand Compressor Air Intake Filters | Air Filtration Component | Related upstream filtration category |
| Ingersoll Rand Compressor Filter Assemblies | Filtration Assembly | Associated intake filtration hardware |
| Ingersoll Rand Compressor Maintenance Components | Service Component | Related parts used during compressor maintenance |
Key Advantages
- Upstream filtration for compatible Ingersoll Rand compressor equipment
- Helps limit particulate contamination entering the intake path
- Passive component with a straightforward maintenance function
- Suitable for scheduled inspection and replacement
- Maintains the established side-panel filtration arrangement
- Identified by both 47627671001 and 22421853 references
Technical FAQs
What is the purpose of the 47627671001 / 22421853 side panel pre-filter?
It provides an upstream filtration stage for the associated air path. Ambient air passes through the filter before reaching downstream compressor or intake components, while airborne particulate contamination is retained by the filter media.
Why can the condition of a side-panel pre-filter affect compressor maintenance?
The filter is continuously exposed to the surrounding environment and gradually collects airborne contamination. A heavily loaded element can increase resistance in the intake path, making filter inspection part of normal compressor maintenance.
Should a contaminated side-panel pre-filter be cleaned or replaced?
The correct action depends on the applicable equipment maintenance procedure and the condition of the filter. A damaged or excessively loaded element should not be returned to service simply because it can be physically cleaned.
What should be checked before ordering this filter?
The installed equipment configuration, existing filter identification, mounting arrangement, and both part-number references should be checked. The 47627671001 / 22421853 combination should match the applicable compressor documentation before replacement.
