- Ingersoll Rand
- 47627670001 22421853
- Side Panel Pre Filter
- USA
- 457 × 15 × 304 mm
- 0.45 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 40
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

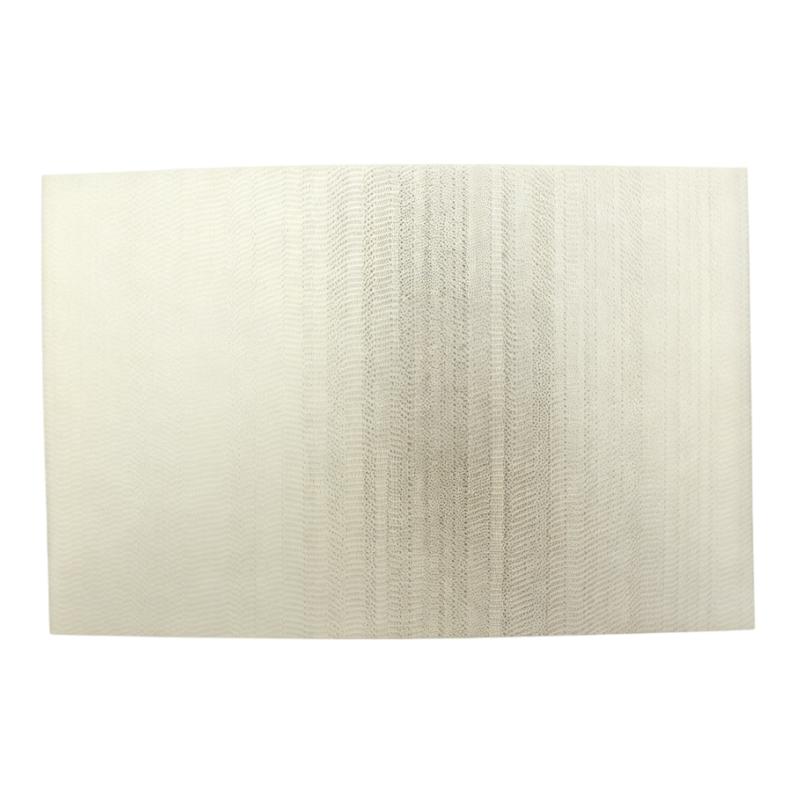

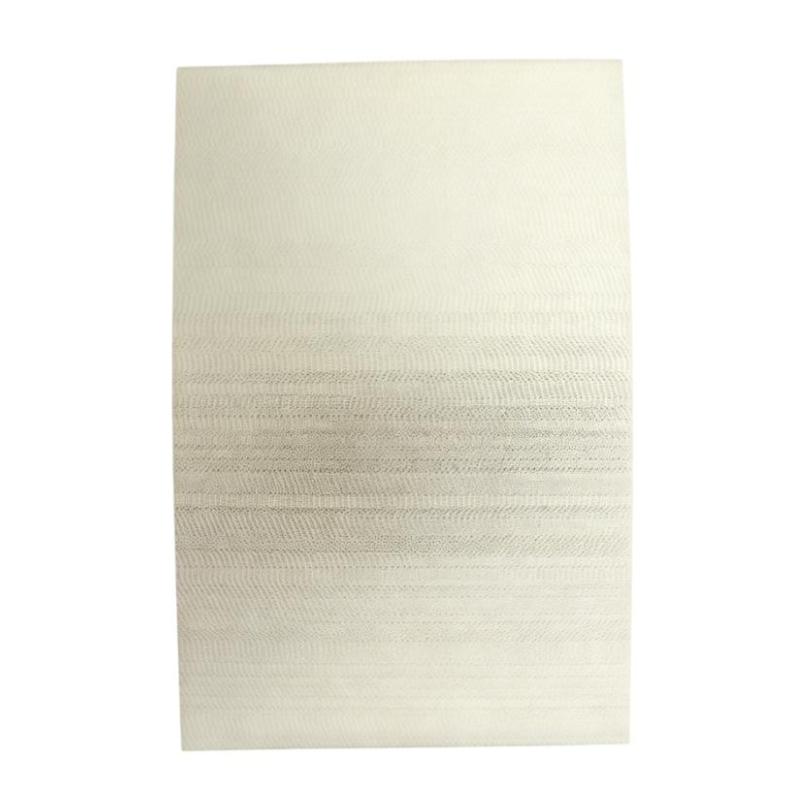

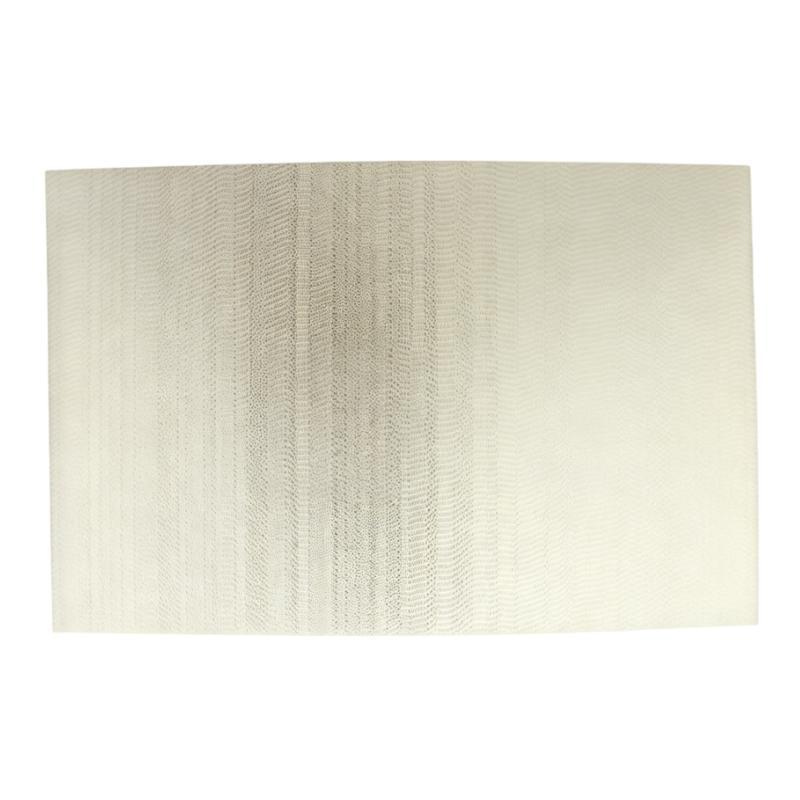

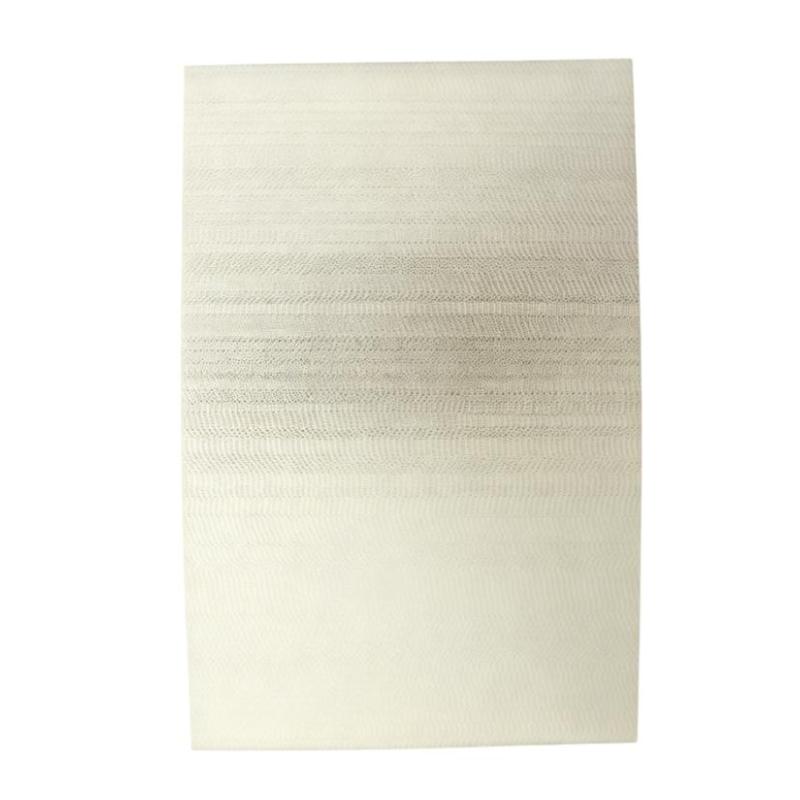

The Ingersoll Rand 47627670001 / 22421853 Side Panel Pre Filter is a replacement air-filtration component used on compatible Ingersoll Rand compressed-air equipment and associated enclosure or intake arrangements. Its position as a pre-filter means it serves at the air-entry stage, intercepting airborne contamination before the air reaches downstream components.
In compressor installations, side-panel filtration can be exposed to dust, lint, oil mist, and other airborne particles present in the surrounding plant environment. A pre-filter that becomes heavily loaded can restrict airflow and increase the burden on the filtration stages that follow it. For this reason, the filter is normally treated as a routine maintenance item rather than an active compressor component.
The 47627670001 and 22421853 references are relevant when identifying the replacement part for an existing Ingersoll Rand installation. Before ordering, maintenance personnel should compare the equipment documentation, existing filter arrangement, and part identification to ensure that the replacement corresponds to the installed compressor or enclosure configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 47627670001 |
| Alternate Part Number | 22421853 |
| Product Type | Side Panel Pre Filter |
| Manufacturer | Ingersoll Rand |
| Product Category | Compressor Filtration Component |
| Filter Function | Pre-Filtration |
| Installation Position | Side Panel / Air Intake Area |
| System Role | Upstream Air Filtration |
| Application | Compressed-Air Equipment |
| Maintenance Type | Replaceable Service Component |
| System Integration | Ingersoll Rand Compressor System |
| Component Type | Passive Filtration Element |
| Dimensions | 457 × 15 × 304 mm |
| Weight | 0.45 kg |
Product Features
- Side-panel pre-filter for compatible Ingersoll Rand equipment
- Used at the upstream stage of an air-intake or enclosure filtration arrangement
- Captures airborne particulate contamination before downstream components
- Passive filtration component with no electrical control function
- Suitable for routine compressor maintenance and filter replacement
- Helps maintain the intended airflow path through the associated filtration system
- Useful in industrial environments where compressor equipment is exposed to airborne dust and debris
- Identified by Ingersoll Rand part number 47627670001 and associated reference 22421853
- Suitable for replacement work where the existing filter configuration matches the specified part
Working Principle
The 47627670001 / 22421853 operates by placing a filtration barrier across the incoming air path. As surrounding air passes through the side-panel filter, suspended particulate matter is retained by the filter media while the filtered air continues toward the downstream equipment.
In normal service, the filter gradually accumulates contamination. As the loading increases, airflow resistance can also increase. Maintenance personnel therefore inspect the filter condition as part of the compressor service routine and replace the element when required by the equipment maintenance procedure or observed operating condition.
The basic airflow path can be represented as:
Ambient Air → Side Panel Pre Filter → Downstream Air Path → Compressor / Equipment
The filter itself does not regulate airflow electronically or perform compressor control. Its function is primarily mechanical: intercepting contamination at an early stage of the air path so that downstream equipment receives cleaner incoming air.
Role in a Compressor Filtration Architecture
The side-panel pre-filter sits at the beginning of the filtration path and works upstream of the compressor’s other air-handling components. Its condition can therefore affect the airflow conditions presented to downstream equipment.
| System Layer | Typical Component | Function |
|---|---|---|
| Ambient Environment | Plant / Room Air | Supplies surrounding air to the equipment |
| Pre-Filtration | 47627670001 / 22421853 | Intercepts airborne particulate contamination |
| Air Intake | Intake Passage / Housing | Directs filtered air toward the equipment |
| Compressor System | Ingersoll Rand Compressor | Uses the incoming air within the compression system |
| Downstream Filtration | Additional Filter Elements, where applicable | Provides further filtration according to equipment configuration |
| Control System | Compressor Controller | Monitors and controls compressor operation |
| Plant Air System | Compressed-Air Distribution | Receives and distributes compressed air |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Compressor Systems | Maintains the air-intake filtration arrangement of compatible compressor equipment |
| Manufacturing Plants | Helps limit airborne contamination entering compressor enclosures |
| Process Industries | Used as part of routine filtration maintenance on plant compressed-air equipment |
| Workshops and Production Facilities | Supports intake filtration in environments with airborne dust and debris |
| Utility Air Systems | Maintains the filtration stage of compatible compressor installations |
| Compressor Service Operations | Used as a replacement part during scheduled maintenance |
| Equipment Refurbishment | Replaces an existing side-panel pre-filter while retaining the original filtration arrangement |
Installation and Maintenance
- Confirm the part identification — Verify the installed equipment documentation and confirm that 47627670001 / 22421853 corresponds to the existing filter arrangement.
- Isolate the equipment — Shut down the associated compressor or equipment and follow the applicable lockout and isolation procedure before accessing the filter.
- Allow the equipment to reach a safe condition — Ensure moving parts have stopped and any relevant stored energy has been addressed before beginning maintenance.
- Inspect the existing filter — Check the filter for accumulated dust, deformation, contamination, or other visible deterioration.
- Check the filter housing — Inspect the side-panel mounting area and surrounding housing for debris or damage that could affect installation.
- Remove the existing filter carefully — Avoid dislodging accumulated contamination into the equipment intake path during removal.
- Clean the mounting area as required — Remove loose debris from the surrounding filter seat without damaging adjacent components.
- Check the replacement part — Verify the part number and inspect the new filter for shipping damage or deformation before installation.
- Install the filter correctly — Position the replacement element according to the equipment’s original mounting arrangement and ensure it sits properly in the filter location.
- Inspect the airflow path — Confirm that the filter is not obstructed and that the surrounding intake passage remains clear.
- Restart and monitor the equipment — Return the compressor to service according to the normal startup procedure and check for abnormal airflow or operating indications.
- Record the maintenance activity — Document the replacement date, part identification, and equipment information to support future filter-service planning.
Related Components
| Component | Function |
|---|---|
| Ingersoll Rand Compressor | Uses the filtered air within the compression system |
| Air Intake Housing | Provides the mechanical path for incoming air |
| Intake Filter Assembly | Supports the filtration arrangement around the compressor air inlet |
| Downstream Filter Element | Provides additional filtration where included in the equipment configuration |
| Compressor Controller | Monitors and manages compressor operation |
| Filter Housing / Side Panel | Holds the pre-filter in the intended air-entry position |
| Air Intake Ducting | Directs incoming air through the filtration path |
| Compressor Service Components | Support scheduled maintenance of the associated equipment |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Ingersoll Rand 22421853 | Side Panel Pre Filter | Associated part-number reference for the current filter |
| Ingersoll Rand 47627670002 | Compressor Filtration Component | Related part-number configuration within compressor maintenance |
| Ingersoll Rand 47627670003 | Compressor Filtration Component | Related filtration replacement reference |
| Ingersoll Rand Air Intake Filter Assemblies | Compressor Filtration Component | Related upstream filtration hardware |
| Ingersoll Rand Compressor Filter Elements | Maintenance Filter Component | Related service components used in compressor filtration systems |
Key Advantages
- Upstream filtration for compatible Ingersoll Rand compressor equipment
- Passive component with a straightforward maintenance function
- Helps limit particulate contamination entering the downstream air path
- Suitable for routine filter replacement
- Supports continued operation of the established compressor filtration arrangement
- Identified by both 47627670001 and 22421853 references
Technical FAQs
What is the function of the 47627670001 / 22421853 pre-filter?
It serves as an upstream filtration element in the side-panel air path. Its primary function is to intercept airborne particulate contamination before the incoming air reaches downstream compressor or equipment components.
What symptoms can indicate that a pre-filter needs attention?
A visibly loaded or damaged filter is a direct indication for inspection. Increasing airflow restriction, abnormal intake conditions, or maintenance findings may also indicate that the filter should be serviced according to the applicable equipment procedure.
Is this filter an active compressor component?
No. The 47627670001 / 22421853 is a passive filtration component. It does not control compressor operation, measure process conditions, or regulate airflow electronically.
What should be verified before ordering a replacement?
The equipment model, existing filter identification, mounting arrangement, and applicable maintenance documentation should be checked. The 47627670001 and 22421853 references should be compared with the part identification on the installed equipment to avoid fitting an incompatible filter.
