Product Overview

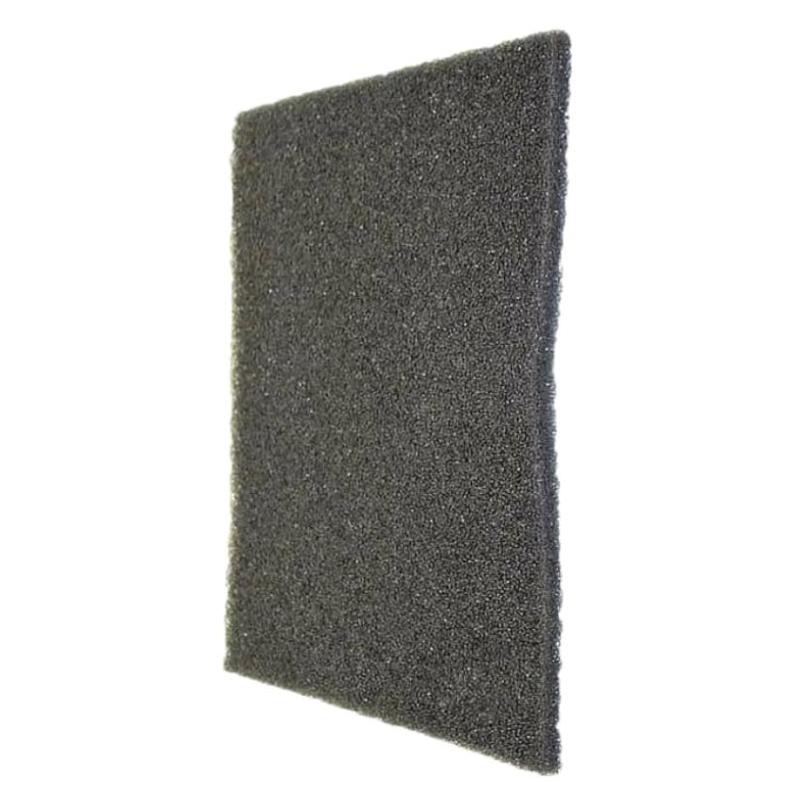

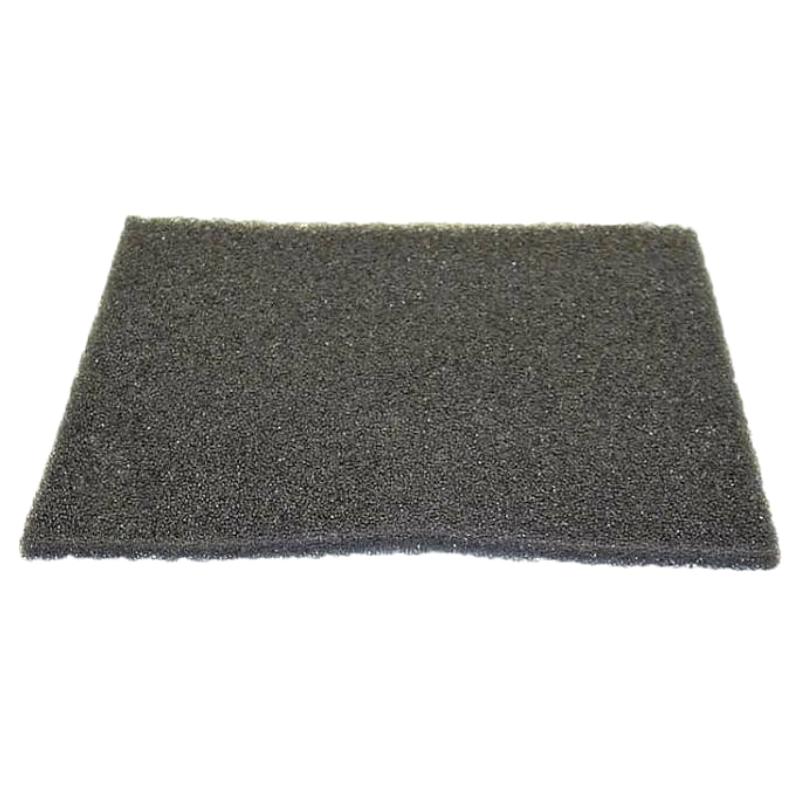

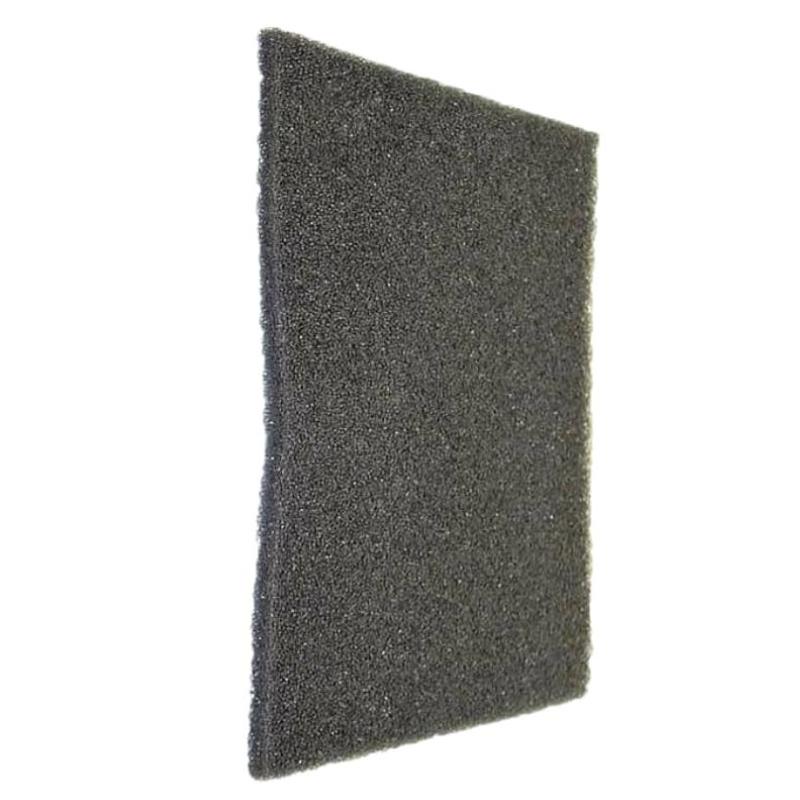

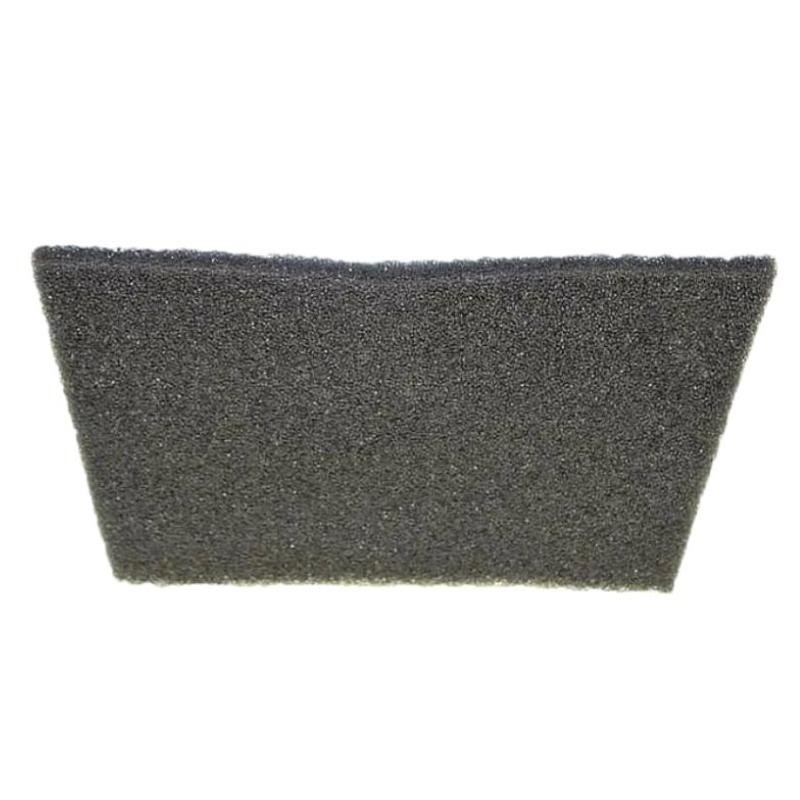

The Ingersoll Rand 47627051001 22053722 Filter Pad is a panel-style pre-filter used in compatible air compressor installations. Positioned ahead of the main intake filter or at the designated cabinet air inlet, it captures coarse dust and airborne debris before they reach more sensitive filtration components or the compressor enclosure.
On an industrial rotary screw compressor, intake filtration is not limited to protecting the air end. Dust entering the cabinet can also accumulate around cooling passages, electrical enclosures, and other equipment exposed to incoming ambient air. A pre-filter helps intercept larger contaminants before they travel farther into the machine, reducing the amount of debris reaching the downstream filter and surrounding equipment.
The 22053722 part number is associated with Ingersoll Rand UP6-series compressors, including certain UP6-20, UP6-25, and UP6-30 configurations. It is also listed for selected UP5 and EW5 compressor packages. Depending on the machine version, the panel may serve as a preliminary intake filter in a package with an integrated dryer or in a compressor-only configuration.
Consider a compressor installed in a production workshop where cutting dust, packaging debris, or general airborne particles are present. Without a functioning pre-filter, these contaminants can accumulate more quickly on the main air filter or enter the cabinet’s airflow path. As the pre-filter becomes loaded, however, it can itself restrict airflow, making regular inspection part of routine compressor maintenance.
The 22053722 Filter Pad should be treated as a preliminary filtration component, not as a substitute for the main air filter element. Its role is to intercept coarser contaminants before they reach the finer filtration stage. Correct identification of the installed panel and compressor configuration is necessary before replacement, particularly where similar-looking filter pads are used across different cabinet designs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model Reference | 47627051001 |
| Part Number | 22053722 |
| Product Type | Filter Pad |
| Product Category | Air Compressor Pre-Filter |
| Filter Format | Flat Panel Filter |
| Primary Function | Preliminary filtration of incoming air |
| Filtration Purpose | Captures coarse dust and airborne debris |
| Installation Location | Designated compressor intake or cabinet pre-filter position |
| Filtration Stage | Preliminary filtration ahead of the main filter or protected airflow path |
| Associated Equipment | Selected Ingersoll Rand UP6, UP5, and EW5 compressor configurations |
| Common UP6 Applications | UP6-20, UP6-25, and UP6-30; verify the installed configuration |
| Maintenance Purpose | Replacement of a contaminated or damaged pre-filter panel |
| Dimensions | 500 × 25 × 350 mm |
| Weight | 0.2 kg |
Product Features
- Preliminary air filtration: Intercepts coarse airborne particles before they reach the downstream filtration stage.
- Panel-style construction: Fits the designated flat-panel filter position in compatible compressor installations.
- Main filter protection: Helps reduce the amount of coarse debris reaching the primary intake filter.
- Cabinet cleanliness support: Helps limit dust accumulation along the intended incoming airflow path.
- Maintenance-friendly replacement: Allows the pre-filter panel to be inspected and replaced separately from the main filter element.
- Compressor-specific identification: The 22053722 reference helps distinguish this panel from other Ingersoll Rand filter formats.
- Industrial workshop application: Suitable for compatible installations exposed to ordinary airborne dust and production debris.
- Airflow maintenance: A clean, correctly fitted panel helps avoid unnecessary restriction caused by an overloaded pre-filter.
- Preventive maintenance support: Can be included in routine intake-system inspections and filter servicing.
- Two-stage filtration support: Works with the applicable main air filter rather than replacing its finer filtration function.
Working Principle
The 22053722 Filter Pad performs preliminary filtration by intercepting larger airborne particles as ambient air enters the compressor’s designated intake or cabinet airflow path. Its function is different from that of a main air filter, which is responsible for finer filtration before air enters the compression stage.
Ambient Air → Filter Pad → Main Intake Filter or Protected Airflow Path → Compressor System
As incoming air passes through the panel, coarse dust and debris are retained by the filter medium. The cleaner airflow then proceeds toward the next filtration stage or the intended cabinet airflow area, depending on the compressor’s design.
The pre-filter reduces the contaminant load reaching the main filter, but it cannot remove every fine particle. The main intake element remains necessary wherever the compressor uses a separate primary filter. Both components must be maintained according to their own service requirements.
Dust gradually accumulates on the pre-filter during operation. In a clean environment, loading may progress slowly; in a workshop with airborne powder, lint, or other debris, the panel may require more frequent inspection. Once the medium becomes heavily loaded, airflow resistance can increase and reduce the amount of air passing through the intended path.
A damaged, poorly seated, or missing panel can also compromise preliminary filtration. During replacement, technicians should check the filter frame and surrounding mounting surfaces to ensure that incoming air follows the intended route rather than bypassing the filter.
Role in an Ingersoll Rand Compressor Air Intake System
The Filter Pad forms the preliminary stage of the applicable intake or cabinet filtration arrangement. It helps intercept coarse contaminants before they reach the main intake filter or other protected areas of the compressor package.
Ambient Air → 22053722 Filter Pad → Main Air Filter, Where Fitted → Rotary Screw Air End
| System Component | Function |
|---|---|
| 22053722 Filter Pad | Captures coarse airborne contaminants at the preliminary filtration stage |
| Main Air Filter | Removes finer contaminants before air enters the compression stage |
| Air Intake Housing | Directs incoming air toward the designated filtration components |
| Rotary Screw Air End | Compresses the incoming air |
| Compressor Cabinet | Houses mechanical and other equipment requiring suitable airflow conditions |
| Cooling Air Passages | Carry air through designated areas to remove heat |
| Oil Separator Element | Separates entrained oil from compressed air after compression |
| Oil Filter | Removes contaminants from circulating compressor lubricant |
| Filter Restriction Indicator, Where Fitted | Helps identify excessive restriction in the monitored filter path |
| Compressor Controller | Monitors operating conditions and manages compressor functions |
The exact airflow arrangement depends on the compressor package. The pre-filter’s position should be confirmed from the installed housing and service configuration rather than assuming that every model uses the same intake layout.
Industrial Applications
| Application | Typical Use |
|---|---|
| General Manufacturing | Capturing coarse airborne dust around compressor installations |
| Automotive Workshops | Reducing the entry of workshop debris into the designated compressor intake path |
| Metalworking Facilities | Intercepting airborne particles generated by surrounding production activities |
| Packaging Plants | Limiting the entry of paper fibers and general dust into compatible compressor airflow paths |
| Textile Manufacturing | Providing preliminary filtration where lint and airborne fibers are present |
| Plastics Processing | Capturing coarse debris around compressors supplying pneumatic production equipment |
| Industrial Utility Rooms | Maintaining intake filtration in centralized compressed air installations |
| Assembly Facilities | Supporting routine compressor maintenance in production environments |
| Warehouse Operations | Limiting coarse dust entering compressor intake or cabinet airflow areas |
| Continuous-Operation Plants | Supporting planned inspection of pre-filters in compressors running extended shifts |
Actual service frequency depends on the level of airborne contamination and the compressor’s intake arrangement. A dusty environment can load a panel much faster than a clean equipment room, so visual condition and airflow restriction should guide maintenance decisions.
Installation and Maintenance
- Verify the part number: Confirm 47627051001 and 22053722 against the compressor’s parts documentation and installed filter arrangement.
- Stop the equipment safely: Follow the applicable compressor maintenance procedure before opening the intake housing or accessing the filter panel.
- Locate the correct filter position: Identify the designated pre-filter compartment and distinguish it from the main intake filter housing.
- Inspect the existing panel: Look for dust loading, tears, deformation, damaged edges, or other conditions that may compromise filtration.
- Check the surrounding housing: Remove loose debris from the filter compartment without allowing contaminants to enter the downstream airflow path.
- Verify replacement compatibility: Confirm that the replacement panel matches the specified part number and mounting arrangement.
- Remove the used panel carefully: Avoid shaking accumulated dust into the main filter or compressor cabinet during removal.
- Inspect the mounting surfaces: Check the frame, retaining features, and sealing edges for damage that could allow unfiltered air to bypass the panel.
- Install the replacement: Position the panel correctly and secure it according to the compressor’s service procedure.
- Check the main intake filter: Inspect the downstream filter for contamination and service it separately if required by its maintenance criteria.
- Confirm the airflow path: Ensure the panel is seated correctly and that no openings or displaced seals allow air to bypass the intended filtration route.
- Record the maintenance: Document the part number, inspection findings, replacement date, and environmental conditions that may affect the next service interval.
If airflow problems persist after replacing the pre-filter, inspect the main air filter, intake housing, and other restrictions in the airflow path. A clean pre-filter alone does not establish that the complete intake system is unobstructed.
Related Components
| Component | Function |
|---|---|
| Ingersoll Rand 22053722 | Panel-style pre-filter for compatible compressor configurations |
| Main Air Filter Element | Provides finer intake filtration before air enters the compression stage |
| Air Intake Housing | Holds and directs air through the designated filter arrangement |
| Filter Retaining Frame | Supports the panel and helps maintain its correct position |
| Intake Sealing Components | Reduce the risk of unfiltered air bypassing the filter |
| Filter Restriction Indicator | Signals excessive restriction where the installed system includes one |
| Compressor Cooling Air Passages | Direct airflow through designated cooling areas |
| Oil Filter Element | Removes contaminants from circulating compressor lubricant |
| Oil Separator Element | Separates oil from compressed air after the compression stage |
| Compressor Service Kit | Supports scheduled maintenance of the applicable compressor configuration |
Recommended Related Models
| Model / Product Reference | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 22053722 | Filter Pad / Pre-Filter Panel | Preliminary filtration in compatible compressor intake arrangements |
| Ingersoll Rand UP6-20 | Rotary Screw Air Compressor | Compressed air generation in configurations using the specified panel |
| Ingersoll Rand UP6-25 | Rotary Screw Air Compressor | Industrial compressed air supply; verify the installed filter reference |
| Ingersoll Rand UP6-30 | Rotary Screw Air Compressor | Compressor intake maintenance where the parts configuration matches |
| Ingersoll Rand UP5-11 | Rotary Screw Air Compressor | Pre-filter application listed for compatible configurations |
| Ingersoll Rand UP5-15 | Rotary Screw Air Compressor | Intake pre-filtration in applicable compressor packages |
| Ingersoll Rand UP5-18 | Rotary Screw Air Compressor | Compressor intake maintenance subject to parts verification |
| Ingersoll Rand UP5-22 | Rotary Screw Air Compressor | Preliminary intake filtration in the specified configuration |
| Ingersoll Rand EW5-22 | Rotary Screw Air Compressor | Pre-filter servicing where the installed arrangement specifies 22053722 |
| Ingersoll Rand 89295976 | Air Filter Element | Main intake filtration reference listed with certain 22053722 applications |
| Ingersoll Rand 54672654 | Oil Filter | Lubricant filtration in applicable compressor configurations |
Key Advantages
- Captures coarse dust and debris before they reach the downstream filtration stage.
- Helps reduce contaminant loading on the main intake filter.
- Supports cleaner airflow through the designated compressor intake or cabinet path.
- Allows the pre-filter to be inspected and replaced independently.
- Helps avoid unnecessary airflow restriction when maintained in suitable condition.
- Provides a defined part reference for compressor filter maintenance.
Technical FAQs
Is the 22053722 Filter Pad the main air filter for the compressor?
No. It is identified as a pre-filter panel. Its purpose is to intercept coarser contaminants before they reach the main intake filter or protected airflow path. Where the compressor uses a separate main air filter, that element must remain installed and be maintained independently.
Which Ingersoll Rand compressor models are associated with the 22053722 panel?
The part is listed for selected UP6 configurations, including UP6-20, UP6-25, and UP6-30, and for certain UP5 and EW5 packages. The complete compressor model and installed filter arrangement should be checked before ordering because applicability can vary between configurations.
What happens if the pre-filter becomes heavily clogged?
Accumulated dust can increase airflow resistance and reduce the air passing through the filter path. Depending on the installation, this may affect cabinet ventilation or increase the load on the downstream intake filter. Inspection and replacement should follow the equipment’s maintenance procedure and actual filter condition.
Should the main air filter be replaced whenever the 22053722 Filter Pad is changed?
Not automatically. The main filter should be inspected and serviced according to its own condition, restriction indication where fitted, and the compressor maintenance schedule. Replacing both components at the same time may be appropriate in some service situations, but the pre-filter’s condition alone does not establish that the main filter has reached its replacement limit.
