- Ingersoll Rand
- 47627049001 54672654
- Oil Filter
- USA
- 208 × 50 × 95 mm
- 0.91 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

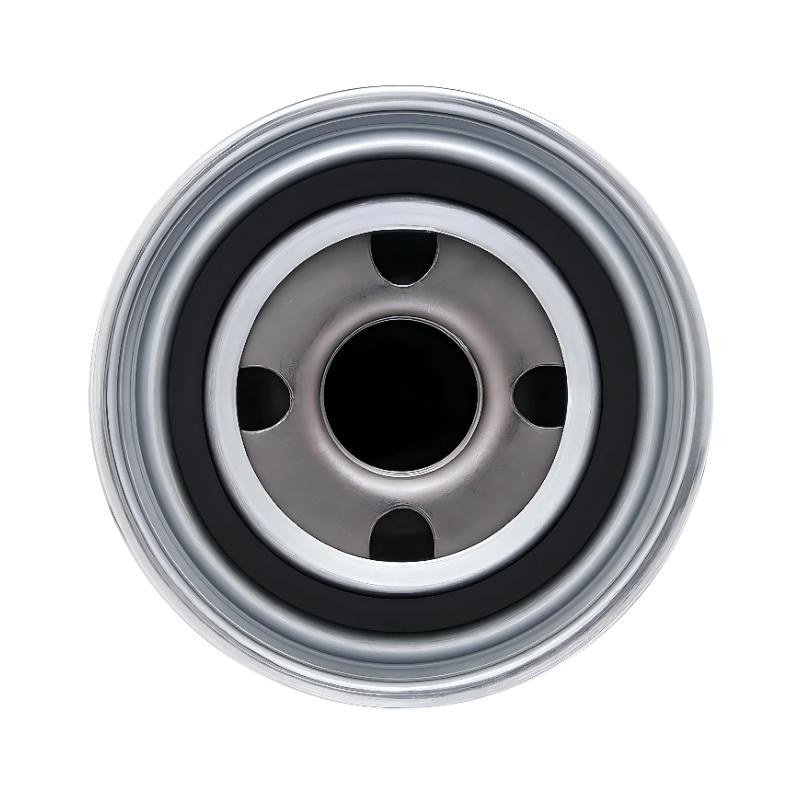

The Ingersoll Rand 47627049001 54672654 Oil Filter is a spin-on oil filter used in compatible Ingersoll Rand rotary screw air compressors. Its function is to remove particulate contaminants from the circulating compressor lubricant before the oil returns to the compression system. Keeping the oil clean helps protect the airend’s internal surfaces and supports the operation of the compressor’s lubrication and cooling circuits.
During normal operation, compressor oil collects particles and debris from the machine’s internal environment. The filter captures these contaminants as the lubricant passes through the filtration media. A clean oil supply helps reduce abrasive wear on moving components and limits contamination in the oil cooler and associated passages.
The 54672654 reference is listed for selected UP6 and RS-series compressor configurations, including certain 15–50 hp units. Correct selection depends on the specific compressor model and installed filter connection. The spin-on construction allows the used filter to be removed and replaced during scheduled maintenance without disassembling the filtration element itself.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47627049001 |
| Reference Number | 54672654 |
| Product Type | Oil Filter |
| Filter Design | Spin-on replacement oil filter |
| Equipment Category | Rotary Screw Air Compressor |
| Filtration Medium | Filter media for compressor lubricant |
| Primary Function | Removes particulate contaminants from circulating oil |
| Installation Location | Compressor lubrication circuit |
| Compatible Series | Selected Ingersoll Rand UP6 and RS series |
| Typical Equipment Range | Selected 15–50 hp compressor configurations |
| Dimensions | 208 × 50 × 95 mm |
| Weight | 0.91 kg |
Product Features
- Spin-on construction: Allows the filter to be removed and replaced as a complete unit during routine servicing.
- Lubricant contamination control: Captures particles and debris carried by the compressor oil.
- Airend protection: Helps reduce the circulation of abrasive contaminants through the compression mechanism.
- Oil circuit maintenance: Supports cleaner lubricant flow toward the airend and oil cooler.
- Sealed installation: Uses a dedicated mounting and sealing arrangement to reduce the risk of oil leakage.
- Defined replacement reference: The 54672654 part number supports accurate spare-parts identification.
- Scheduled service suitability: Can be replaced as part of the compressor’s regular oil and filter maintenance.
- Equipment-specific fitment: Requires confirmation of the filter reference and connection arrangement for the installed compressor.
Working Principle
The compressor oil filter operates within the lubricant circulation circuit. As oil flows through the filter, the filtration media retains particulate contaminants while allowing the lubricant to continue through the system. This reduces the amount of debris reaching lubricated components and helps maintain the cleanliness of the circulating oil.
The filter gradually accumulates particles during operation. As contamination builds up, flow resistance can increase. Depending on the filter design, a bypass mechanism may help maintain oil flow if restriction becomes excessive, but bypass operation does not provide the same filtration as normal flow through the media.
The 54672654 filter should be replaced according to the compressor’s maintenance requirements and operating conditions. During replacement, the mounting surface should be cleaned, the sealing arrangement checked, and the new filter installed using the specified procedure. After restarting the compressor, technicians should check for leakage and confirm that oil pressure and operating conditions are normal.
Role in an Ingersoll Rand Compressor Lubrication System
The 54672654 Oil Filter removes contaminants from the circulating lubricant before the oil returns to the compressor’s working components. It operates alongside the airend, oil cooler and oil circulation passages to help maintain suitable lubricant condition.
| System Component | Function | Relationship to the Oil Filter |
|---|---|---|
| Compressor Airend | Compresses incoming air using rotating screw elements | Receives filtered lubricant for sealing, lubrication and heat removal |
| Oil Circulation Circuit | Carries lubricant through the compressor | Routes oil through the filtration stage |
| 54672654 Oil Filter | Captures particulate contaminants in circulating oil | Performs lubricant filtration |
| Oil Cooler | Transfers heat from the lubricant to the cooling medium | Receives circulating oil within the cooling circuit |
| Oil Reservoir or Separator Vessel | Holds the oil supply associated with the compressor system | Supports oil circulation and recovery |
| Oil Lines and Fittings | Carry lubricant between system components | Must remain clean and leak-free |
| Thermostatic Control Valve, where fitted | Directs oil through the appropriate cooling path | Helps regulate lubricant temperature |
| Oil Pressure Monitoring, where fitted | Monitors oil pressure at designated points | Helps identify abnormal lubrication conditions |
| Compressor Controller | Monitors and controls compressor operation | May display relevant pressure or temperature alarms |
Industrial Applications
| Application | Operating Requirement | Role of the 54672654 Oil Filter |
|---|---|---|
| Manufacturing Plants | Maintain lubricant cleanliness in compressed-air equipment | Removes circulating particles from compressor oil |
| Automotive Production | Support regular operation of rotary screw compressors | Helps protect the airend and lubrication circuit |
| Metalworking Facilities | Maintain compressor lubrication under industrial duty cycles | Captures contaminants carried by the oil |
| Packaging Plants | Support consistent compressor operation for pneumatic equipment | Provides a replaceable oil filtration component |
| Textile Manufacturing | Maintain lubrication during extended production runs | Helps reduce particulate circulation through the compressor |
| Paper Processing | Support compressor operation in production utility systems | Maintains filtration of the circulating lubricant |
| Industrial Utility Rooms | Keep compressor service components in suitable condition | Supports routine oil-filter maintenance |
| Compressor Service Workshops | Replace contaminated filters during planned maintenance | Provides a defined part reference for service records |
Installation and Maintenance
- Verify the part reference: Confirm that 54672654 matches the compressor model and required oil-filter specification.
- Shut down the compressor: Follow the approved isolation procedure before beginning filter maintenance.
- Allow the system to cool: Ensure that the filter and surrounding components are safe to handle.
- Relieve pressure where required: Follow the compressor’s maintenance procedure before loosening any component in the oil circuit.
- Prepare the service area: Use suitable tools and clean materials to reduce the risk of contamination entering the lubrication system.
- Remove the old filter: Unscrew the used filter using the appropriate method and prevent residual oil from spreading onto surrounding components.
- Inspect the mounting surface: Check the filter head and sealing surface for damage, contamination or remnants of the old gasket.
- Prepare the replacement filter: Confirm the correct filter reference and follow the installation instructions for its sealing arrangement.
- Install the new filter: Fit the filter securely using the specified installation method; avoid excessive tightening.
- Check surrounding connections: Inspect accessible oil lines and fittings for damage or signs of leakage.
- Restart and inspect: Return the compressor to service according to the approved procedure and check for oil leaks and abnormal operating indications.
- Record the service: Document the replacement reference, operating hours, service date and any issues identified during maintenance.
Related Components
| Component | Function | Relationship to the Oil Filter |
|---|---|---|
| Compressor Airend | Performs the air compression process | Depends on suitable lubricant cleanliness |
| Oil Cooler | Removes heat from circulating lubricant | Forms part of the same oil circulation system |
| Oil Reservoir or Separator Vessel | Holds and recovers lubricant | Supports the supply of oil to the circulation circuit |
| Oil Lines and Fittings | Transport lubricant through the compressor | Carry oil to and from the filtration stage |
| Thermostatic Control Valve | Regulates the lubricant cooling path where fitted | Helps manage oil temperature |
| Oil Pressure Sensor or Gauge | Monitors pressure at designated points | Helps identify abnormal lubrication conditions |
| Air Filter | Removes particles from incoming air | Protects the intake side rather than filtering compressor oil |
| Air/Oil Separator Element | Separates lubricant from compressed air | Performs a different filtration function from the oil filter |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Ingersoll Rand 54672654 | Oil Filter | Main replacement reference | Confirm the compressor model and filter connection |
| Ingersoll Rand 89295976 | Air Filter | Related compressor filtration component | Filters incoming air rather than circulating lubricant |
| Ingersoll Rand 54749247 | Air/Oil Separator | Related lubrication and air separation component | Separates oil from compressed air; not an oil-filter substitute |
| Ingersoll Rand 22053722 | Filter Pad | Related preliminary filtration component | Serves an intake pre-filter role |
| Ingersoll Rand 92692284 | Ultra Coolant | Related compressor lubricant | Confirm the required lubricant specification separately |
| Ingersoll Rand 99289894 | Minimum Pressure Check Valve Repair Kit | Related compressor maintenance component | Serves a pressure-control function rather than oil filtration |
Key Advantages
- Removes particulate contaminants from circulating compressor lubricant.
- Helps protect the airend and associated lubrication components against abrasive debris.
- Uses a spin-on format for straightforward scheduled replacement.
- Supports oil cleanliness and routine compressor maintenance.
- Provides a defined part number for spare-parts identification and service planning.
Technical FAQs
Which Ingersoll Rand compressor series use the 54672654 oil filter?
The 54672654 reference is listed for selected UP6 and RS-series rotary screw compressors, including certain 15–50 hp configurations. Fitment can vary by model and production version, so the exact compressor identification should be checked before installation.
What is the difference between the 54672654 oil filter and the 54749247 separator element?
The 54672654 filter removes particulate contaminants from circulating compressor oil. The 54749247 separator element removes entrained lubricant from compressed air. They serve different circuits and cannot be substituted for one another.
How can a clogged oil filter affect a rotary screw compressor?
A heavily loaded filter can increase resistance to oil flow. Depending on the system design, this may affect lubrication conditions or trigger a pressure-related indication. Regular inspection and replacement according to the compressor’s maintenance schedule help reduce this risk.
What should be checked after installing a replacement 54672654 filter?
Check the filter seal and mounting area for leakage, then verify the compressor’s normal operating indications after restart. If oil pressure, temperature or other readings are abnormal, follow the equipment’s troubleshooting procedure rather than continuing operation without investigation.
