- Ingersoll Rand
- 47588565001 89246524
- Motor Shaft Sleeve
- USA
- 75 × 75 × 51 mm
- 0.680 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 8
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

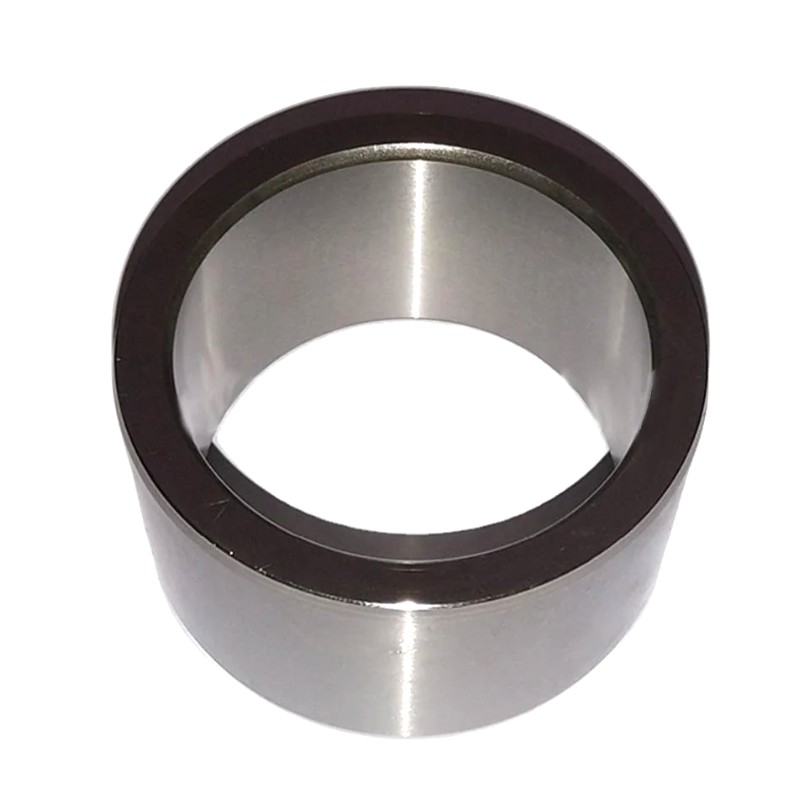

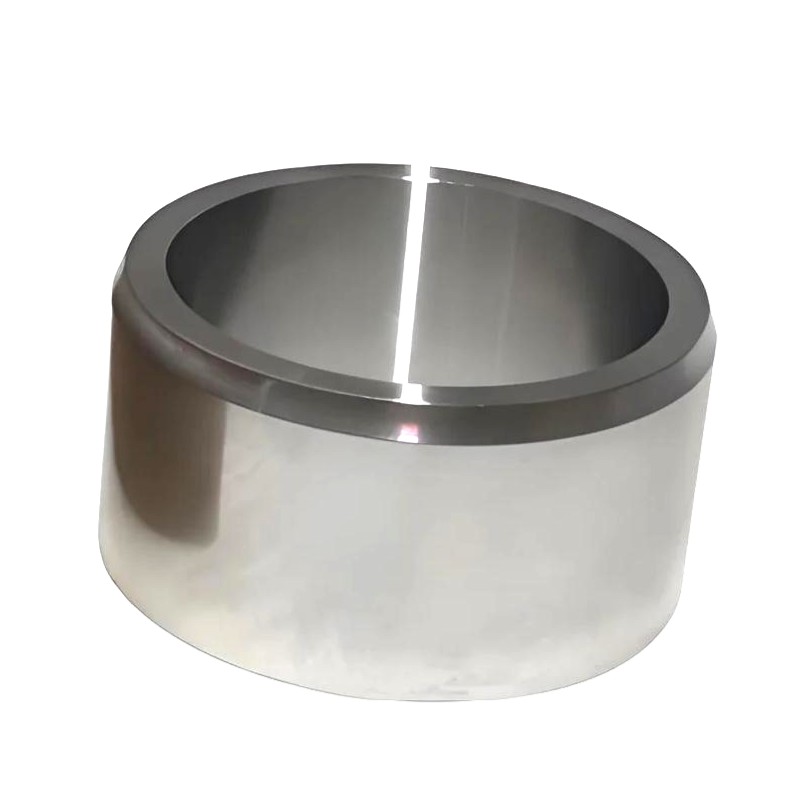

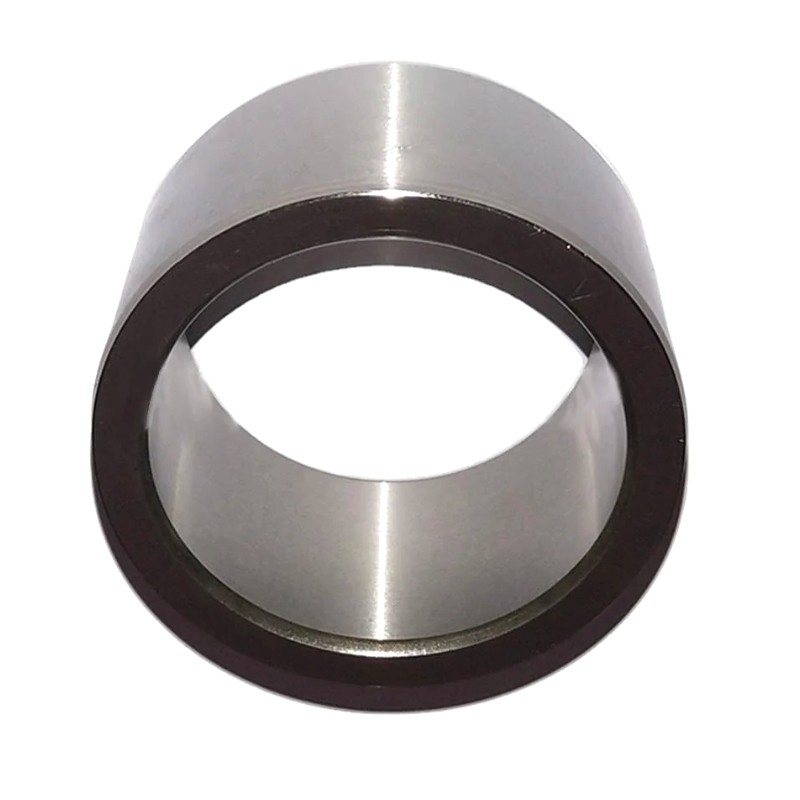

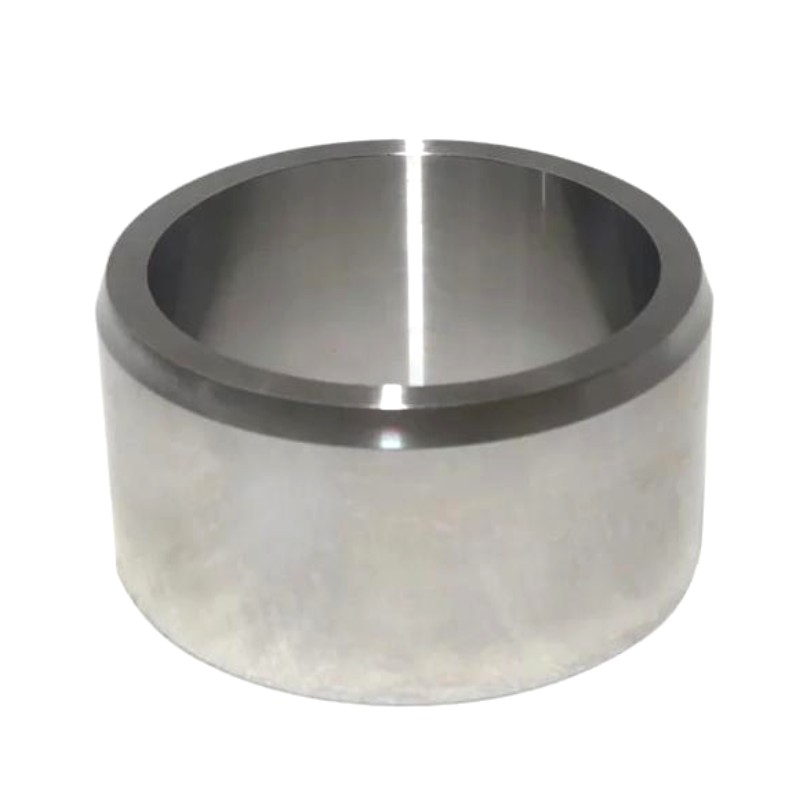

The Ingersoll Rand 47588565001 89246524 Motor Shaft Sleeve is a mechanical sleeve component used in the motor shaft assembly of compatible Ingersoll Rand equipment. It is fitted around or along the shaft interface where an additional wear surface, locating surface, or protective sleeve is required within the mechanical arrangement.
In motor-driven compressor equipment, shaft-related components operate under continuous rotation and are exposed to contact forces, vibration, lubrication conditions, and thermal changes. The shaft sleeve forms part of this mechanical interface and should be inspected when there is abnormal wear, shaft-related damage, or maintenance work involving associated seals and rotating components.
During overhaul or replacement work, technicians should verify the part number, sleeve dimensions, shaft condition, mating components, and installation orientation. A replacement sleeve should not be evaluated independently from the shaft, seal, bearing, or other components located in the same mechanical assembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47588565001 / 89246524 |
| Product Type | Motor Shaft Sleeve |
| Primary Function | Mechanical shaft interface and protection |
| System Role | Motor shaft assembly component |
| Application | Industrial compressor and motor-driven equipment |
| Installation | Installed as part of the compatible shaft assembly |
| Dimensions | 75 × 75 × 51 mm |
| Weight | 0.680 kg |
Product Features
- Motor shaft sleeve for compatible Ingersoll Rand equipment.
- Used as part of the motor shaft mechanical assembly.
- Supports the shaft interface with associated mechanical components.
- Suitable for maintenance and replacement work.
- Can be inspected together with seals, bearings, and mating shaft surfaces.
- Applicable to industrial compressor equipment and other compatible motor-driven assemblies.
- Replacement compatibility should be confirmed using both listed part numbers.
Working Principle
The 47588565001 89246524 Motor Shaft Sleeve functions as a mechanical component within the shaft assembly rather than as an active electrical or control device.
Once installed, the sleeve occupies its specified position on the shaft assembly and forms part of the mechanical interface with surrounding components. Depending on the equipment arrangement, associated parts may include seals, bearings, housings, or other rotating assembly components.
Motor → Shaft → Shaft Sleeve → Associated Mechanical Components → Driven Equipment
During operation, the sleeve remains part of the rotating or shaft-mounted mechanical arrangement. Its condition can directly affect the fit and working relationship of nearby components.
Role in the Motor Shaft Assembly
The motor shaft sleeve is positioned within the mechanical drive arrangement and works together with the shaft and associated rotating components.
Motor → Shaft → 47588565001 89246524 Shaft Sleeve → Seal / Bearing Assembly → Compressor Equipment
| System Element | Function |
|---|---|
| Motor | Produces rotational power |
| Motor Shaft | Transfers rotational movement |
| 47588565001 / 89246524 | Forms part of the shaft mechanical interface |
| Shaft Seal | Controls the sealing interface where applicable |
| Bearing Assembly | Supports shaft rotation |
| Mechanical Housing | Maintains component positioning |
| Driven Equipment | Receives the mechanical output |
The sleeve should be evaluated together with the surrounding mechanical components when troubleshooting shaft-related wear or during scheduled overhaul work.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Compressors | Motor shaft assembly maintenance |
| Air Compressor Systems | Replacement of shaft-related mechanical components |
| Motor-Driven Equipment | Shaft interface and mechanical assembly service |
| Compressor Overhaul | Inspection and replacement of rotating assembly parts |
| Preventive Maintenance | Replacement of worn mechanical components |
| Repair Operations | Restoration of compatible shaft assemblies |
| Industrial Service Work | Maintenance of Ingersoll Rand equipment |
| Rotating Machinery | Shaft assembly component replacement |
Installation and Maintenance
- Confirm both part numbers, 47588565001 and 89246524, before installation.
- Inspect the motor shaft for wear, scoring, corrosion, or other surface damage.
- Check the mating surfaces of the sleeve and associated mechanical components.
- Verify the correct installation position and orientation.
- Clean the shaft and component interfaces before assembly.
- Inspect associated seals and bearings during the same maintenance procedure.
- Avoid damaging the sleeve surface during installation.
- Follow the approved assembly procedure for the specific equipment.
- Check that the shaft assembly rotates without abnormal mechanical interference.
- Inspect the assembly for abnormal noise or vibration after startup.
- Include the sleeve in scheduled inspections of the rotating assembly.
- Replace damaged or excessively worn components before returning the equipment to service.
If repeated sleeve wear is found, the shaft condition, alignment, bearing condition, and associated sealing surfaces should also be inspected.
Related Components
| Component | Function |
|---|---|
| Motor Shaft | Transfers rotational power through the assembly |
| Motor Shaft Sleeve | Forms part of the shaft mechanical interface |
| Shaft Seal | Supports the sealing arrangement where applicable |
| Motor Bearing | Supports shaft rotation |
| Bearing Housing | Positions and supports the bearing assembly |
| Compressor Drive Assembly | Transfers motor power to the compressor system |
| Mechanical Seal Components | Support associated shaft sealing arrangements |
| Maintenance Service Kit | Contains related replacement components where applicable |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 89244024 | Oil Seal | Shaft sealing and maintenance |
| Ingersoll Rand 22990790 | Gasket | Mechanical sealing and replacement |
| Ingersoll Rand 23518509 | O-Ring | Component sealing |
| Ingersoll Rand Motor Bearing Components | Bearing Component | Shaft support and rotation |
| Ingersoll Rand Shaft Seal Components | Mechanical Seal | Shaft assembly maintenance |
| Ingersoll Rand Compressor Service Kits | Service Kit | Scheduled equipment maintenance |
Key Advantages
- Mechanical component for the motor shaft assembly.
- Supports maintenance of compatible rotating equipment.
- Can be serviced together with related seals and bearings.
- Suitable for compressor overhaul and repair work.
- Uses the provided part numbers for replacement identification.
- Useful for restoring worn or damaged shaft assembly components.
- Straightforward integration into compatible mechanical assemblies.
Technical FAQs
What is the Ingersoll Rand 47588565001 89246524 Motor Shaft Sleeve used for?
It is used as a mechanical component within a compatible motor shaft assembly. The sleeve forms part of the shaft interface and should be considered together with the surrounding seals, bearings, and other mating components.
Should the motor shaft be inspected when replacing the sleeve?
Yes. The shaft surface should be checked for scoring, corrosion, wear, or other damage before installing the replacement sleeve. A damaged shaft surface can affect the fit and service life of associated components.
What other components should be checked during shaft sleeve maintenance?
Associated shaft seals, bearings, mating surfaces, and the mechanical housing should be inspected during the same maintenance procedure. Checking the complete assembly can help identify the cause of abnormal wear.
What can cause repeated wear of a shaft sleeve?
Possible causes can include shaft surface damage, bearing wear, mechanical misalignment, incorrect installation, or problems affecting the associated sealing or rotating assembly. The surrounding mechanical system should be inspected rather than replacing the sleeve alone.
