- Ingersoll Rand
- 47588565001 23518509
- O-Ring
- USA
- 325 × 325 × 5.33 mm
- 0.12 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

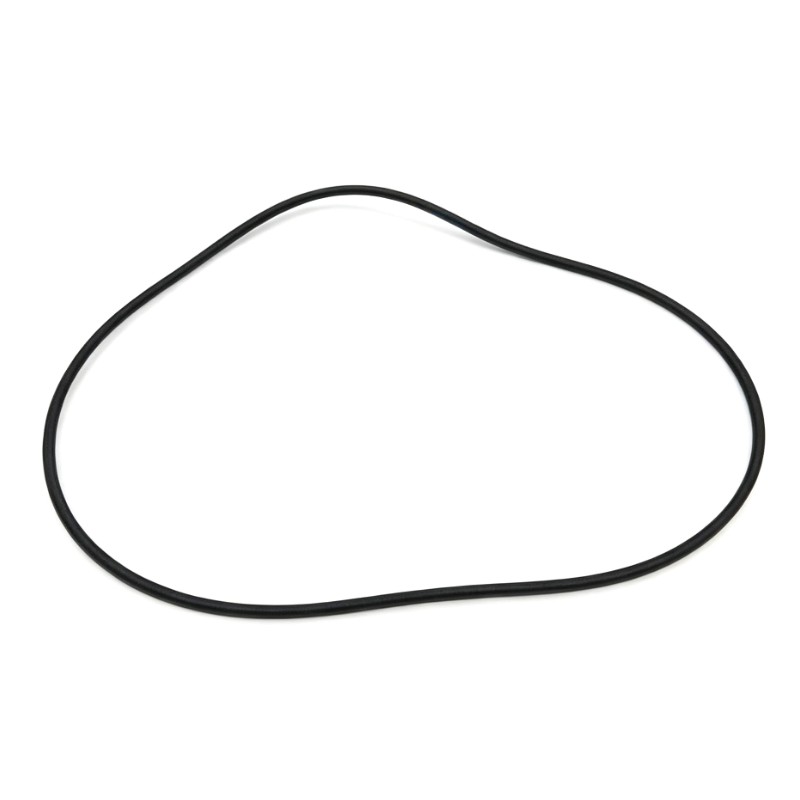

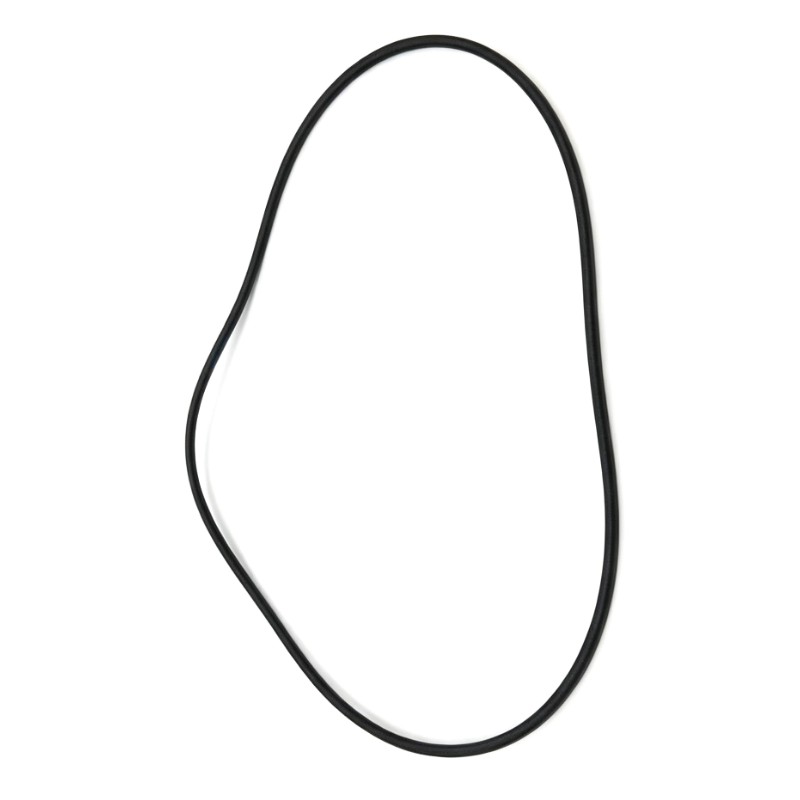

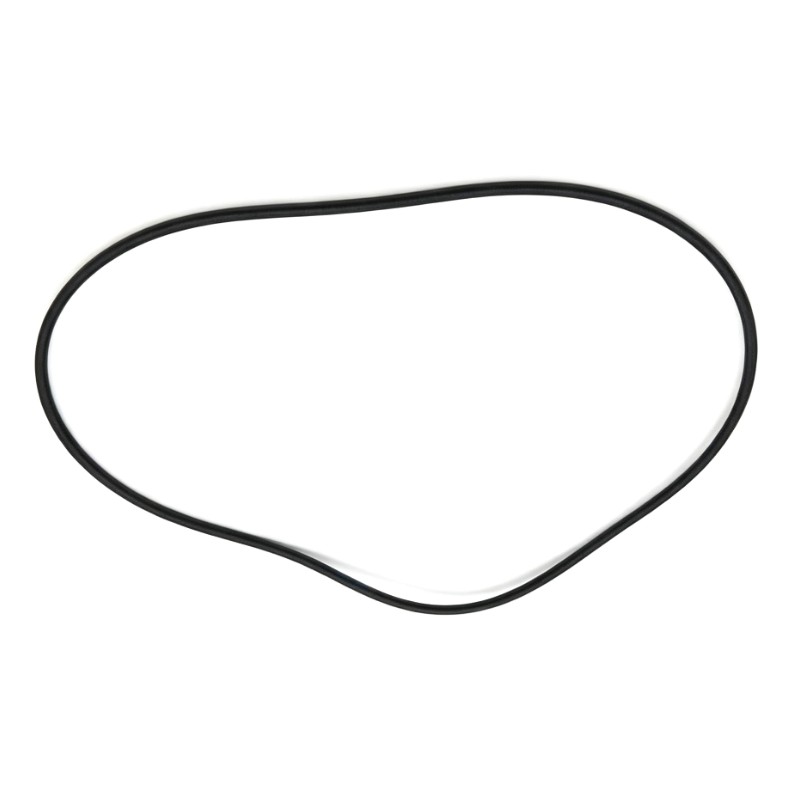

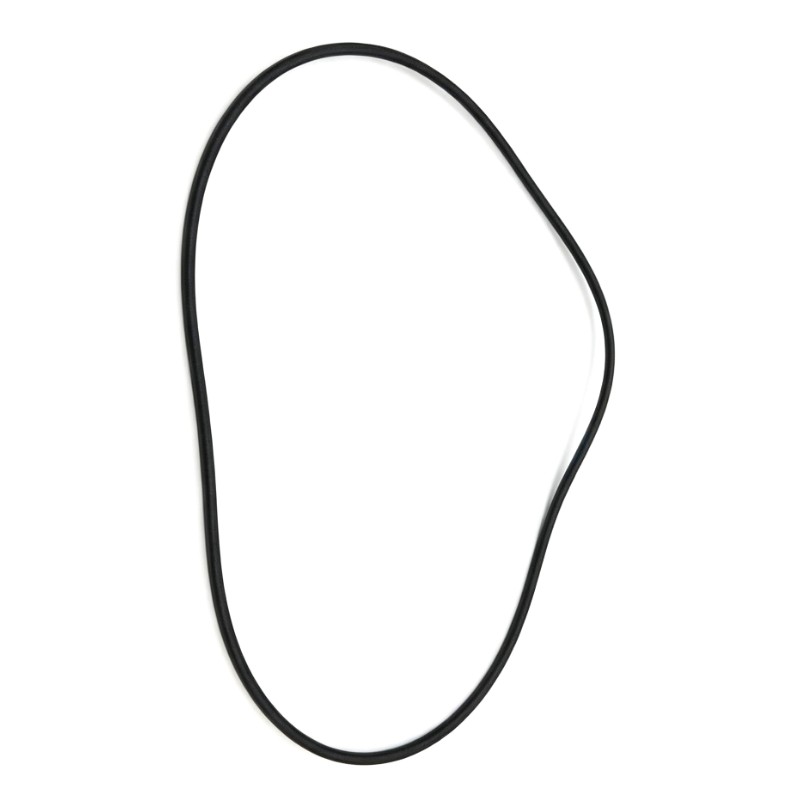

The Ingersoll Rand 47588565001 23518509 O-Ring is a replacement sealing component used in Ingersoll Rand compressor maintenance. 23518509 is the O-ring part number, while 47588565001 identifies the associated service parts configuration.
An O-ring is used differently from a flat gasket such as 22990790. It sits in a machined groove or designated circular sealing interface, where compression between the mating components forms the seal. During compressor servicing, the O-ring may need to be replaced when a housing, cooler-related component, fitting, cover, or other mechanical assembly is separated.
In practical maintenance work, the condition of the groove and mating surface matters as much as the O-ring itself. Before installation, technicians normally remove the old ring, clean the groove, inspect it for damage or contamination, and make sure the new ring is seated correctly without twisting. A damaged groove or incorrectly installed O-ring can result in leakage even when the replacement part itself is in good condition.
The 47588565001 23518509 O-Ring is therefore a small but important service item for compressor mechanical maintenance. It is normally handled together with the other seals, gaskets, and replacement components required for the particular maintenance procedure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 47588565001 23518509 |
| Part Number | 23518509 |
| Associated Part Number | 47588565001 |
| Product Type | O-Ring |
| Product Category | Compressor Maintenance Spare |
| Primary Function | Mechanical Sealing |
| Application | Ingersoll Rand Compressor Maintenance |
| Installation | Grooved / Circular Sealing Interface |
| Dimensions | 325 × 325 × 5.33 mm |
| Weight | 0.12 kg |
Product Features
- Ingersoll Rand maintenance part 23518509
- Associated with part number 47588565001
- O-ring configuration for mechanical sealing
- Suitable for specified compressor assemblies
- Used at designated circular sealing interfaces
- Applicable to compressor maintenance and repair
- Requires correct groove seating during installation
- Used alongside gaskets and other sealing components
- Suitable for planned maintenance and overhaul work
- Compact replacement component for compressor service inventories
Working Principle
The 23518509 O-Ring seals by being compressed inside its designated groove between two mating components.
When the components are assembled, the O-ring is squeezed against the surrounding surfaces. This compression closes the potential leakage path around the joint while allowing the connected components to maintain their intended mechanical relationship.
The basic arrangement is:
Groove → O-Ring 23518509 → Mating Component → Compressed Sealing Interface
For maintenance, the installation condition is critical. The O-ring should sit evenly in its groove without twisting, pinching, cutting, or being displaced during assembly. The sealing surfaces should also be clean and free from damage.
Unlike a flat gasket, an O-ring is dependent on the geometry of the groove and the amount of compression provided by the assembled components. For this reason, simply selecting an O-ring based on apparent size is not sufficient when replacing a compressor sealing component.
Role in Ingersoll Rand Compressor Maintenance
The 23518509 O-Ring belongs to the mechanical sealing side of compressor maintenance. It does not interact with the compressor controller, electrical wiring, or pneumatic control signals.
During service, an assembly containing an O-ring may be separated to access internal components or perform inspection and replacement work. Once the joint is opened, the old O-ring should be assessed and replaced when required by the maintenance procedure.
| Maintenance Element | Function |
|---|---|
| 23518509 O-Ring | Seals the designated circular mechanical interface |
| 47588565001 | Associated service parts configuration |
| O-Ring Groove | Holds and locates the sealing ring |
| Mating Components | Compress the O-ring during assembly |
| Fasteners | Maintain the required clamping force where applicable |
| Gasket | Provides flat-surface sealing at designated joints |
| Loctite Sealant | Used at specified interfaces where required |
Industrial Applications
| Application | Typical Use |
|---|---|
| Compressor Preventive Maintenance | Replacement of sealing rings during scheduled service |
| Compressor Overhaul | Renewing O-rings after mechanical disassembly |
| Mechanical Repair | Restoring a specified circular sealing interface |
| Water Cooler Service | O-ring replacement where included in the applicable assembly |
| Field Service | Carrying replacement sealing components for repair work |
| Industrial Compressed-Air Systems | Maintenance of Ingersoll Rand compressor equipment |
| Service Workshop | Inspection and replacement of compressor seals |
| Spare Parts Inventory | Maintaining O-rings for planned maintenance jobs |
Installation and Maintenance
- Confirm the complete 47588565001 23518509 part identification.
- Verify that the O-ring matches the compressor model and serviced assembly.
- Remove the relevant component according to the maintenance procedure.
- Carefully remove the existing O-ring without damaging the groove.
- Inspect the groove for scratches, corrosion, debris, or deformation.
- Clean the groove and mating surfaces as required.
- Inspect the replacement O-ring before installation.
- Position the O-ring evenly inside its designated groove.
- Make sure the ring is not twisted, pinched, stretched excessively, or displaced.
- Reassemble the mating components without disturbing the O-ring.
- Tighten the assembly according to the applicable procedure.
- Check the serviced area for leakage after the compressor is returned to operation.
If an O-ring repeatedly leaks after replacement, replacing the ring again may not solve the problem. The groove, mating surface, assembly alignment, and installation condition should also be inspected.
Related Components
| Component | Function |
|---|---|
| 47588565001 | Associated Ingersoll Rand service part number |
| 23518509 | Replacement O-ring |
| 22990790 | Related gasket for specified mechanical sealing applications |
| 42837054 | Loctite sealant for applicable maintenance interfaces |
| O-Ring Groove | Locates and compresses the sealing ring |
| Mating Housing Components | Form the sealing interface around the O-ring |
| Fasteners | Secure the associated mechanical assembly |
| Compressor Service Parts | Components replaced during maintenance |
Recommended Related Models
| Model / Part Number | Product Type | Typical Application |
|---|---|---|
| 47588565001 23518509 | O-Ring | Compressor mechanical sealing |
| 47588565001 22990790 | Gasket | Flat-surface mechanical sealing |
| 47555464001 42837054 | Loctite Sealant | Specified compressor sealing work |
| 89244024 | Seal | Compressor sealing replacement |
| 95023107 | O-Ring | Related compressor sealing maintenance |
| 95023388 | O-Ring | Compressor service |
| 92876457 | Gasket | Mechanical joint sealing |
| 42837013 | Loctite Cleaner | Surface preparation during maintenance |
Key Advantages
- Ingersoll Rand-specific O-ring part number.
- Identified as 23518509.
- Associated with 47588565001.
- Suitable for specified circular mechanical sealing interfaces.
- Used during compressor service and reassembly.
- Can be stocked with related gaskets and sealants.
- Suitable for scheduled maintenance and compressor overhaul work.
Technical FAQs
What is the function of the 23518509 O-Ring?
The 23518509 O-Ring forms a seal at a designated circular mechanical interface. When compressed inside its groove, it closes the leakage path between the mating components.
Why should the O-ring groove be inspected before installing 23518509?
The groove determines how the O-ring is positioned and compressed. Scratches, corrosion, debris, or deformation can prevent the new O-ring from sealing correctly and may cause leakage after reassembly.
Can 23518509 be replaced by an O-ring with similar dimensions?
A visually similar O-ring should not automatically be considered an acceptable replacement. Groove geometry, sealing application, material requirements, and the compressor assembly all need to match the applicable specification.
What can cause a new 23518509 O-ring to leak after installation?
Common installation-related causes include a damaged groove, contamination, twisting or pinching of the O-ring, incorrect seating, damaged mating surfaces, or insufficient assembly condition. The complete sealing interface should be inspected rather than assuming the replacement O-ring itself is defective.
