Product Overview

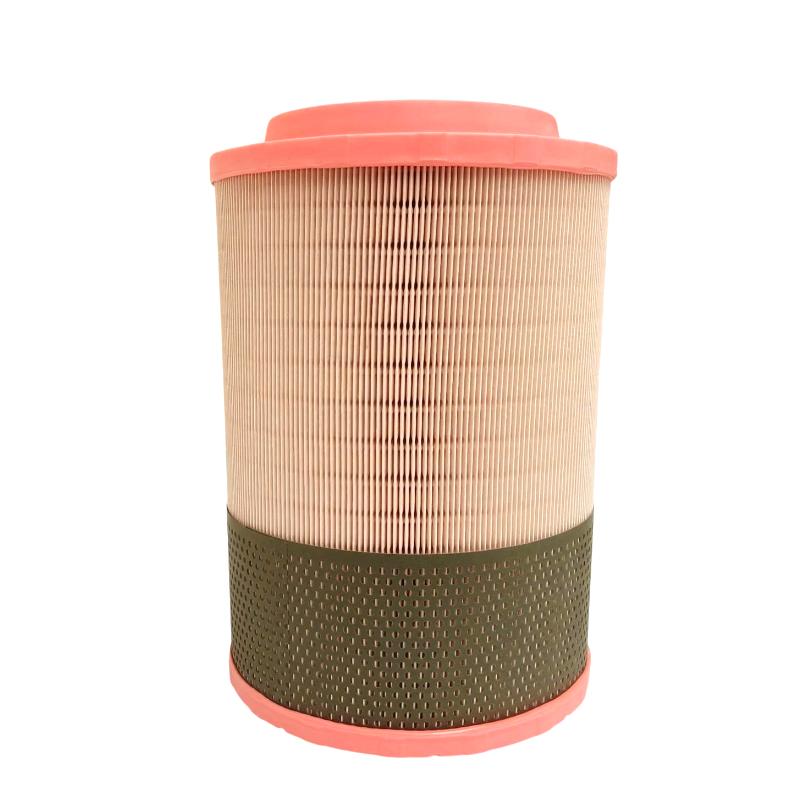

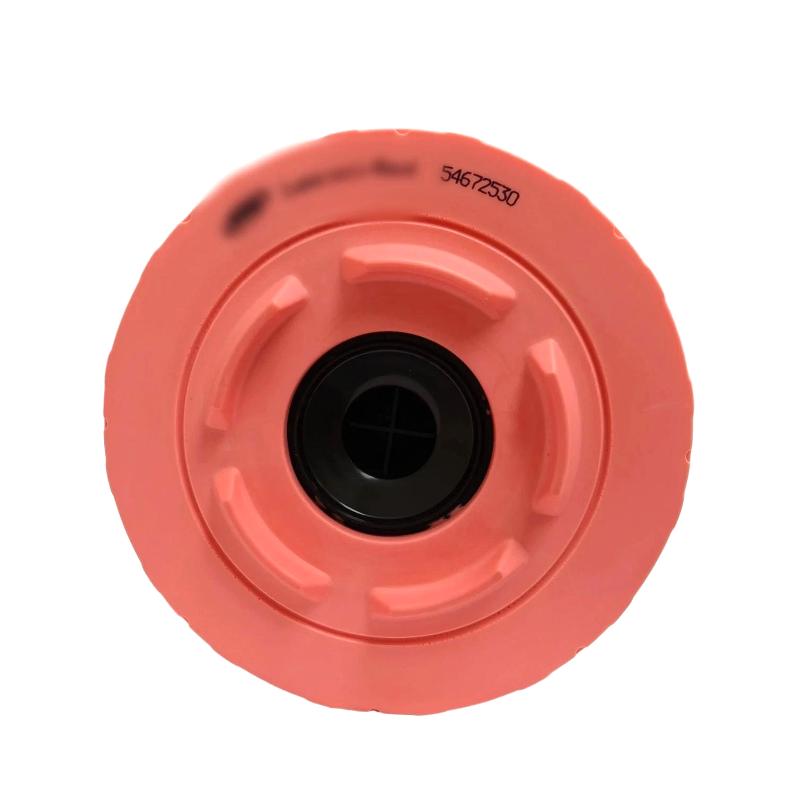

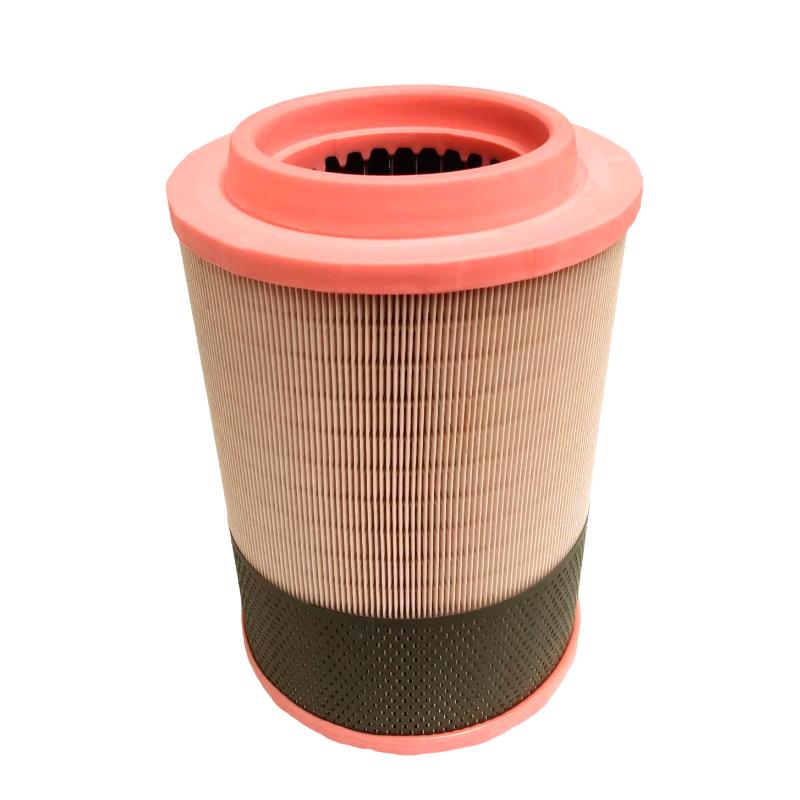

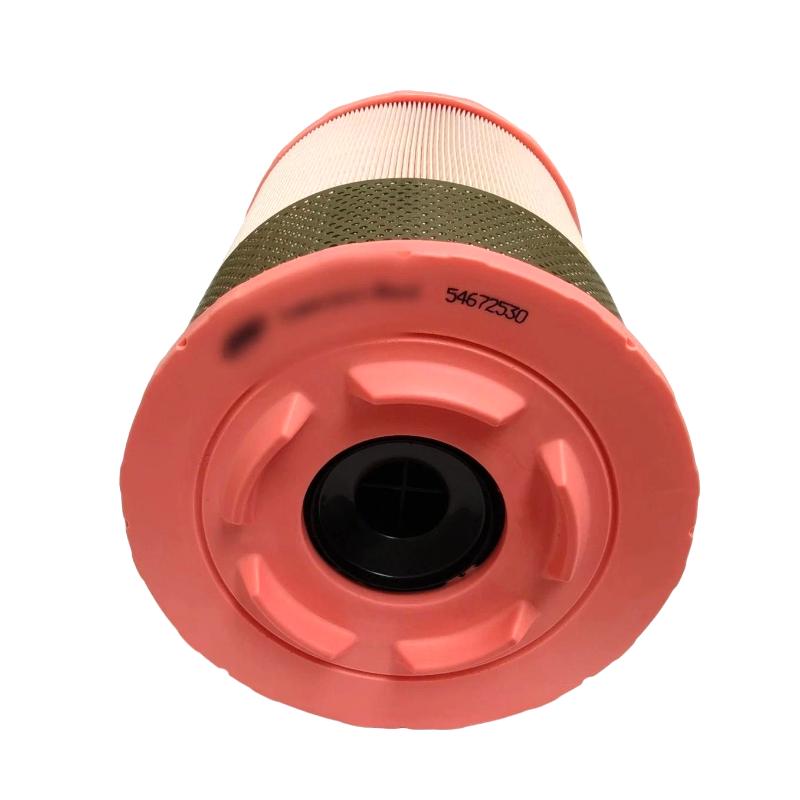

The Ingersoll Rand 47588564001 54672530 Air Filter is a replacement air filtration component used on applicable Ingersoll Rand industrial air compressors. Part number 54672530 identifies the air filter itself, while 47588564001 is associated with the corresponding maintenance-part reference.

In an operating compressor, the air filter sits at the air intake side, before atmospheric air reaches the compressor’s internal compression components. Its job is straightforward but critical to routine compressor maintenance: remove airborne dust and other particulate contamination before that material enters the compressor.

This becomes particularly important in plants where compressors operate around machining equipment, construction dust, packaging materials, metal particles, or other airborne contaminants. A heavily loaded filter can gradually restrict intake airflow, while a damaged or poorly sealed filter can allow contamination to pass downstream.

For maintenance engineers, the condition of the air filter should therefore be considered from two directions: filtration quality and airflow restriction. Replacing the filter at the appropriate service point helps maintain the intended intake conditions without waiting for excessive contamination or restriction to affect compressor operation.

The 47588564001 reference should be checked together with the actual 54672530 filter number and the compressor model before ordering, particularly when maintaining multiple Ingersoll Rand machines with different intake arrangements.

Technical Specifications

Product Features

The 54672530 air filter is used at the compressor intake and forms the first filtration stage for incoming atmospheric air.

Key characteristics include:

• Ingersoll Rand compressor air filter
• Part number 54672530
• Associated with maintenance reference 47588564001
• Installed on the compressor intake side
• Removes airborne particulate contamination
• Helps protect downstream compressor components
• Suitable for scheduled filter replacement
• Relevant to compressors operating in dusty industrial environments
• Supports proper intake-air management
• Suitable for preventive and corrective maintenance

The filter should be selected according to the compressor’s specified intake configuration. Physical similarity between two filter elements does not by itself establish compatibility.

Working Principle

The 54672530 works through a relatively simple airflow process, but its condition affects what reaches the compressor air end.

The intake path can be represented as:

Ambient Air → 54672530 Air Filter → Intake System → Compressor Air End

As the compressor draws atmospheric air into the intake system, the air passes through the filter media. Particulate matter is retained by the filtration media while the filtered air continues toward the compressor.

During normal service, dust gradually accumulates on the filter. This creates increasing resistance to airflow. A clean filter allows the compressor to draw the required intake air with comparatively low restriction; as contamination builds up, the pressure drop across the filter can increase.

This is why filter maintenance is not simply about whether the element “looks dirty.” A filter can require attention because of accumulated contamination and airflow restriction even before its external appearance suggests severe blockage.

In practical troubleshooting, abnormal intake restriction should be distinguished from problems elsewhere in the compressor. If replacing the filter does not correct an intake-related symptom, technicians should continue checking the intake ducting, seals, intake valve, and other components in the air path.

Role in the Compressor Air Intake System

The air filter occupies the first section of the compressor’s air-handling path.

A simplified arrangement is:

Ambient Environment → Air Filter → Intake Valve → Air End → Air/Oil Separation → Cooling → Compressed-Air Outlet

The filter therefore has a direct relationship with the quality and restriction level of the air entering the rest of the compressor.

Industrial Applications

The 54672530 is relevant to industrial compressed-air systems where the associated Ingersoll Rand compressor requires this filter configuration.

The service requirement depends on the compressor’s operating environment. A machine working in a dusty location can require more frequent inspection than one operating in a relatively clean equipment room.

Installation and Maintenance

Air-filter maintenance should be based on the compressor service procedure and the actual operating environment. Simply installing a new element without checking the surrounding intake assembly can leave the original problem unresolved.

During maintenance, engineers should consider:

• Confirm the 54672530 part number.
• Verify the associated compressor model.
• Check the existing filter housing.
• Inspect the filter element for excessive contamination.
• Check for signs of moisture or oil contamination.
• Inspect the filter sealing surfaces.
• Check the filter housing for damage.
• Inspect intake ducting and connections.
• Make sure the replacement element is seated correctly.
• Check for bypass paths around the filter.
• Avoid damaging the filter media during installation.
• Check intake restriction where monitoring equipment is available.
• Inspect the intake valve if airflow problems remain.
• Return the compressor to service according to the approved procedure.
• Monitor compressor operating behavior after replacement.
• Record the replacement part number and maintenance date.

A filter that is incorrectly seated can create a bypass path, allowing unfiltered air to enter the compressor. For this reason, seal condition and installation position are just as important as the filter element itself.

Related Components

The air filter is normally maintained together with other components in the compressor’s air, oil, and capacity-control systems.

For preventive maintenance, the air filter should not be evaluated separately from the condition of the rest of the intake system.

Recommended Related Models

For spare-parts cataloging, related recommendations are better organized around air filtration and compressor maintenance rather than unrelated compressor components.

Key Advantages

• Ingersoll Rand compressor intake air filter.
• Part number 54672530.
• Associated with maintenance reference 47588564001.
• Filters particulate contamination from incoming air.
• Installed upstream of the compressor air end.
• Suitable for scheduled compressor maintenance.
• Useful for compressors operating in contaminated industrial environments.
• Helps maintain the intended intake-air path.
• Supports inspection and replacement programs for compressor filtration.

Technical FAQs

What is the difference between 54672530 and 47588564001?

54672530 identifies the air filter component, while 47588564001 is the associated maintenance reference. They should not automatically be treated as two interchangeable filter part numbers. The compressor configuration should be checked when ordering.

Can a dirty air filter reduce compressor performance?

Yes. As particulate material accumulates, airflow resistance can increase. Excessive intake restriction can affect the amount of air available to the compressor and may contribute to abnormal operating conditions. The actual effect depends on the compressor design and degree of restriction.

Why should the filter housing be inspected when replacing 54672530?

A new filter cannot compensate for a damaged housing, poor sealing surface, or an incorrectly installed element. Air can bypass the filter through gaps around the housing or seal, allowing contaminated air into the compressor even though the filter itself is new.

Should 54672530 be replaced based only on visual appearance?

Not necessarily. External appearance is only one maintenance indicator. Service decisions can also consider operating hours, the compressor environment, measured intake restriction, filter condition, and the manufacturer’s maintenance requirements for the specific machine.
