Product Overview

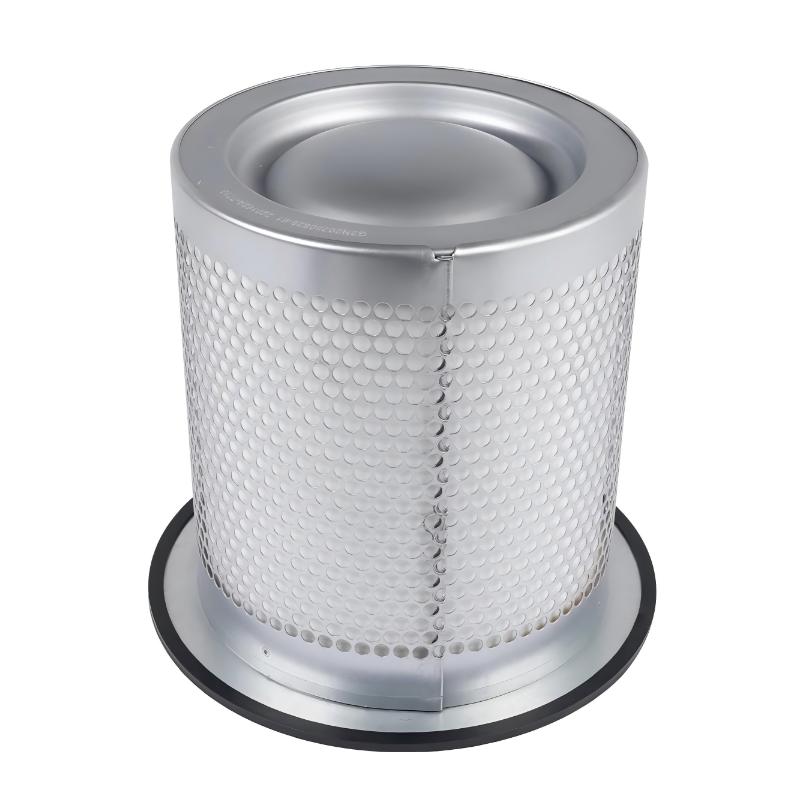

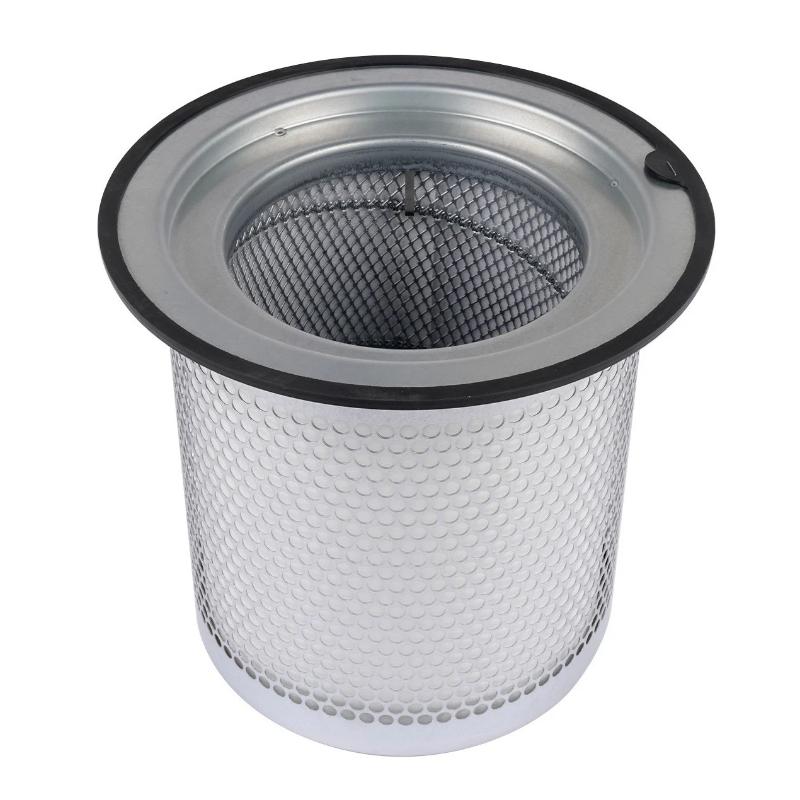

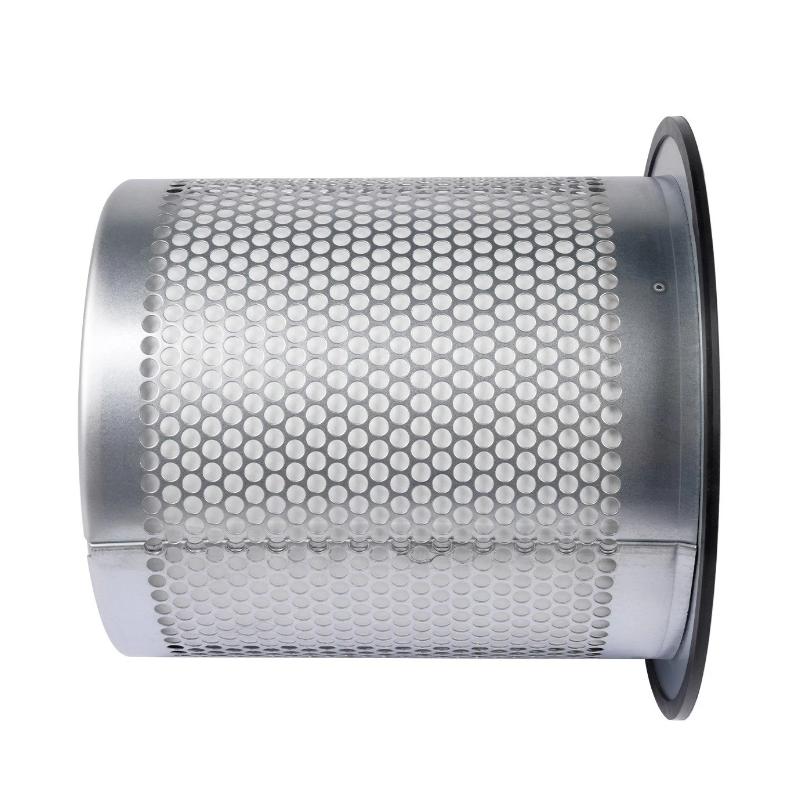

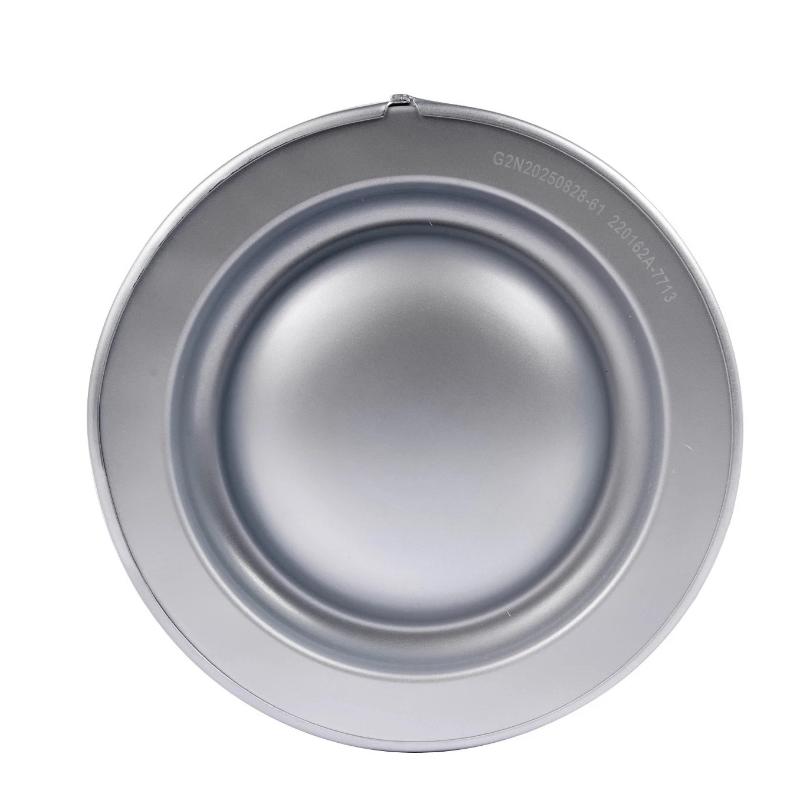

The Ingersoll Rand 47588563001 23708423 Air Oil Separator is a key separation element used in compatible Ingersoll Rand compressor systems to remove entrained oil from compressed air before the air continues toward the downstream air circuit.

In an oil-flooded compressor, lubrication oil circulates through the compression system together with the compressed air. After compression, the two-phase mixture must pass through a dedicated separation stage. The 23708423 Air Oil Separator performs this separation function, allowing recovered oil to return to the appropriate oil circuit while substantially reducing oil carryover in the compressed-air stream.

The component is associated with service assembly 47588563001 and is identified by part number 23708423. Its condition has a direct relationship with separator performance, pressure drop, oil consumption, and the quality of air delivered from the compressor package.

For maintenance engineers, separator replacement should not be based solely on operating hours. Differential pressure, oil carryover, compressor operating conditions, and the condition of related oil-system components should also be considered when evaluating separator performance.

Technical Specifications

Product Features

The 23708423 separator is intended for compressor applications where effective oil recovery and low oil carryover are important to system operation.

Key characteristics include:

• Ingersoll Rand Air Oil Separator
• Part number 23708423
• Associated with service assembly 47588563001
• Designed for compressed air and oil separation
• Supports recovery of entrained compressor oil
• Helps reduce oil carryover into the compressed-air outlet
• Contributes to stable compressor oil circulation
• Suitable for scheduled compressor maintenance
• Intended for compatible Ingersoll Rand equipment

The separator operates as part of the compressor’s overall oil-management system, so separator condition should be evaluated together with the oil filter, scavenge system, oil, seals, and associated piping.

Working Principle

The 23708423 Air Oil Separator works by separating oil droplets from the compressed-air stream after the compression stage.

A simplified process is:

Air/Oil Mixture → Separator → Separated Air → Air Outlet

with recovered oil following a separate path:

Separated Oil → Oil Recovery / Scavenge Circuit → Compressor Oil System

During compression, lubricating oil becomes mixed with the compressed air. The mixture enters the separator vessel, where the separation media and internal flow conditions cause entrained oil to collect rather than remain suspended in the air stream.

The separation process generally involves:

1. Mixture Entry

   The compressed air containing suspended oil enters the separator assembly.

2. Primary Separation

   Larger oil droplets are separated as the flow passes through the separator structure.

3. Fine Oil Separation

   Smaller oil droplets are retained by the separation media, reducing the amount of oil remaining in the compressed-air stream.

4. Oil Recovery

   Collected oil is directed back toward the compressor’s oil circuit through the appropriate recovery path.

5. Cleaned Air Discharge

   The separated compressed air continues toward the downstream air system.

Separator loading can gradually increase pressure drop. Excessive restriction or deteriorated separation performance may therefore appear as increased oil carryover, abnormal pressure conditions, or increased compressor operating costs.

Role in an Oil-Flooded Compressor System

The 23708423 occupies the air/oil separation stage between compression and compressed-air delivery.

A simplified compressor process is:

Air Intake → Compression → Air/Oil Mixture → 23708423 Separator → Compressed Air Outlet

At the same time, recovered oil is directed back into the lubrication circuit.

This makes the separator important to both sides of compressor operation. If oil separation becomes ineffective, downstream air quality can deteriorate. If the separator becomes excessively restricted, compressor efficiency and operating conditions can also be affected.

For this reason, separator performance should be evaluated using multiple operating indicators rather than relying on a single symptom.

Industrial Applications

The exact application depends on the compressor model and equipment configuration associated with service assembly 47588563001.

Installation and Maintenance

Air oil separator replacement should be carried out as part of a controlled compressor maintenance procedure.

Recommended practices include:

• Confirm 23708423 as the correct replacement part number.
• Verify compatibility with the applicable 47588563001 service assembly.
• Shut down and isolate the compressor before servicing.
• Allow internal pressure to dissipate according to the equipment service procedure.
• Inspect the separator housing and sealing surfaces.
• Check for contamination or abnormal oil deposits.
• Inspect the associated scavenge or oil-return path.
• Replace damaged seals or related service components when required.
• Install the separator correctly and ensure proper sealing.
• Check for oil or air leakage after commissioning.
• Monitor separator differential pressure and oil carryover during operation.
• Record separator replacement and observed operating conditions.

If oil carryover remains excessive after separator replacement, technicians should investigate the oil level, scavenge system, operating pressure, compressor condition, and other components rather than immediately assuming the new separator has failed.

Related Components

The 23708423 Air Oil Separator operates together with several components in the compressor’s lubrication and air treatment system.

The interaction between these components directly affects oil carryover, pressure drop, cooling performance, and compressor reliability.

Recommended Related Models

Key Advantages

• Ingersoll Rand part number 23708423.
• Designed for compatible oil-flooded compressor systems.
• Performs separation of oil from compressed air.
• Helps control oil carryover.
• Supports recovery of compressor lubrication oil.
• Contributes to compressed-air system cleanliness.
• Suitable for scheduled compressor servicing.
• Works as part of the complete compressor oil-management system.

Technical FAQs

What happens when the 23708423 Air Oil Separator becomes heavily loaded?

As contamination accumulates in the separator media, flow resistance can increase. Depending on compressor operating conditions, this may contribute to increased pressure drop, reduced efficiency, or changes in compressor operating behavior.

Why can excessive oil carryover occur even after replacing the separator?

Oil carryover can have several causes. Engineers should check oil level, scavenge-line operation, separator installation, system operating conditions, and other oil-management components before concluding that the replacement separator is the cause.

What should be inspected around the separator during compressor servicing?

The separator housing, sealing surfaces, oil-return or scavenge path, associated valves, connections, and signs of abnormal contamination should be inspected. These checks can identify problems that a separator replacement alone may not correct.

How does separator performance affect compressed-air quality?

The separator reduces the amount of lubricating oil remaining in the compressed-air stream. Poor separation can increase downstream oil contamination, making separator condition an important consideration when maintaining compressed-air quality.
