Product Overview

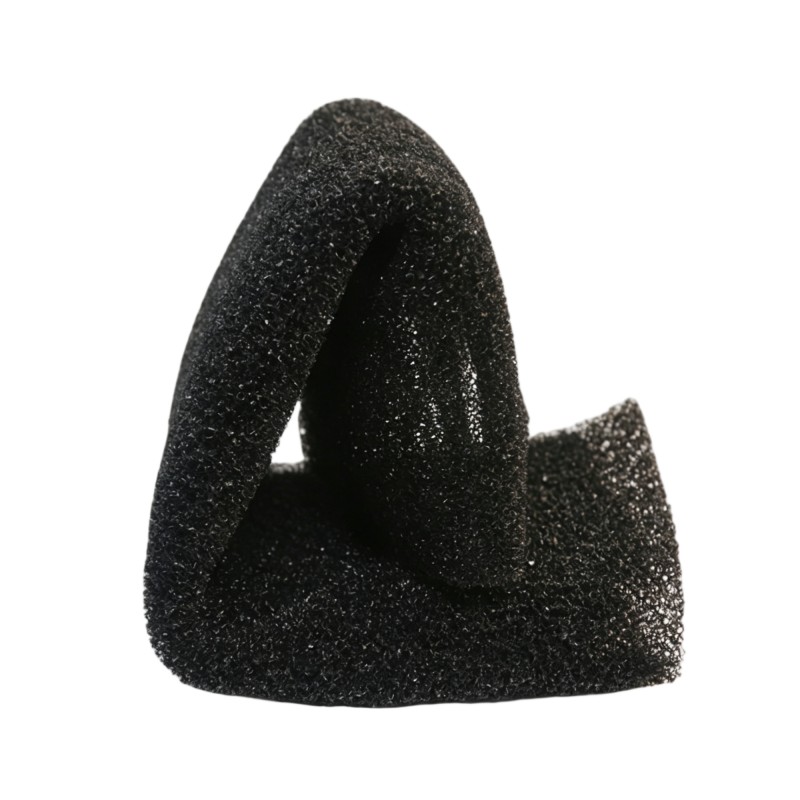

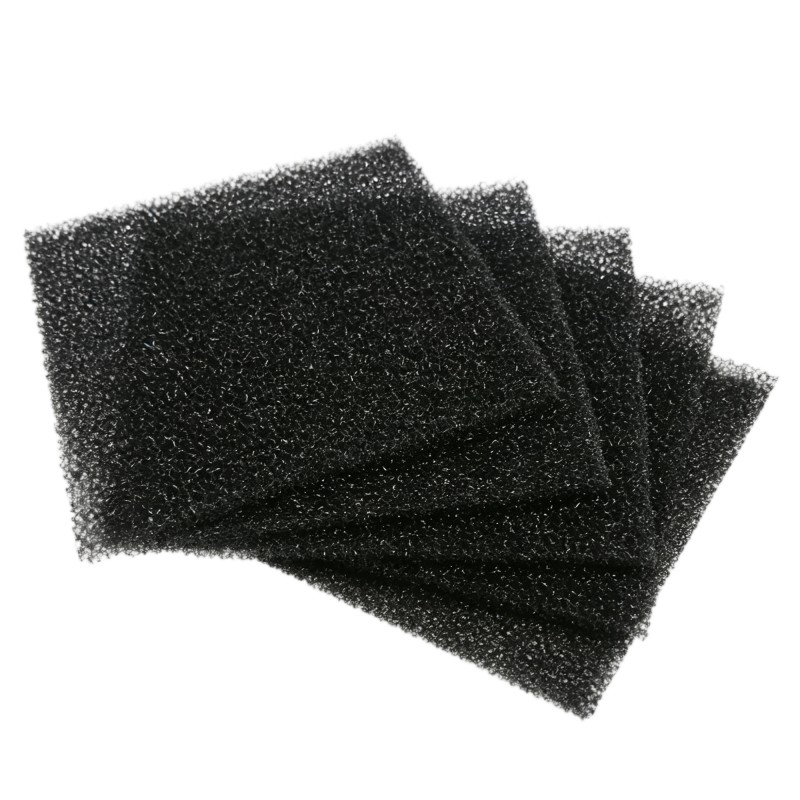

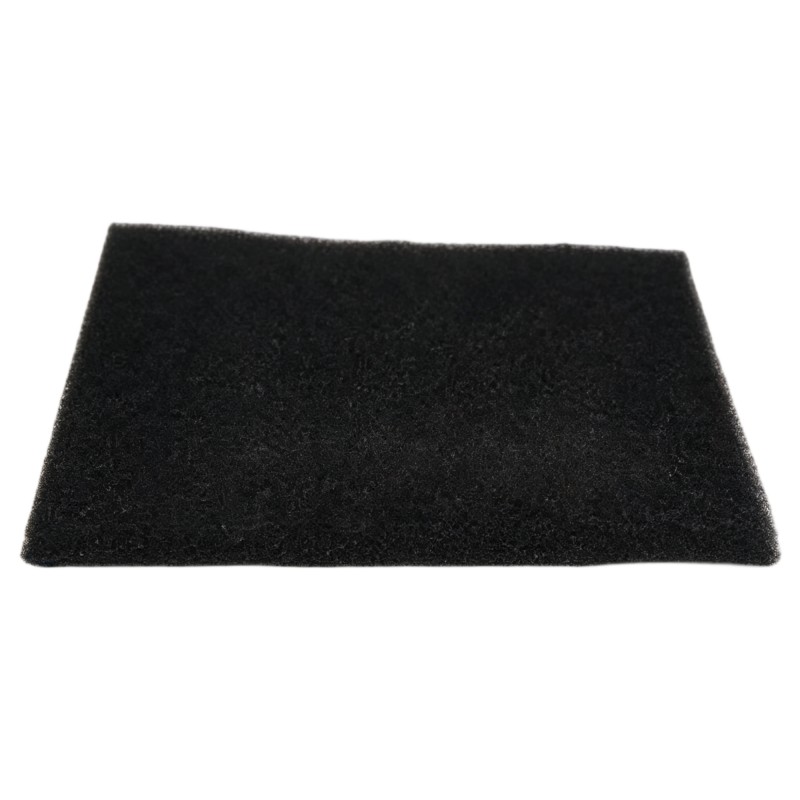

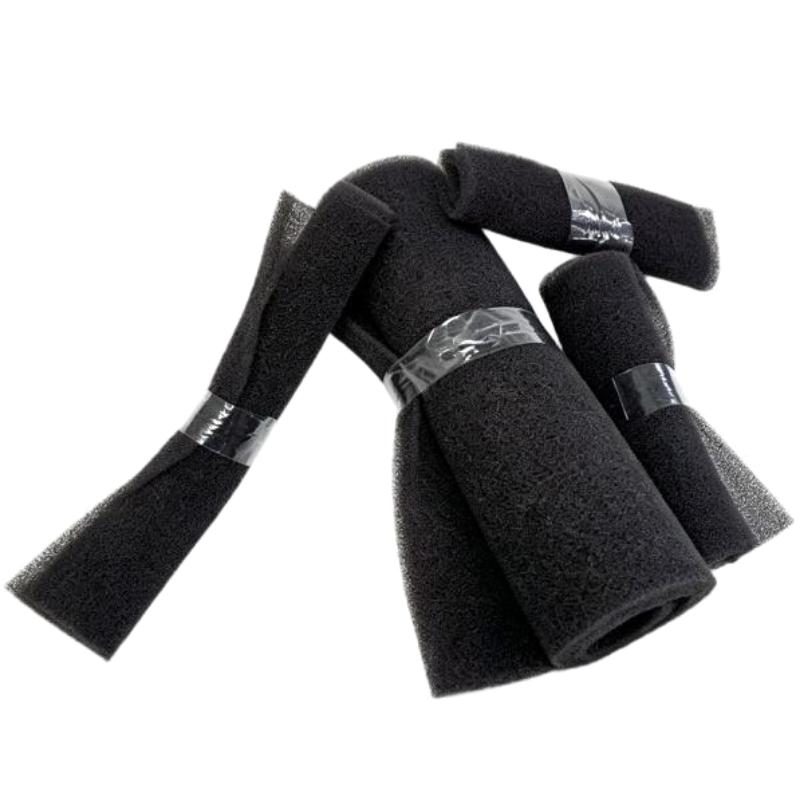

The Ingersoll Rand 47588563001 23561319 Filter Pad is a filtration component used in compatible Ingersoll Rand industrial equipment as part of the air and fluid management system. It belongs to the maintenance components associated with service assembly 47588563001 and is identified by part number 23561319.
A filter pad typically serves as a media layer for capturing dust, debris, or other airborne contaminants before they can reach protected equipment areas. In industrial compressor environments, maintaining clean airflow around critical components can help reduce contamination accumulation and support stable equipment operation.
Unlike an electronic I/O module or control component, the 23561319 is a passive mechanical filtration element. Its performance depends on the condition of the filtration media, airflow conditions, installation position, and the amount of contamination accumulated during operation.
For maintenance engineers, the part is most relevant during scheduled service or when inspection indicates that the existing filter pad has become loaded with dust and debris. Correct part-number identification is important because filter pads can have similar physical appearances while serving different positions within the equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 23561319 |
| Service Assembly | 47588563001 |
| Product Type | Filter Pad |
| Primary Function | Air / Contaminant Filtration |
| System Role | Filtration and Equipment Protection Component |
| Application | Industrial Equipment / Compressor Systems |
| Dimensions | 10 × 549 × 740 mm |
| Weight | 0.13 kg |
Product Features
The 23561319 Filter Pad is intended for filtration and contamination-control applications within compatible Ingersoll Rand equipment.
Key characteristics include:
- Ingersoll Rand filter pad
- Part number 23561319
- Associated with service assembly 47588563001
- Large-area filtration media
- Lightweight passive filtration component
- Helps capture airborne particulate contamination
- Supports cleaner airflow around protected equipment
- Suitable for scheduled maintenance
- Intended for compatible Ingersoll Rand equipment configurations
Its large filtration area allows the component to cover the intended equipment opening while maintaining the required separation between the surrounding environment and protected internal areas.
Working Principle
The 23561319 Filter Pad works through physical filtration as air passes through its filtration media.
A simplified airflow path can be represented as:
Ambient Air → 23561319 Filter Pad → Protected Equipment Area → Internal Airflow Path
During operation, airborne particles encounter the filter media as air moves through the pad. Larger contaminants and suspended particulate matter are retained within the filtration material while cleaner air continues into the protected area.
The filtration process can be understood in several stages:
-
Air Entry
Ambient air approaches the filtration surface under the equipment’s normal airflow conditions.
-
Particle Retention
Dust and airborne contaminants are captured by the filter media.
-
Filtered Air Passage
Air that passes through the media continues toward the associated equipment area.
-
Progressive Loading
As contaminants accumulate, the filter media gradually becomes loaded, potentially increasing airflow resistance.
For this reason, the condition of the filter pad should be considered during preventive maintenance. Excessive contamination can affect airflow and may contribute to higher equipment operating temperatures or reduced ventilation performance.
Role in an Industrial Air Management System
The 23561319 Filter Pad functions at the air filtration and contamination-control layer of compatible Ingersoll Rand equipment.
A typical relationship can be represented as:
Ambient Environment → Filter Pad → Equipment Airflow Path → Internal Components
The component does not perform electrical control or signal processing. Instead, it provides a physical barrier against environmental contamination.
This distinction is important during troubleshooting. If equipment shows signs of restricted airflow, elevated temperatures, or excessive dust accumulation, technicians should inspect the filter pad together with ventilation paths, fans, coolers, enclosures, and surrounding operating conditions.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Compressor Systems | Contamination control and airflow filtration |
| Manufacturing Plants | Maintaining clean equipment airflow |
| Process Facilities | Protecting internal equipment areas |
| Plant Utility Systems | Routine filtration maintenance |
| Industrial Ventilation | Removing airborne particulate matter |
| Preventive Maintenance | Scheduled filter pad replacement |
| Compressor Service Operations | Restoring filtration condition |
The actual application depends on the equipment configuration associated with service assembly 47588563001.
Installation and Maintenance
The filter pad should be inspected regularly according to the operating environment and equipment maintenance schedule.
Recommended practices include:
- Confirm part number 23561319 before replacement.
- Verify compatibility with service assembly 47588563001.
- Shut down and isolate the associated equipment before servicing.
- Inspect the existing pad for dust accumulation or physical damage.
- Check the surrounding filter frame and mounting area.
- Remove accumulated debris around the filtration opening.
- Install the replacement pad in the correct orientation and position.
- Ensure there are no visible gaps around the filtration area.
- Inspect adjacent airflow passages for blockage.
- Restore the equipment and check normal airflow after installation.
- Record the filter replacement as part of the maintenance history.
In dusty industrial environments, filter condition may deteriorate more rapidly. Maintenance intervals should therefore consider actual operating conditions rather than relying solely on calendar-based servicing.
Related Components
The 23561319 Filter Pad can be considered together with other components involved in equipment airflow and maintenance.
| Component | Function |
|---|---|
| Filter Pad | Captures airborne particulate contamination |
| Air Filter | Provides primary air filtration |
| Cooling System | Removes heat from equipment |
| Ventilation Fan | Maintains airflow through the equipment |
| Airflow Passage | Directs filtered air |
| Equipment Enclosure | Protects internal components |
| Coolant Filter | Maintains coolant cleanliness |
| Service Kit | Supports scheduled equipment maintenance |
These components can influence one another during troubleshooting of airflow, temperature, and contamination-related issues.
Recommended Related Models
| Model / Part Number | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47588563001 23561319 | Filter Pad | Airflow contamination control |
| Ingersoll Rand 47588563001 54672530 | Air Filter | Air intake filtration |
| Ingersoll Rand 47588563001 23392368 | Minimum Pressure Valve Service Kit | Valve maintenance |
| Ingersoll Rand 47588563001 23424922 | Coolant Filter | Coolant circuit filtration |
| Ingersoll Rand 47588563001 | Service Assembly | Equipment maintenance |
Key Advantages
- Ingersoll Rand service component with part number 23561319.
- Associated with service assembly 47588563001.
- Provides physical filtration of airborne contaminants.
- Helps maintain cleaner equipment airflow.
- Supports contamination control in industrial environments.
- Lightweight filtration component.
- Suitable for scheduled maintenance and replacement work.
- Useful for maintaining compatible Ingersoll Rand equipment.
Technical FAQs
What does the 23561319 Filter Pad protect against?
The filter pad primarily helps prevent airborne dust and particulate contamination from entering the protected equipment area through the associated airflow path.
How does a dirty filter pad affect equipment operation?
As contamination accumulates, airflow resistance can increase. Depending on the equipment configuration, restricted airflow may contribute to inadequate ventilation, increased temperatures, or reduced cooling performance.
Should the filter pad be inspected together with the equipment’s air filter?
Yes. Although the filter pad and air filter may perform different filtration functions, inspecting both can help identify broader contamination or airflow problems within the equipment.
What environmental conditions can shorten the service life of a filter pad?
High dust concentrations, dirty plant environments, airborne particles, and continuous operation can cause filtration media to load more quickly. Actual inspection conditions should be considered when determining the appropriate maintenance interval.
