- Ingersoll Rand
- 47588563001 23424922
- Coolant Filter
- USA
- 232.2 × 114.3 × 96.5 mm
- 2.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

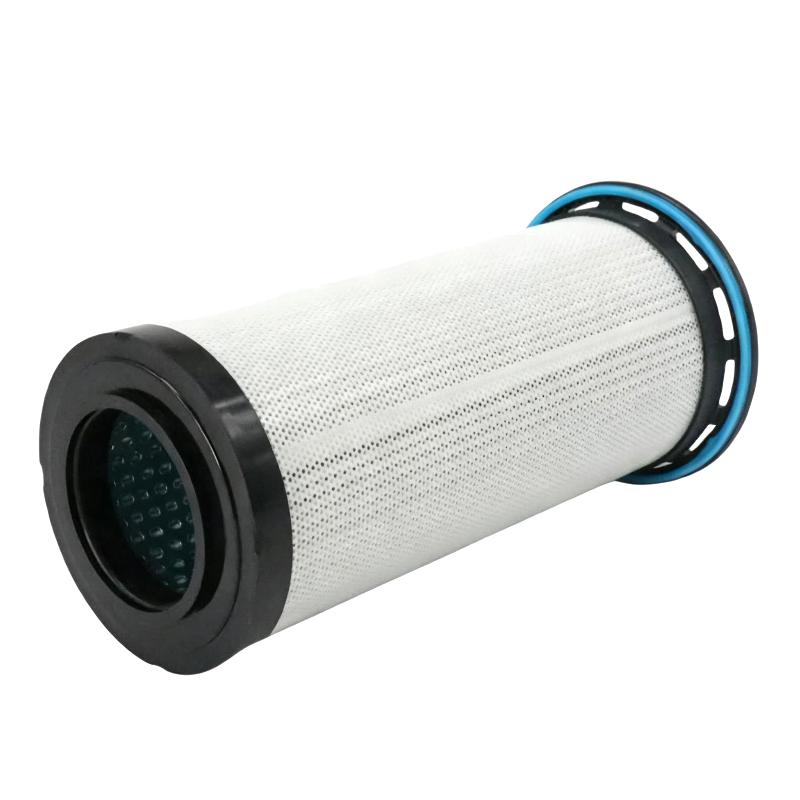

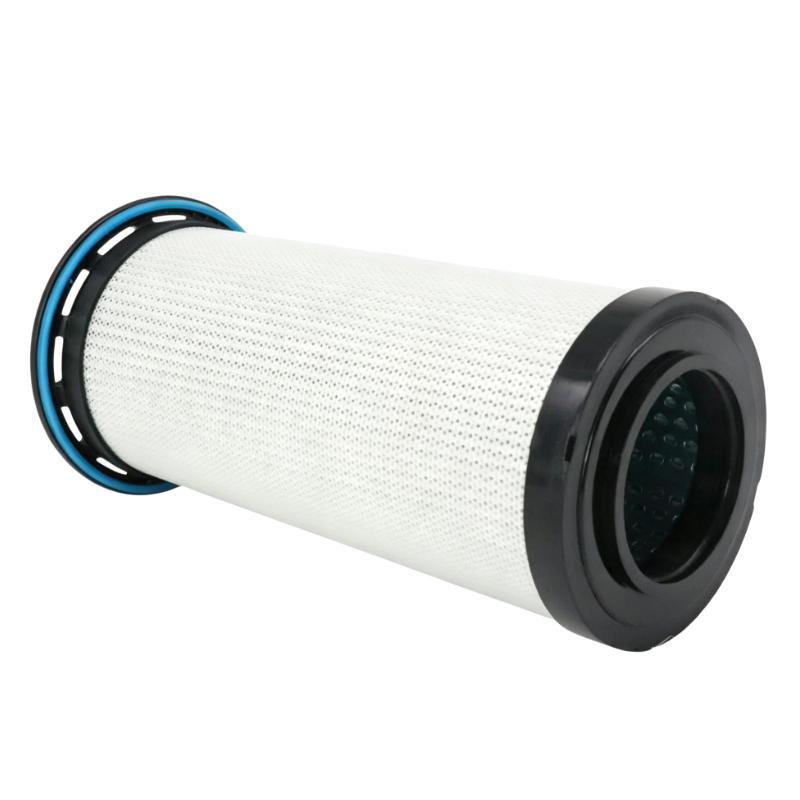

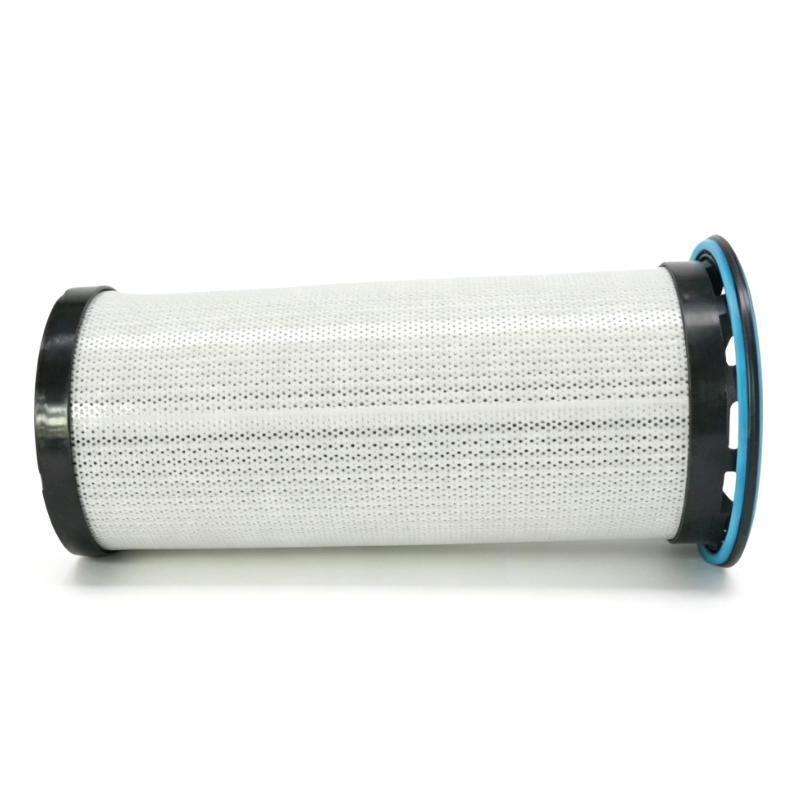

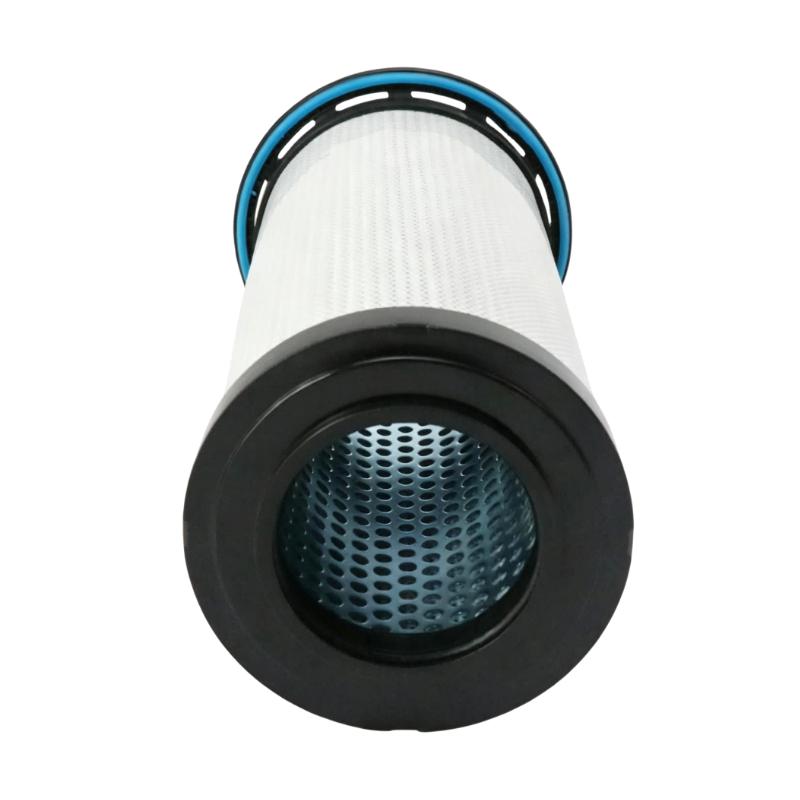

The Ingersoll Rand 47588563001 23424922 Coolant Filter is a replacement filtration component used in compatible Ingersoll Rand industrial equipment and cooling systems. Its primary purpose is to remove unwanted particulate contamination from the coolant circuit so that circulating fluid remains suitable for continued equipment operation.
The component is associated with the 47588563001 service assembly and is identified by part number 23424922. In an industrial compressor or related equipment package, coolant quality directly affects the condition of components that rely on circulating fluid for cooling and lubrication. A contaminated coolant circuit can increase wear, restrict flow passages, and reduce the effectiveness of heat transfer.
The 23424922 Coolant Filter therefore belongs to the maintenance side of the equipment rather than the control or electrical system. It is particularly relevant during scheduled service when filtration performance needs to be restored or when inspection indicates that the existing filter has accumulated excessive contamination.
For replacement work, technicians should verify the equipment configuration and exact part number before installation. The filter should also be considered together with coolant condition, flow restrictions, and other service components rather than replaced in isolation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 23424922 |
| Service Assembly | 47588563001 |
| Product Type | Coolant Filter |
| Primary Function | Coolant Filtration |
| System Role | Coolant Circuit Maintenance Component |
| Application | Industrial Equipment / Compressor Systems |
| Dimensions | 232.2 × 114.3 × 96.5 mm |
| Weight | 2.3 kg |
Product Features
The 23424922 Coolant Filter is intended for maintenance applications where clean coolant circulation is required.
Key characteristics include:
- Ingersoll Rand coolant filtration component
- Part number 23424922
- Associated with service assembly 47588563001
- Removes particulate contamination from the coolant circuit
- Supports coolant system cleanliness
- Helps protect downstream equipment components
- Suitable for scheduled equipment maintenance
- Applicable to compatible Ingersoll Rand equipment
- Intended for replacement when the existing filter reaches its service condition
The filter should be selected according to the original equipment configuration. Matching the correct part number is particularly important when several filtration components are installed within the same machine.
Working Principle
The 23424922 Coolant Filter operates as a filtration point within the equipment’s coolant circulation path.
A simplified flow arrangement is:
Coolant Reservoir / Circuit → 23424922 Coolant Filter → Protected Cooling Circuit → Equipment Components → Return Flow
During operation, coolant passes through the filter element. Suspended particles and contaminants are retained by the filtration media while the filtered coolant continues through the circuit.
The filtration process serves several practical purposes:
-
Contaminant Capture
Particles carried by the coolant are intercepted before they can circulate further through the system.
-
Fluid Circuit Protection
Cleaner coolant reduces the possibility of contaminants accumulating in sensitive passages and components.
-
Stable Coolant Circulation
A properly maintained filter helps preserve the intended coolant flow characteristics.
-
Equipment Maintenance
Replacing a contaminated filter as part of scheduled servicing helps maintain the condition of the overall coolant circuit.
As the filter accumulates contamination, flow resistance can increase. For this reason, filter replacement should form part of a broader maintenance inspection rather than being treated only as a consumable change.
Role in an Industrial Cooling System
The 23424922 serves at the fluid filtration layer of compatible Ingersoll Rand equipment.
A typical relationship can be viewed as:
Coolant Circuit → Filter → Cooling / Lubricated Components → Heat Removal / Return Circuit
Its role is different from an electrical monitoring component or control module. Instead of processing an electrical signal, it physically conditions the circulating coolant by retaining contaminants.
This makes the filter relevant to equipment reliability at the mechanical and fluid-system level. When coolant quality deteriorates, engineers should consider the filter, coolant condition, flow path, heat exchanger or cooler, and associated components together during troubleshooting.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Air Compressors | Maintaining coolant cleanliness |
| Manufacturing Plants | Supporting compressor cooling circuits |
| Process Facilities | Maintaining compatible Ingersoll Rand equipment |
| Plant Utility Systems | Coolant circuit filtration |
| Heavy Industrial Equipment | Contamination control in fluid circuits |
| Preventive Maintenance | Scheduled coolant filter replacement |
| Compressor Service Operations | Restoring filtration performance |
The actual application depends on the Ingersoll Rand equipment model and the configuration associated with service assembly 47588563001.
Installation and Maintenance
Correct part identification should be completed before replacing the 23424922 Coolant Filter.
Recommended maintenance practices include:
- Confirm part number 23424922 before ordering or installation.
- Verify compatibility with the equipment using service assembly 47588563001.
- Follow the equipment manufacturer’s shutdown and isolation procedures.
- Allow the coolant system to reach a safe service condition before opening the circuit.
- Inspect the removed filter for unusual contamination.
- Check the filter housing and sealing surfaces.
- Inspect coolant condition during filter replacement.
- Verify that the replacement component is correctly seated.
- Check for leakage after servicing.
- Monitor coolant circulation after the equipment returns to operation.
- Record the replacement date and maintenance condition.
If a newly installed filter is associated with abnormal flow or pressure behavior, technicians should inspect the complete coolant circuit rather than assuming that the replacement filter itself is defective.
Related Components
The 23424922 Coolant Filter operates as part of a broader coolant and equipment service system.
| Component | Function |
|---|---|
| Coolant Circuit | Circulates coolant through the equipment |
| Coolant Reservoir | Stores circulating fluid |
| Cooler / Heat Exchanger | Removes heat from the coolant |
| Coolant Pump | Maintains fluid circulation |
| Filter Housing | Holds and seals the filter element |
| Coolant | Transfers heat and supports equipment operation |
| Temperature Monitoring Device | Monitors coolant operating condition |
| Service Kit Components | Support scheduled equipment maintenance |
The condition of these components should be considered when investigating coolant-related operating problems.
Recommended Related Models
| Model / Part Number | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47588563001 23424922 | Coolant Filter | Coolant circuit filtration |
| Ingersoll Rand 47588563001 54672530 | Air Filter | Air intake filtration |
| Ingersoll Rand 47588563001 23392368 | Minimum Pressure Valve Service Kit | Minimum pressure valve maintenance |
| Ingersoll Rand 47588563001 | Service Assembly | Equipment maintenance |
| Ingersoll Rand 47588562001 23708423 | Air Oil Separator | Air/oil separation |
Key Advantages
- Ingersoll Rand original equipment service part identification.
- Part number 23424922 for coolant filtration applications.
- Supports cleaner coolant circulation.
- Helps reduce particulate contamination within the fluid circuit.
- Suitable for scheduled compressor and equipment maintenance.
- Supports the protection of coolant-dependent components.
- Useful for maintaining established Ingersoll Rand equipment.
Technical FAQs
What is the primary purpose of the Ingersoll Rand 23424922 Coolant Filter?
Its primary function is to filter particulate contamination from the coolant circulating through compatible equipment, helping maintain coolant cleanliness and protect downstream components.
What symptoms can indicate that a coolant filter requires attention?
Possible indications include increased flow resistance, abnormal coolant conditions, elevated operating temperatures, or evidence of accumulated contamination. The actual cause should be confirmed by inspecting the complete coolant system.
Why should coolant condition be checked when replacing the 23424922 filter?
A heavily contaminated filter can indicate that the coolant itself or another component in the circuit requires attention. Checking the fluid during filter replacement can reveal conditions that would otherwise shorten the service life of the new filter.
What should be verified before installing a 23424922 replacement filter?
Technicians should confirm the exact part number, equipment compatibility, service assembly reference, filter housing condition, sealing surfaces, and coolant circuit configuration before installation.
