Product Overview

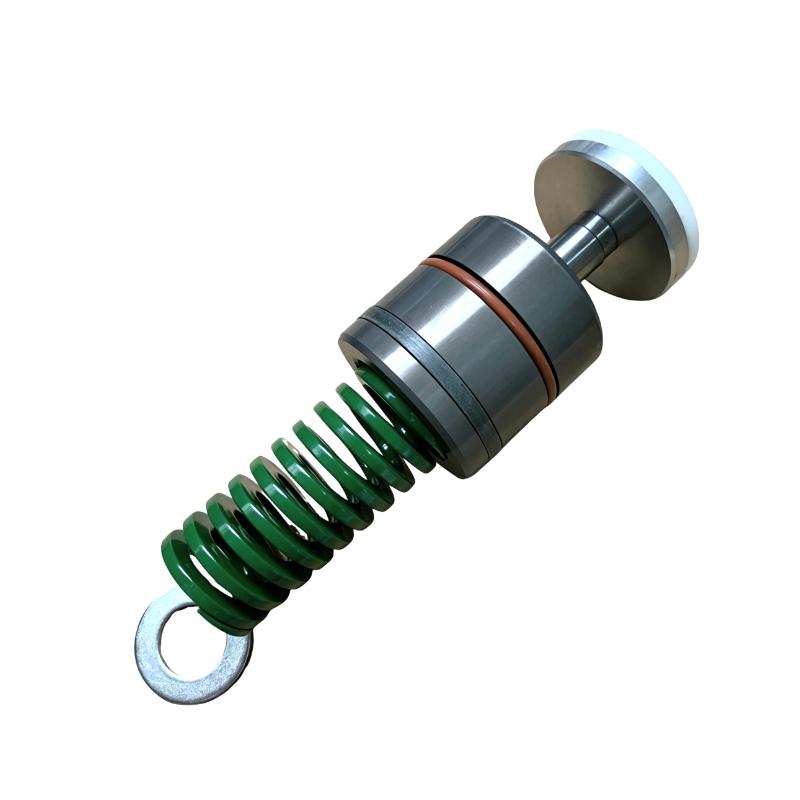

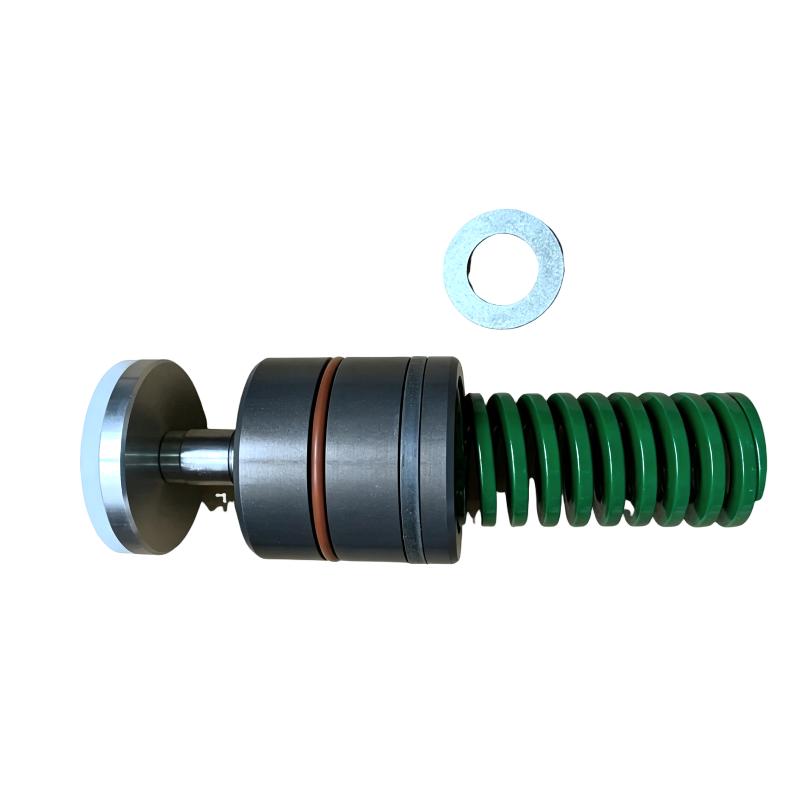

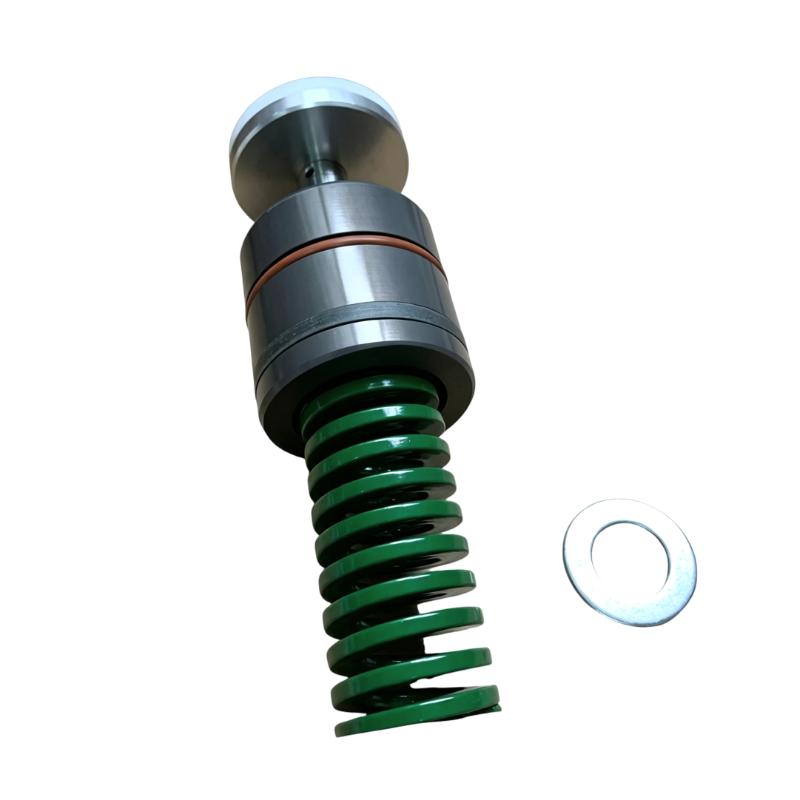

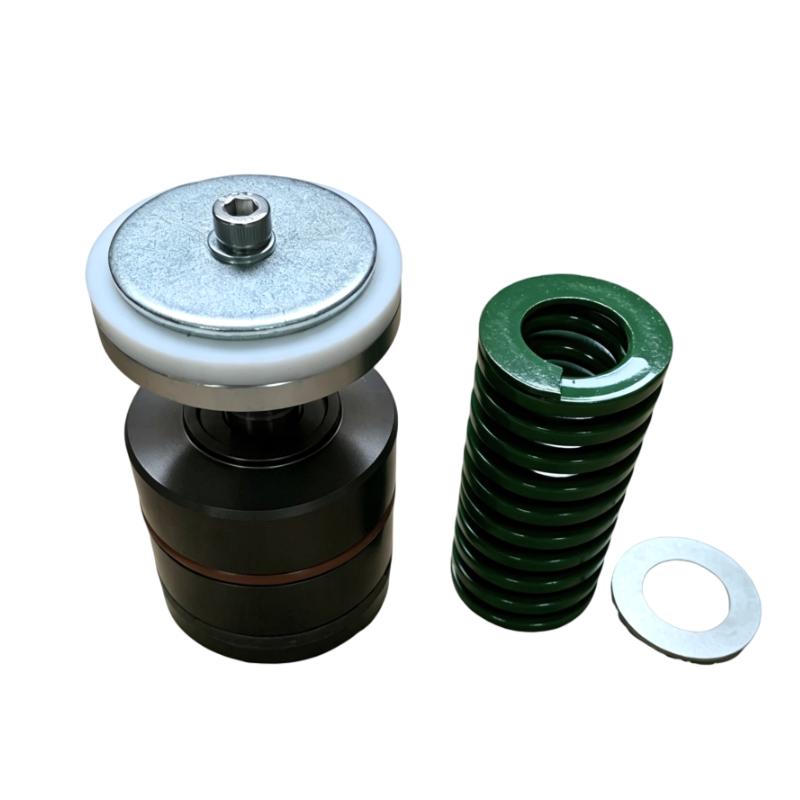

The Ingersoll Rand 47588563001 23392368 Minimum Pressure Valve Service Kit is a maintenance kit used for servicing the minimum pressure valve assembly in industrial rotary screw air compressors.
The minimum pressure valve is a key component in the compressor oil circulation and compressed air regulation system. It maintains a minimum internal pressure level during startup and operation, ensuring proper oil separation, lubrication circulation, and stable compressor performance.
This service kit contains replacement components used during preventive maintenance or repair procedures, helping restore valve sealing performance and maintain reliable compressor operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 47588563001 |
| Component Number | 23392368 |
| Product Type | Minimum Pressure Valve Service Kit |
| Application | Rotary Screw Air Compressor Maintenance |
| Function | Minimum Pressure Valve Repair and Service |
| Dimensions | 180 × 60 × 60 mm |
| Weight | 0.70 kg |
Product Features
The Ingersoll Rand 47588563001 23392368 Minimum Pressure Valve Service Kit provides replacement components for maintaining compressor pressure control functions.
Key characteristics include:
- Ingersoll Rand compressor maintenance kit
- Designed for minimum pressure valve servicing
- Helps restore valve sealing and operating performance
- Supports stable compressor pressure regulation
- Helps maintain oil circulation efficiency
- Suitable for preventive maintenance applications
- Reduces downtime during compressor servicing
- Supports reliable operation of rotary screw compressors
The service kit allows technicians to replace worn valve components instead of replacing the complete valve assembly.
Working Principle
The minimum pressure valve controls pressure balance inside the compressor system.
The operating process is:
Compressor Start-Up → Minimum Pressure Valve Maintains Internal Pressure → Oil Circulation Stabilizes → Compressed Air Output
During startup, the valve remains partially closed until the compressor reaches the required internal pressure level. This allows sufficient pressure to build inside the separator system, ensuring proper oil circulation and separation.
When operating pressure is reached, the valve opens to allow compressed air flow to the downstream system.
The valve service kit helps maintain:
- Correct opening and closing operation
- Stable separator pressure
- Proper lubricant circulation
- Reduced compressor operating issues
Role in an Air Compressor System
The Ingersoll Rand 23392368 Minimum Pressure Valve Service Kit supports the pressure regulation stage of a rotary screw compressor.
A typical compressor flow path is:
Air Intake → Compression Element → Separator Tank → Minimum Pressure Valve → Compressed Air Outlet
The minimum pressure valve is responsible for maintaining the internal pressure required for:
- Oil separation efficiency
- Lubrication system operation
- Compressor startup stability
- Normal compressed air delivery
A properly maintained valve helps prevent pressure-related performance problems.
Industrial Applications
The Ingersoll Rand 47588563001 23392368 Service Kit is commonly used in industrial compressed air systems.
| Application | Typical Use |
|---|---|
| Manufacturing Plants | Compressor preventive maintenance |
| Automotive Facilities | Pneumatic air system support |
| Chemical Processing | Industrial compressed air equipment |
| Energy Facilities | Compressor servicing |
| Production Lines | Continuous air supply systems |
| General Industry | Rotary screw compressor repair |
The specific application depends on compressor model and maintenance requirements.
Installation and Maintenance
Proper servicing of the minimum pressure valve helps maintain compressor efficiency.
Recommended procedures include:
- Confirm service kit compatibility
- Depressurize compressor before maintenance
- Remove and inspect valve components
- Replace worn seals and internal parts
- Clean valve installation surfaces
- Verify valve movement after assembly
- Check operating pressure after startup
- Record maintenance activities
Regular service helps prevent valve sticking, pressure instability, and reduced compressor performance.
Related Components
The Minimum Pressure Valve Service Kit is commonly used with other compressor system components.
| Component | Function |
|---|---|
| Air Oil Separator | Separates oil from compressed air |
| Oil Filter | Removes contaminants from lubricant |
| Air Filter | Filters incoming air |
| Separator Tank | Supports oil-air separation |
| Minimum Pressure Valve | Maintains compressor internal pressure |
| Compressor Control System | Monitors operating parameters |
These components work together to maintain stable compressor operation.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47588563001 23392368 | Minimum Pressure Valve Service Kit | Valve maintenance |
| Ingersoll Rand 47588562001 23708423 | Air Oil Separator | Oil separation system |
| Ingersoll Rand 47588563001 54672530 | Air Filter | Intake air filtration |
| Ingersoll Rand Compressor Service Kits | Maintenance Components | Scheduled servicing |
| Ingersoll Rand Valve Components | Compressor Control Parts | Pressure regulation |
Model selection should be based on compressor series, valve configuration, and maintenance requirements.
Key Advantages
- Supports minimum pressure valve maintenance.
- Helps restore compressor pressure control performance.
- Maintains proper oil circulation conditions.
- Reduces risk of valve-related operating issues.
- Suitable for rotary screw compressor servicing.
- Helps extend compressor operating reliability.
Technical FAQs
What does the minimum pressure valve do in an Ingersoll Rand compressor?
The minimum pressure valve maintains sufficient internal compressor pressure during operation to support oil separation and lubrication system performance.
Why is a minimum pressure valve service kit used instead of replacing the entire valve?
A service kit allows technicians to replace worn internal components and restore valve performance while reducing maintenance cost and downtime.
What problems can occur if the minimum pressure valve fails?
A faulty valve may cause unstable pressure, poor oil circulation, increased oil carryover, or abnormal compressor operation.
When should the 23392368 Minimum Pressure Valve Service Kit be replaced?
Replacement depends on compressor operating hours, valve condition, maintenance schedule, and observed performance issues.
