Product Overview

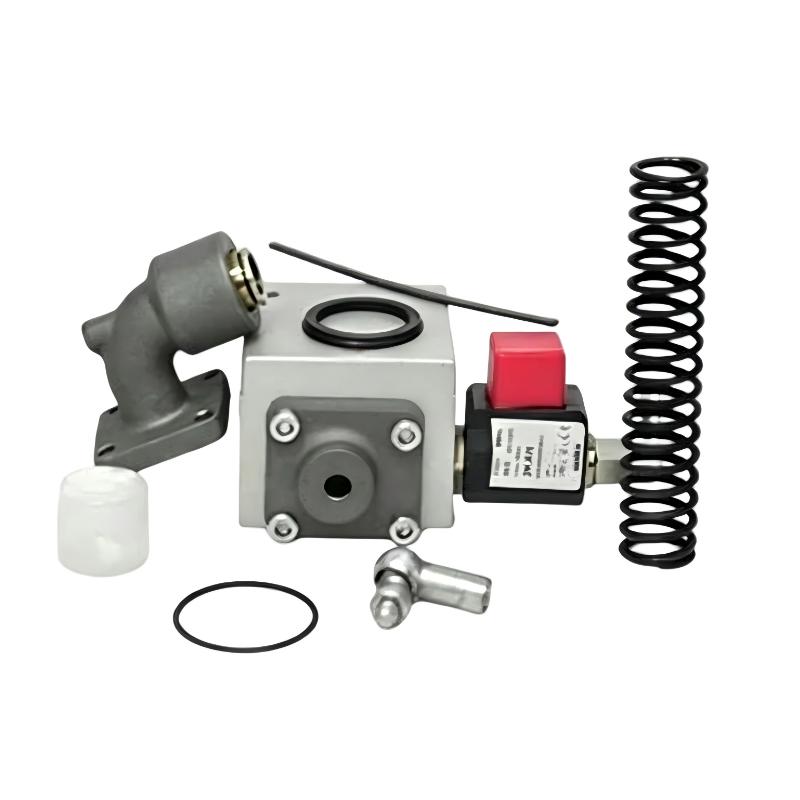

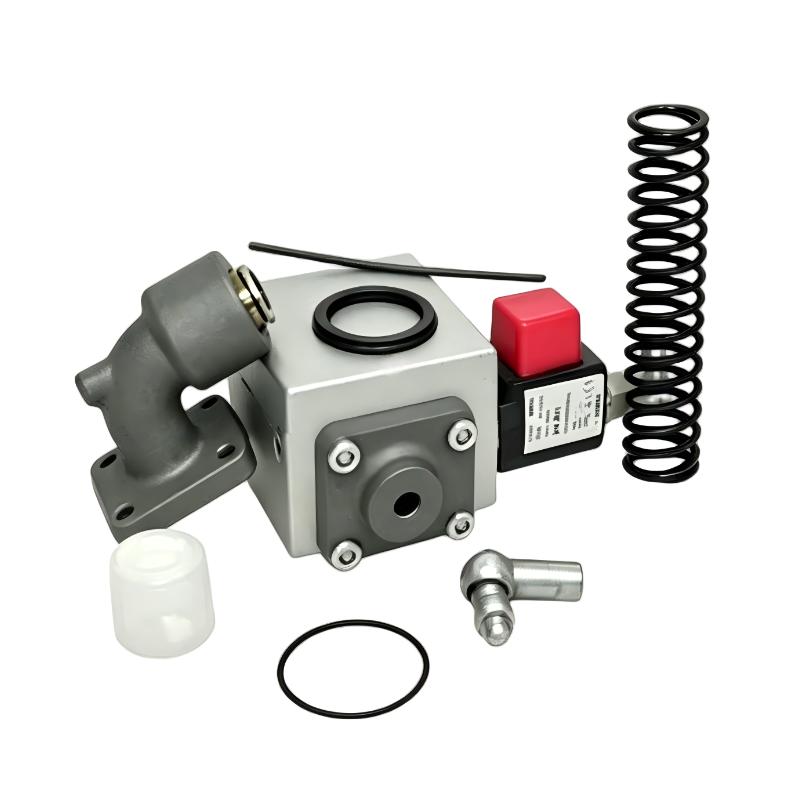

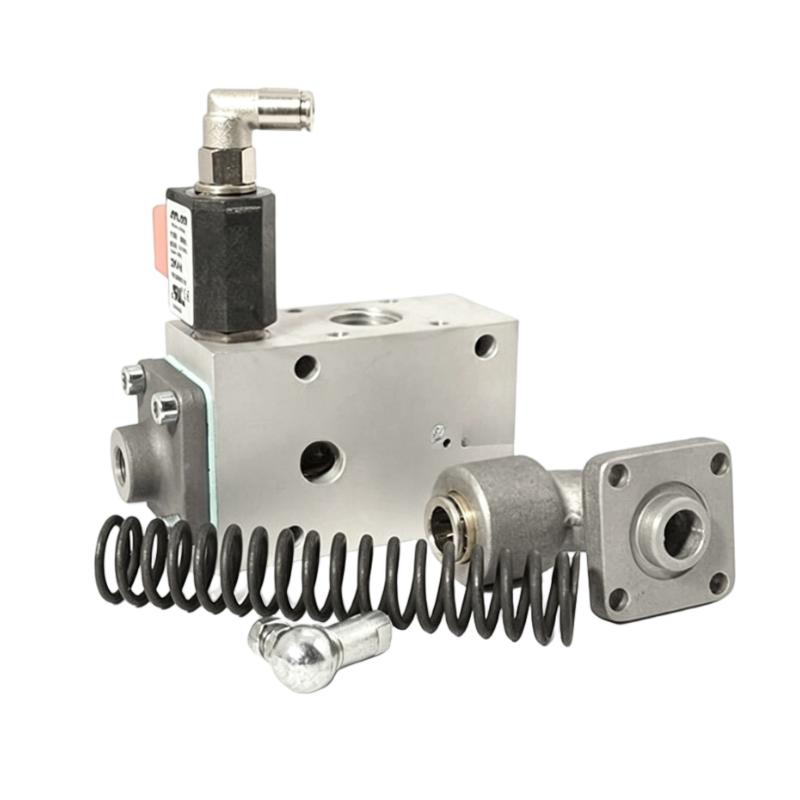

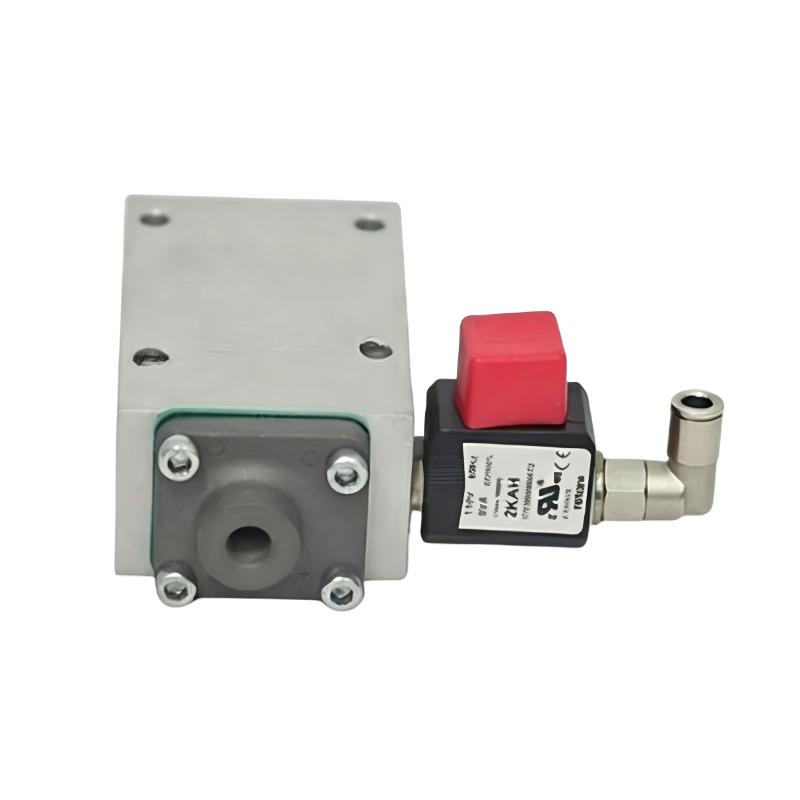

The Ingersoll Rand 47588445001 24672115 16,000 Hour Service Kit is a scheduled-maintenance parts kit for compatible Ingersoll Rand air compressor systems. It is intended to bring together service components needed for a designated maintenance interval, reducing the need to source individual replacement parts separately.
In a rotary screw compressor, routine maintenance involves more than changing a single filter. Air filtration, lubricant filtration, oil separation, and the condition of serviceable components all influence how the machine operates over extended periods. A maintenance kit provides a coordinated approach to replacing the parts specified for a particular service operation.
Part number 24672115 appears in replacement-parts listings for Ingersoll Rand compressor maintenance kits. Listings associate this number with a fixed-speed, on/off compressor configuration described as HAKG 65, although published descriptions differ on the stated service interval. The exact kit contents and maintenance application therefore depend on the applicable equipment parts schedule.
A scheduled service kit differs from a repair kit for an individual valve or other mechanical assembly. Rather than addressing only one identified fault, it supports planned maintenance intended to replace designated service items before accumulated wear or contamination affects compressor operation.
The kit is relevant to maintenance teams managing operating hours, service records, and planned shutdowns. Having the required service parts available before work begins can reduce delays during maintenance and help technicians complete the prescribed tasks in a coordinated sequence.
The effectiveness of a service kit ultimately depends on using its components for the intended maintenance application and completing the associated inspection work. Filter replacement alone, for example, will not correct a damaged valve, a restricted oil-return passage, or another mechanical problem that requires separate attention.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model Reference | 47588445001 |
| Part Number | 24672115 |
| Product Name | 16,000 Hour Service Kit |
| Product Type | Air Compressor Maintenance Service Kit |
| Product Category | Rotary Screw Air Compressor Spare Parts |
| Primary Function | Scheduled compressor maintenance |
| Service Kit Configuration | Multiple service components supplied as a kit |
| Maintenance Application | Designated compressor service interval |
| Associated Equipment Reference | HAKG 65 fixed-speed, on/off configuration in parts listings |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.4 kg |
Product Features
- Scheduled maintenance support: Provides a parts-kit approach to planned compressor servicing.
- Dedicated part number: Uses 24672115 for spare-parts identification and maintenance records.
- Consolidated parts procurement: Groups designated service components under one kit reference.
- Operating-hour maintenance: Supports maintenance planning based on the prescribed service schedule.
- Fixed-speed compressor application: Associated with a fixed-speed, on/off configuration in parts listings.
- Reduced parts-selection workload: Helps simplify preparation for a scheduled service operation.
- Maintenance planning integration: Can be incorporated into operating-hour records and planned shutdown schedules.
- Service documentation support: Provides a specific reference for recording completed maintenance work.
- Preventive maintenance application: Supports replacement of designated service items before excessive wear or contamination develops.
- Compressor system upkeep: Contributes to routine maintenance of the applicable compressor assembly.
Working Principle
The 24672115 Service Kit supports compressor maintenance by supplying the designated replacement components for a scheduled service operation. Rather than controlling airflow or pressure directly, the kit supports the maintenance procedures that keep the compressor’s filtration, lubrication, and other serviceable systems in their intended condition.
Operating-Hour Tracking → Scheduled Maintenance → Component Inspection and Replacement → Operational Checks → Return to Service
During compressor operation, filters collect contaminants, lubricant undergoes thermal and mechanical stress, and serviceable components accumulate operating wear. These changes occur at different rates depending on load, ambient conditions, operating temperature, and the quality of incoming air.
The maintenance schedule establishes when the specified components should be inspected or replaced. Before the service begins, technicians identify the required kit and prepare the equipment for safe maintenance. The compressor is then isolated, and the relevant systems are serviced according to the maintenance instructions for the installed configuration.
After the replacement work, the technician checks the serviced connections and components, restores the compressor to its approved operating condition, and monitors the available operating indications. Recording the operating hours and completed work establishes a useful baseline for the next maintenance interval.
A service kit does not automatically resolve every performance issue discovered during maintenance. If inspection reveals damaged mechanical parts, abnormal oil consumption, excessive pressure drop, or leakage, those findings require separate diagnosis and corrective action.
Role in an Ingersoll Rand Compressor Maintenance System
The 24672115 Service Kit belongs to the preventive maintenance process rather than the compressor’s direct control or power circuit. It supports the scheduled replacement of designated components, while the compressor’s filtration, lubrication, cooling, and pressure-control systems continue to perform their individual functions.
Operating-Hour Records → Service Kit Preparation → Scheduled Component Replacement → Inspection and Testing → Maintenance Records
| System Component | Function |
|---|---|
| Ingersoll Rand 24672115 Service Kit | Supplies designated components for the applicable maintenance operation |
| Compressor Air Filter | Removes airborne particles from intake air |
| Compressor Oil Filter | Removes particulate contamination from circulating lubricant |
| Air/Oil Separator | Separates residual oil droplets from compressed air in oil-injected systems |
| Compressor Lubricant | Supports lubrication, sealing, and heat transfer |
| Oil Cooler | Removes heat from circulating lubricant where fitted |
| Temperature Control Valve | Regulates lubricant flow according to temperature where fitted |
| Minimum Pressure Check Valve | Regulates discharge flow and restricts reverse airflow where fitted |
| Operating-Hour Counter | Tracks accumulated machine operating time |
| Maintenance Records | Document service dates, operating hours, inspections, and replacement work |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Manufacturing | Planning compressor maintenance around production schedules |
| Automotive Production | Preparing service parts for compressors supplying pneumatic equipment |
| Metalworking Facilities | Maintaining compressed-air equipment used by machine tools |
| Packaging Plants | Scheduling compressor servicing to minimize disruption to automated lines |
| Process Manufacturing | Coordinating maintenance of compressors supplying process utilities |
| Central Compressor Rooms | Organizing periodic service for shared compressed-air installations |
| Continuous-Operation Facilities | Planning shutdowns using accumulated operating hours |
| Industrial Maintenance Departments | Managing service kits and replacement-part inventories |
| Compressor Service Workshops | Preparing designated components for scheduled maintenance tasks |
| Fixed-Speed Compressor Installations | Supporting maintenance planning for compatible fixed-speed equipment |
Installation and Maintenance
- Verify the service-kit reference: Identify the required kit as Ingersoll Rand 24672115 and establish the maintenance procedure applicable to the installed compressor.
- Review the service schedule: Check the recorded operating hours and determine which maintenance tasks are due.
- Prepare the work area: Arrange the required tools, replacement components, and maintenance documentation before stopping the compressor.
- Isolate the equipment: Disconnect the electrical supply and follow the site’s lockout and tagout procedure.
- Establish a safe pressure condition: Depressurize the relevant compressor systems according to the applicable maintenance instructions.
- Allow components to cool: Ensure that lubricant and serviced components are at a safe temperature before work begins.
- Inspect the compressor: Examine accessible filters, connections, seals, and serviceable components for contamination, leakage, or visible damage.
- Check the kit components: Compare the supplied parts with the applicable service parts list before beginning replacement work.
- Replace designated service items: Fit the required components according to the equipment-specific maintenance procedure.
- Inspect related systems: Check for restrictions, leakage, or damage that may require corrective work beyond the scheduled kit replacement.
- Check operation after maintenance: Restore the equipment to service using the approved startup procedure and observe available operating indications.
- Update maintenance records: Record the kit reference, operating hours, completed work, inspection findings, and the next scheduled service requirement.
Related Components
| Component | Function |
|---|---|
| Ingersoll Rand 24672115 Service Kit | Supports the designated scheduled maintenance operation |
| Compressor Air Filter | Filters incoming air before compression |
| Compressor Oil Filter | Removes contaminants from circulating lubricant |
| Air/Oil Separator | Reduces oil carryover in oil-injected compressor systems |
| Compressor Lubricant | Provides lubrication, sealing, and heat transfer |
| Oil Cooler | Removes heat from the lubricant circuit |
| Temperature Control Valve | Regulates lubricant flow according to temperature |
| Minimum Pressure Check Valve | Controls discharge flow and restricts reverse airflow |
| Operating-Hour Counter | Tracks accumulated operating time |
| Maintenance Log | Records completed service and inspection findings |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 24672115 | Compressor Service Kit | Scheduled maintenance for the designated compressor configuration |
| Ingersoll Rand Rotary Maintenance Kits | Compressor Maintenance Kits | Periodic maintenance at prescribed operating-hour intervals |
| Ingersoll Rand Air Filter Elements | Intake Filter Components | Removing airborne particles from intake air |
| Ingersoll Rand Oil Filter Elements | Lubricant Filter Components | Filtering circulating compressor lubricant |
| Ingersoll Rand Air/Oil Separators | Separator Elements | Separating residual oil from compressed air |
| Ingersoll Rand Temperature Control Valve Kits | Valve Service Kits | Servicing lubricant temperature regulation components |
| Ingersoll Rand Minimum Pressure Valve Kits | Valve Service Kits | Maintaining compressor discharge pressure control |
Key Advantages
- Consolidates designated service components under one maintenance-kit reference.
- Supports operating-hour-based maintenance planning.
- Helps simplify preparation for scheduled compressor servicing.
- Provides a dedicated part number for inventory and maintenance records.
- Supports coordinated inspection and replacement of serviceable components.
Technical FAQs
What maintenance work is the 24672115 Service Kit intended to support?
It is identified as an Ingersoll Rand compressor service kit for a designated maintenance interval. The specific replacement tasks depend on the equipment configuration and the service parts list associated with the kit.
Why do published listings give different service intervals for part 24672115?
Some listings describe the kit as a 16,000-hour service kit, while another identifies it as an 8,000-hour kit for a fixed-speed HAKG 65 configuration. The interval designation should therefore be interpreted in the context of the applicable equipment documentation rather than assumed to apply universally.
How does a scheduled service kit differ from an individual repair kit?
A scheduled service kit supports a planned maintenance operation involving designated service components. An individual repair kit generally addresses a specific assembly or fault, such as a valve mechanism requiring internal component replacement.
What should be recorded after the service kit is installed?
Record the operating hours, kit part number, components replaced, inspection findings, and any additional corrective work. These details help establish the machine’s maintenance history and support planning for subsequent service intervals.
