Product Overview

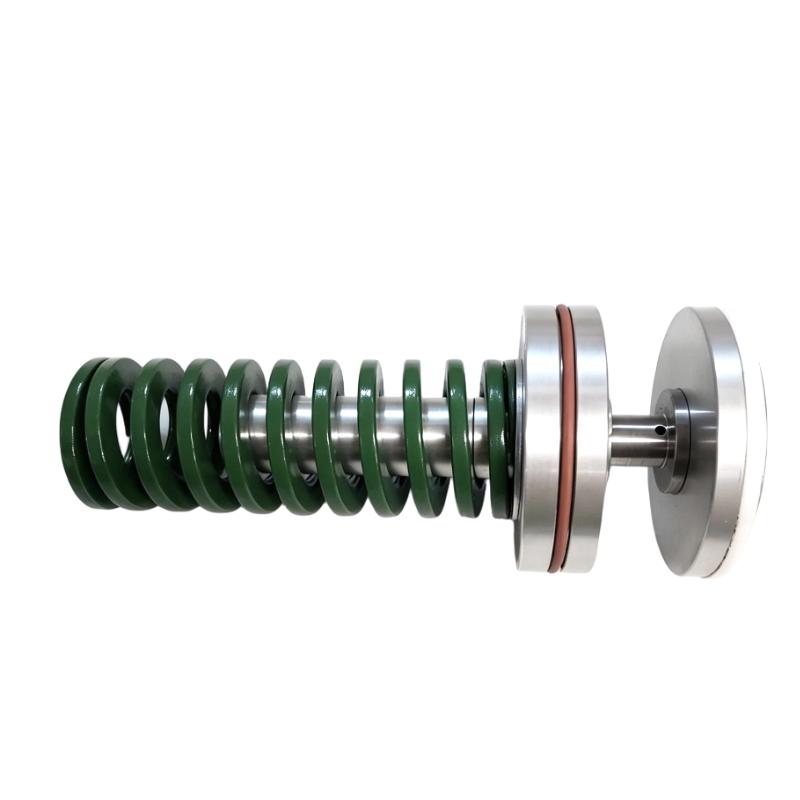

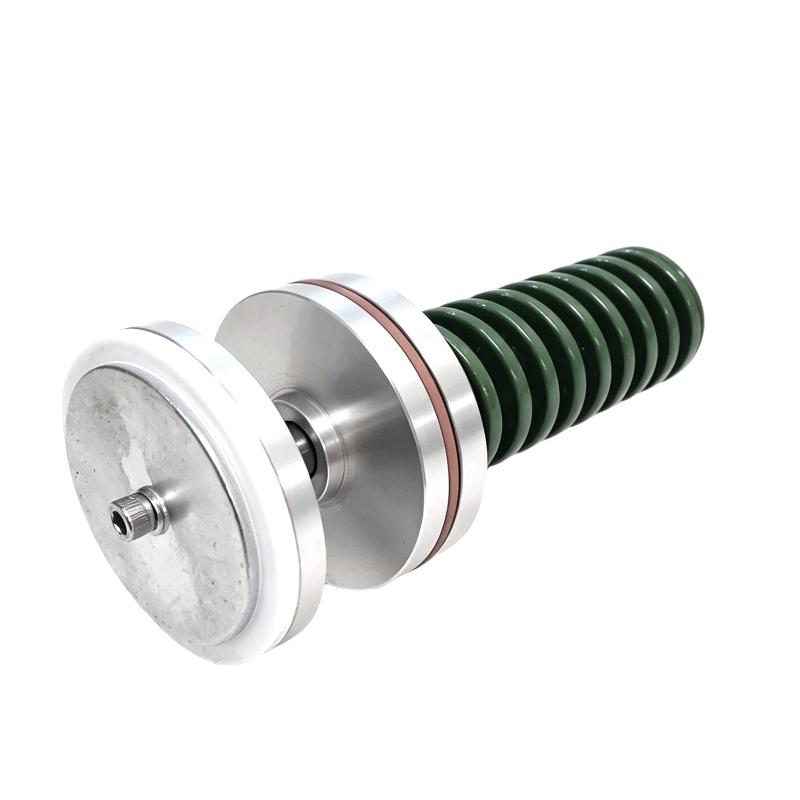

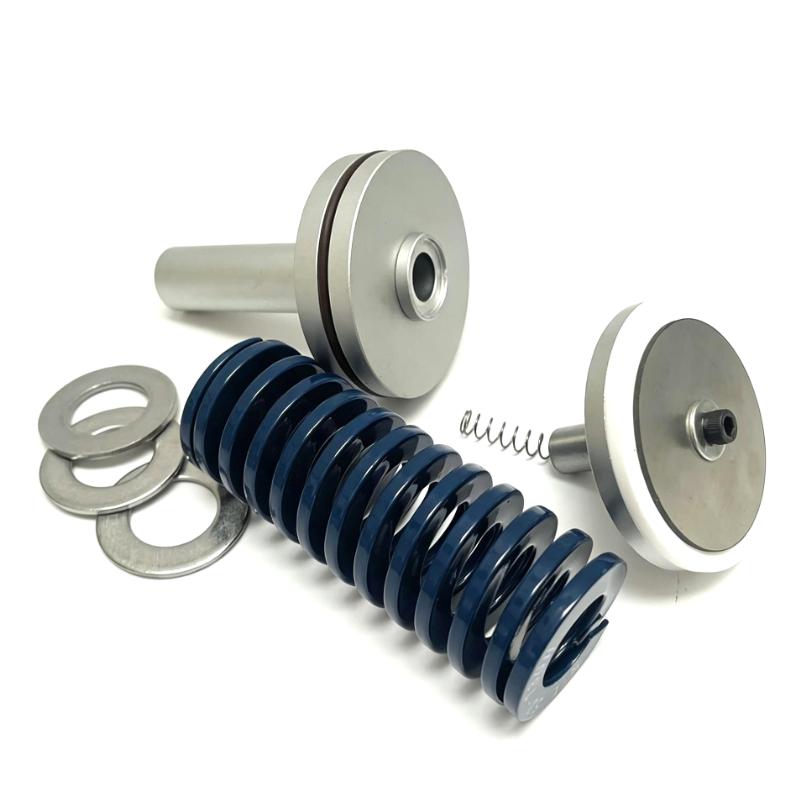

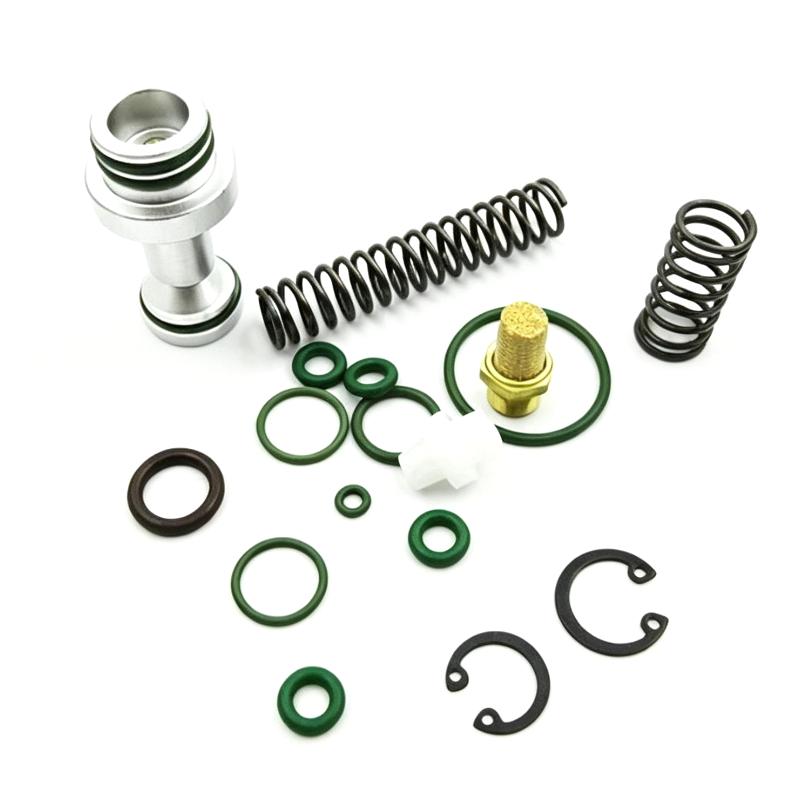

The Ingersoll Rand 47572176001 99289894 Minimum Pressure Check Valve Repair Kit is a service component used to maintain the minimum pressure valve assembly in compatible rotary screw air compressors. This valve assembly, commonly abbreviated as MPV or MPCV, is associated with pressure management and flow control within the compressor’s air and lubricant separation system.
In an oil-injected rotary screw compressor, the minimum pressure valve has an important function during startup and normal operation. It helps the separator vessel reach the pressure required by the compressor’s operating design before allowing the downstream air circuit to operate under its intended conditions. Depending on the valve arrangement, the assembly also incorporates a check-valve function that helps prevent reverse airflow when operating pressure changes or the compressor stops.
Over time, sealing surfaces and moving valve components can deteriorate through repeated pressure cycles, contamination, thermal exposure, and normal mechanical wear. A valve that no longer seals correctly may allow unwanted reverse flow, while a sticking or poorly regulating mechanism can interfere with normal pressure control. The 99289894 repair kit provides a designated service-parts option for maintaining the applicable minimum pressure check valve assembly.
The part number is listed in Ingersoll Rand parts references as a minimum pressure valve repair kit and is associated with M90–160 compressor applications in available parts listings. The exact service application depends on the installed compressor configuration and the corresponding valve assembly. The repair kit should be selected for the valve being serviced rather than treated as a universal kit for every Ingersoll Rand compressor.
Repairing the valve assembly can be appropriate when the valve body remains serviceable but internal components require attention. Before reassembly, technicians need to assess the condition of the valve seat, sealing surfaces, moving mechanism, and other serviceable areas. Damage to the valve body or other non-serviceable parts may require a different repair approach.
The valve’s condition can affect several aspects of compressor operation. Inadequate pressure retention may influence startup behavior, while leakage or incorrect valve movement can affect pressure regulation and the separation system’s operating conditions. These symptoms are not exclusive to the minimum pressure valve, so diagnosis should also consider the compressor’s pressure circuit, separator condition, and related control components.
Using the correct repair kit is important because valve assemblies can differ in their internal construction, dimensions, pressure characteristics, and sealing arrangements. A kit that fits a visually similar valve may not provide the correct internal components. The 99289894 reference should therefore be matched to the applicable service parts information for the equipment.
Following repair, the valve assembly should be checked for correct mechanical movement, sealing performance, and leakage under the prescribed commissioning procedure. A properly serviced minimum pressure check valve helps the compressor maintain the intended pressure-control behavior and supports normal operation of the associated air and lubricant circuits.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 47572176001 |
| Part Number | 99289894 |
| Product Type | Minimum Pressure Check Valve Repair Kit |
| Product Category | Compressor Valve Service Parts |
| Valve Assembly | Minimum Pressure Valve (MPV/MPCV) |
| Equipment Type | Rotary Screw Air Compressor |
| Primary Function | Repair and maintenance of the minimum pressure check valve assembly |
| System Application | Compressor pressure and flow management |
| Valve Function | Minimum-pressure regulation and check-valve operation, according to assembly design |
| Service Type | Valve assembly repair |
| Associated Equipment Range | M90–160 applications listed in parts references |
| Installation Location | Minimum pressure valve assembly |
| Maintenance Context | Inspection, repair, and restoration of serviceable valve components |
| Dimensions | 84 × 84 × 202 mm |
| Weight | 1.41 kg |
Product Features
- Valve assembly maintenance: Supports repair of the minimum pressure check valve in compatible compressor configurations.
- Pressure-control service: Addresses service requirements associated with the valve’s minimum-pressure function.
- Check-valve function: Supports maintenance of the valve assembly’s reverse-flow prevention function where incorporated.
- Internal component renewal: Provides a designated repair-kit option for servicing the applicable valve assembly.
- Compressor-specific application: Intended for use with the corresponding valve configuration rather than as a universal repair set.
- Maintenance-oriented design: Allows technicians to service an eligible valve assembly without automatically replacing the complete assembly.
- Pressure-system relevance: Supports the pressure conditions required for normal compressor operation.
- Service inspection compatibility: Can be incorporated into valve inspection and compressor maintenance procedures.
Working Principle
The Ingersoll Rand 99289894 Minimum Pressure Check Valve Repair Kit is used when servicing the valve assembly responsible for maintaining minimum pressure and controlling flow in the applicable compressor system. The repair kit itself does not regulate pressure; its role is to provide service parts for the valve mechanism.
In a typical oil-injected rotary screw compressor, compressed air and entrained lubricant enter the separator vessel. The minimum pressure valve is positioned in the downstream flow path and helps maintain the pressure required for the separation system to operate as intended. Once the necessary pressure conditions are established, the valve permits downstream flow according to its design.
Compression Element → Separator Vessel → Minimum Pressure Check Valve → Downstream Air Circuit
The valve’s pressure-regulating mechanism responds to the pressure difference across the assembly. Depending on the design, a spring-loaded moving element and sealing surfaces control when the valve begins to open and how it responds as operating pressure changes. The check-valve function helps restrict reverse flow when downstream pressure exceeds the pressure on the compressor side.
During normal operation, the valve must move freely and seal correctly. If internal sealing components wear, become damaged, or accumulate contamination, the assembly may not retain pressure or regulate flow as intended. A sticking mechanism can also affect the transition between startup and normal operating conditions.
The repair process begins with isolating and depressurizing the compressor in accordance with the equipment service procedure. After removing the valve assembly, the technician inspects its serviceable components and determines whether the valve body and other retained parts remain suitable for reuse. The designated repair-kit components are then installed according to the applicable service instructions.
Correct reassembly is essential. Incorrectly positioned seals, damaged contact surfaces, or improperly installed moving parts can affect the valve’s opening behavior and sealing performance. The repair procedure must preserve the assembly’s specified configuration rather than rely on visual similarity alone.
After servicing, the valve should be tested under the prescribed operating procedure. Pressure behavior, leakage, and the response of the associated system should be checked against the requirements for the particular compressor. If abnormal pressure behavior continues, the investigation should extend to the separator, downstream circuit, pressure sensing, and other components that may produce similar symptoms.
Role in the Compressor Pressure-Control System
The minimum pressure check valve is part of the pressure-management arrangement in compatible rotary screw compressors. It helps establish the operating conditions required by the separator vessel and regulates the release of compressed air into the downstream circuit.
Compression and Lubricant Injection → Separator Vessel → Minimum Pressure Check Valve → Compressed-Air Delivery
| System Component | Function |
|---|---|
| Minimum Pressure Check Valve | Maintains the intended minimum-pressure behavior and controls flow according to its design |
| 99289894 Repair Kit | Provides service parts for the applicable valve assembly |
| Separator Vessel | Receives the compressed air and lubricant mixture for separation |
| Oil Separator Element | Removes entrained lubricant from the compressed air |
| Compressor Airend | Compresses incoming air and, in oil-injected designs, circulates lubricant through the compression process |
| Lubricant Circuit | Supplies lubricant for sealing, lubrication, and heat management |
| Pressure Relief Valve | Protects the system against excessive pressure within its designated operating limits |
| Pressure Sensor or Switch | Provides pressure information for monitoring or control where fitted |
| Compressor Controller | Coordinates operating sequences and monitors available system signals |
| Downstream Air Circuit | Receives compressed air after the relevant pressure-control components |
The precise arrangement varies with compressor design. The repair kit must be used with the corresponding valve assembly and serviced according to the applicable maintenance instructions.
Industrial Applications
| Application | Typical Use |
|---|---|
| Rotary Screw Air Compressors | Repairing the minimum pressure check valve in compatible equipment |
| Ingersoll Rand M-Series Applications | Servicing applicable valve assemblies in the documented equipment range |
| Industrial Manufacturing | Maintaining compressor pressure-control functions supporting production equipment |
| Automotive Production | Supporting compressed-air equipment used in manufacturing processes |
| Process Industries | Maintaining the pressure-control components of industrial compressor packages |
| Central Compressed-Air Systems | Servicing valve assemblies in compressor installations supplying plant-wide air |
| Compressor Overhaul | Inspecting and repairing the minimum pressure valve during planned maintenance |
| Preventive Maintenance | Addressing valve wear and sealing issues identified during inspection |
| Pressure-Control Troubleshooting | Investigating abnormal startup pressure behavior or suspected valve leakage |
| Compressor Reliability Programs | Maintaining serviceable valve assemblies to support continued equipment operation |
Installation and Maintenance
- Isolate the compressor: Stop the machine and apply the prescribed lockout procedure before beginning valve maintenance.
- Depressurize the system: Confirm that the separator vessel and relevant piping have been safely depressurized before loosening any connections.
- Identify the valve assembly: Confirm that the installed minimum pressure check valve corresponds to the repair-kit application specified for the compressor.
- Record the existing arrangement: Note the orientation of the valve body, connections, and accessible components before disassembly.
- Remove the valve assembly: Disconnect the relevant piping and mounting hardware according to the equipment service procedure.
- Inspect the valve body: Check the housing, threads, sealing faces, and other retained components for damage that could prevent successful repair.
- Examine internal components: Look for worn seals, damaged contact surfaces, contamination, restricted movement, or other signs of deterioration.
- Prepare the service components: Compare the repair-kit contents with the applicable parts documentation and keep components clean during installation.
- Reassemble the valve: Install the specified service components in the correct positions and follow the prescribed assembly sequence and tightening requirements.
- Reinstall the assembly: Restore the valve to its designated location and reconnect the associated piping and fittings.
- Check operation and leakage: Return the compressor to service using the approved procedure and assess pressure behavior and leakage around the repaired assembly.
- Document the repair: Record the service date, operating hours, observed wear, and commissioning results to support subsequent maintenance decisions.
If the repaired valve continues to exhibit abnormal pressure behavior, do not assume that the repair kit itself is the cause. Inspect the valve body, associated separator system, pressure sensing components, and downstream circuit as appropriate to the observed symptoms.
Related Components
| Component | Function |
|---|---|
| Ingersoll Rand 99289894 Minimum Pressure Check Valve Repair Kit | Provides service parts for the designated minimum pressure valve assembly |
| Minimum Pressure Check Valve Assembly | Regulates minimum pressure and provides check-valve functionality according to its design |
| Oil Separator Element | Separates lubricant from compressed air |
| Separator Vessel | Houses the air and lubricant separation process |
| Compressor Airend | Produces compressed air and supports the compressor’s internal lubrication process |
| Lubricant Filter | Removes particulate contaminants from the circulating lubricant |
| Lubricant Cooler | Removes heat from the lubricant circuit where fitted |
| Pressure Sensor or Switch | Supplies pressure information for monitoring and control |
| Pressure Relief Valve | Protects against excessive pressure within its specified limits |
| Compressor Controller | Monitors operating signals and coordinates the compressor’s control sequence |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 99289894 | Minimum Pressure Check Valve Repair Kit | Repairing the applicable minimum pressure valve assembly |
| Ingersoll Rand 22064695 | Minimum Pressure Valve Repair Kit | Valve repair in its designated compressor application |
| Ingersoll Rand 23392368 | Minimum Pressure Valve Service Kit | Service of compatible NG R-Series and RM-Series compressor valve assemblies |
| Ingersoll Rand 54686803 | Minimum Pressure Check Valve Kit | Related minimum pressure valve service application |
| Ingersoll Rand 54750369-RK | Minimum Pressure Check Valve Replacement Kit | Replacement valve service application |
Key Advantages
- Supports repair of the minimum pressure check valve assembly.
- Helps restore the valve’s intended pressure-regulation and check-valve functions.
- Provides a service-parts option when the existing valve body remains suitable for repair.
- Supports planned compressor maintenance and valve inspection.
- Helps address wear and sealing issues within the applicable valve assembly.
- Contributes to the maintenance of normal compressor pressure-control behavior when correctly installed.
Technical FAQs
What symptoms may indicate that the minimum pressure check valve requires repair?
Possible symptoms include abnormal pressure buildup during startup, suspected reverse leakage, or pressure behavior that differs from the compressor’s normal operating pattern. These symptoms can also arise from other system components, so the valve should be inspected as part of a broader diagnosis.
Why is the condition of the existing valve body important when using the 99289894 repair kit?
A repair kit can renew the components it is intended to service, but it cannot automatically correct a cracked housing, damaged threads, badly worn sealing surfaces, or other defects outside the kit’s scope. The retained valve components must be inspected before reassembly.
How does the minimum pressure check valve affect compressor startup?
The valve helps the separator vessel reach the pressure conditions required by the compressor’s design before allowing normal downstream flow. If the valve does not operate correctly, the startup pressure sequence may be affected, depending on the system configuration and the nature of the fault.
What should be checked if abnormal pressure behavior remains after the valve has been repaired?
Check the valve’s assembly and sealing condition first, then assess the separator system, pressure sensing components, and associated piping as appropriate. The commissioning results should be compared with the service requirements for the specific compressor rather than relying on a general pressure value.
