Product Overview

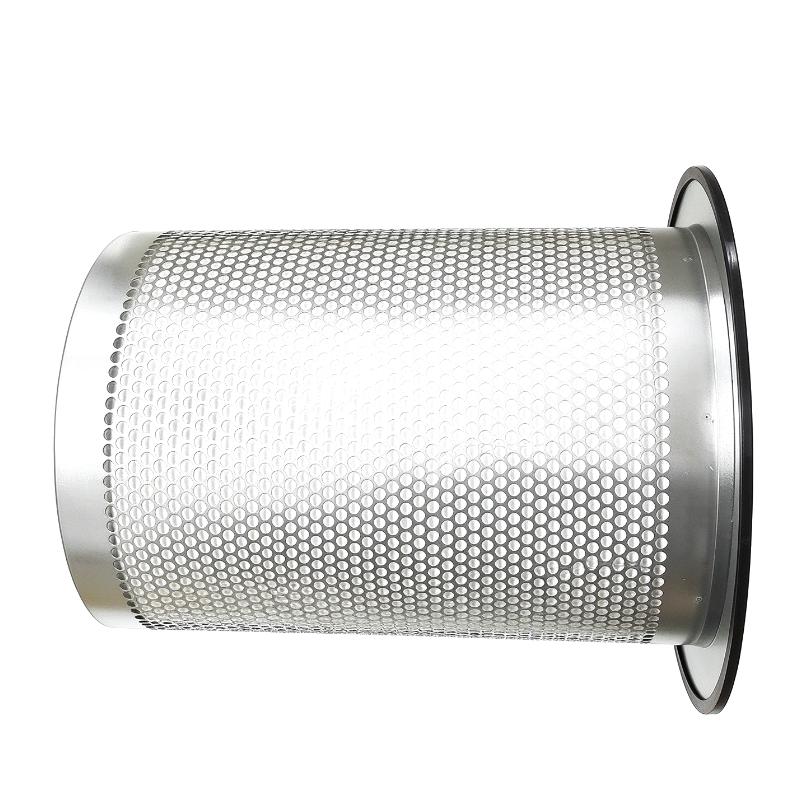

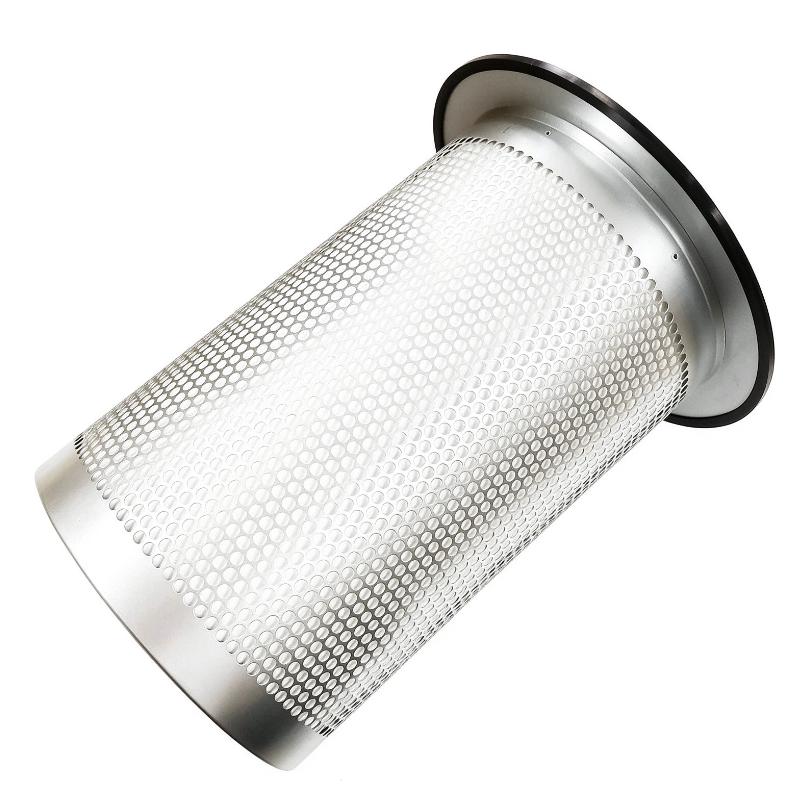

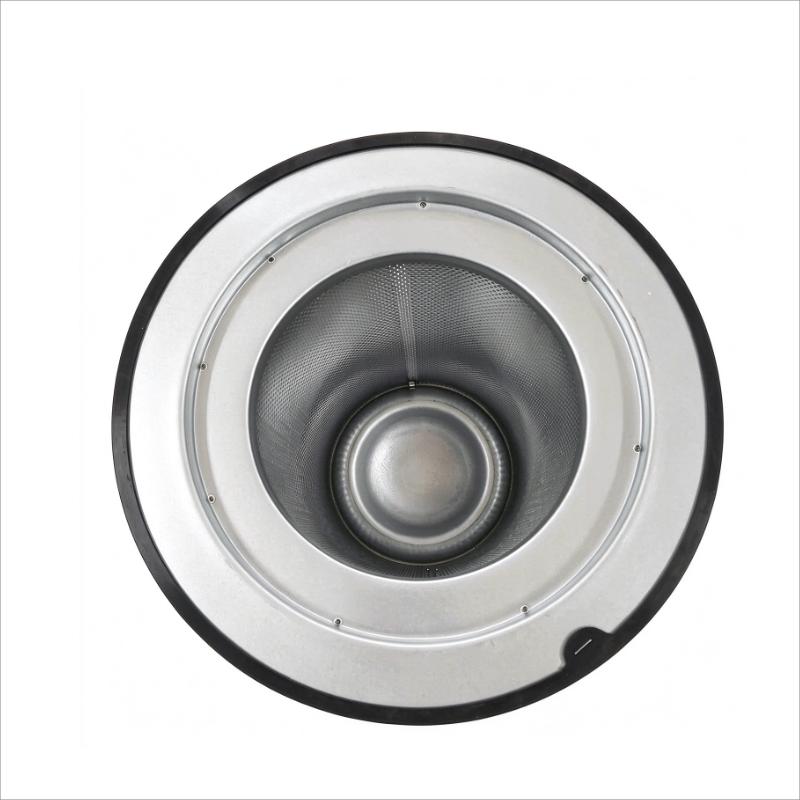

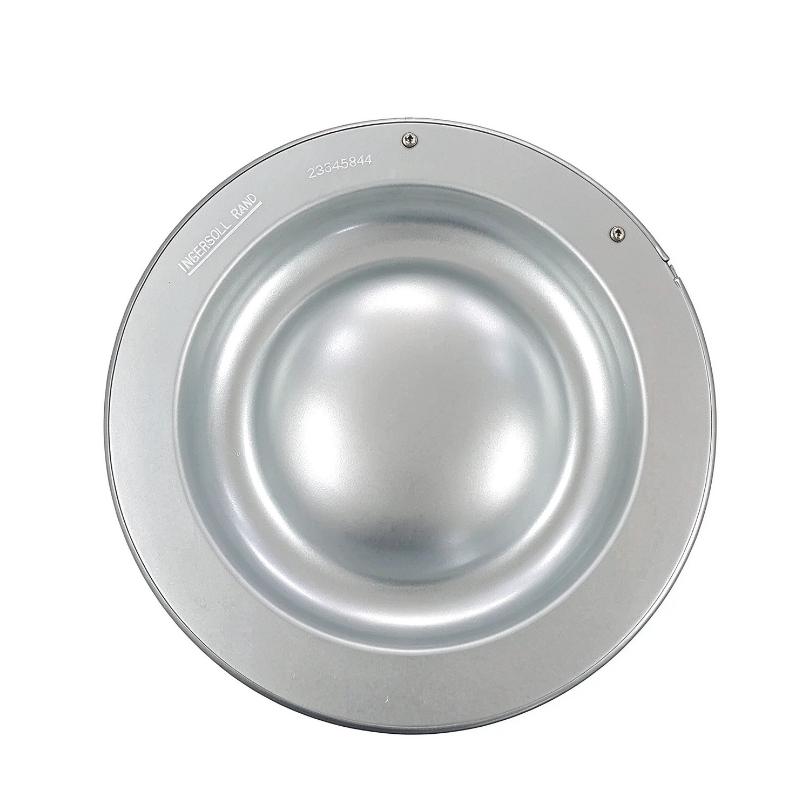

The Ingersoll Rand 47572174001 23545841 Air/Oil Separator is a replacement separator element for compatible oil-injected rotary screw air compressors. Its primary function is to remove oil mist from the compressed air leaving the compression stage while allowing separated lubricant to return to the compressor’s oil circulation system. Maintaining this separation process helps control oil carryover and preserve the performance of downstream compressed air equipment.

During compression, air mixes with lubricating oil inside the screw air end. The oil lubricates the rotating components, helps seal the compression chambers, and carries away heat generated during operation. Before the compressed air enters the plant distribution network, the air/oil separator removes most of the entrained oil droplets and aerosols from the discharge stream.

The 23545841 separator is associated with compatible Ingersoll Rand R-Series compressor configurations, including certain R90, R110, R132, and R160 variants. The precise application depends on the compressor model, production configuration, and serial-number range. The related reference 47572174001 should therefore be checked against the installed separator and equipment parts identification before replacement.

Separator performance directly affects compressor operation. As the filter media accumulates contaminants, the pressure difference across the element may increase. A restricted separator can increase the compressor’s operating burden, while damaged media or a compromised sealing interface can allow excessive oil to enter the downstream air stream.

For example, a manufacturing facility operating several screw compressors may use the separator to maintain acceptable oil carryover in the compressed air supplied to pneumatic tools, automated machinery, and production equipment. If oil begins appearing in downstream filters or condensate drains, the separator is one of the components that should be investigated, alongside the oil return circuit, compressor oil level, and operating conditions.

The replacement element must match the separator vessel and its sealing arrangement. Correct installation is just as important as selecting the right part: damaged gaskets, an incorrectly seated element, or an obstructed oil return line can compromise separation performance even when the replacement element itself is suitable.

Technical Specifications

Product Features

• Air/oil separation: Removes entrained oil droplets and aerosols from the compressed air stream.
• Coalescing filtration: Collects fine oil droplets so that separated lubricant can drain back into the compressor system.
• Compressor lubrication support: Helps retain lubricant within the intended circulation circuit.
• Downstream air quality: Reduces oil carryover that could contaminate air receivers, piping, and downstream treatment equipment.
• Pressure-drop management: Supports normal compressor operation when the element is maintained within its permitted service limits.
• Separator vessel compatibility: Requires a matching housing, sealing interface, and installation arrangement.
• Replacement maintenance: Allows a worn or restricted separator element to be renewed without replacing the complete separator vessel.
• Oil recovery compatibility: Works with the compressor’s oil return arrangement to collect and return separated lubricant.
• Application-specific identification: Uses part number 23545841 for matching the replacement element to the intended compressor configuration.
• Routine service integration: Can be included in scheduled compressor maintenance based on operating hours and measured separator condition.

Working Principle

The 23545841 air/oil separator uses coalescing filtration to separate oil from the compressed air generated by an oil-injected screw compressor. The compressed air-oil mixture enters the separator vessel, where the separation element captures oil droplets while allowing the air to pass through the filter media.

Screw Air End → Oil Separator Vessel → 23545841 Separator Element → Minimum Pressure Valve → Aftercooler → Compressed Air Network

As the air-oil mixture passes through the separator media, fine oil droplets collect on the fibers and combine into larger droplets. Under the intended operating conditions, the collected oil drains toward the lower collection area of the separator assembly. The compressor’s oil return circuit then carries the recovered lubricant back to the appropriate point in the lubrication system.

The separation process depends on more than the filter media alone. Airflow, operating pressure, oil condition, separator loading, sealing integrity, and the condition of the oil return circuit all influence the amount of oil remaining in the discharge air.

A clean element allows compressed air to pass with the pressure drop expected for the operating conditions. As contaminants accumulate or the media becomes restricted, the differential pressure can rise. The compressor may then require more energy to maintain the required discharge pressure, and operating temperatures or control behavior may change depending on the severity of the restriction.

Excessive oil carryover can occur when the media is damaged, the sealing interface leaks, or the oil return circuit does not remove collected lubricant correctly. Incorrect oil level, unsuitable lubricant, excessive airflow, and other compressor faults can also produce similar symptoms. Replacing the separator without investigating these conditions may not resolve the underlying problem.

After replacement, the compressor should be checked under its approved operating procedure. Differential pressure, oil carryover, discharge behavior, and oil return operation should be evaluated against the applicable service limits. These checks help establish whether the separator is functioning correctly within the complete compressor system.

Role in an Ingersoll Rand Compressed Air System

The 23545841 separator element occupies the oil separation stage between the screw air end and the downstream compressed air treatment circuit. It removes entrained lubricant before the air passes through the minimum pressure valve and cooling stages.

Air Intake → Screw Air End → Oil Separator Vessel → Air/Oil Separator Element → Minimum Pressure Valve → Aftercooler → Air Receiver / Distribution Network

Industrial Applications

Installation and Maintenance

1. Verify the replacement reference: Confirm part number 23545841 and the associated 47572174001 reference against the compressor identification and installed separator configuration.
2. Review operating symptoms: Record any increase in separator differential pressure, excessive oil carryover, abnormal oil consumption, or changes in compressor operating behavior.
3. Isolate the compressor: Stop the unit, disconnect the relevant electrical supply, and follow the site’s lockout/tagout procedure before starting maintenance.
4. Depressurize the system: Confirm that the separator vessel and connected piping are fully depressurized according to the compressor service procedure before opening the housing.
5. Document the original arrangement: Record the separator orientation, sealing arrangement, oil return connections, and any associated hardware before removing the existing element.
6. Inspect the separator vessel: Check the housing, sealing surfaces, internal supports, and connections for contamination, damage, or signs of leakage.
7. Examine the removed element: Look for collapsed media, damaged seals, contamination, or other conditions that may explain the original operating symptoms.
8. Prepare the replacement element: Confirm that the replacement matches the required application and inspect its sealing surfaces before installation.
9. Install the separator correctly: Follow the applicable service instructions for element positioning, gasket placement, oil return connections, and housing assembly.
10. Check the oil return circuit: Inspect the return line and associated fittings for restrictions, damage, or incorrect routing that could interfere with oil recovery.
11. Test after reassembly: Restore the compressor to service under controlled conditions and check for leakage, abnormal differential pressure, excessive oil carryover, and unusual operating behavior.
12. Record maintenance results: Document the installed part number, operating hours, initial symptoms, relevant pressure readings, and post-maintenance observations.

Related Components

Recommended Related Models

Key Advantages

• Removes entrained oil from compressed air in compatible rotary screw compressors.
• Supports oil recovery through the compressor’s separation and return circuits.
• Helps control oil carryover into downstream compressed air equipment.
• Supports normal compressor operation when maintained within the specified service limits.
• Allows the separator element to be replaced without automatically replacing the complete vessel.
• Provides a defined part reference for maintenance planning and replacement identification.

Technical FAQs

What symptoms can indicate that the 23545841 separator needs replacement?

Common indications include increasing differential pressure across the separator, excessive oil carryover, abnormal oil consumption, or a change in compressor operating behavior. These symptoms can also result from oil return restrictions, incorrect oil level, or other system faults, so the complete separation circuit should be checked.

Which Ingersoll Rand compressors can use the 23545841 separator?

The part is associated with selected R90, R110, R132, and R160 compressor configurations. Compatibility depends on the specific model, serial-number range, and installed separator arrangement rather than the compressor series name alone.

How does a restricted separator affect compressor operation?

A restricted element increases resistance to airflow and can raise the pressure drop across the separation stage. Depending on the operating conditions, this may increase the energy required to maintain discharge pressure and can affect compressor performance. Differential pressure should be evaluated against the applicable service limits.

Why should the oil return line be checked when replacing the separator?

The oil return line carries separated lubricant back into the compressor’s lubrication circuit. If it becomes obstructed or is incorrectly connected, collected oil may not drain as intended, potentially contributing to excessive oil carryover or abnormal oil consumption even when the separator element is new.
