1. Product Overview

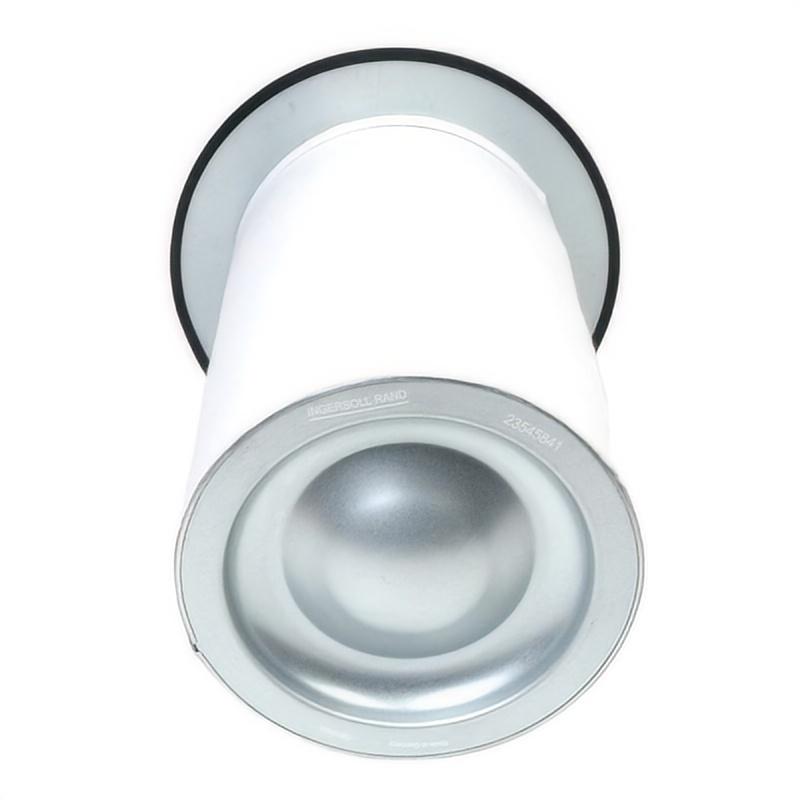

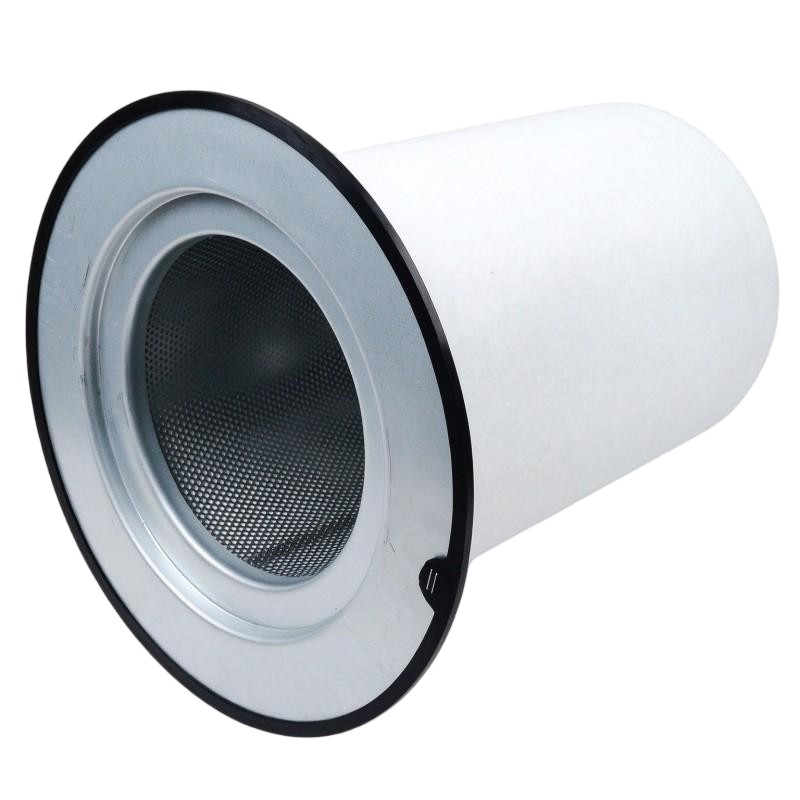

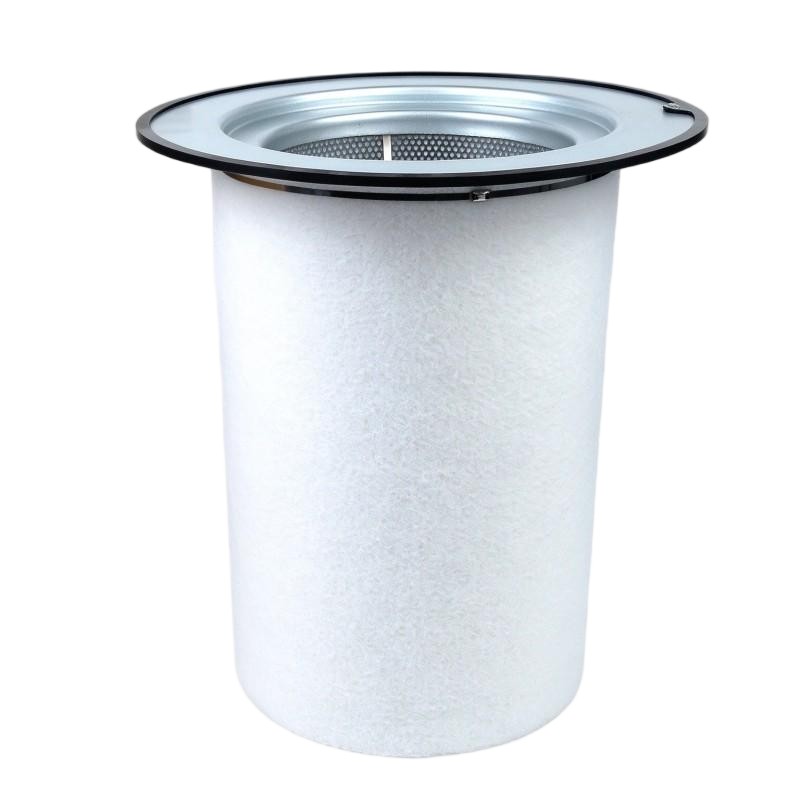

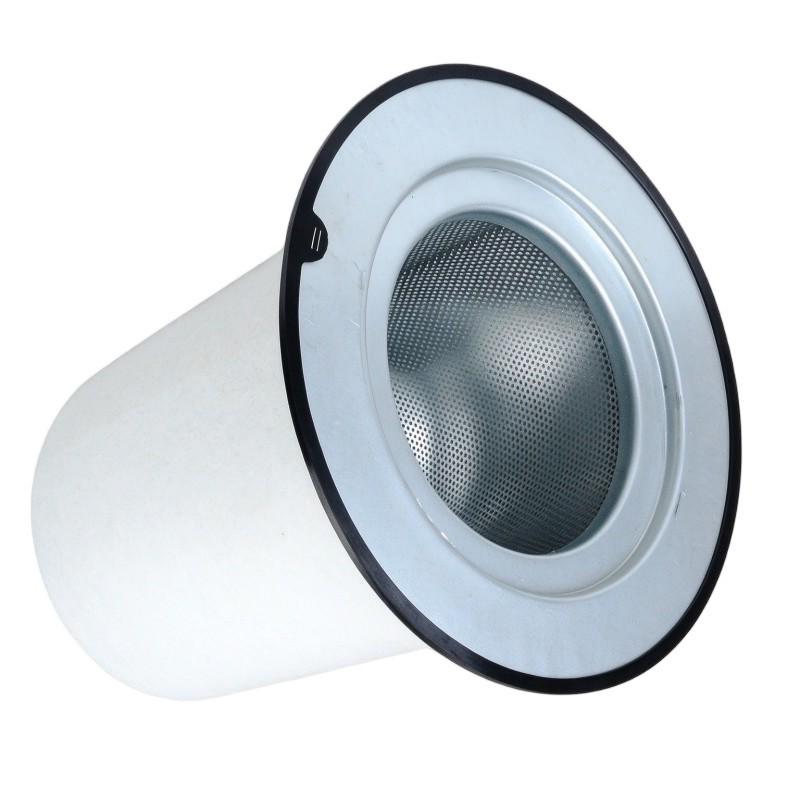

The Ingersoll Rand 47572172001 23545841 Air-Oil Separator is an industrial filtration component designed for air-oil separation applications in compatible compressor systems. In oil-injected compressors, the separation process helps remove entrained oil from compressed air before the air moves downstream. Effective separation supports oil management, helps reduce oil carryover, and contributes to reliable compressor operation.

Air-oil separators are important components in many industrial compressed-air systems. When a separator becomes contaminated, damaged, or reaches the end of its service life, separation performance may deteriorate. This can contribute to increased oil consumption, downstream oil contamination, abnormal operating conditions, or additional maintenance requirements.

The Ingersoll Rand 47572172001 23545841 is identified as an air-oil separator with a specified diameter of 375 mm and a listed weight of 7.5 kg. Before ordering a replacement, confirm the complete part number and compatibility with the specific compressor model and configuration.

2. Technical Specifications

Note: Only the diameter and weight were provided. Overall height, connection dimensions, filtration performance, operating limits, and compatible compressor models should be verified against the equipment documentation.

3. Function and Working Principle

In oil-injected compressor systems, oil may be introduced into the compression process for functions such as lubrication, cooling, and sealing. The resulting compressed-air mixture contains oil droplets that must be separated before the air is delivered to the downstream system.

An air-oil separator helps perform this separation through a medium and structure designed for the specific equipment.

Oil Separation

The separator reduces the amount of oil carried with the compressed air. Its effectiveness depends on the separator design, operating conditions, oil characteristics, and condition of the separation medium.

Oil Recovery

In many compressor designs, separated oil collects and returns to the designated oil circuit. This helps maintain the compressor’s oil supply and reduces unnecessary oil loss.

Compressed-Air Quality

Effective separation helps control oil carryover into downstream piping and equipment. The actual air quality achieved depends on the complete compressor system and any additional treatment equipment installed.

Compressor Operating Efficiency

A separator in suitable condition helps the compressor operate within its intended design parameters. A clogged or unsuitable separator may increase pressure drop and affect energy consumption or operating performance.

4. Applications in Industrial Compressed-Air Systems

Air-oil separators are commonly used in oil-injected compressor systems where oil must be separated from compressed air.

Typical application areas include:

• Industrial air compressors: Separating oil from the compressed-air stream in compatible oil-injected designs.
• Manufacturing facilities: Supporting compressed-air supply for pneumatic machinery and production equipment.
• Industrial automation: Helping provide appropriately treated compressed air for pneumatic actuators, valves, and other air-operated equipment.
• Plant utility systems: Supporting compressed-air generation for general industrial services.
• Compressor maintenance and overhaul: Replacing a separator when required by the maintenance schedule or when inspection identifies a performance problem.

The exact application of the Ingersoll Rand 47572172001 23545841 should be confirmed using the compressor model, serial number, and applicable parts list. Not every compressor uses the same separator design.

5. Installation and Replacement Guide

Replacing an air-oil separator involves working with compressor components that may retain pressure, heat, and oil. Maintenance should be carried out by qualified personnel using the equipment manufacturer’s approved procedures.

Step 1: Verify the Replacement Part

Confirm that the required component is Ingersoll Rand 47572172001, reference number 23545841. Compare the diameter and other available physical details with the existing separator, and verify compatibility using the equipment model and serial number.

Step 2: Shut Down and Isolate the Compressor

Shut down the compressor according to the manufacturer’s procedure. Isolate all relevant energy sources and ensure that the system is fully depressurized before opening any pressure-containing component.

Allow hot surfaces to cool. Never loosen a separator housing or pressure connection while the system remains pressurized.

Step 3: Access the Separator Assembly

Open the appropriate service access area according to the equipment-specific instructions. Identify the separator location, connections, seals, and retaining components before removal.

Step 4: Remove the Used Separator

Remove the existing component following the prescribed procedure. Handle it carefully to avoid spilling residual oil or introducing contaminants into the compressor’s oil circuit.

Dispose of the used separator and contaminated materials according to applicable workplace and environmental requirements.

Step 5: Inspect the Housing and Sealing Surfaces

Inspect the housing, sealing surfaces, connections, and associated oil-return arrangements where applicable. Look for damage, contamination, deteriorated seals, or other conditions that could compromise the replacement installation.

Clean the relevant areas using an approved method. Avoid allowing debris to enter the oil or compressed-air passages.

Step 6: Install the New Separator

Install the replacement component in the specified orientation and sequence. Replace seals or other service parts as required by the maintenance instructions.

Use only the specified tightening torques, sealing methods, and installation procedures. Do not apply generic torque values or assume that all separator designs use the same mounting arrangement.

Step 7: Reassemble and Check

Reinstall the required covers and connections. Confirm that the separator is correctly seated and that the assembly has been completed according to the service documentation.

Step 8: Restart and Monitor

Restore the equipment to service using the approved startup procedure. Monitor operating pressure, temperature, oil consumption, and any available separator-related indicators.

Check for leaks and abnormal operating conditions. If oil carryover, unexpected pressure changes, or alarms persist, stop and investigate the cause before returning the compressor to normal service.

6. Common Air-Oil Separator Problems and Troubleshooting

Excessive Oil Carryover

Possible causes:

• A worn, damaged, or unsuitable separator.
• Incorrect separator installation or sealing.
• A problem with the oil-return arrangement.
• Compressor operating conditions outside the intended range.
• Excessive oil level or another oil-system fault.

Recommended action:

Check the separator’s condition and confirm that the correct replacement part is installed. Inspect the oil-return system and review operating conditions according to the compressor service manual. Do not assume that replacing the separator alone will resolve every oil carryover problem.

High Pressure Drop Across the Separator

Possible causes:

• Separator contamination or restriction.
• A separator that has reached its service limit.
• Incorrect component selection.
• An issue with the surrounding airflow path or measurement system.

Recommended action:

Review the available pressure readings and compare them with the equipment manufacturer’s operating limits. Inspect and replace the separator when required by the service procedure.

Increased Oil Consumption

Possible causes:

• Oil escaping through the compressed-air outlet.
• Leaks elsewhere in the compressor.
• A faulty oil-return arrangement.
• Incorrect oil level or unsuitable operating conditions.

Recommended action:

Inspect the separator and the broader oil system. Check for leaks and verify the oil level according to the manufacturer’s instructions before identifying the separator as the sole cause.

Abnormal Compressor Temperature

Possible causes:

• Restricted airflow or elevated pressure drop.
• Inadequate cooling.
• Oil circulation problems.
• Other compressor faults unrelated to the separator.

Recommended action:

Review the compressor’s temperature and pressure indications. Inspect the separator and associated systems as part of a complete diagnosis rather than replacing components without evidence.

Repeated Separator Replacement

Possible causes:

• Operating conditions that accelerate contamination.
• Incorrect separator selection.
• An unresolved oil-return or system problem.
• Maintenance intervals unsuitable for the actual operating environment.

Recommended action:

Review maintenance records, operating conditions, and the original equipment requirements. Identify the underlying cause before installing another replacement.

7. Preventive Maintenance Recommendations

A structured maintenance program can help maintain separation performance and reduce unplanned compressor downtime.

• Follow the recommended service interval: Use the interval specified for the compressor model and operating conditions.
• Monitor pressure drop: Where the equipment provides separator differential-pressure monitoring, review readings according to the manufacturer’s guidance.
• Track oil consumption: Unexplained changes may indicate a separator issue or another oil-system fault.
• Inspect for leaks: Check accessible connections and sealing areas during scheduled service.
• Maintain oil-system cleanliness: Prevent dirt and debris from entering the compressor during separator replacement.
• Use verified replacement parts: Confirm the part number and equipment compatibility before installation.
• Record maintenance activities: Document installation dates, operating readings, oil consumption, and any observed faults.

The appropriate service interval depends on the compressor design, operating hours, oil condition, and environmental factors. It should not be determined from the separator’s diameter or weight alone.

8. Compatibility and Replacement Considerations

Choosing a compatible air-oil separator requires more than matching the outside diameter. Components with similar dimensions may differ in height, mounting design, sealing arrangement, separation medium, pressure capability, and operating characteristics.

Before purchasing the Ingersoll Rand 47572172001 23545841 Air-Oil Separator, verify the following:

An alternative separator should not be selected solely because its diameter is 375 mm. Correct separation performance and mechanical compatibility are essential to avoid excessive oil carryover, increased pressure drop, or equipment problems.

9. Key Benefits of Correct Air-Oil Separator Selection

Selecting and maintaining the correct separator can support several important operational objectives:

• Reduced oil carryover: Helps control the amount of oil entering the compressed-air stream.
• Oil recovery: Supports the return of separated oil in compressor designs that use an integrated oil-recovery arrangement.
• Stable operation: A suitable separator helps the compressor operate within its intended design conditions.
• Downstream equipment protection: Reduced oil carryover can help limit oil contamination in downstream piping and equipment.
• Maintenance planning: Correct part identification makes replacement planning and spare-parts management more reliable.
• Reduced unexpected downtime: Timely maintenance can help address separator-related issues before they lead to more significant operating problems.

Actual results depend on correct part selection, installation quality, compressor condition, and the requirements of the complete compressed-air system.

10. Frequently Asked Questions

What is the Ingersoll Rand 47572172001 23545841 Air-Oil Separator?

It is an air-oil separation component identified by part number 47572172001 and reference number 23545841. It is intended for compatible compressor applications, subject to confirmation of the specific equipment model.

What is the diameter of this air-oil separator?

The supplied diameter is 375 mm.

What is the listed weight?

The supplied product weight is 7.5 kg.

What are the signs of an air-oil separator problem?

Possible symptoms include excessive oil carryover, increased pressure drop, rising oil consumption, or abnormal compressor operation. These symptoms can also be caused by other faults, so proper diagnosis is important.

How often should the separator be replaced?

Follow the maintenance schedule for the specific compressor and adjust servicing based on the manufacturer’s guidance and actual operating conditions. Do not rely on a universal replacement interval.

Can another separator with the same diameter be used?

Not necessarily. Diameter alone does not confirm compatibility. Overall dimensions, mounting configuration, sealing design, separation performance, and equipment requirements must also match.

11. Conclusion

The Ingersoll Rand 47572172001 23545841 Air-Oil Separator is an industrial compressor separation component with a specified diameter of 375 mm and a listed weight of 7.5 kg. In compatible oil-injected compressor systems, the separator helps reduce oil carryover and supports effective oil management.

For dependable performance, verify the complete part number and compressor compatibility before ordering. Proper installation, routine monitoring, and timely maintenance help maintain separation performance, protect downstream equipment, and support reliable industrial compressed-air operation.
